The C10-2800WG is a WR28 10dB waveguide coupler featuring high directivity over a 26.5-40GHz operational bandwidth. These waveguide components are built with high precision and then gold plated for high corrosion resistance. They have very low loss and excellent VSWR. Manufactured to rigid specifications, these transmission line components provide minimum detrimental effects on overall system VSWR.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C10-2800WG | WR-28 High Directivity Waveguide Coupler, 10dB, 26.5-40 GHz | WR-28 | RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C10-2800WG | WR-28 High Directivity Waveguide Coupler, 10dB, 26.5-40 GHz | WR-28 | RoHS | Released | EAR99 |
C10-2800WG
WR-28 High Directivity Waveguide Coupler, 10dB, 26.5-40 GHz
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-07-14 | Initial Release |
C10-2800WG
WR-28 High Directivity Waveguide Coupler, 10dB, 26.5-40 GHz
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input | WR-28-UG-599/U | - | - |
| Port 2 | Coupled | - | -10dB coupled output port | - |
| Port 3 | Output | WR-28-UG-599/U | - | - |
C10-2800WG
WR-28 High Directivity Waveguide Coupler, 10dB, 26.5-40 GHz
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

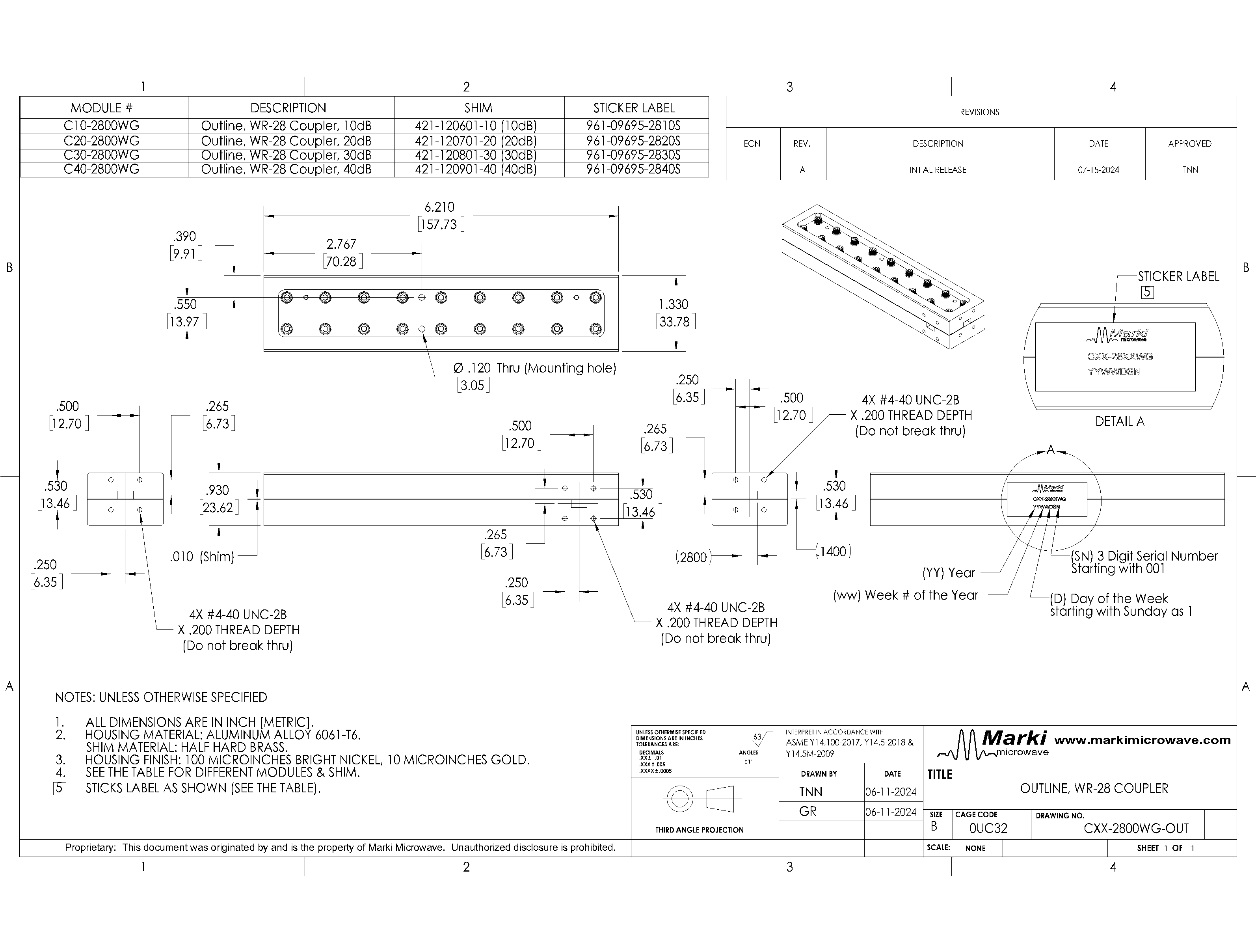

| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -55 | °C |
| Parameter | Details | Rating |
|---|---|---|
| ESD | This device is not sensitive to ESD. | N/A |
| Dimensions | - | 97.28 x 30.48 x 21.84 mm |
C10-2800WG
WR-28 High Directivity Waveguide Coupler, 10dB, 26.5-40 GHz
Min and Max limits are guaranteed at Ta = 25°C
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness 1 | - | 26.5 | 40 | - | 1 | - | dB |
| Directivity | - | 26.5 | 40 | 25 | 38.9 | - | dB |
| Direct Line Insertion Loss | - | 26.5 | 40 | - | 0.83 | - | dB |
| Mean Coupling | Output Referred | 26.5 | 40 | - | 10 | - | dB |
| Mean Coupling (Input Referred) | - | 26.5 | 40 | - | 10.5 | - | dB |
| Return Loss | - | 26.5 | 40 | 20 | 39 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness 1 | - | 26.5 | 40 | - | 1 | - | dB |
| Directivity | - | 26.5 | 40 | 25 | 38.9 | - | dB |
| Direct Line Insertion Loss | - | 26.5 | 40 | - | 0.83 | - | dB |
| Mean Coupling | Output Referred | 26.5 | 40 | - | 10 | - | dB |
| Mean Coupling (Input Referred) | - | 26.5 | 40 | - | 10.5 | - | dB |
| Return Loss | - | 26.5 | 40 | 20 | 39 | - | dB |
[1] Deviation from Average Coupling
