The C10-1900WG is a WR19 10dB waveguide coupler featuring high directivity over a 40-60GHz operational bandwidth. These waveguide components are built with high precision and then gold plated for high corrosion resistance. They have very low loss and excellent VSWR. Manufactured to rigid specifications, these transmission line components provide minimum detrimental effects on overall system VSWR.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C10-1900WG | WR-19 High Directivity Waveguide Coupler, 10dB, 40-60GHz | WR-19 | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C10-1900WG | WR-19 High Directivity Waveguide Coupler, 10dB, 40-60GHz | WR-19 | Released | EAR99 |
C10-1900WG
WR-19 High Directivity Waveguide Coupler, 10dB, 40-60GHz
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-07-15 | Initial Release |
C10-1900WG
WR-19 High Directivity Waveguide Coupler, 10dB, 40-60GHz
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input | WR-19-UG-383/U | - | - |
| Port 2 | Coupled | WR-19-UG-383/U | -10dB coupled output port | - |
| Port 3 | Output | WR-19-UG-383/U | - | - |
C10-1900WG
WR-19 High Directivity Waveguide Coupler, 10dB, 40-60GHz
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -55 | °C |
| Parameter | Details | Rating |
|---|---|---|
| ESD | This device is not sensitive to ESD. | N/A |

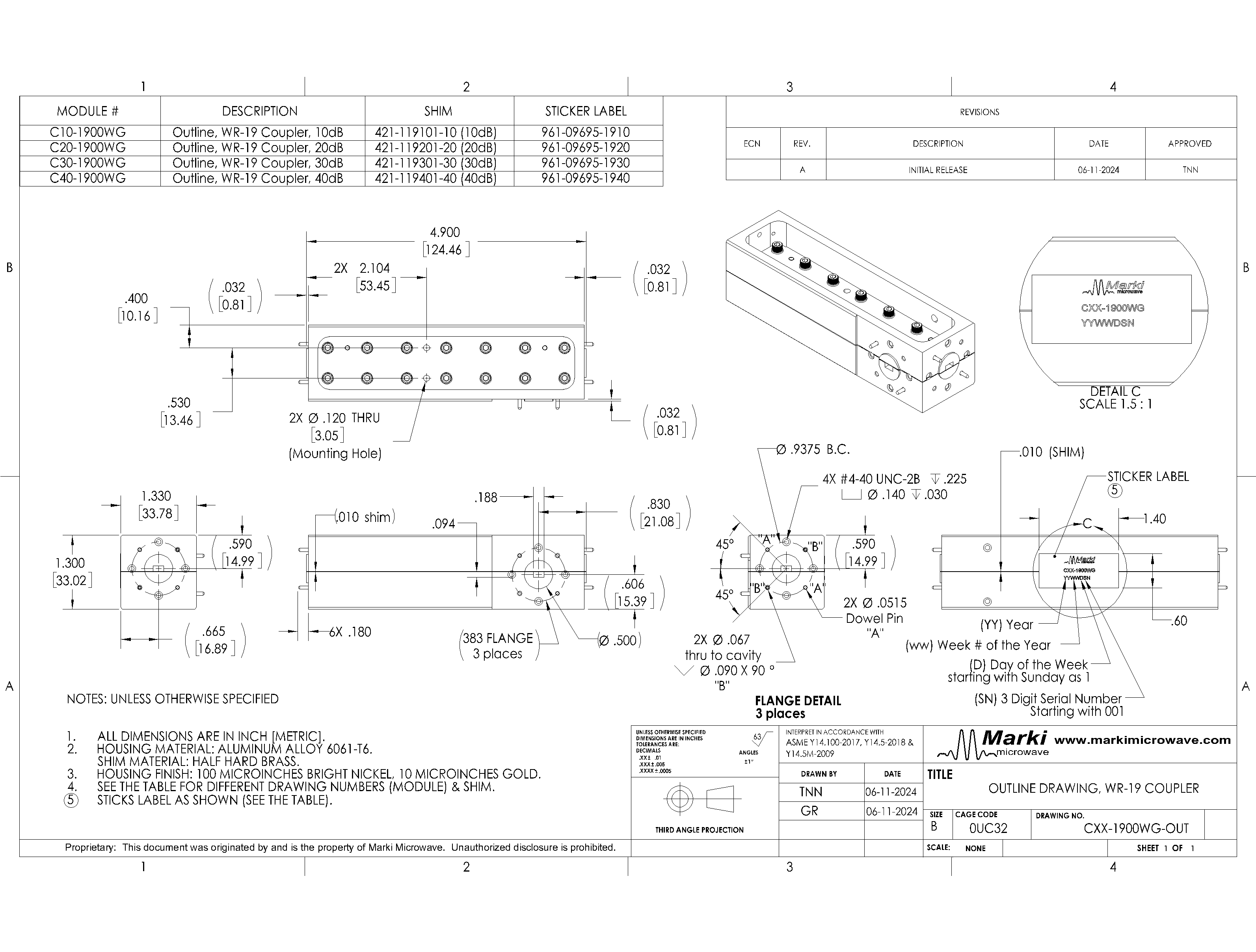

| Dimensions | - | 124.46 x 33.02 x 33.78 mm |
C10-1900WG
WR-19 High Directivity Waveguide Coupler, 10dB, 40-60GHz
Min and Max limits are guaranteed at Ta = 25°C
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness | - | 40 | 60 | - | 1 | - | dB |
| Directivity | - | 40 | 60 | 25 | 42.2 | - | dB |
| Direct Line Insertion Loss | - | 40 | 60 | 1.2 | 0.83 | - | dB |
| Mean Coupling | Output Referred | 40 | 60 | - | 9 | - | dB |
| Mean Coupling (Input Referred) | - | 40 | 60 | - | 10 | - | dB |
| Return Loss | - | 40 | 60 | 20 | 52 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness | - | 40 | 60 | - | 1 | - | dB |
| Directivity | - | 40 | 60 | 25 | 42.2 | - | dB |
| Direct Line Insertion Loss | - | 40 | 60 | 1.2 | 0.83 | - | dB |
| Mean Coupling | Output Referred | 40 | 60 | - | 9 | - | dB |
| Mean Coupling (Input Referred) | - | 40 | 60 | - | 10 | - | dB |
| Return Loss | - | 40 | 60 | 20 | 52 | - | dB |
