Device Overview
General Description
The C10-1000WG is a WR10 10dB waveguide coupler featuring high directivity over a 75-110GHz operational bandwidth. These waveguide components are built with high precision and then gold plated for high corrosion resistance. They have very low loss and excellent VSWR. Manufactured to rigid specifications, these transmission line components provide minimum detrimental effects on overall system VSWR.
Features
- 10dB Coupling
- Low Loss
- High Directivity
- WR-10 Waveguide
- UG-387/U Input and Output Flanges
Applications
- mmWave Applications
- High Power Applications
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C10-1000WG | WR-10 High Directivity Waveguide Coupler, 10dB, 75-110GHz | WR-10 | Consult Factory | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C10-1000WG | WR-10 High Directivity Waveguide Coupler, 10dB, 75-110GHz | WR-10 | Consult Factory | Released | EAR99 |
C10-1000WG
WR-10 High Directivity Waveguide Coupler, 10dB, 75-110GHz
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-03-15 | Initial Datasheet Release |
C10-1000WG
WR-10 High Directivity Waveguide Coupler, 10dB, 75-110GHz
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input | WR-10-UG-387/U | - | - |
| Port 2 | Coupled | WR-10-UG-387/U | -10dB coupled output port | - |
| Port 3 | Output | WR-10-UG-387/U | - | - |
C10-1000WG
WR-10 High Directivity Waveguide Coupler, 10dB, 75-110GHz
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -55 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | This device is not sensitive to ESD. | N/A |

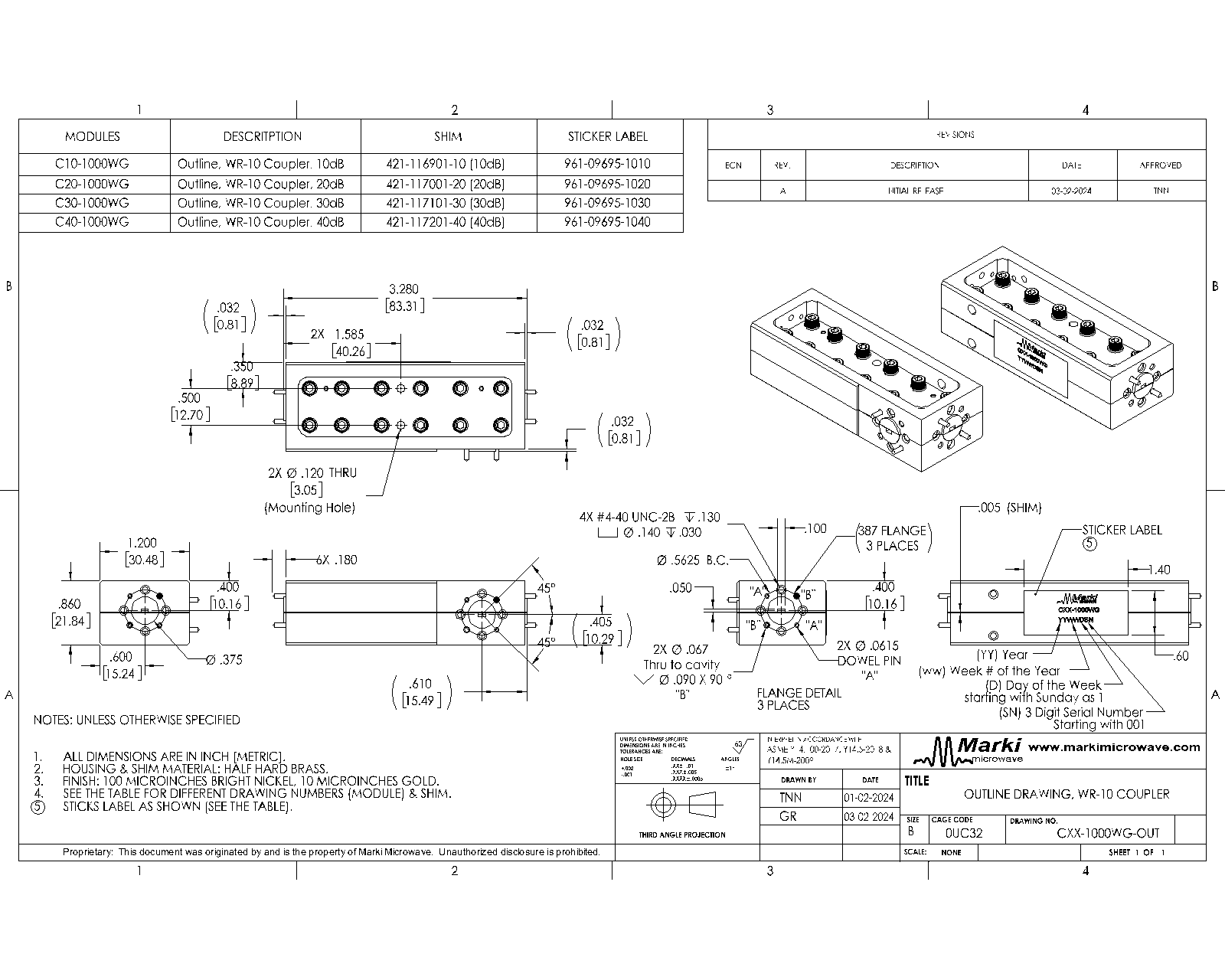

| Dimensions | - | 83.31 x 30.48 x 21.84 mm |
C10-1000WG
WR-10 High Directivity Waveguide Coupler, 10dB, 75-110GHz
Electrical Specifications
Min and Max limits are guaranteed at Ta = 25°C
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Directivity | - | 75 | 110 | 30 | 42.5 | - | dB |
| Direct Line Insertion Loss | - | 75 | 110 | - | 1.3 | - | dB |
| Mean Coupling | Output Referred | 75 | 110 | - | 9 | - | dB |
| Mean Coupling (Input Referred) | - | 75 | 110 | - | 10.5 | - | dB |
| Return Loss | - | 75 | 110 | 20 | 35 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Directivity | - | 75 | 110 | 30 | 42.5 | - | dB |
| Direct Line Insertion Loss | - | 75 | 110 | - | 1.3 | - | dB |
| Mean Coupling | Output Referred | 75 | 110 | - | 9 | - | dB |
| Mean Coupling (Input Referred) | - | 75 | 110 | - | 10.5 | - | dB |
| Return Loss | - | 75 | 110 | 20 | 35 | - | dB |
C10-1000WG
WR-10 High Directivity Waveguide Coupler, 10dB, 75-110GHz
Typical Performance Plots
