Detector WR-10 Marki Microwave W-Band Detectors, operating from 75-110 GHz, are built with high quality materials and by experienced high precision assemblers. These detectors utilize a very sensitive Low-Barrier Schottky Diode.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| DET-10PP00WG | Detector WR-10 (W-Band) | WR-10 | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| DET-10PP00WG | Detector WR-10 (W-Band) | WR-10 | REACH RoHS | Released | EAR99 |
DET-10PP00WG
Detector WR-10 (W-Band)
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-01 | Initial Release |
DET-10PP00WG
Detector WR-10 (W-Band)
Permanent damage may occur if any of these limits are exceeded.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 70 | °C |
| Maximum Storage Temperature | 100 | °C |
| Minimum Operating Temperature | -20 | °C |
| Minimum Storage Temperature | -55 | °C |
| RF Input Power | 17 | dBm |
DET-10PP00WG
Detector WR-10 (W-Band)
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness | - | 75 | 110 | - | - | 1.5 | dB |
| Input Power for Linear Operation | - | 75 | 110 | -35 | - | -10 | dBm |
| Operating Input Power Range | - | 75 | 110 | -40 | - | 15 | dBm |
| Sensitivity | - | 75 | 110 | 800 | - | - | mV/mW |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness | - | 75 | 110 | - | - | 1.5 | dB |
| Input Power for Linear Operation | - | 75 | 110 | -35 | - | -10 | dBm |
| Operating Input Power Range | - | 75 | 110 | -40 | - | 15 | dBm |
| Sensitivity | - | 75 | 110 | 800 | - | - | mV/mW |

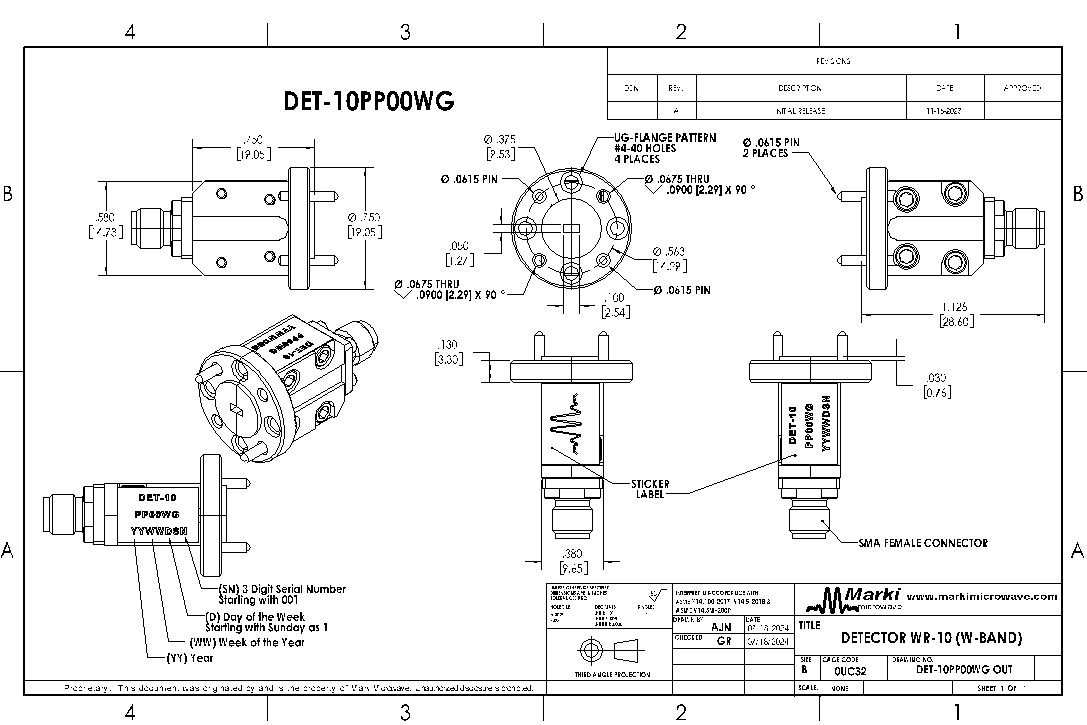

DET-10PP00WG
Detector WR-10 (W-Band)
DET-10PP00WG
Detector WR-10 (W-Band)
