Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Power Handling | 1 | W |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
1"" Low Power WR-15 10 dB Fixed Attenuators, operating from 50-75 GHz, are built with high precision and gold plated for high corrosion resistance. They have great VSWR and accurate attenuation.
Features
- Power Handling 1 W
- Length = 1 in.
- UG-385/U Flange
Applications
- 5G
- Frequency Extenders
- Communication Systems
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN10-15FL00WG | 1" LP WR-15 10 dB Attenuator | WR-15 | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN10-15FL00WG | 1" LP WR-15 10 dB Attenuator | WR-15 | REACH RoHS | Released | EAR99 |
ATN10-15FL00WG
1" LP WR-15 10 dB Attenuator
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-01 | Initial Release |
ATN10-15FL00WG
1" LP WR-15 10 dB Attenuator
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | RF Input / Output | - | RF input/output. | - |
| Port 2 | RF Input / Output | - | RF input/output. | - |
ATN10-15FL00WG
1" LP WR-15 10 dB Attenuator
Specifications
ATN10-15FL00WG
1" LP WR-15 10 dB Attenuator
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | Temp = 25°C | 50 | 75 | - | 10.5 | - | dB |
| Return Loss | Temp = 25°C | 50 | 75 | - | 33 | - | dB |
| Attenuation Flatness 1 | Temp = 25°C | 50 | 75 | - | 1.1 | - | dB |
| Attenuation | - | 50 | 75 | - | 10 | - | dB |
| Return Loss | - | 50 | 75 | - | 23 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | Temp = 25°C | 50 | 75 | - | 10.5 | - | dB |
| Return Loss | Temp = 25°C | 50 | 75 | - | 33 | - | dB |
| Attenuation Flatness 1 | Temp = 25°C | 50 | 75 | - | 1.1 | - | dB |
| Attenuation | - | 50 | 75 | - | 10 | - | dB |
| Return Loss | - | 50 | 75 | - | 23 | - | dB |
[1] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)
ATN10-15FL00WG
1" LP WR-15 10 dB Attenuator

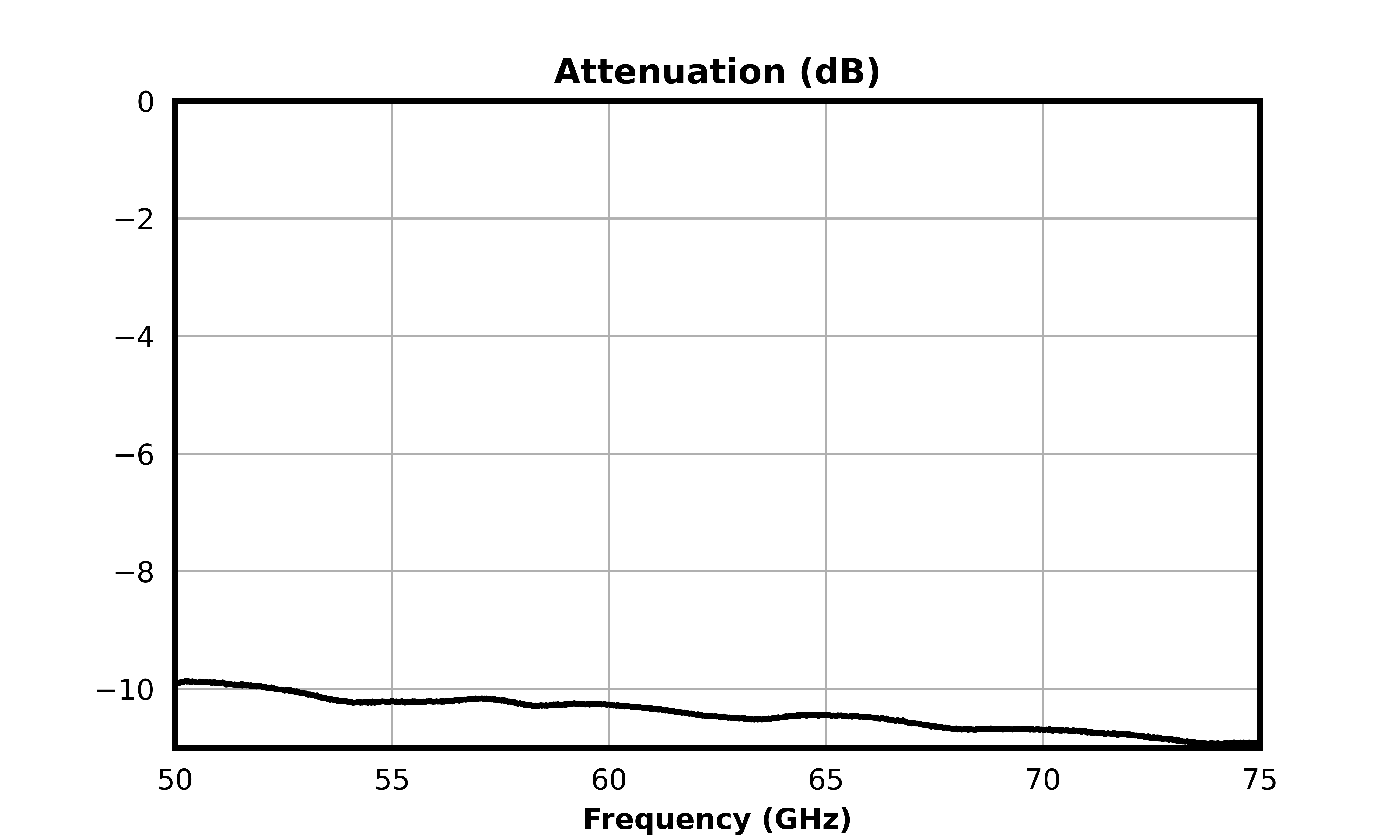

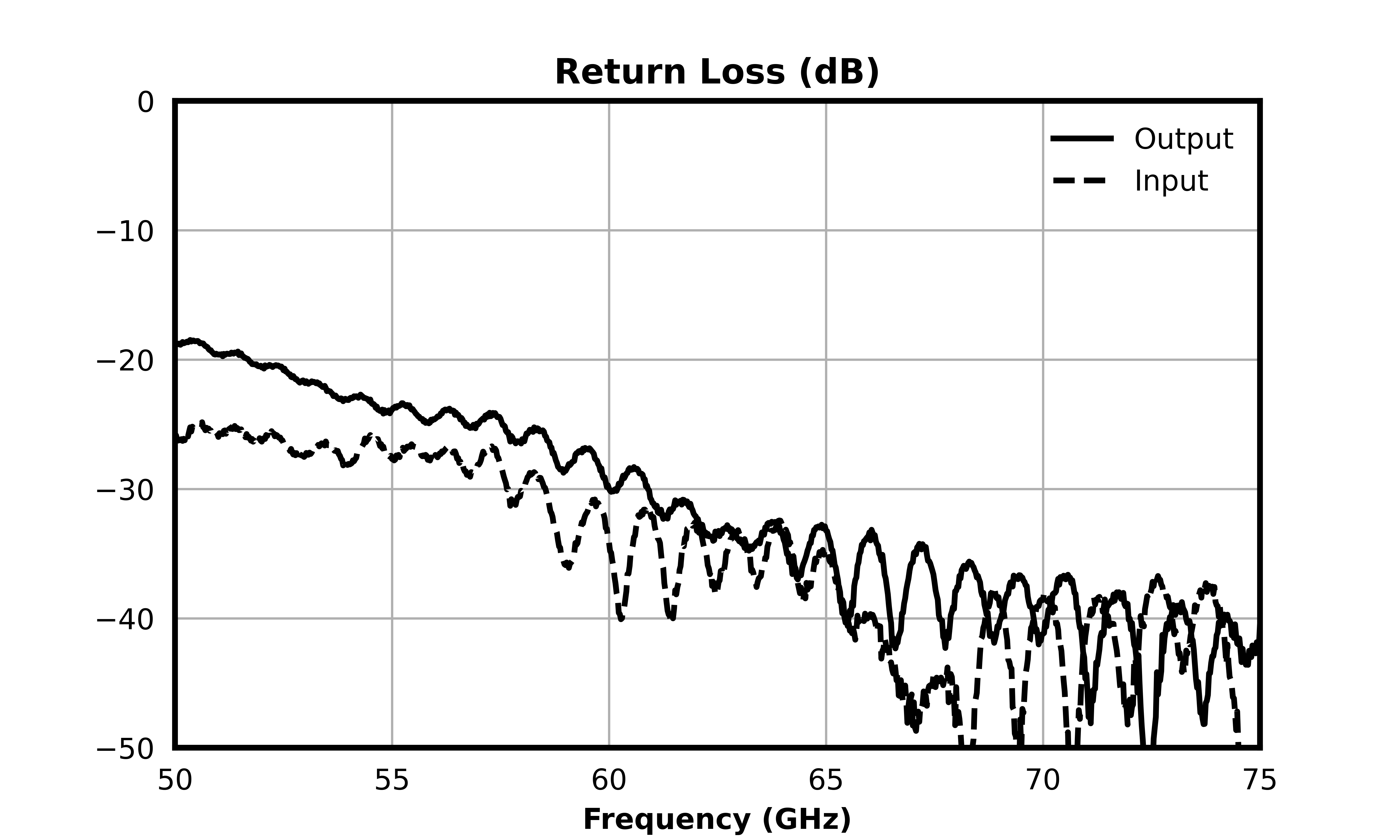

Typical Performance Plot
.png)
.png)
