General Description

The MQS-0218SM is a MMIC 2GHz – 18GHz 90° splitter/combiner. Passive GaAs MMIC technology allows production of smaller constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional splitter/combiner technologies. The MQS-0218SM is available as a 4 x 4 mm QFN package. Evaluation boards are also available. Low variation allows for accurate simulations using the provided S3P file taken from measured production units. The MQS-0218SM is not recommended for applications involving reflected signals.

Features

  • Designed for S to Ku-band applications
  • High amplitude and phase balance
  • High isolation
  • Low insertion loss
  • On-chip 50Ω load termination

Functional Block Diagram

Block Diagram
Photo of MQS-0218SM

Electrical Performance Summary

ParameterTypUnit
Frequency Range2 to 18GHz
Isolation 15dB
Nominal Phase Shift 90°
Phase Balance 6°
Amplitude Balance 1dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MQS-0218SMMMIC 2-18GHz 90° Splitter / CombinerQFN

REACH

RoHS

ReleasedEAR99
EVAL-MQS-0218Evaluation Board, MMIC 2-18GHz 90° Splitter / CombinerEVAL

REACH

RoHS

ReleasedEAR99

Table Of Contents

Typical Performance Plots

All measured data is de-embedded using AFR.

Insertion Loss (dB) graph for MQS-0218SM
Return Loss (dB) graph for MQS-0218SM
Amplitude Balance (dB) graph for MQS-0218SM
Phase Balance (°) graph for MQS-0218SM
Isolation Between Output Ports (dB) graph for MQS-0218SM

Evaluation Board Typical Performance Plots

All measured data is taken from the eval board without de-embedding of the connectors and traces.All measurements taken in a 50Ω environment. On-chip load was used when taking measurements.

Insertion Loss (dB) graph for MQS-0218SM
Return Loss (dB) graph for MQS-0218SM
Amplitude Balance (dB) graph for MQS-0218SM
Phase Balance (dB) graph for MQS-0218SM
Isolation Between Output Ports (dB) graph for MQS-0218SM

Specifications

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°c. All measured data is taken from the eval board without de-embedding of the connectors and traces.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Frequency Range-2 18---GHz
Amplitude Balance -2 18-15dB
Excess Insertion Loss 1-2 18-4-dB
Impedance -2 18-50-Ω
Isolation -2 181015-dB
Mean Coupling -2 18-3-dB
Nominal Phase Shift -2 18-90-°
Phase Balance -17 18-6-°
Phase Balance -2 17-312°
VSWR -2 18-1.25--

[1] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) – 3 dB.

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature -65°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
RF Power Handling 10W

Package Information

ParameterDetailsRating
Dimensions-4 x 4 mm
Moisture Sensitivity Level-MSL 1

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MQS-0218SM

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
PadGround SM package ground path is provided through the ground paddle.Equivalent circuit for the Ground
Pin 1190° Output Pin 11 is DC connected to a 50 Ω load.Equivalent circuit for the 90° Output
Pin 150° Output Pin 15 is DC short to pin 5 and open to ground.Equivalent circuit for the 0° Output
Pin 5Input Pin 5 is DC short to pin 15 and open to ground.Equivalent circuit for the Input

Operation

Application Information

Quadrature signal generation is useful for many applications in analog signal processing. Marki MQH (MMIC quadrature hybrids) and MQS (MMIC 90˚ Splitter/Combiners) offer this functionality in a small form factor with high repeatability. Below are applications and how they can be realized with the MQH and MQS product lines.

Quadrature Hybrids vs 90˚ Splitter/Combiners

Some products are ‘true’ quadrature hybrids, while others are 90˚ Splitter/Combiners. A quadrature hybrid is symmetric about all four ports, meaning that in a splitting application any port can be used as an input, with the isolated and output ports following from this selection. Likewise, for a combining application, any port can be used as an output.

A 90˚ Splitter/Combiner is not symmetric. When splitting, only ports 1 and 2 can be used as an input. If ports 3 or 4 were used, there would be significant phase walk-off between the output ports. As a combiner, only ports 1 and 2 are suitable as output ports. The phase walk-off introduced when using ports 3 or 4 as an output means that reflected signals recombine and cancel poorly inside a 90° Splitter/Combiner.

Single Sideband and Image Reject Mixers

Mqs 0218 Sm Single Sideband and Image Reject Mixers

The primary application for the MQH and MQS series is as IF or LO quadrature signal splitter/combiners. They can be used in combination with the MMIQ series of IQ mixers to create broadband single sideband and image reject mixers. Either 90˚ Splitter/Combiners or quadrature hybrids can be used as the IF hybrid, but if a 90˚ Splitter/Combiner is used only one sideband (or image) is accessible, whereas if a quadrature hybrid is used than both sidebands are accessible.

Ifa 90˚ Splitter/Combiner is used for a single sideband upconverter or image reject mixer, port 1 should be used as the IF input/output and ports 2 and 3 should be connected to the I and Q ports.


Balanced Amplifiers

Mqs 0218 Sm Balanced Amplifiers

In a balanced amplifier, the poor return loss of an amplifier is compensated for with a quadrature hybrid. In this application, the reflections from the input or output are collected at the isolated port of the quadrature hybrid and terminated.

Since a 90˚ Splitter/Combiner is not completely symmetric, reflected signals will not terminate as well as with a quadrature hybrid. An MQH option is recommended for this application. If a 90˚ Splitter/Combiner is used for a single sideband upconverter or image reject mixer, port 1 should be used as the IF input/output and ports 2 and 3 should be connected to the I and Q ports. Testing/simulation is recommended when considering if a 90° Splitter/Combiner is suitable.

Reflectionless Filter

Mqs 0218 Sm Reflectionless Filter

Similar to a balanced amplifier, a reflectionless filter will terminate reflections that are out of band for a filter (but in band for the quadrature hybrid) at the isolated port.

Since a 90˚ Splitter/Combiner is not completely symmetric, reflected signals will not terminate as well as with a quadrature hybrid. An MQH option is recommended for this application. If a 90˚ Splitter/Combiner is used for a single sideband upconverter or image reject mixer, port 1 should be used as the IF input/output and ports 2 and 3 should be connected to the I and Q ports. Testing/simulation is recommended when considering if a 90° Splitter/Combiner is suitable


Reflective Applications

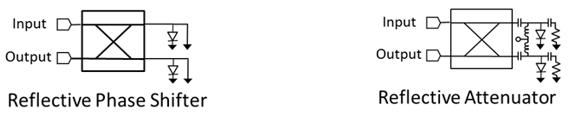

Mqs 0218 Hsm Reflective Applications

Unlike in the previous applications, reflective applications only work well with a quadrature hybrid (not a 90˚ Splitter/Combiner). In these applications a signal is reflected off of two identical structures (typically a PIN diode) and the output signal is collected at the isolated port. In this case the desired signal is deliberately reflected.

Since a 90˚ Splitter/Combiner is not completely symmetric, you will have poor results if you use these for reflective applications.

Mechanical Data

Outline Drawing

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

Outline Drawing

Evaluation Board

Evaluation Board - Outline Drawing

Outline Drawing

Revision History

Revision CodeRevision DateComment
-2020-06-01Initial Datasheet Release
