Device Overview
General Description
The MQH-2655CSP3 is a MMIC 26 - 55 GHz quadrature hybrid. Passive GaAs MMIC technology allows production of smaller constructions that replace larger form factor circuit board constructions. The MQH-2655CSP3 exhibits excellent amplitude balance with broadband quadrature phasing between output ports. Low variation allows for accurate simulations using the provided S4P file taken from measured production units. Tight fabrication tolerances allow for less unit to unit variation than traditional splitter/combiner technologies.
Features
- Designed for Ka/Low V-band applications
- Excellent amplitude and phase balance
- High isolation
- Low insertion loss
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MQH-2655CSP3 | MMIC 26 - 55 GHz 90° Hybrid Coupler | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MQH-2655 | Evaluation Board, 26 - 55 GHz MMIC 90° Hybrid Coupler | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MQH-2655CSP3 | MMIC 26 - 55 GHz 90° Hybrid Coupler | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MQH-2655 | Evaluation Board, 26 - 55 GHz MMIC 90° Hybrid Coupler | EVB | RoHS REACH | Released | EAR99 |
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-04-16 | Initial Release |
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Port Configuration and Functions
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Port Functions
Configuration A
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground |  |
| Pin 1 | NC | Pin 1 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 2 | Isolated | Pin 2 is isolated from the input. It is DC open to the other pins and open to ground. It should be connected to a 50 Ω load for normal operation. |  |
| Pin 3 | RF Input | Pin 3 is used as input. It is DC open to the other pins and open to ground. | |
| Pin 4 | NC | Pin 4 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 5 | 90° Output | Pin 5 is 90° output. It is DC open to the other pins and open to ground. | |
| Pin 6 | 0° Output | Pin 6 is 0° output. It is DC open to the other 4 pins and open to ground. | |
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Configuration B
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground | |
| Pin 1 | NC | Pin 1 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 2 | RF Input | Pin 2 is used as input. It is DC open to the other pins and open to ground. | |
| Pin 3 | Isolated | Pin 3 is isolated from the input. It is DC open to the other pins and open to ground. It should be connected to a 50 Ω load for normal operation. | |
| Pin 4 | NC | Pin 4 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 5 | 0° Output | Pin 5 is 0° output. It is DC open to the other 4 pins and open to ground. | |
| Pin 6 | 90° Output | Pin 6 is 90° output. It is DC open to the other pins and open to ground. | |
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Configuration C
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground | |
| Pin 1 | NC | Pin 1 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 2 | 90° Output | Pin 2 is 90° output. It is DC open to the other pins and open to ground. | |
| Pin 3 | 0° Output | Pin 3 is 0° output. It is DC open to the other 4 pins and open to ground. | |
| Pin 4 | NC | Pin 4 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 5 | Isolated | Pin 5 is isolated from the input. It is DC open to the other pins and open to ground. It should be connected to a 50 Ω load for normal operation. | |
| Pin 6 | RF Input | Pin 6 is used as input. It is DC open to the other pins and open to ground | |
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Configuration D
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground | |
| Pin 1 | NC | Pin 1 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 2 | 0° Output | Pin 2 is 0° output. It is DC open to the other 4 pins and open to ground. | |
| Pin 3 | 90° Output | Pin 3 is 90° output. It is DC open to the other pins and open to ground. | |
| Pin 4 | NC | Pin 4 is not internally connected. It can be connected to ground for normal operation. | - |
| Pin 5 | RF Input | Pin 5 is used as input. It is DC open to the other pins and open to ground. | |
| Pin 6 | Isolated | Pin 6 is isolated from the input. It is DC open to the other pins and open to ground. It should be connected to a 50 Ω load for normal operation. | |
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 45 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | < 250 Volts | HBM Class 0 |
| Dimensions | - | 3.50 x 3.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Electrical Specifications
| Parameter | Port Configuration | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|---|
| Amplitude Balance | A | Configuration A | 26 | 55 | - | 0.5 | - | dB |
| Impedance | - | All Ports | 26 | 55 | - | 50 | - | Ω |
| Isolation | A | Configuration A | 26 | 55 | - | 23 | - | dB |
| Mean Coupling | A | Configuration A | 26 | 55 | - | 3 | - | dB |
| Nominal Phase Shift | A | Configuration A | 26 | 55 | - | 90 | - | ° |
| Phase Balance | A | Configuration A | 26 | 55 | - | 1.1 | - | ° |
| Return Loss | - | All Ports | 26 | 55 | - | 24 | - | dB |
| Excess Insertion Loss | A | Configuration A | 26 | 55 | - | 0.8 | - | dB |
| Parameter | Port Configuration | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|---|
| Amplitude Balance | A | Configuration A | 26 | 55 | - | 0.5 | - | dB |
| Impedance | - | All Ports | 26 | 55 | - | 50 | - | Ω |
| Isolation | A | Configuration A | 26 | 55 | - | 23 | - | dB |
| Mean Coupling | A | Configuration A | 26 | 55 | - | 3 | - | dB |
| Nominal Phase Shift | A | Configuration A | 26 | 55 | - | 90 | - | ° |
| Phase Balance | A | Configuration A | 26 | 55 | - | 1.1 | - | ° |
| Return Loss | - | All Ports | 26 | 55 | - | 24 | - | dB |
| Excess Insertion Loss | A | Configuration A | 26 | 55 | - | 0.8 | - | dB |
Excess Insertion Loss = Input to Output Insertion Loss - 3dB
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler

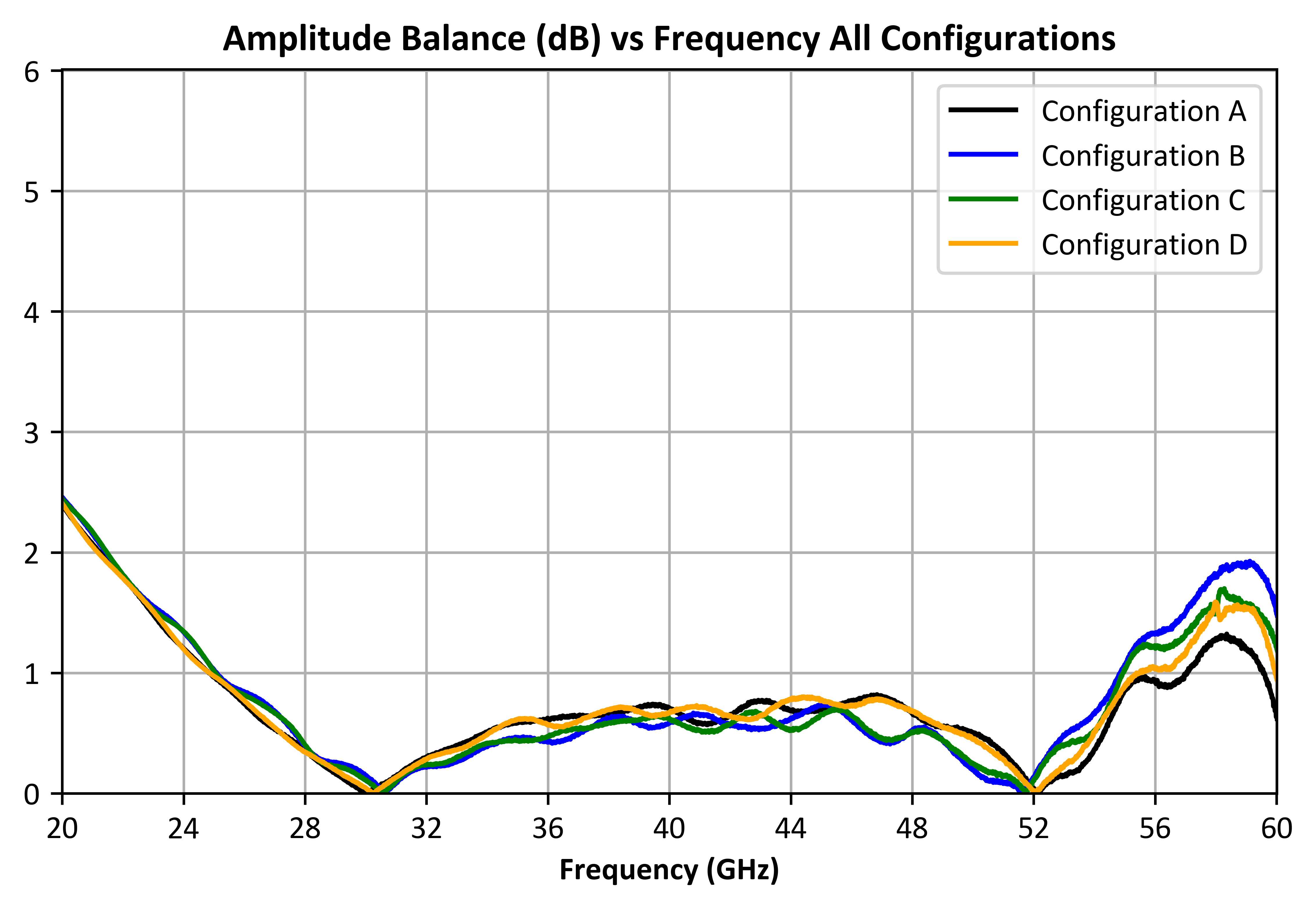

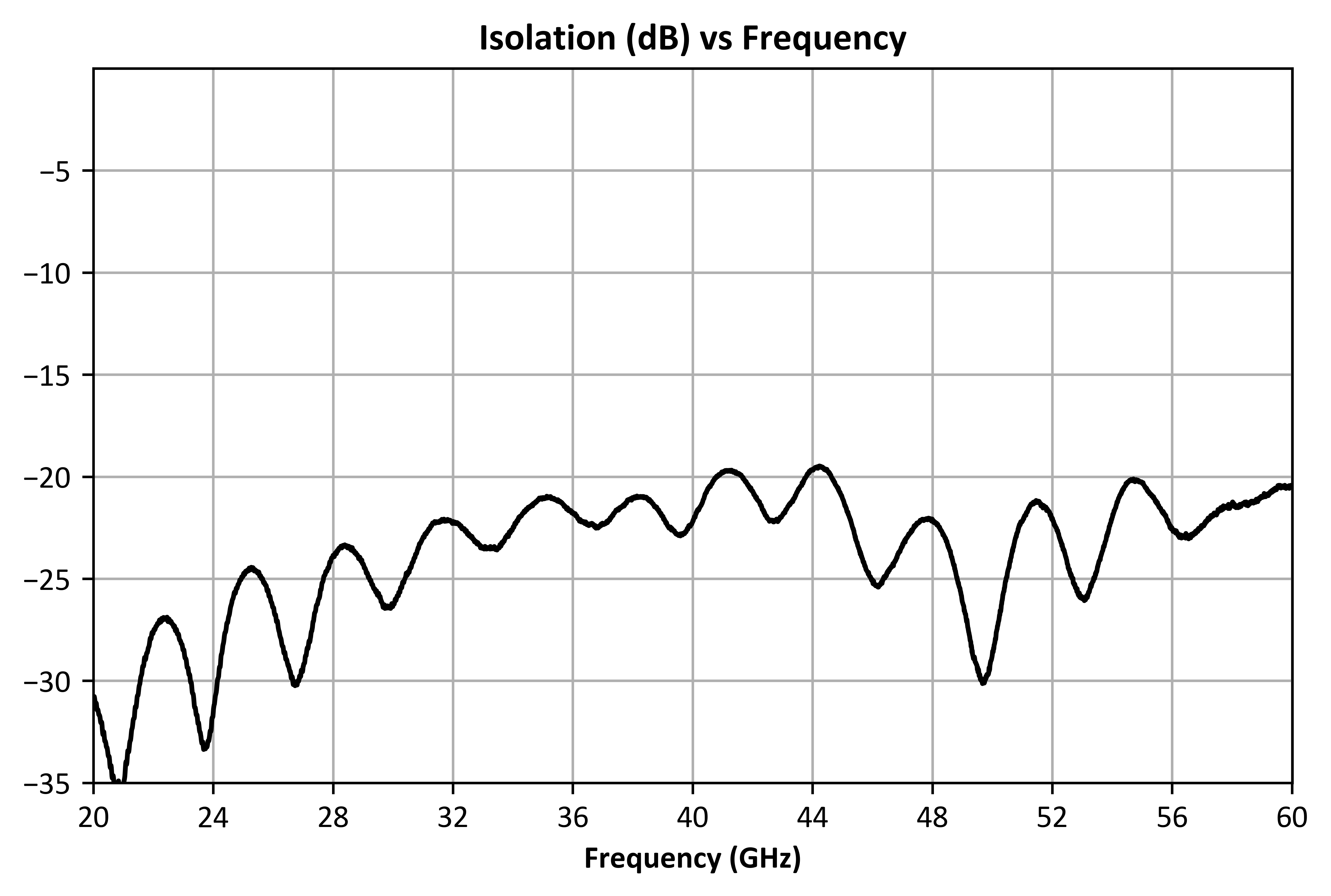

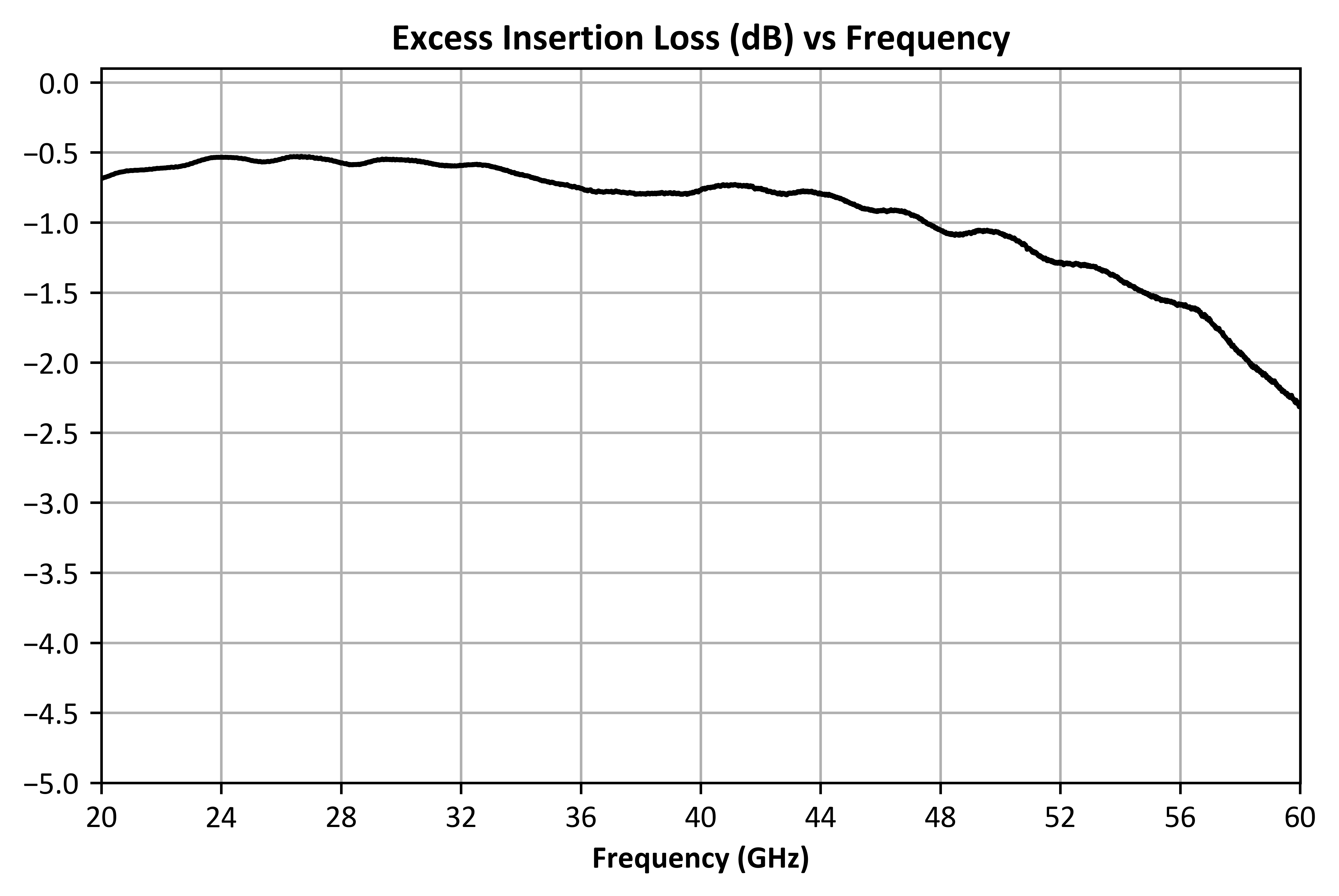

Typical performance plots shown for port configuration A. Performance may vary in alternate configurations.

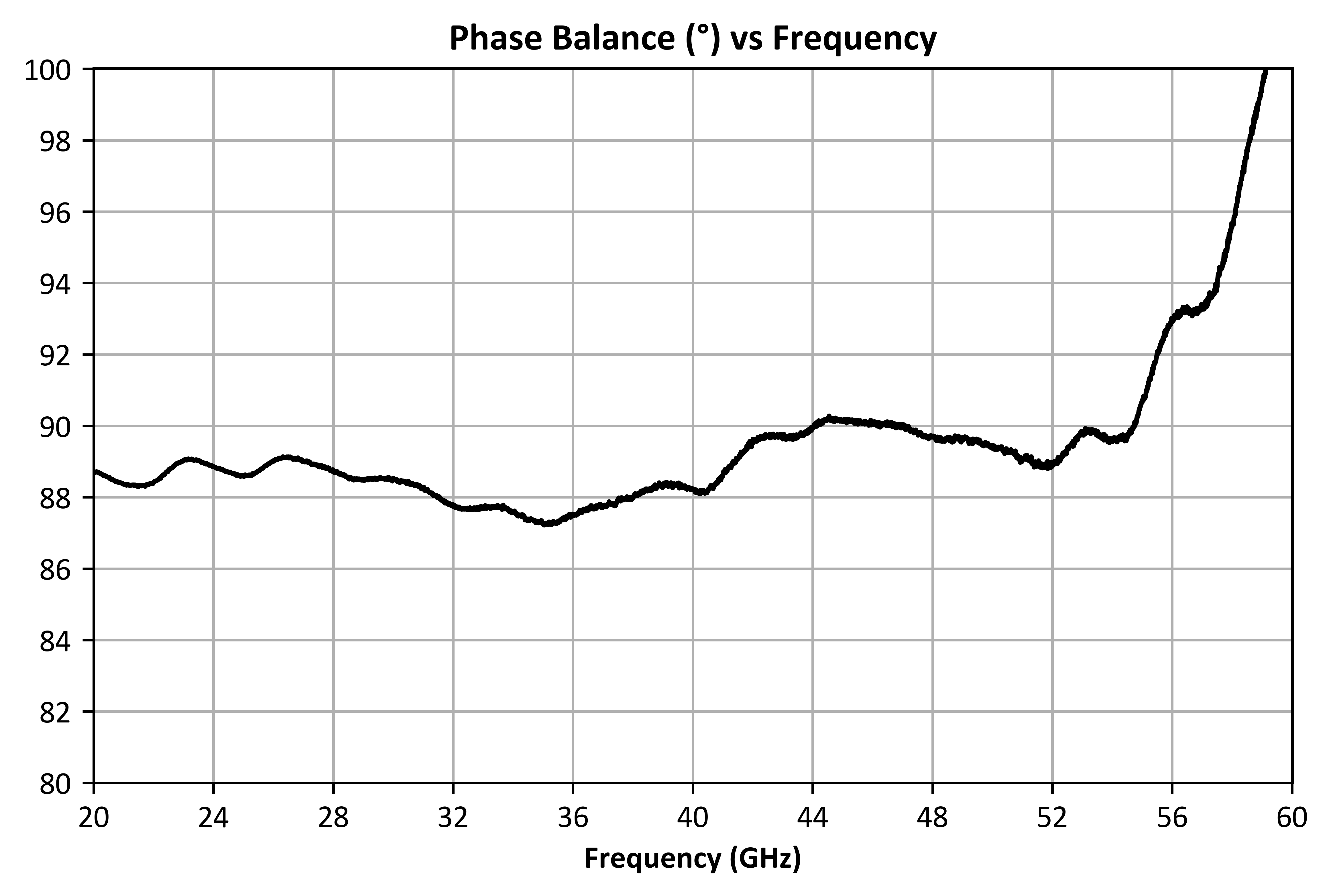

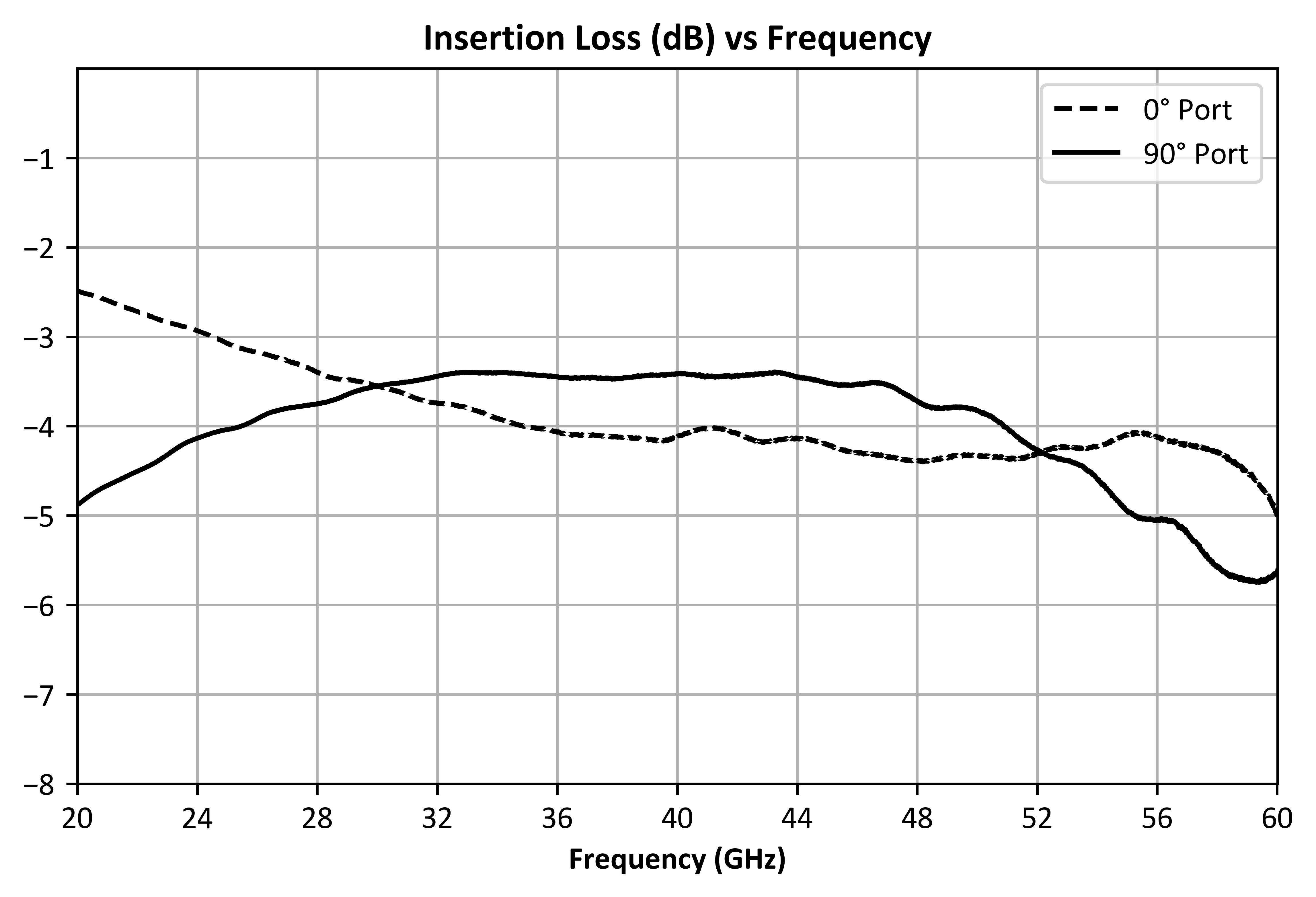

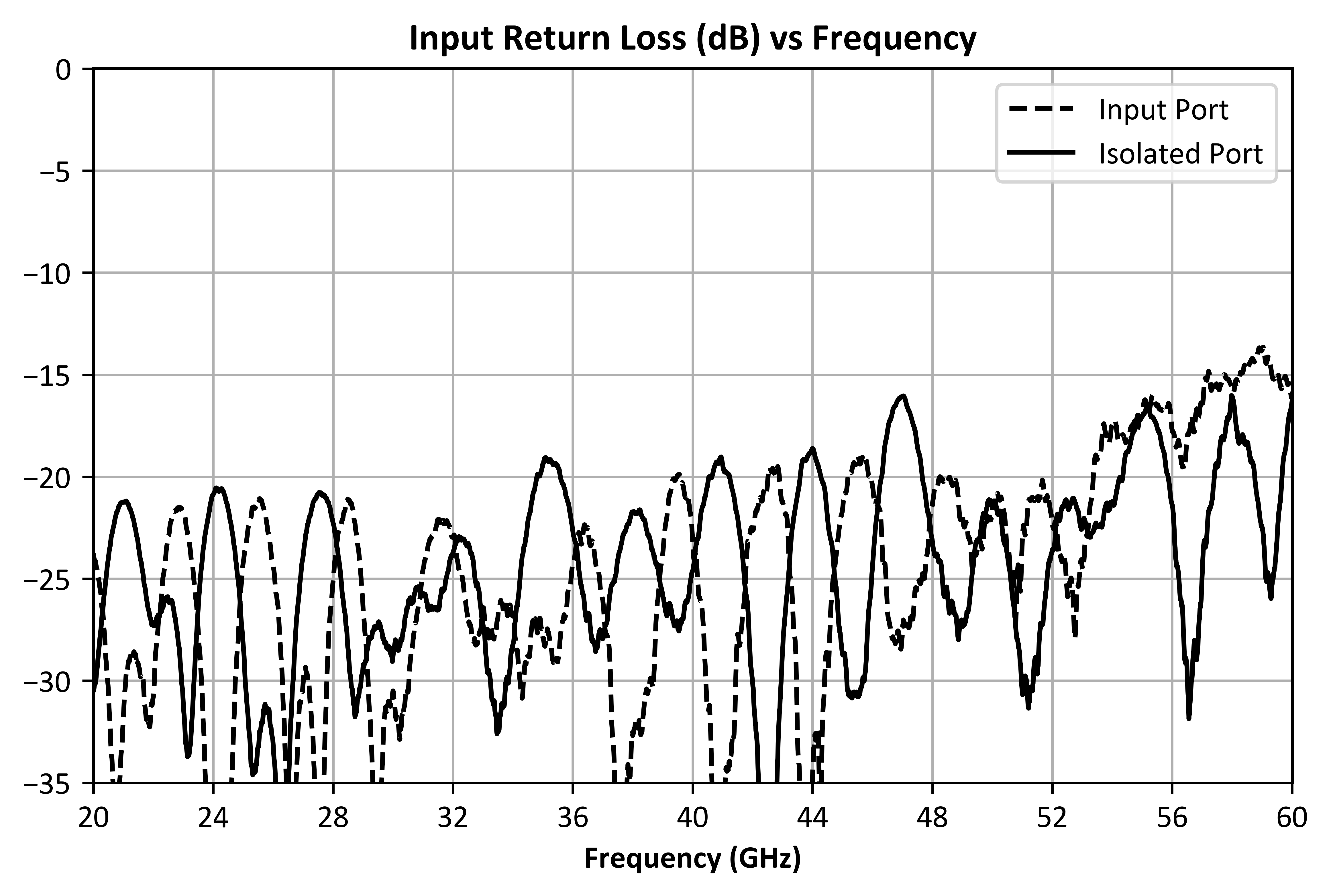

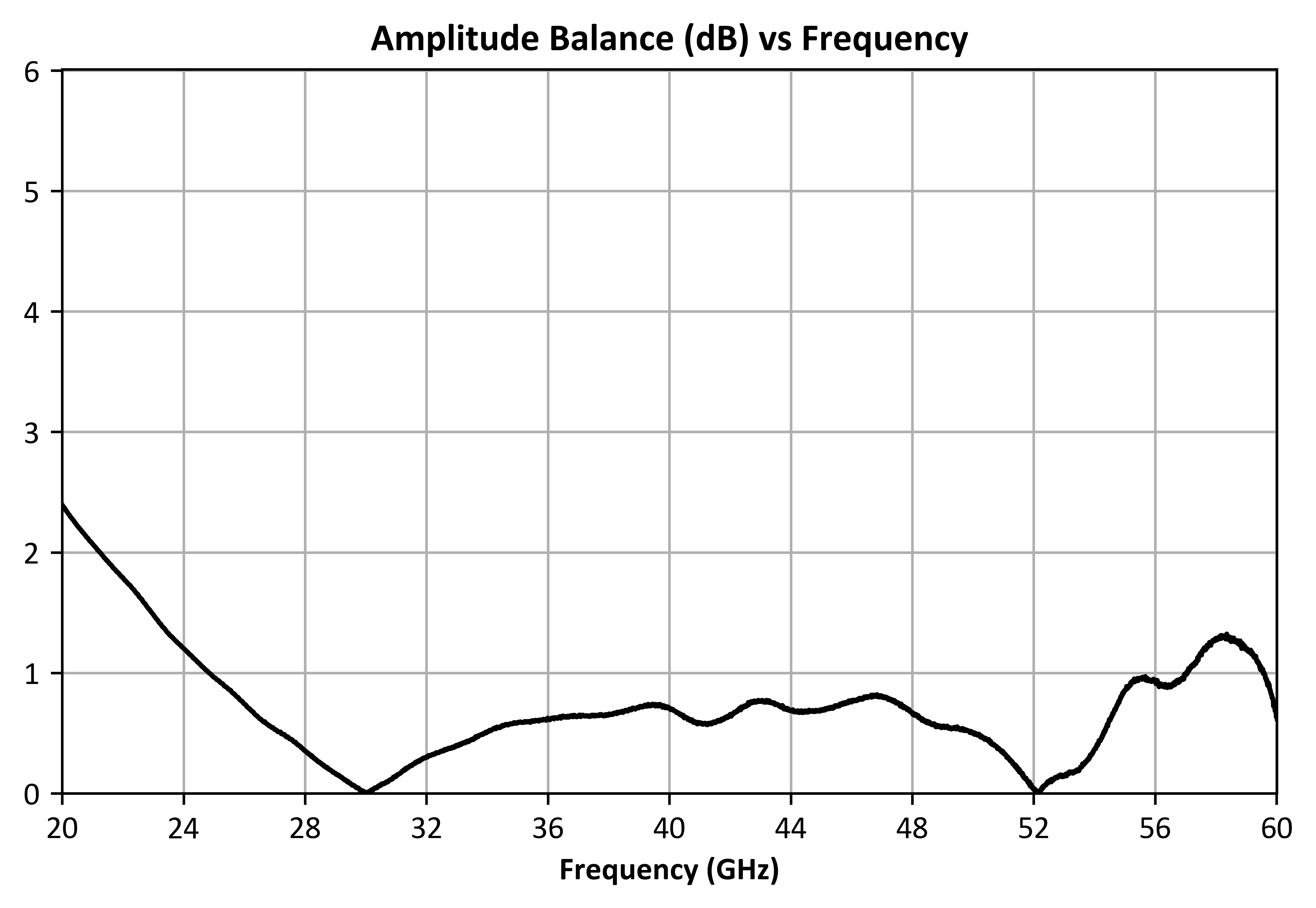

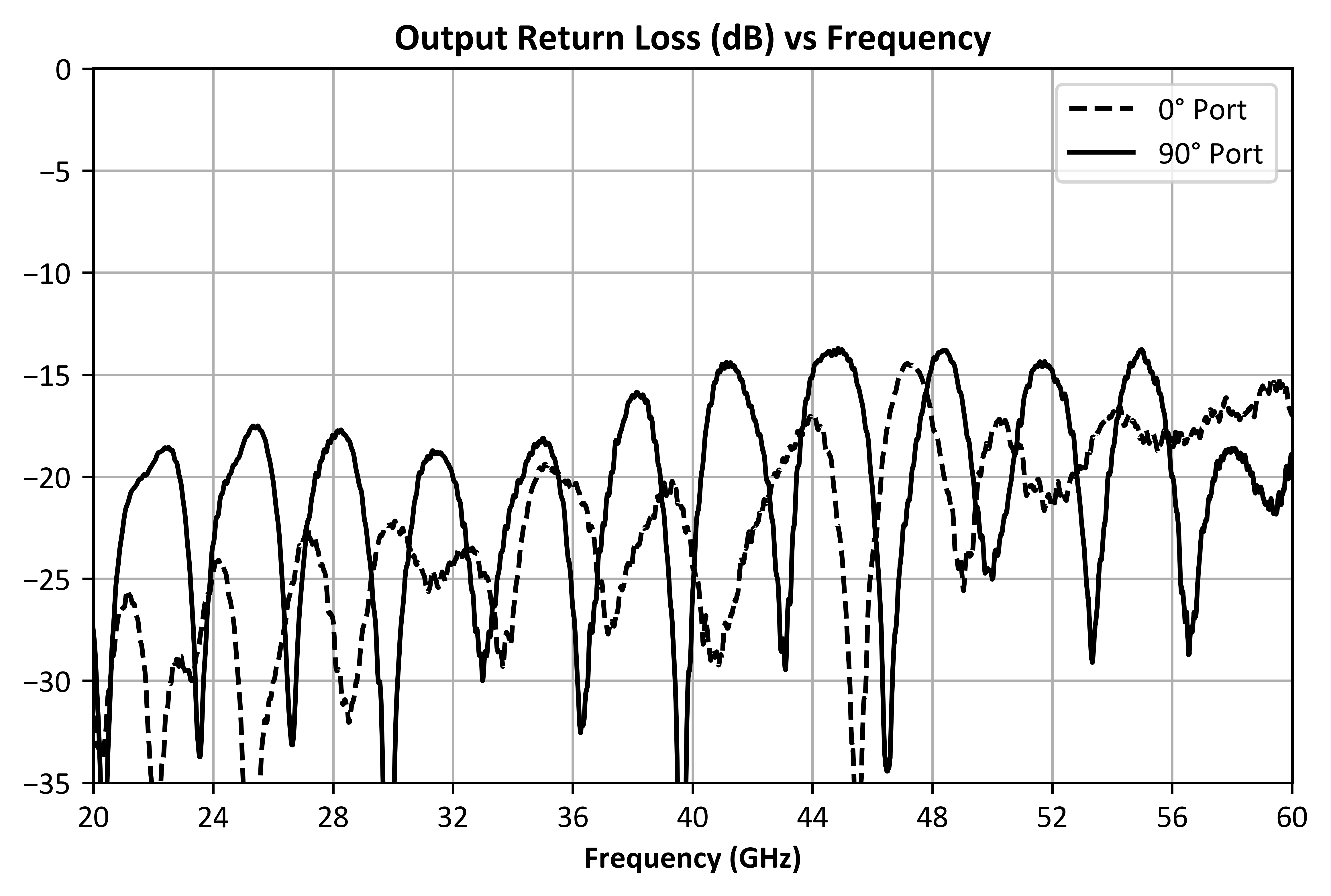

Typical Performance Plots
%20vs%20Frequency.png)
%20vs%20Frequency.png)
%20vs%20Frequency.png)
%20vs%20Frequency.png)
%20vs%20Frequency.png)

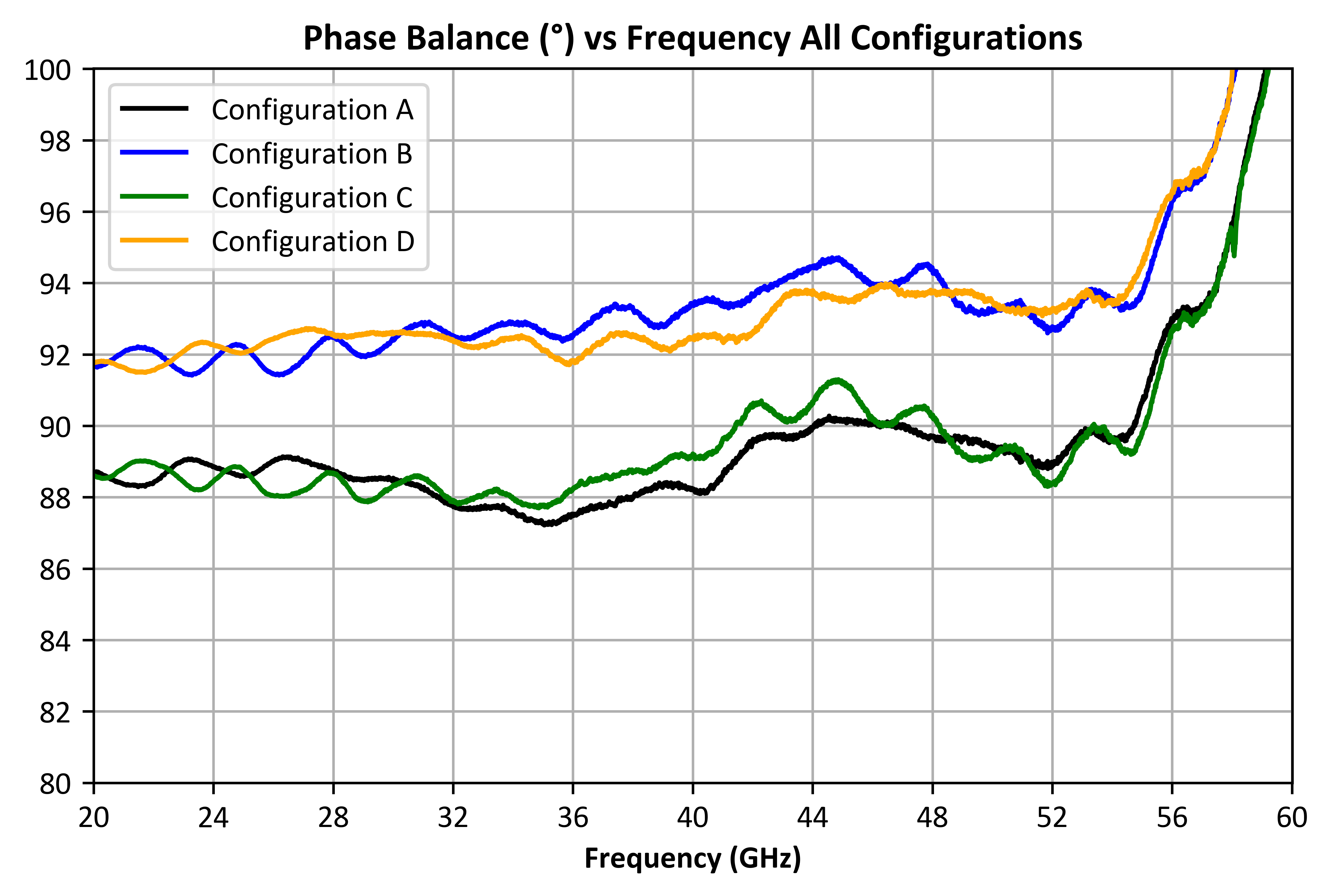

%20vs%20Frequency%20All%20Configurations.png)
%20vs%20Frequency.png)
%20vs%20Frequency%20All%20Configurations.png)
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
%20vs%20Frequency.png)
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Mechanical Data

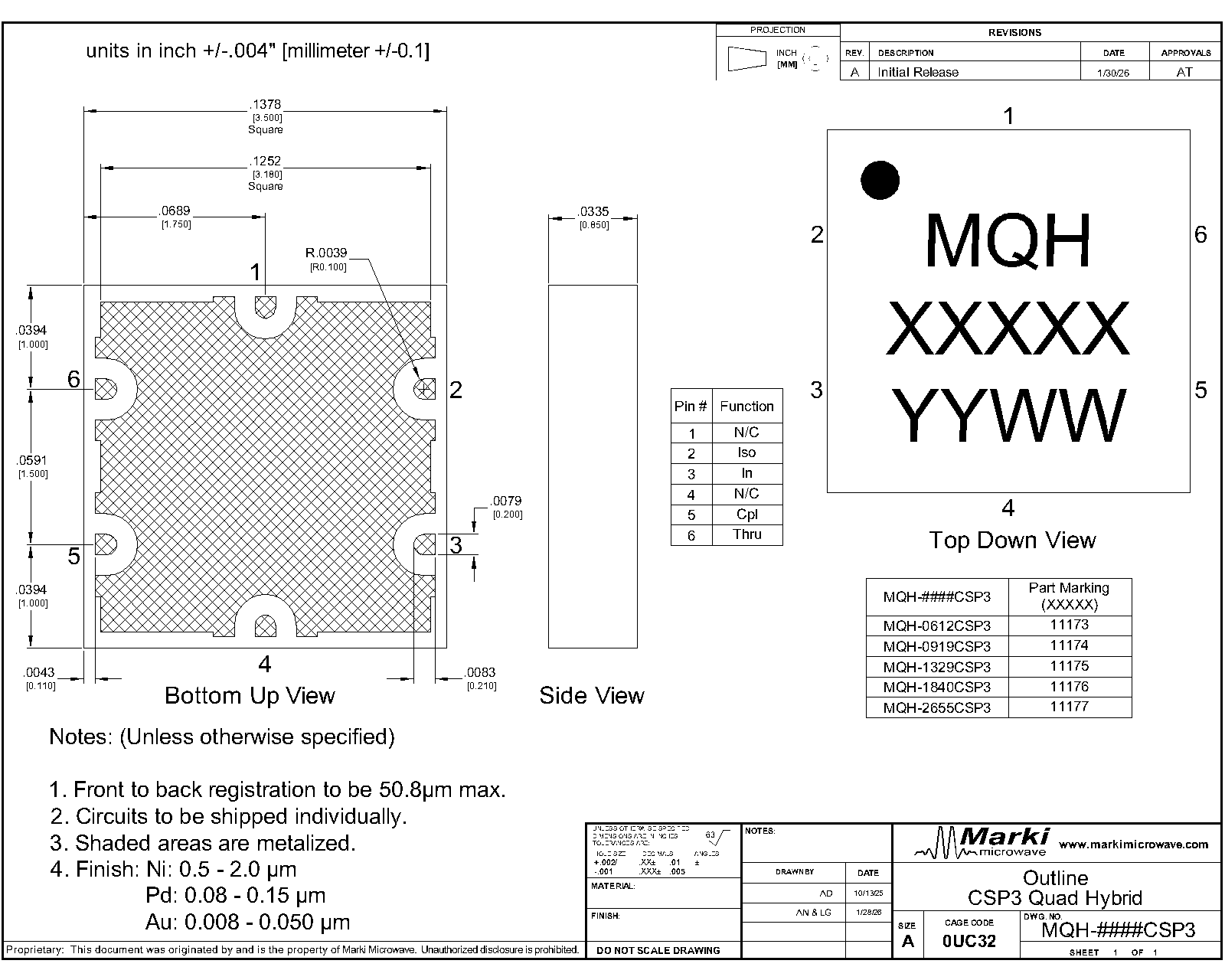

MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Footprint Image
Download : Footprint Drawing
MQH-2655CSP3
MMIC 26 - 55 GHz 90° Hybrid Coupler
Evaluation Board - Outline Drawing
