Device Overview

General Description

2-Way Wilkinson power dividers can be used for both in-phase power splitting and power combining applications. These power dividers feature the lowest insertion loss (ideally 3 dB splitting loss), excellent amplitude and phase balance, and high isolation across the entire operating band. High isolation can be critically important for power combining applications, such as when performing accurate intermodulation distortion (IMD) tests.

Photo of PD-0530SMG

Features

  • 5 to 30 GHz In Phase Power Splitting
  • 1.5 dB Typical Insertion Loss
  • 25 dB Typical Output to Output Isolation
  • Surface Mount Package

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
PD-0530SMGWilkinson Power Divider SMG

REACH

RoHS

Not Recommended for New DesignEAR99

-

EVAL-PD-0530SMEvaluation Board, 5 - 10 GHz Wilkinson Power DividerEVAL

Non-RoHS

Not Recommended for New DesignEAR99

-

Table Of Contents

Revision History

Revision CodeRevision DateComment
B2020-12-01Performance Over Temperature Plots
C2025-12-17Power Handling Updated

Rev: C | Copyright © 2020, 2025 Marki Microwave LLC.

2

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
RF Power Handling as a Power Combiner 1W
RF Power Handling as a Power Divider 10W

Package Information

ParameterDetailsRating
Dimensions-3.81 x 6.10 mm
Moisture Sensitivity Level-MSL 3

Rev: C | Copyright © 2020, 2025 Marki Microwave LLC.

3

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Amplitude Balance -5 30-0.01-dB
Excess Insertion Loss 1-5 30-1.53dB
Isolation -5 30-25-dB
Nominal Phase Shift -5 30-0-°
Nominal Power Splitting -5 30-3-dB
Phase Balance -5 30-2-°
VSWR -5 30-1.4-

[1] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) - 3dB

Rev: C | Copyright © 2020, 2025 Marki Microwave LLC.

4

Typical Performance

Common port to output port insertion loss graph for PD-0530SMG
Return loss for output and common ports graph for PD-0530SMG
Amplitude balance between output ports graph for PD-0530SMG
Phase balance between output ports graph for PD-0530SMG
Isolation between output ports graph for PD-0530SMG

Rev: C | Copyright © 2020, 2025 Marki Microwave LLC.

5

Typical Performance Over Temperature

Insertion Loss graph for PD-0530SMG
Common Port Return Loss (dB) graph for PD-0530SMG
Output Port Return Loss graph for PD-0530SMG
Isolation Between Output Ports (dB) graph for PD-0530SMG
Amplitude Balance (dB) graph for PD-0530SMG
Phase Balance (degree) graph for PD-0530SMG

Rev: C | Copyright © 2020, 2025 Marki Microwave LLC.

6

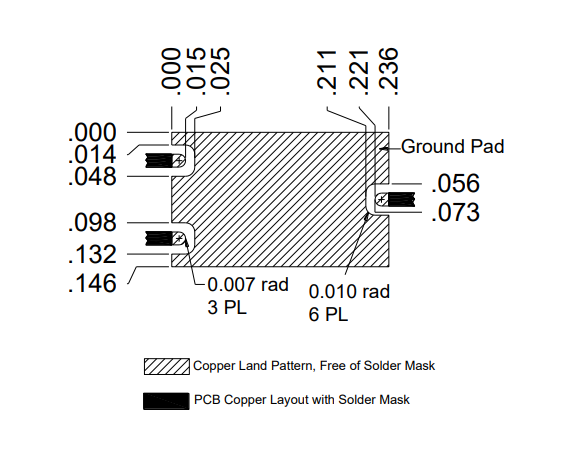

Mechanical Data

Rev: C | Copyright © 2020, 2025 Marki Microwave LLC.

7

Rev: C | Copyright © 2020, 2025 Marki Microwave LLC.

8
