2-Way Wilkinson power dividers can be used for both in-phase power splitting and power combining applications. These power dividers feature the lowest insertion loss (ideally 3 dB splitting loss), excellent amplitude and phase balance, and high isolation across the entire operating band. High isolation can be critically important for power combining applications, such as when performing accurate intermodulation distortion (IMD) tests.
N/A
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| PD-0434SM | Wilkinson Power Divider | SM | Non-RoHS | Released | EAR99 |
| EVAL-PD-0434SM | Evaluation Board, 4 - 34 GHz Wilkinson Power Divider | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| PD-0434SM | Wilkinson Power Divider | SM | Non-RoHS | Released | EAR99 |
| EVAL-PD-0434SM | Evaluation Board, 4 - 34 GHz Wilkinson Power Divider | EVAL | REACH RoHS | Released | EAR99 |
PD-0434SM
Wilkinson Power Divider
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-11-27 | Initial Date Release |
| G0 | 2025-12-17 | Power Handling Updated |
PD-0434SM
Wilkinson Power Divider
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling as a Power Combiner | 1 | W |
| RF Power Handling as a Power Divider | 10 | W |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3.81 x 11.43 mm |
| Moisture Sensitivity Level | - | MSL 3 |
PD-0434SM
Wilkinson Power Divider
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 4 | 34 | - | 0.25 | - | dB |
| Excess Insertion Loss 1 | - | 4 | 34 | - | 1.5 | 3 | dB |
| Isolation | - | 4 | 34 | - | 20 | - | dB |
| Nominal Phase Shift | - | 4 | 34 | - | 0 | - | ° |
| Nominal Power Splitting | - | 4 | 34 | - | 3 | - | dB |
| Phase Balance | - | 4 | 34 | - | 3 | - | ° |
| VSWR | - | 4 | 34 | - | 1.5 | - |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 4 | 34 | - | 0.25 | - | dB |
| Excess Insertion Loss 1 | - | 4 | 34 | - | 1.5 | 3 | dB |
| Isolation | - | 4 | 34 | - | 20 | - | dB |
| Nominal Phase Shift | - | 4 | 34 | - | 0 | - | ° |
| Nominal Power Splitting | - | 4 | 34 | - | 3 | - | dB |
| Phase Balance | - | 4 | 34 | - | 3 | - | ° |
| VSWR | - | 4 | 34 | - | 1.5 | - |
[1] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) - 3dB
PD-0434SM
Wilkinson Power Divider
PD-0434SM
Wilkinson Power Divider
PD-0434SM
Wilkinson Power Divider

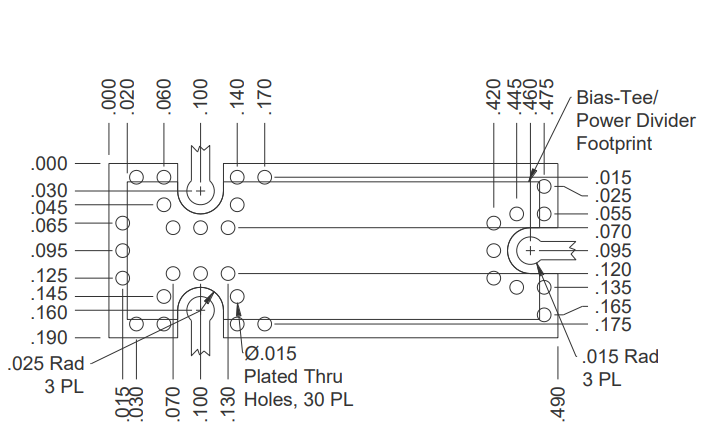

Download : Footprint Drawing
