PBR-0006SMG
High Isolation Power Combiner
The PBR-0006SMG is a 10 MHz to 6 GHz surface mount high isolation power combiner. This power combiner features a unique hand tuned construction that enables 35 dB typical isolation across the operational bandwidth. High isolation power combiners are ideal for power combining uncorrelated signals, such as when performing intermodulation distortion (IMD) tests like IP2 and IP3. Their higher insertion loss and uncontrolled phase balance makes them unsuitable for power dividing applications.
N/A
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.01 to 6 | GHz |
| Excess Insertion Loss | 1.7 | dB |
| No. Ways | - | - |
| Amplitude Balance | 0.8 | dB |
| Isolation | 35 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| PBR-0006SMG | High Isolation Power Combiner | SMG | - | REACH RoHS | Released | EAR99 |
| EVAL-PBR-0006 | Evaluation Board, 10 MHz to 6 GHz High Isolation Power Combiner | EVAL | - | REACH RoHS | Released | EAR99 |
| PBR-0006-TR | Tape and Reel, High Isolation Power Combiner | SMG | 7" | REACH RoHS | Released | EAR99 |
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.01 | 6 | - | - | - | GHz |
| Amplitude Balance | - | 0.01 | 6 | - | 0.8 | 1.6 | dB |
| Common Port VSWR | - | 0.01 | 6 | - | 1.4 | - | - |
| Excess Insertion Loss 1 | - | 0.01 | 6 | - | 1.7 | 3.4 | dB |
| Input Port VSWR | - | 0.01 | 6 | - | 1.2 | - | - |
| Isolation | - | 0.01 | 6 | 25 | 35 | - | dB |
| Nominal Power Splitting | - | 0.01 | 6 | - | 6 | - | dB |
[1] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) – 6 dB.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling, Average | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: SMG | 0.24g |
| Dimensions | - | 8.13 x 8.13 mm |
| Moisture Sensitivity Level | - | MSL 1 |
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| C | Common | Combined output port. | - |
| I1 | Input 1 | RF input 1 of the combiner. | - |
| I2 | Input 2 | RF input 2 of the combiner. | - |
IP3 measurement using high isolation power combiner

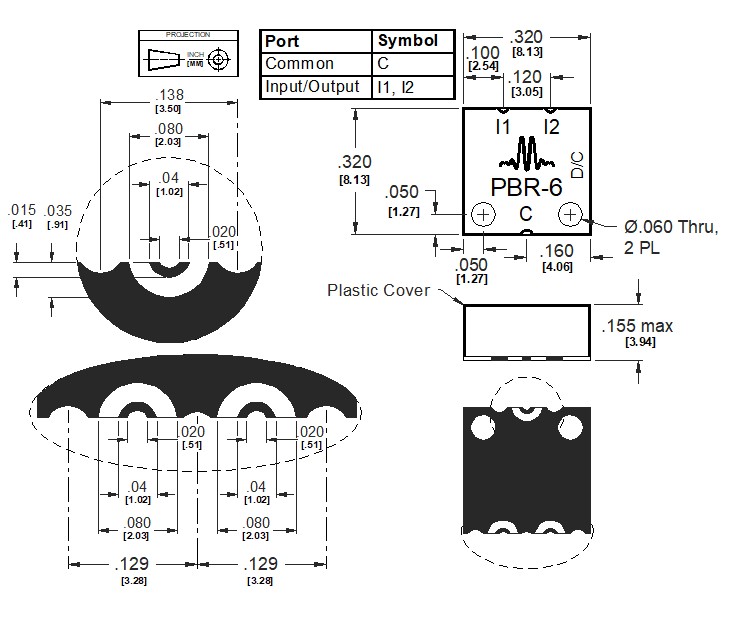

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Download : Footprint Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2013-11-01 | Datasheet initial Release |
| A | 2019-03-01 | Evaluation board outline added |
