MPDR-0070CSP2
DC – 70 GHz MMIC 2-way Resistive Power Divider, Front Ports
The MPDR-0070CSP2 is a small footprint mmWave MMIC DC-70 GHz 2-Way resistive power divider/power splitter featuring low 1.5 dB insertion loss in our compact CSP2 chip scale package. It is much smaller than a printed PCB Power Divider/Combiner. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S3P file taken from measured production units. The MPDR-0070CSP2 features front port outputs. The 2.5 mm CSP2 package enables extreme miniaturization of SMT footprint making the MPDR-0070CSP2 ideal for applications prioritizing low SWaP.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0 to 70 | GHz |
| Phase Balance | 5 | ° |
| Excess Insertion Loss | 1.5 | dB |
| No. Ways | Resistive 1:2 | - |
| RF Power Handling as a Power Divider | 5 | W |
| Amplitude Balance | 0.25 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPDR-0070CSP2 | DC – 70 GHz MMIC 2-way Resistive Power Divider, Front Ports | CSP2 | RoHS REACH | Released | EAR99 |
| EVB-MPDR-0070 | Evaluation Board, DC – 70 GHz MMIC 2-way Resistive Power Divider | EVB | REACH RoHS | Released | EAR99 |
.svg)
.svg)
.svg)
.png)
.svg)

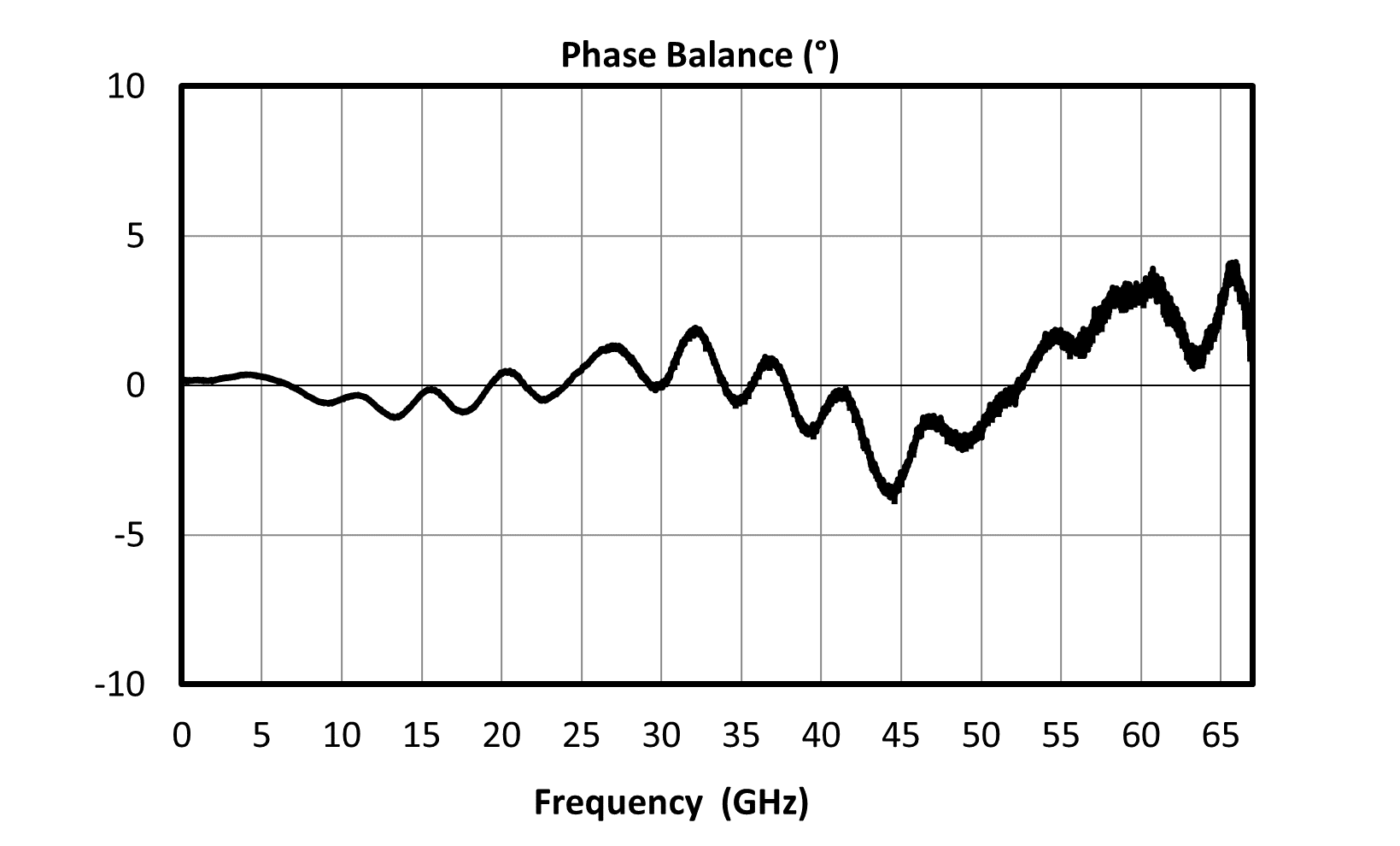

Measured data is de-embedded from fixture using AFR.
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0 | 70 | - | - | - | GHz |
| Amplitude Balance | - | 0 | 70 | - | 0.25 | 1 | dB |
| Excess Insertion Loss 1 | - | 0 | 70 | - | 1.5 | 3 | dB |
| Impedance | - | 0 | 70 | - | 50 | - | Ω |
| Nominal Phase Shift | - | 0 | 70 | - | 0 | - | ° |
| Nominal Power Splitting | - | 0 | 70 | - | 6 | - | dB |
| Phase Balance | - | 0 | 70 | - | 5 | 10 | ° |
| Return Loss | - | 45 | 70 | - | 10 | - | dB |
| Return Loss | - | 0 | 45 | 15 | 20 | - | dB |
[1] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) - 6dB
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 50 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling as a Power Divider | 5 | W |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.50 x 2.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |

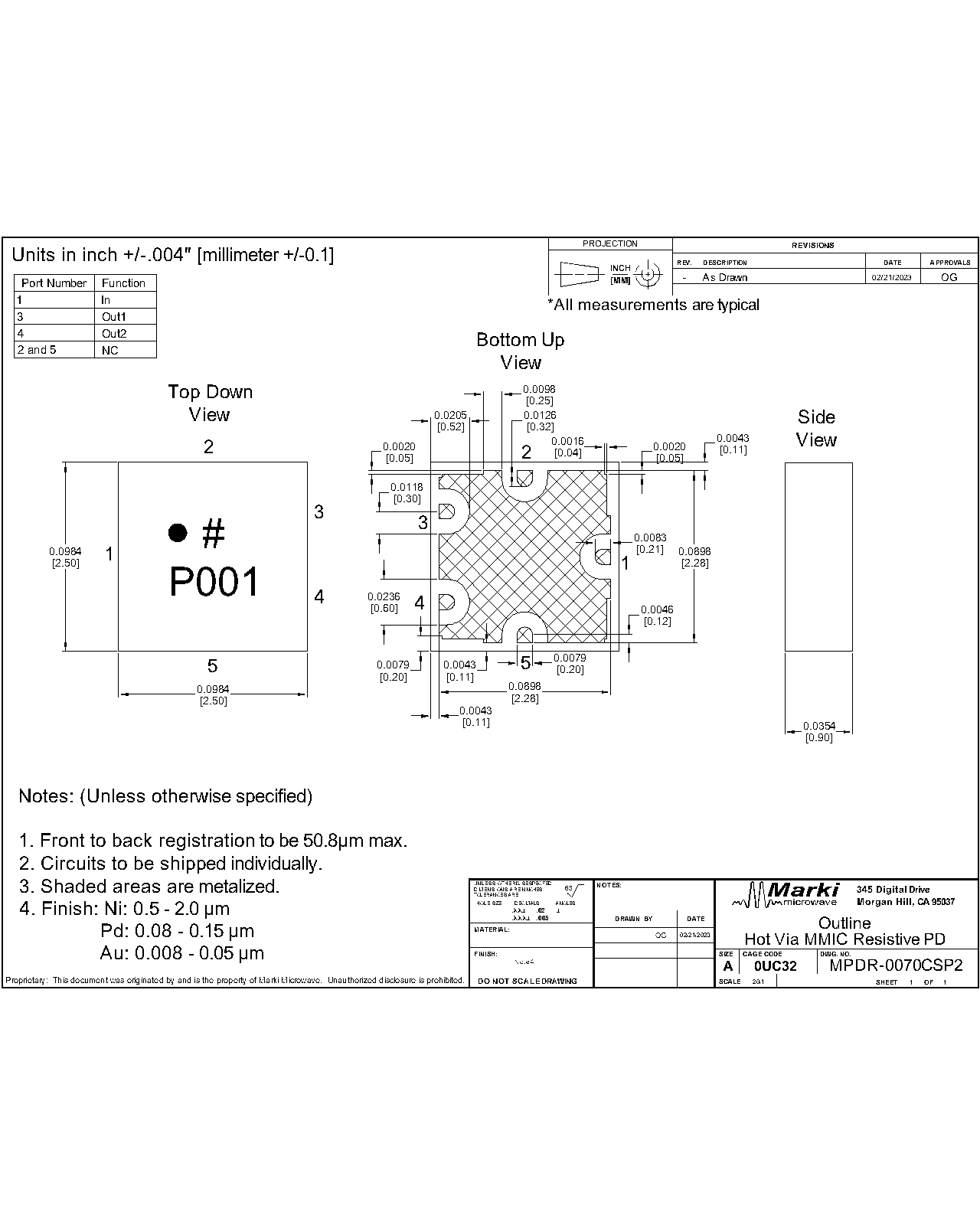

A top-down x-ray view of the MPDR-0070CPS2 package outline drawing is shown below.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CSP2 package ground provided through the substrate and ground paddle. |  |
| Pin 1 | Input/Output | The common port is DC connected to the other two ports through a resistive network and open to ground. |  |
| Pin 2 | Non-connect (NC) | Pin 2 is not connected internally and can be tied to RF ground. | |
| Pin 3 | Input/Output | The output 1 port is DC connected to the other two ports through a resistive network and open to ground. | |
| Pin 4 | Input/Output | The output 2 port is DC connected to the other two ports through a resistive network and open to ground. | |
| Pin 5 | Non-connect (NC) | Pin 5 is not connected internally and can be tied to RF ground. | |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Download : Footprint Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-10-16 | Datasheet Initial Release |
| B | 2025-04-28 | Updated Moisture Sensitivity from MSL3 to MSL1 |
| C | 2025-12-17 | Power Handling Updated |
