MPD4-1260CSP2
12 - 60 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter
The MPD4-1260CSP2 is a small footprint MMIC 12-60 GHz 4-Way power divider/power splitter featuring high 29 dB isolation and low 1.1 dB insertion loss in our compact CSP2 chip scale package. It is much smaller than a printed PCB Wilkinson Power Divider/Combiner. It can be used as an equal amplitude/phase power splitter or a power combiner with excellent isolation. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S5P file taken from measured production units. The 2.5 mm CSP2 package enables extreme miniaturization of SMT footprint making the MPD4-1260CSP2 ideal for applications prioritizing low SWaP.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 12 to 60 | GHz |
| Phase Balance | 1.9 | ° |
| Excess Insertion Loss | 1.1 | dB |
| No. Ways | Wilkinson 1:4 | - |
| RF Power Handling as a Power Divider | 10 | W |
| Amplitude Balance | 0.25 | dB |
| Isolation | 29 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD4-1260CSP2 | 12 - 60 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD4-1260 | Evaluation Board, 12 - 60 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter | EVB | RoHS REACH | Released | EAR99 |
Measured data is de-embedded from fixture using automatic fixture removal (AFR). See Footprint notes for trace information.
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Port Configuration | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|---|
| Frequency Range | - | - | 12 | 60 | - | - | - | GHz |
| Amplitude Balance | - | Adjacent Ports | 12 | 60 | - | 0.36 | - | dB |
| Amplitude Balance | - | Non-Adjacent Ports | 12 | 60 | - | 0.25 | - | dB |
| Common Port Return Loss | - | - | 12 | 60 | - | 18 | - | dB |
| Excess Insertion Loss 1 | - | - | 12 | 60 | - | 1.1 | - | dB |
| Impedance | - | - | - | - | - | 50 | - | Ω |
| Isolation | - | Adjacent Ports | 12 | 60 | - | 24 | - | dB |
| Isolation | - | Non-Adjacent Ports | 12 | 60 | - | 29 | - | dB |
| Nominal Phase Shift | - | - | 12 | 60 | - | 0 | - | ° |
| Nominal Power Splitting | - | - | 12 | 60 | - | 6 | - | dB |
| Output Return Loss | - | - | 12 | 60 | - | 18 | - | dB |
| Phase Balance | - | Adjacent Ports | 12 | 60 | - | 2.2 | - | ° |
| Phase Balance | - | Non-Adjacent Ports | 12 | 60 | - | 1.9 | - | ° |
[1] Excess Insertion Loss is loss in addition to power splitting loss, calculated as (Common Port to Output Port Insertion Loss) – (Power splitting loss of 6 dB)
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 40 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling as a Power Divider | 10 | W |
| RF Power Handling as a Power Combiner | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.50 x 2.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |

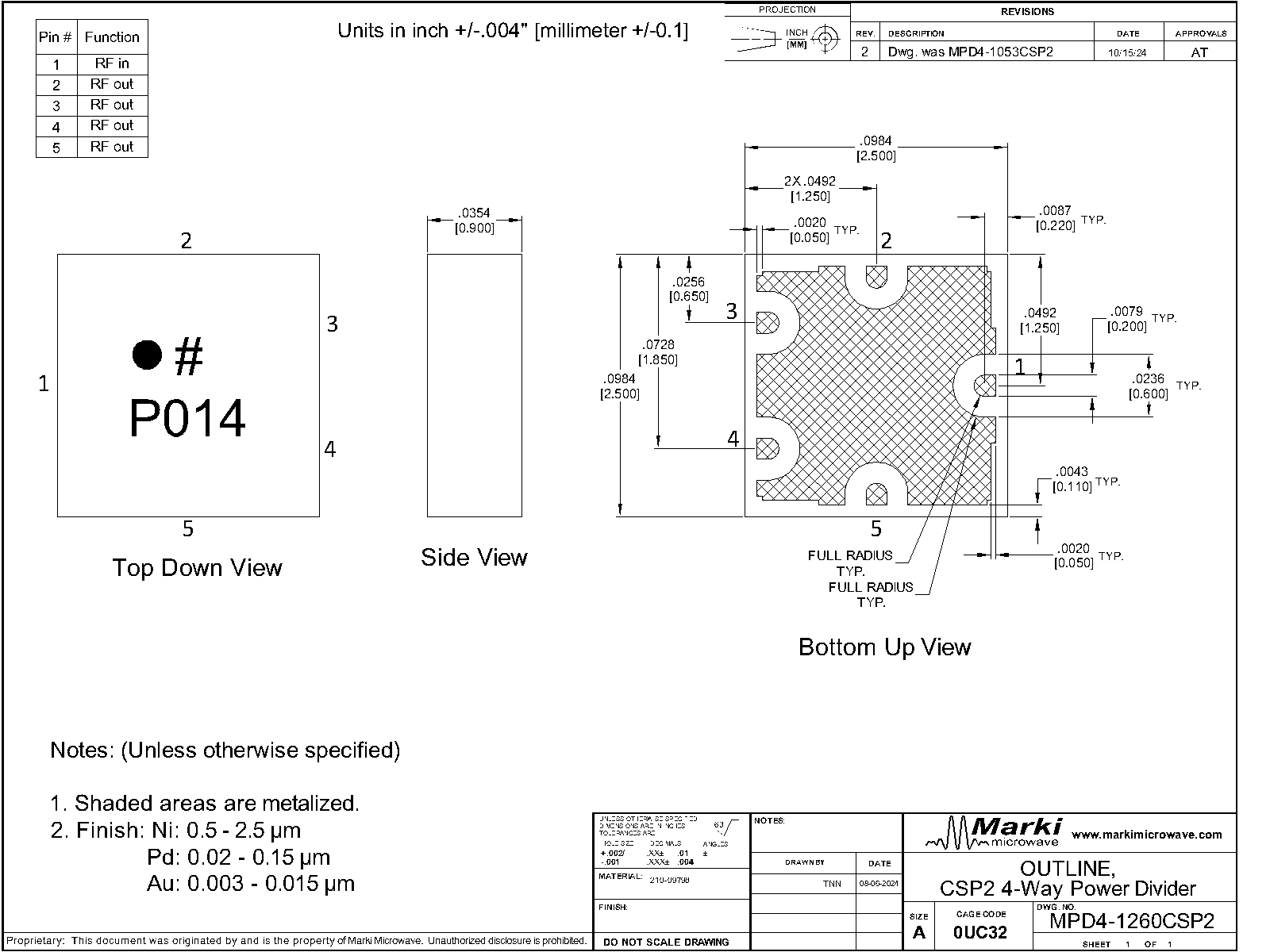

A bottom-up view of the MPD4-1260CSP2 package outline drawing is shown below. The MMIC Power dividers are passive reciprocal devices allowing either power splitting or power combining.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground | - |
| Pin 1 | RF Output | Pin 1 is the input pin. It is DC short to the other 4 pins and open to ground. | - |
| Pin 2 | Combiner Input 1 | Pin 2 is an input pin. It is DC short to the other 4 pins and open to ground. | - |
| Pin 3 | Combiner Input 2 | Pin 3 is an input pin. It is DC short to the other 4 pins and open to ground. | - |
| Pin 4 | Combiner Input 3 | Pin 4 is an input pin. It is DC short to the other 4 pins and open to ground. | - |
| Pin 5 | Combiner Input 4 | Pin 5 is an input pin. It is DC short to the other 4 pins and open to ground. | - |
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground |  |
| Pin 1 | RF Input | Pin 1 is the input pin. It is DC short to the other 4 pins and open to ground. |  |
| Pin 2 | Divider Output 1 | Pin 2 is an input pin. It is DC short to the other 4 pins and open to ground. | |
| Pin 3 | Divider Output 2 | Pin 3 is an output pin. It is DC short to the other 4 pins and open to ground. | |
| Pin 4 | Divided Output 3 | Pin 4 is an output pin. It is DC short to the other 4 pins and open to ground. | |
| Pin 5 | Divider Output 4 | Pin 5 is an output pin. It is DC short to the other 4 pins and open to ground. | |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

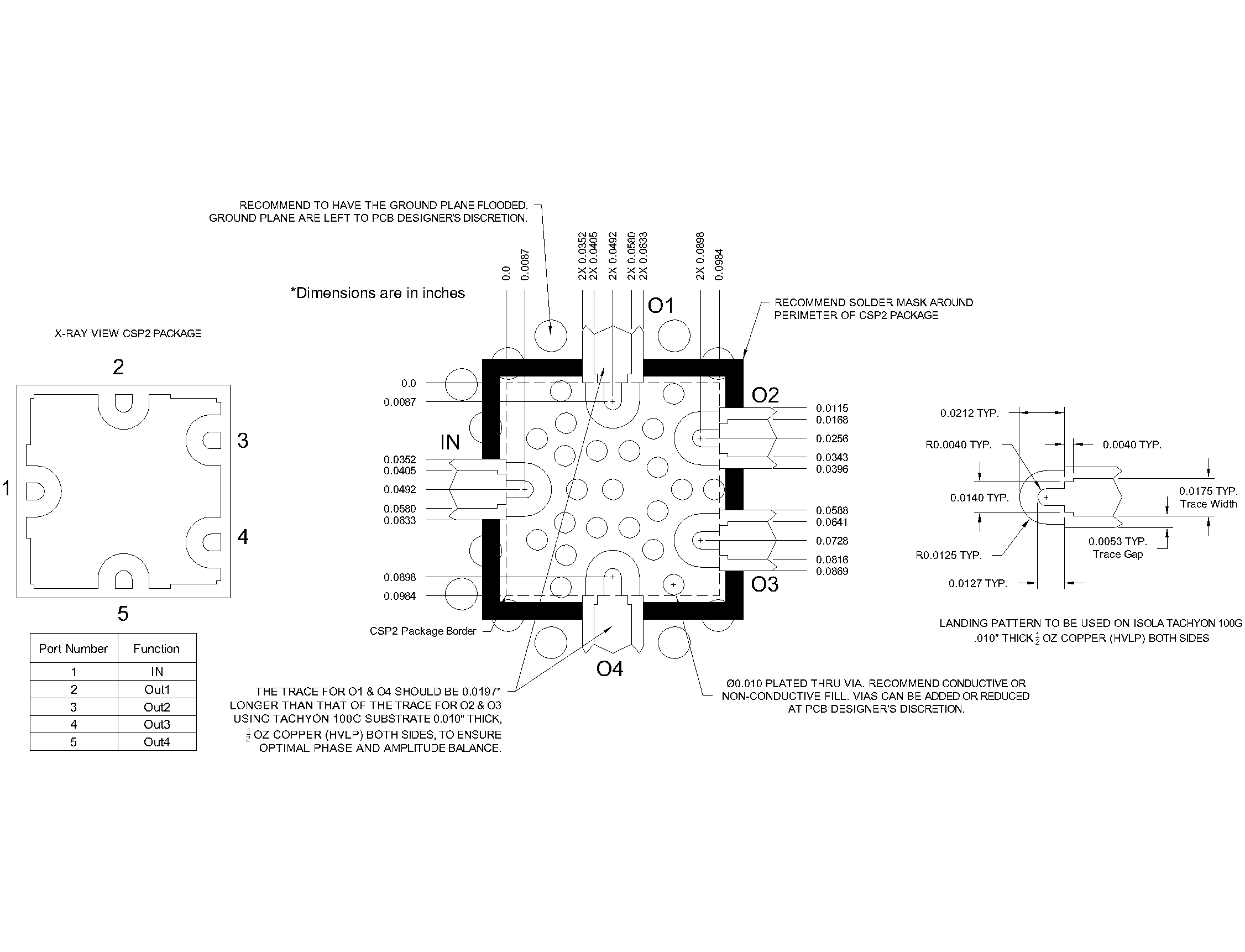

Download : Footprint Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-10-03 | Initial Release |
| A | 2026-02-25 | Power Handling Updated |
