Device Overview

General Description

The MPD4-0108CSP2 is a small footprint MMIC 1-8 GHz 4-Way power divider/power splitter featuring high 30 dB isolation and low 2.6 dB insertion loss in our compact CSP2 chip scale package. It is much smaller than a printed PCB Wilkinson Power Divider/Combiner. It can be used as an equal amplitude/phase power splitter or a power combiner with excellent isolation. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S5P file taken from measured production units. The 2.5 mm CSP2 package enables extreme miniaturization of SMT footprint making the MPD4-0108CSP2 ideal for applications prioritizing low SWaP.

Photo of MPD4-0108CSP2

Features

  • 4-way splitter or combiner in a compact 2.5mm package
  • Low 2.6 dB typical insertion loss
  • High 30 dB isolation
  • Excellent 0.1 dB amplitude and 0.2° phase balance
  • This product embodies Marki Microwave's U.S. Pat. 11,869,858.

Applications

  • Test Equipment
  • Electronic Warfare
  • Radar and satellite communications
  • High Channel Count Systems

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MPD4-0108CSP21 - 8 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter CSP2

REACH

RoHS

ReleasedEAR99
EVB-MPD4-0108Evaluation Board, 1 - 8 GHz MMIC 4-Way Wilkinson Power Divider/Power SplitterEVB

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2024-10-22Initial Release
A2025-04-28Updated Moisture Sensitivity from MSL3 to MSL1
B2025-12-05ESD Updated
C2026-02-18Power handling information added

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

A bottom-up view of the MPD4-0108CSP2 package outline drawing is shown below. The MMIC Power dividers are passive reciprocal devices allowing either power splitting or power combining.

Diagram of the port configuration for MPD4-0108CSP2

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

3

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Ground PaddleGnd Ground paddle should be connected to RF groundEquivalent circuit for the Gnd
Pin 1Common Pin 1 is the common input/output pin. It is DC short to the other 4 pins and open to ground.Equivalent circuit for the Common
Pin 2Input/Output 1 Pin 2 is an input/output pin. It is DC short to the other 4 pins and open to ground.Equivalent circuit for the Input/Output 1
Pin 3Input/Output 2 Pin 3 is an input/output pin. It is DC short to the other 4 pins and open to ground.Equivalent circuit for the Input/Output 2
Pin 4Input/Output 3 Pin 4 is an input/output pin. It is DC short to the other 4 pins and open to ground.Equivalent circuit for the Input/Output 3
Pin 5Input/Output 4 Pin 5 is an input/output pin. It is DC short to the other 4 pins and open to ground.Equivalent circuit for the Input/Output 4

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
DC Current 40mA
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF Power Handling as a Power Divider 10W
RF Power Handling as a Power Combiner 1W

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-2.50 x 2.50 mm
Moisture Sensitivity Level-MSL 1

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

5

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Impedance -- --50-Ω
Output Return Loss -1 8-24-dB
Excess Insertion Loss 1-1 6-1.4-dB
Excess Insertion Loss 2-6 8-2.6-dB
Common Port Return Loss -1 8-22-dB
Isolation Adjacent Ports
1 2-11-dB
Isolation Adjacent Ports
2 8-22-dB
Isolation Non-Adjacent Ports
1 8-22-dB
Isolation Non-Adjacent Ports
2 8-30-dB
Amplitude Balance Adjacent Ports
1 8-0.08-dB
Amplitude Balance Non-Adjacent Ports
1 8-0.08-dB
Phase Balance Adjacent Ports
1 8-0.4-°
Phase Balance Non-Adjacent Ports
1 8-0.22-°
Nominal Phase Shift -1 8-0-°
Nominal Power Splitting -1 8-6-dB

[1][2] Excess Insertion Loss is loss in addition to power splitting loss, calculated as (Common Port to Output Port Insertion Loss) – (Power splitting loss of 6 dB)

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

6

Typical Performance Plots

Insertion Loss (dB) graph for MPD4-0108CSP2
Blank graph for MPD4-0108CSP2
Common Port Return Loss (dB) graph for MPD4-0108CSP2
Output Return Loss (dB) graph for MPD4-0108CSP2
Amplitude Balance (dB) graph for MPD4-0108CSP2
Amplitude Balance (dB) graph for MPD4-0108CSP2
Phase Balance (°) graph for MPD4-0108CSP2
Phase Balance (°) graph for MPD4-0108CSP2

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

7

Isolation (dB) graph for MPD4-0108CSP2
Isolation (dB) graph for MPD4-0108CSP2

Measured data is de-embedded from fixture using automatic fixture removal (AFR).

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

8

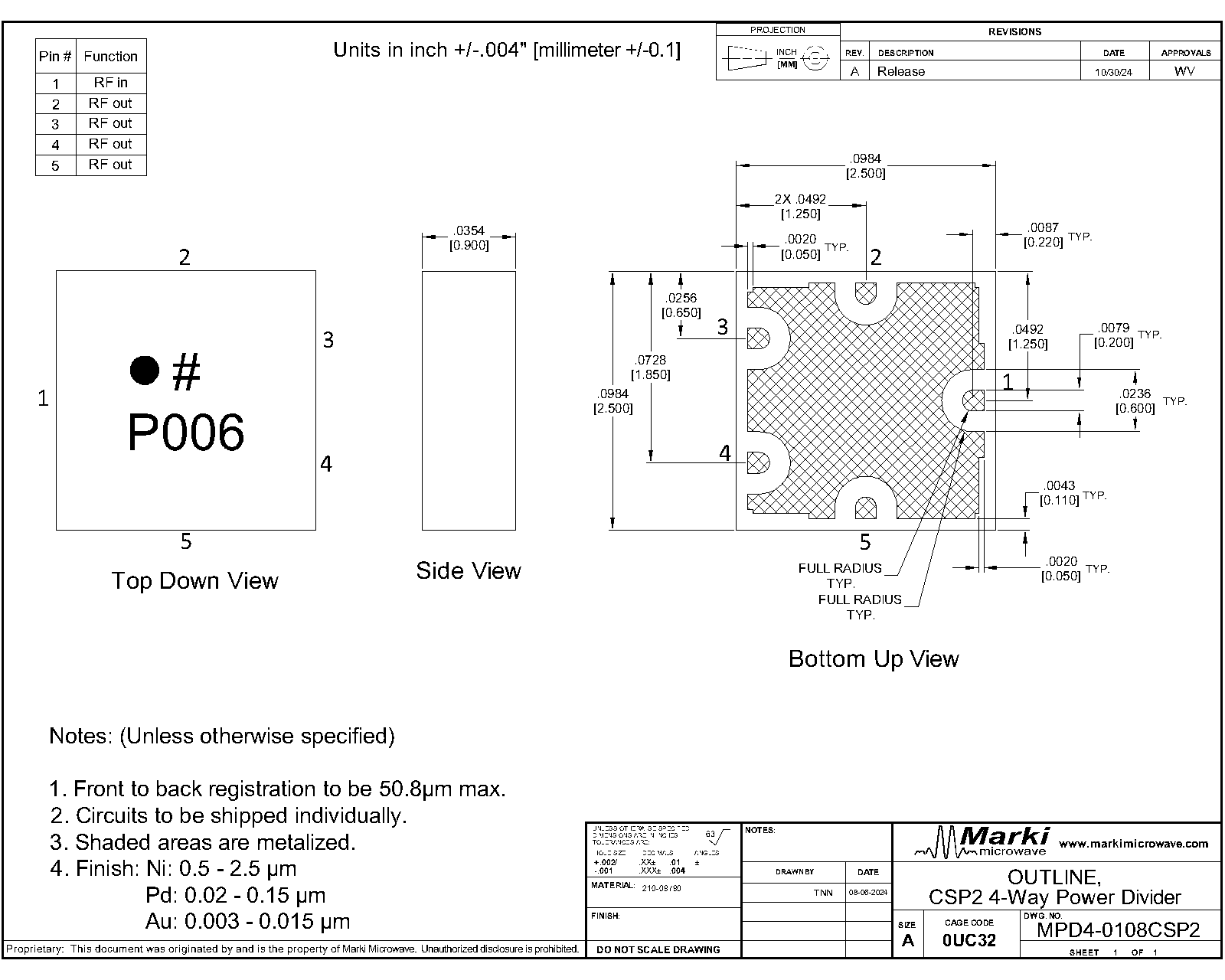

Mechanical Data

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

9

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

10

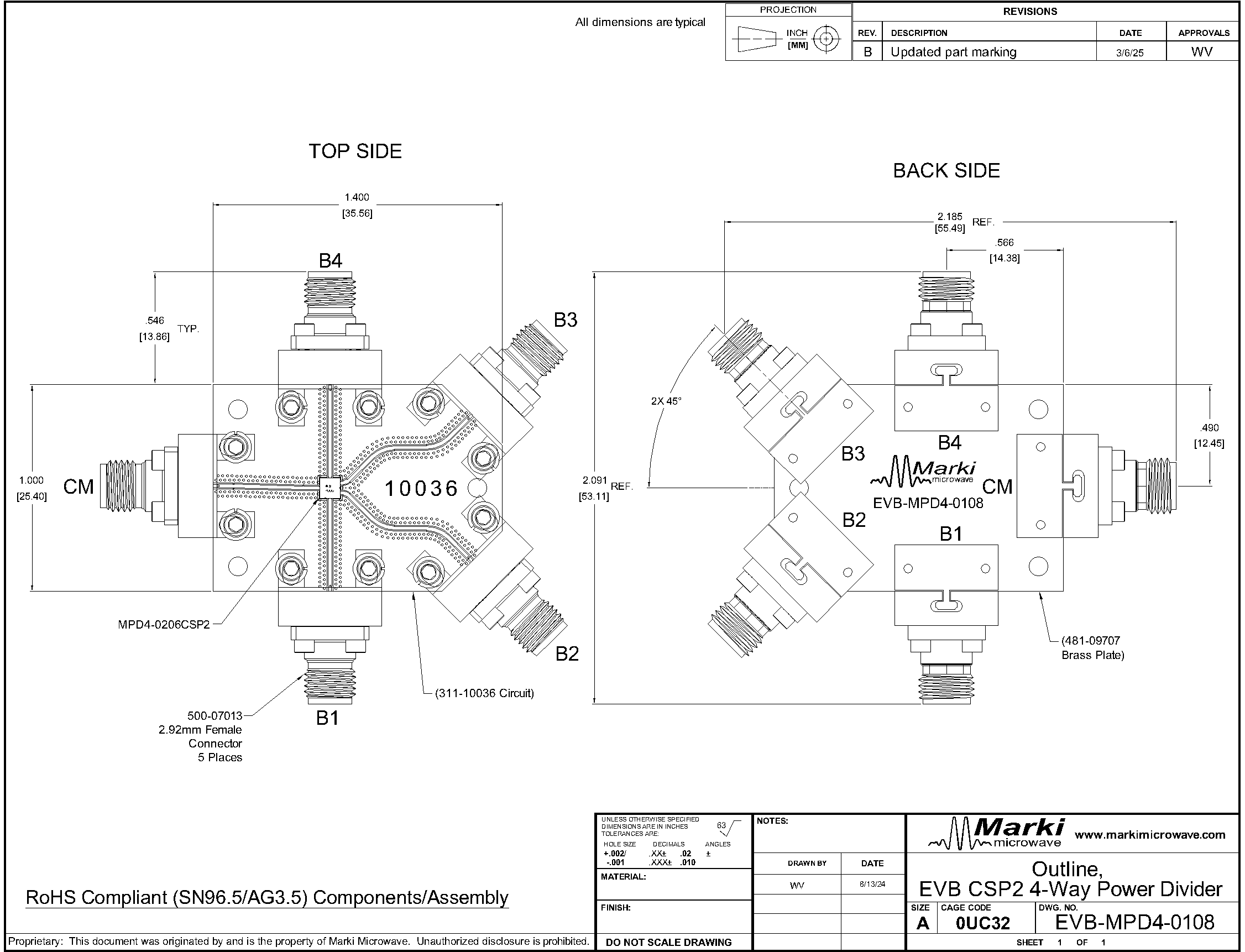

Evaluation Board - Outline Drawing

Outline Drawing

Rev: C | Copyright © 2024 - 2026 Marki Microwave LLC.

11
