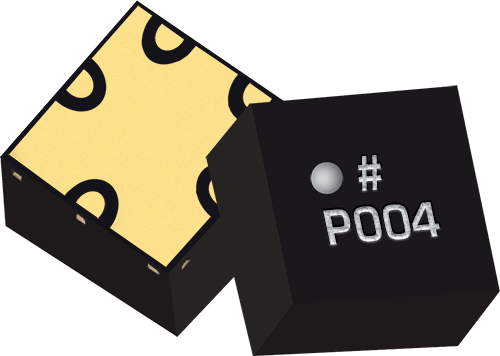

MPD-0108SCSP2

1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports

The MPD-0108SCSP2 is a small footprint MMIC 1-8 GHz 2-Way power divider/power splitter featuring high 23 dB isolation and low 0.9 dB insertion loss in our compact CSP2 chip scale package. It is much smaller than a printed PCB Wilkinson Power Divider/Combiner. It can be used as an equal amplitude/phase power splitter or a power combiner with excellent isolation. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S3P file taken from measured production units. The MPD-0108SCSP2 features side port outputs. For front port outputs, refer to the MPD-0108FCSP2. The 2.5 mm CSP2 package enables extreme miniaturization of SMT footprint making the MPD-0108SCSP2 ideal for applications prioritizing low SWaP.
