MPBR-0122CSP3
1 - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter
The MPBR-0122CSP3 is a small footprint MMIC 1-22 GHz 2-Way high isolation power divider/power splitter featuring high 31 dB isolation and low 2 dB insertion loss in our compact CSP3 chip scale package. It is much smaller than a printed PCB Power Divider/Combiner. It can be used as an equal amplitude/phase power splitter or a power combiner with higher isolation compared to standard Wilkinson power dividers, making it ideal for applications that demand the highest isolation. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S3P file taken from measured production units. The 3.5 mm CSP3 package enables extreme miniaturization of SMT footprint making the MPBR-0122CSP3 ideal for applications prioritizing low SWaP. If higher isolation is required, refer to our MPBR-0022CSP3.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 1 to 22 | GHz |
| Phase Balance | 0.7 | ° |
| Excess Insertion Loss | 2 | dB |
| No. Ways | Wilkinson 1:2 | - |
| RF Power Handling as a Power Divider | 20 | W |
| Amplitude Balance | 0.1 | dB |
| Isolation | 31 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPBR-0122CSP3 | 1 - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter | CSP3 | REACH RoHS | Released | EAR99 |
| EVB-MPBR-0122 | Evaluation Board, 1 - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter | EVB | RoHS REACH | Released | EAR99 |
Measured data is de-embedded from fixture using automatic fixture removal (AFR).
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 1 | 22 | - | - | - | GHz |
| Amplitude Balance | - | 2 | 22 | - | 0.1 | - | dB |
| Common Port Return Loss | - | 2 | 22 | - | 23 | - | dB |
| Excess Insertion Loss 1 | - | 2 | 22 | - | 2 | - | dB |
| Impedance | - | 2 | 22 | - | 50 | - | Ω |
| Isolation | - | 2 | 22 | - | 31 | - | dB |
| Nominal Phase Shift | - | 2 | 22 | - | 0 | - | ° |
| Nominal Power Splitting | - | 2 | 22 | - | 3 | - | dB |
| Output Return Loss | - | 2 | 22 | - | 20 | - | dB |
| Phase Balance | - | 2 | 22 | - | 0.7 | - | ° |
[1] Excess Insertion Loss is loss in addition to power splitting loss, calculated as (Common Port to Output Port Insertion Loss) – (Power splitting loss of 3 dB)
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 80 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling as a Power Divider | 20 | W |
| RF Power Handling as a Power Combiner | 5 | W |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3.50 x 3.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground |  |
| Pin 1 | Common | Pin 1 is the common input/output pin. It is DC short to Pin 3 and Pin 4 and open to ground. |  |
| Pin 3 | Input/Output 1 | Pin 3 is an input/output pin. It is DC short to the common and Pin 5 and open to ground. | |
| Pin 5 | Input/Output 2 | Pin 5 is an input/output pin. It is DC short to the common and Pin 3 and open to ground. | |

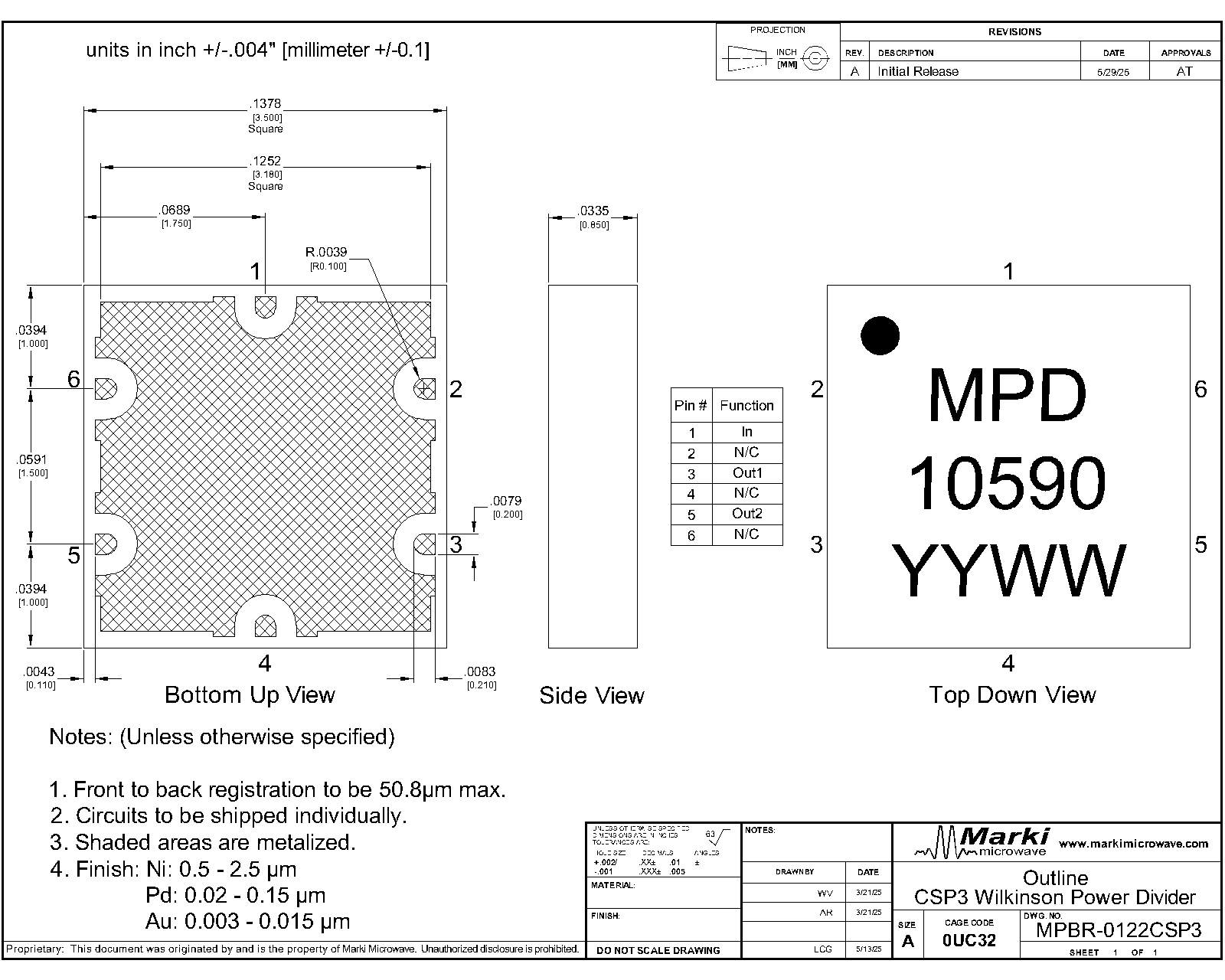

Download : Outline 2D Drawing Outline 3D STP

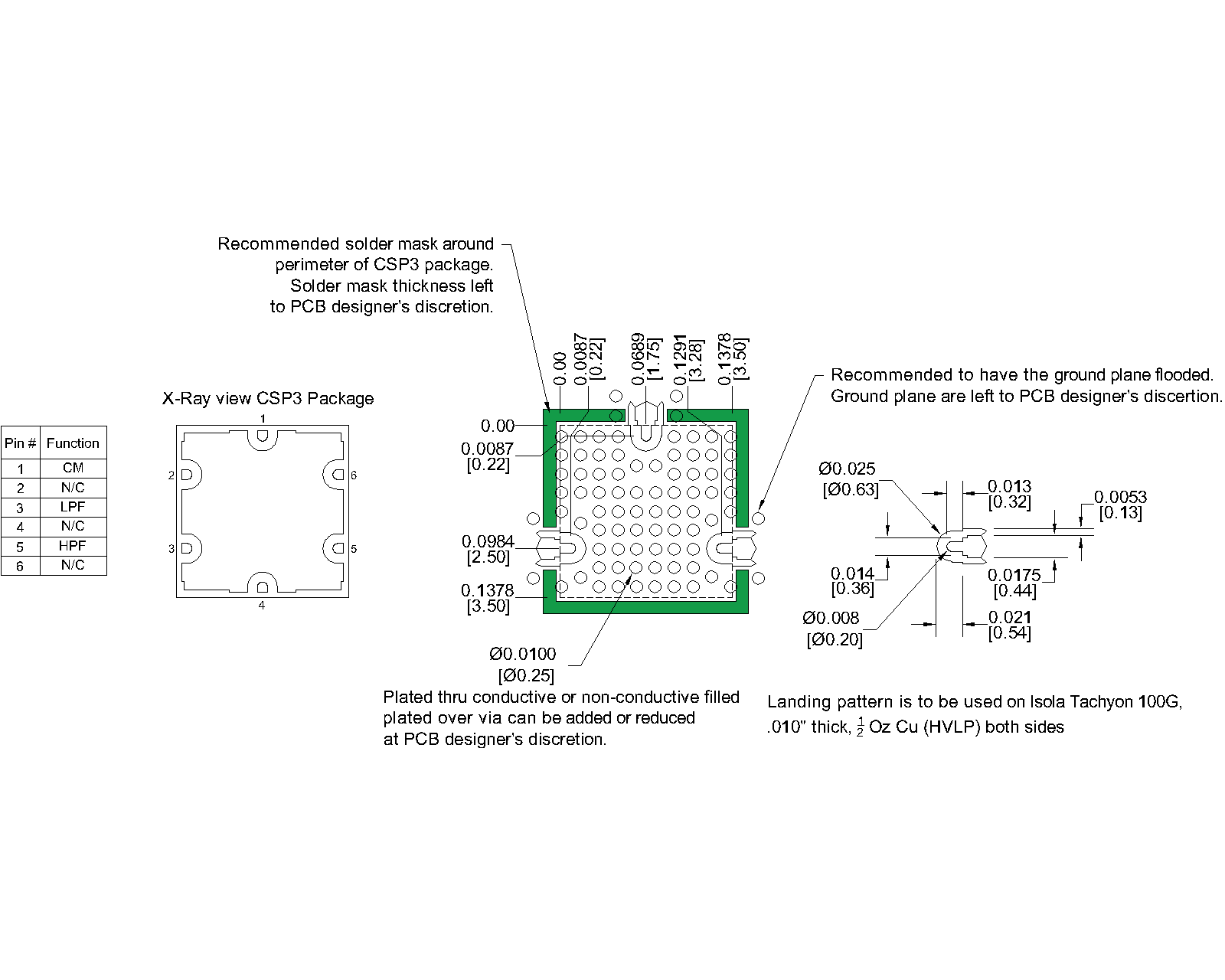

Download : Footprint Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-08-18 | Initial Release |
| A | 2025-08-25 | Updated Max Current Rating |
| B | 2025-12-08 | Updated Max Power Handling |
| B | 2026-01-09 | Updated Max Power Handling |
