General Description

The MTPX-00001CSP3 is a MMIC surface mount low pass, band pass, and high pass triplexer/reflectionless filter featuring 10.12 GHz and 18.16 GHz crossover frequencies. Passive MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MTPX-00001CSP3 is available as a 3.5 x 3.5 mm CSP3. Low unit-to-unit variation allows for accurate simulations using the provided S-parameter file taken from measured production units.

Features

  • Low Insertion Loss, ≤ 2.3 dB Typical
  • Crossover Points, 10.1 GHz and 18.2
  • Excellent Return Losses, > 19 dB Typical
  • High Band to Band Isolation, 37 dB Typical

Functional Block Diagram

N/A

Photo of MTPX-00001CSP3

Electrical Performance Summary

ParameterTypUnit
Band 1: 1 dBc Passband 0.00 to 7.14GHz
Band 1: 30 dBc Rejection Point 11.47 to 11.47GHz
Band 1 to Band 2: Crossover Frequency 10.12GHz
Band 2: 1 dBc Passband 10.89 to 16.81GHz
Band 2: 30 dBc Rejection Point 8.31 to 20.00GHz
Band 2 to Band 3: Crossover Frequency 18.16GHz
Band 3: 1 dBc Passband 19.14 to 26.06GHz
Band 3: 30 dBc Rejection Point 15.33 to 29.37GHz

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MTPX-00001CSP3Passive MMIC 10 GHz and 18 GHz Triplexer/Reflectionless FilterCSP3

RoHS

REACH

ReleasedEAR99
EVB-MTPX-00001Evaluation Board, Passive MMIC 10GHz and 18GHz TriplexerEVB

RoHS

REACH

ReleasedEAR99

Table Of Contents

Typical Performance Plot

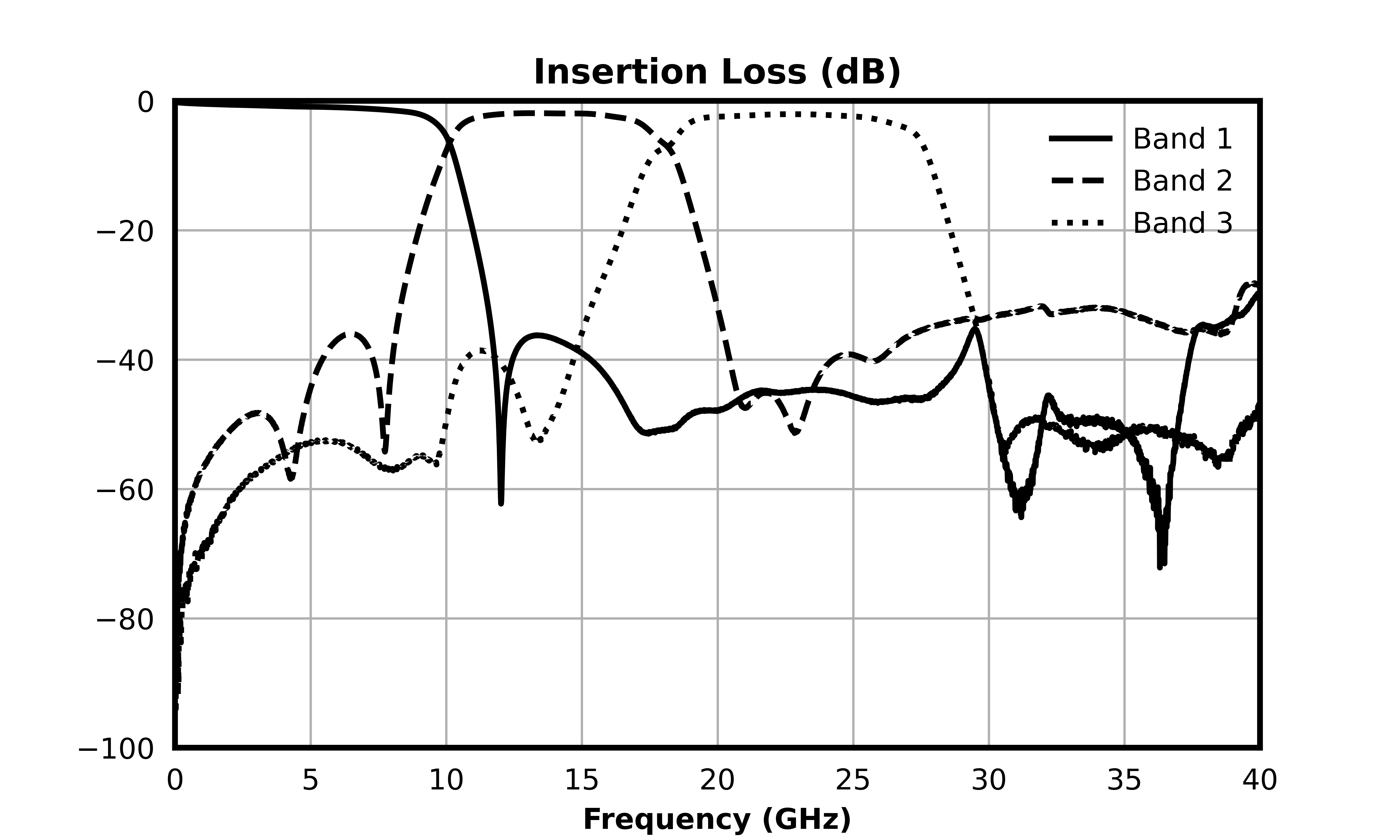

Insertion Loss (dB) graph for MTPX-00001CSP3

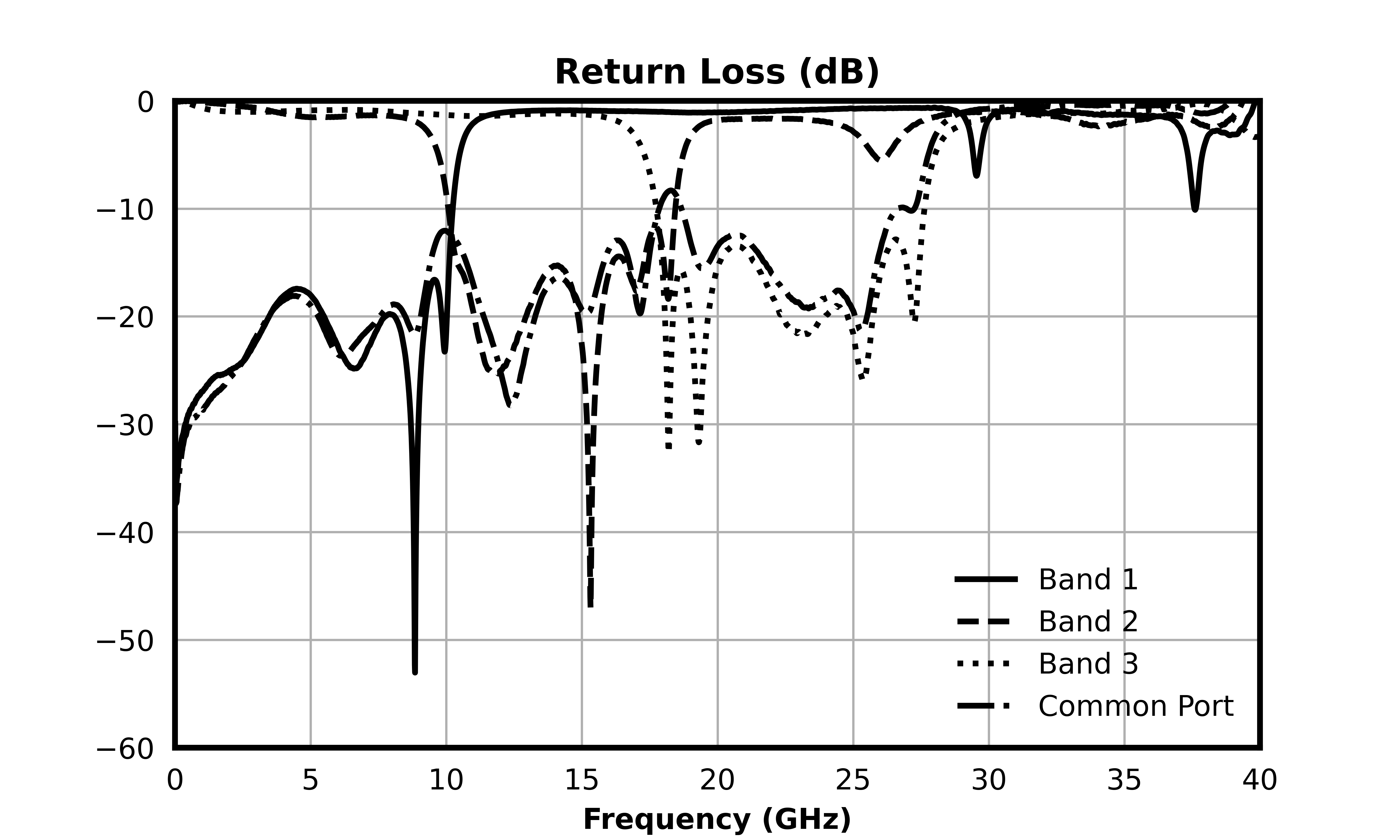

Return Loss (dB) graph for MTPX-00001CSP3

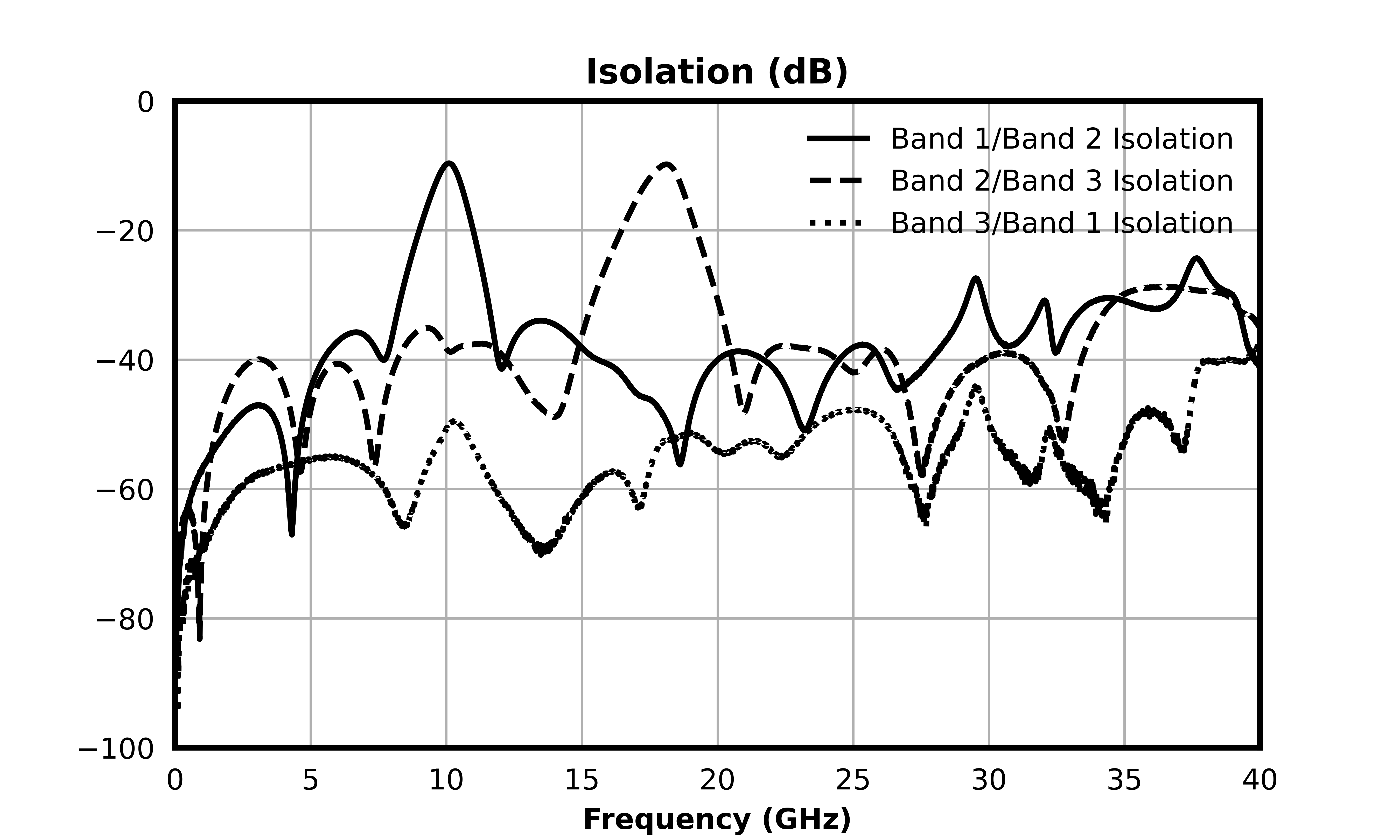

Isolation (dB) graph for MTPX-00001CSP3

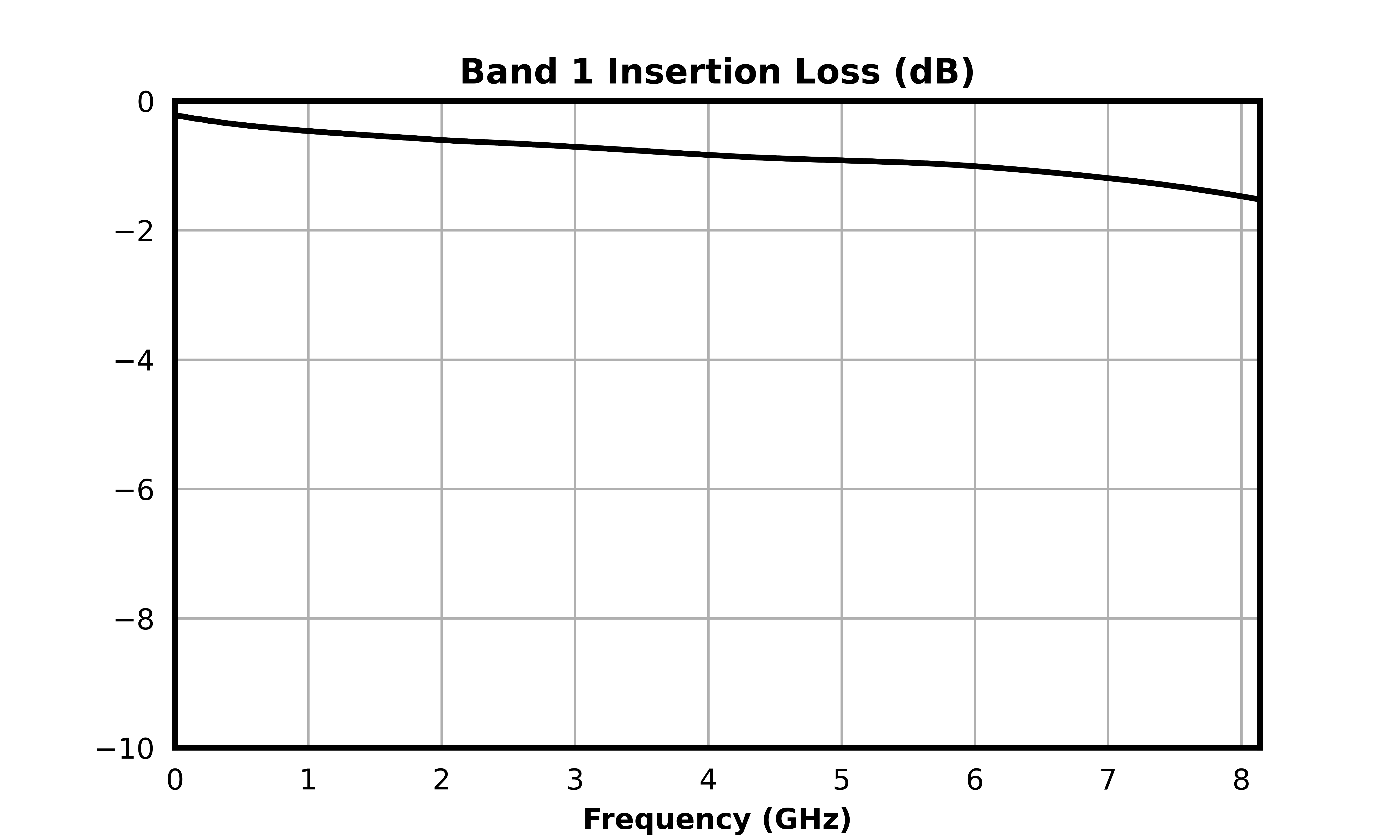

Band 1 Insertion Loss (dB) graph for MTPX-00001CSP3

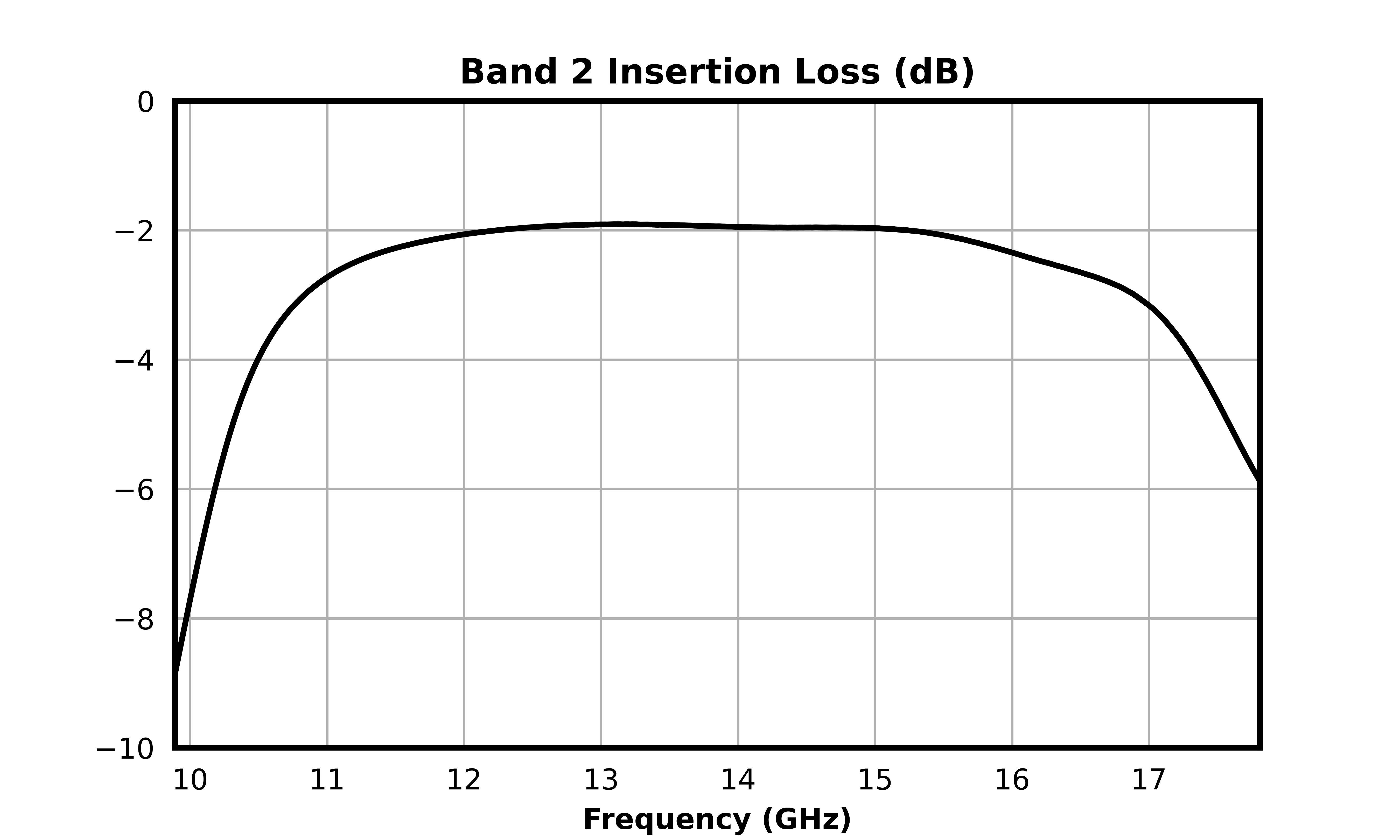

Band 2 Insertion Loss (dB) graph for MTPX-00001CSP3

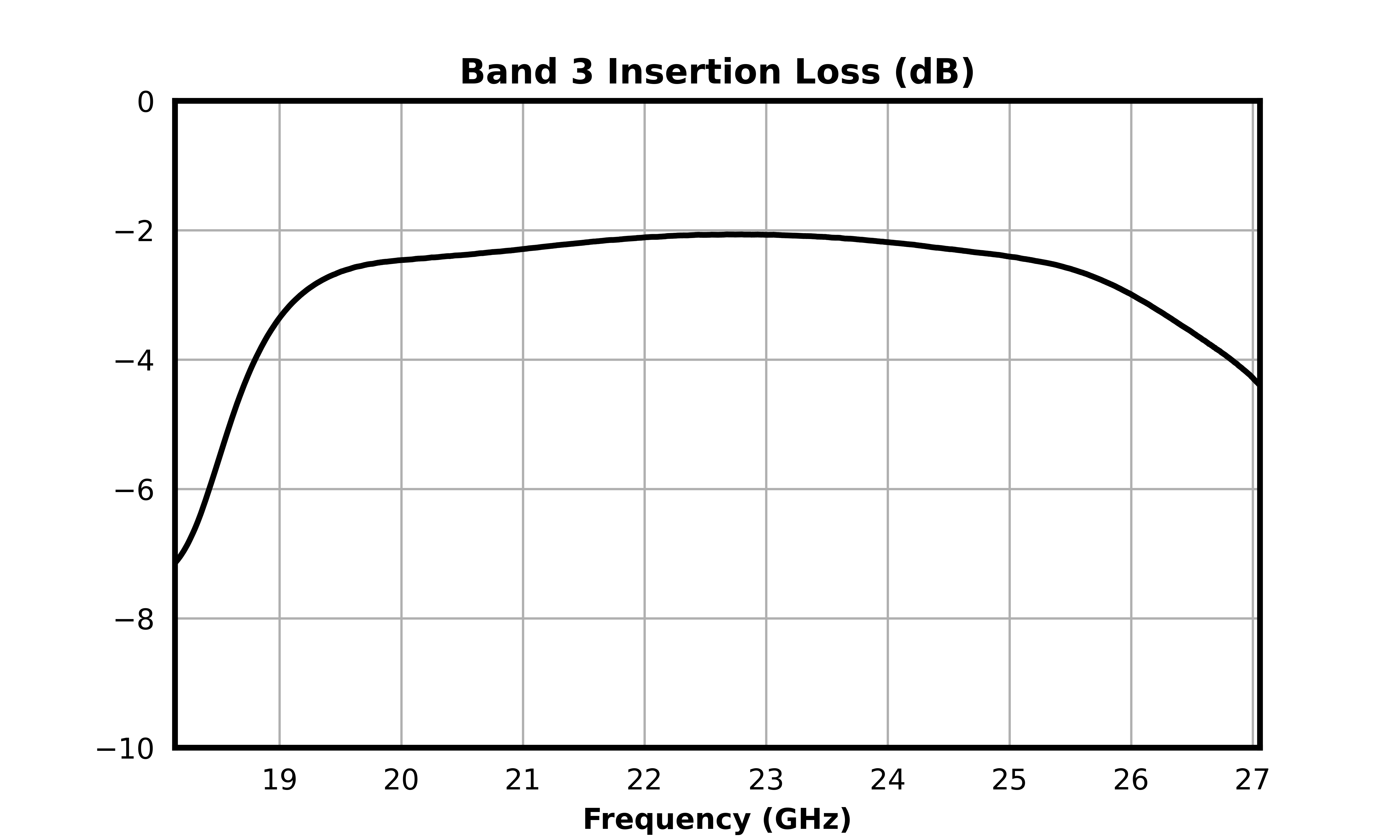

Band 3 Insertion Loss (dB) graph for MTPX-00001CSP3

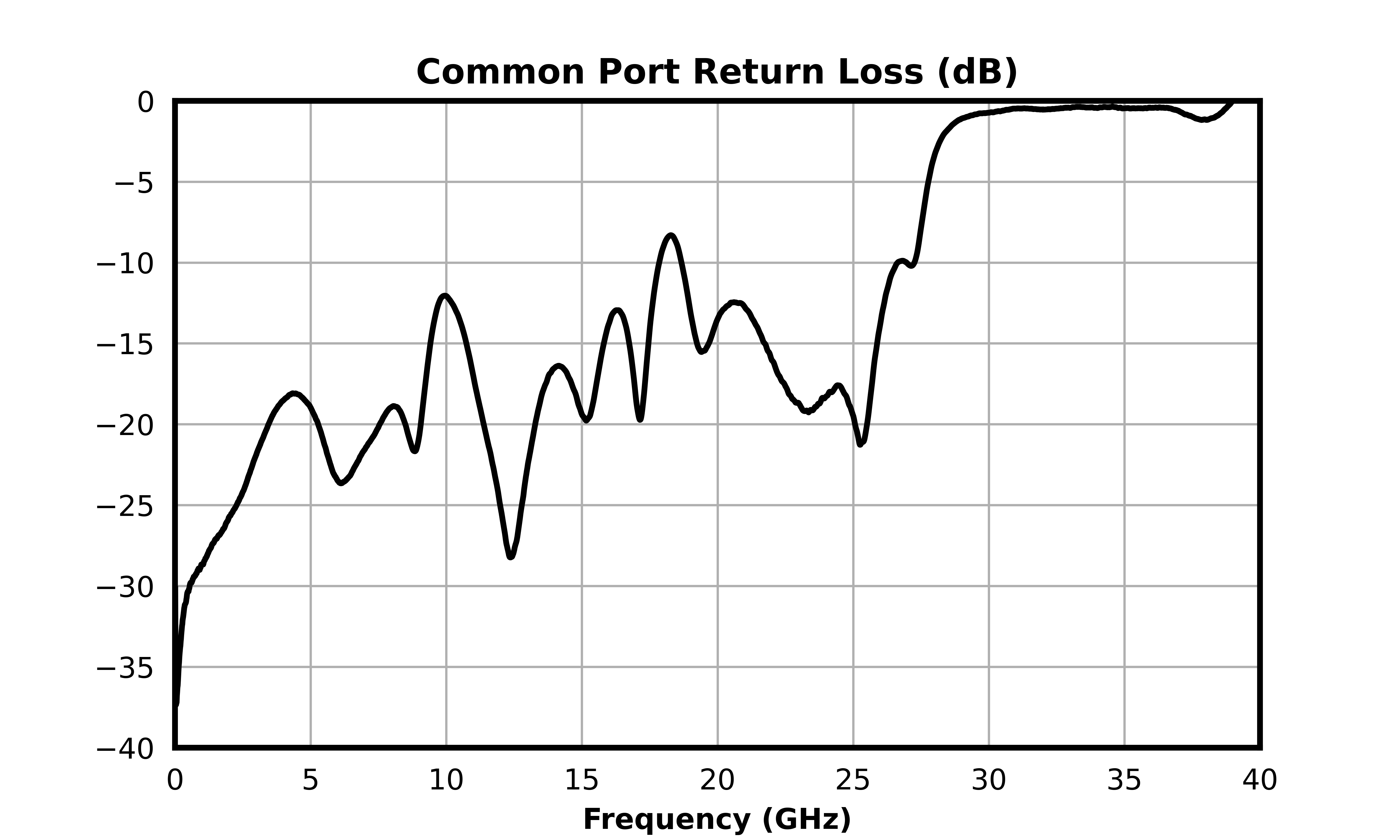

Common Port Return Loss (dB) graph for MTPX-00001CSP3

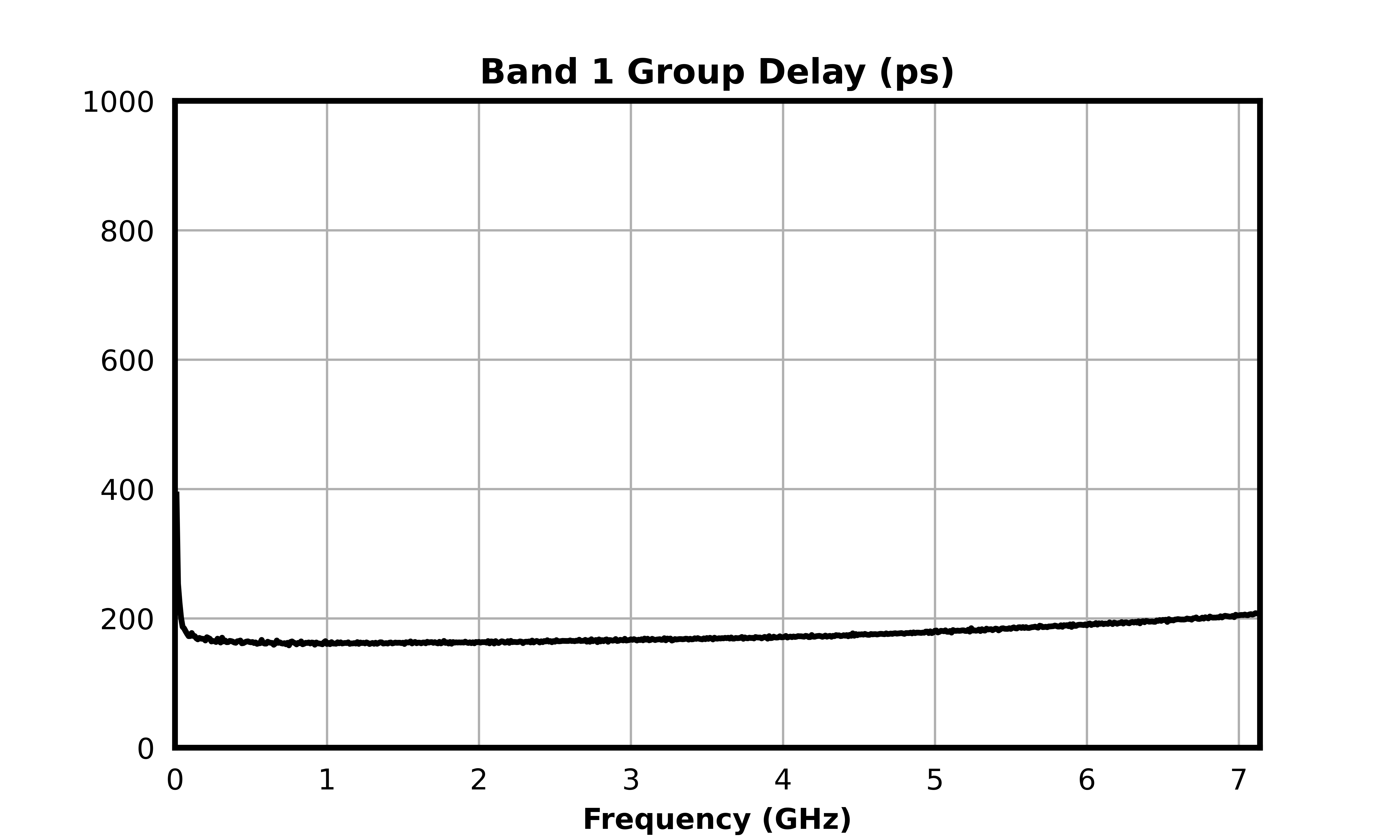

Band 1 Group Delay (ps) graph for MTPX-00001CSP3

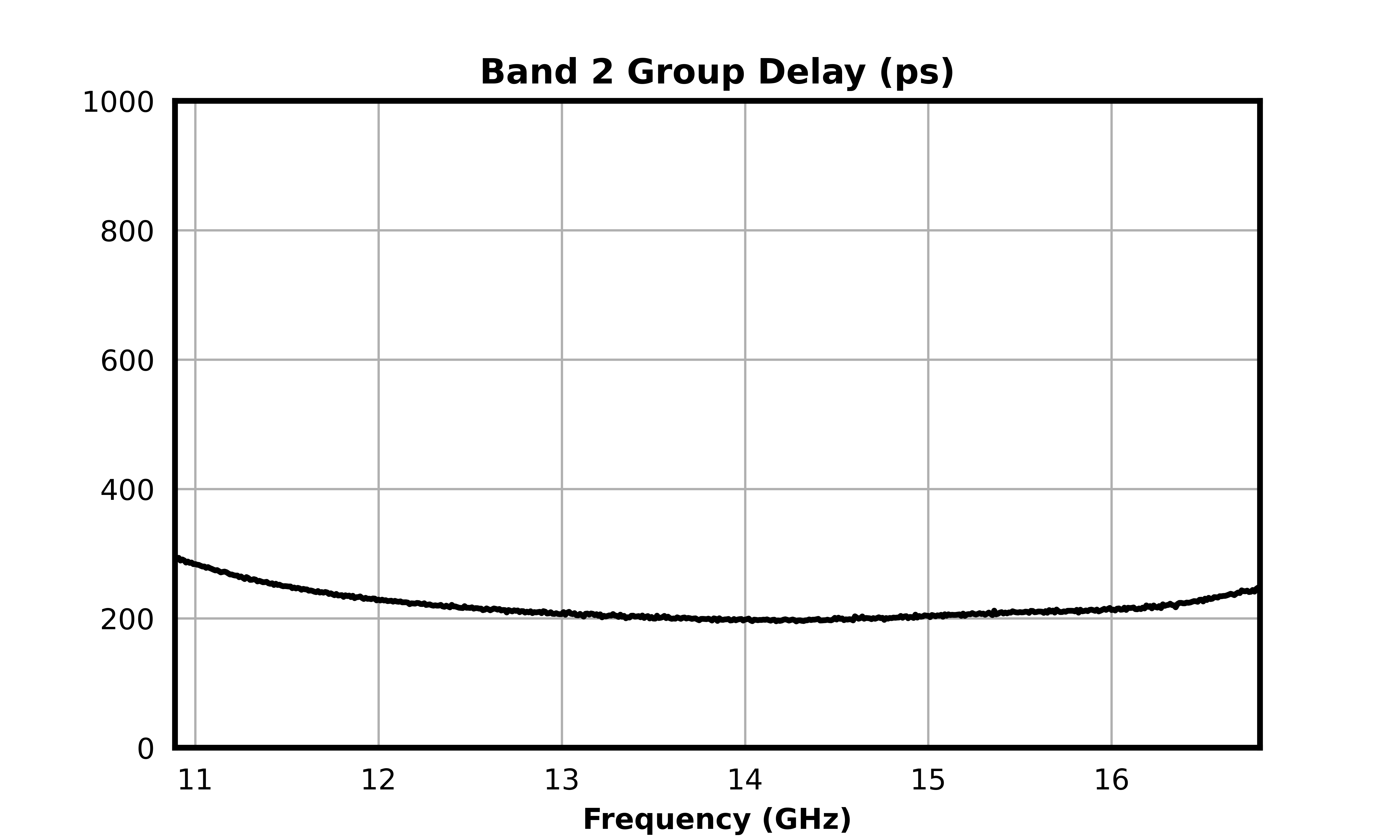

Band 2 Group Delay (ps) graph for MTPX-00001CSP3

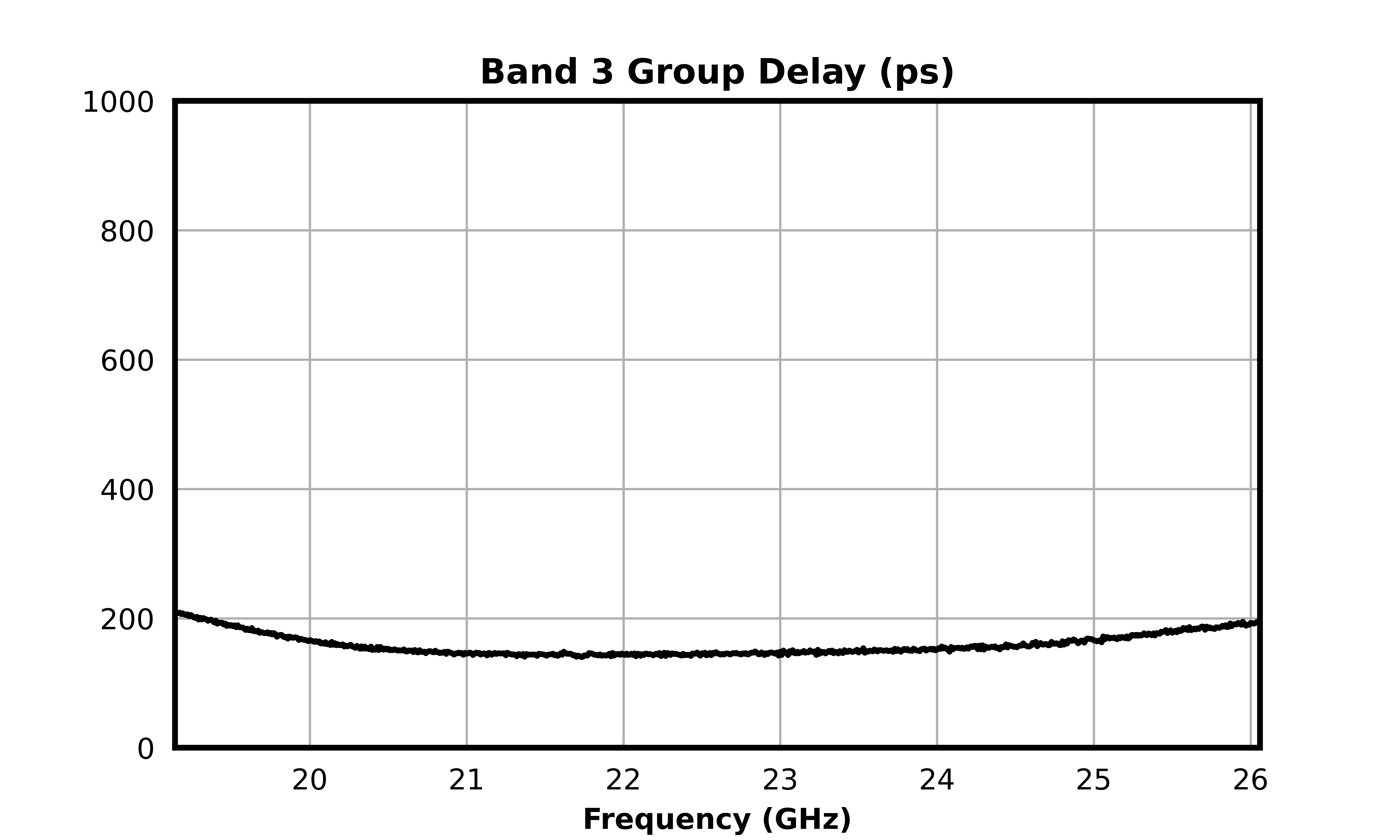

Band 3 Group Delay (ps) graph for MTPX-00001CSP3

All measurements are de-embedded from the fixture with Automatic Fixture Removal (AFR).

Specifications

Electrical Specifications

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Band 1: 1 dBc Passband Temp = 25°C
0 7.14---GHz
Band 1: Center Freq Temp = 25°C
- --3.57-GHz
Band 1: 3 dBc Passband Temp = 25°C
0 9.55---GHz
Band 1: 30 dBc Rejection Point Temp = 25°C
11.47 11.47---GHz
Band 1: Insertion Loss @ fc Temp = 25°C
0 7.14-0.78-dB
Band 1: Return Loss Temp = 25°C
0 7.14-23.51-dB
Band 1: Group Delay Temp = 25°C
0 7.14-169.43-ps
Band 2: 1 dBc Passband Temp = 25°C
10.89 16.81---GHz
Band 2: Center Freq Temp = 25°C
- --13.53-GHz
Band 2: 3 dBc Passband Temp = 25°C
10.33 17.56---GHz
Band 2: 30 dBc Rejection Point Temp = 25°C
8.31 20---GHz
Band 2: Insertion Loss @ fc Temp = 25°C
10.89 16.81-2.00-dB
Band 2: Return Loss Temp = 25°C
10.89 16.81-19.40-dB
Band 2: Group Delay Temp = 25°C
10.89 16.81-210.92-ps
Band 3: 1 dBc Passband Temp = 25°C
19.14 26.06---GHz
Band 3: Center Freq Temp = 25°C
- --22.33-GHz
Band 3: 3 dBc Passband Temp = 25°C
18.59 27.28---GHz
Band 3: 30 dBc Rejection Point Temp = 25°C
15.33 29.37---GHz
Band 3: Insertion Loss @ fc Temp = 25°C
19.14 26.06-2.29-dB
Band 3: Return Loss Temp = 25°C
19.14 26.06-19.57-dB
Band 3: Group Delay Temp = 25°C
19.14 26.06-151.86-ps
Band 1 to Band 2: Crossover Frequency Temp = 25°C
- --10.12-GHz
Band 2 to Band 3: Crossover Frequency Temp = 25°C
- --18.16-GHz
Band 1 to Band 2 Isolation Temp = 25°C
- --37-dB
Band 2 to Band 3 Isolation Temp = 25°C
- --39-dB
Band 3 to Band 1 Isolation Temp = 25°C
- --58-dB

Absolute Maximum Ratings

ParameterMaximum RatingUnit
DC Current 160mA
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-3.50 x 3.50 mm
Moisture Sensitivity Level-MSL 1

Port Configuration and Functions

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Pin 1Common/Input Pin 1 is DC short to Pin 3 and open to GND and Pin 5.Equivalent circuit for the Common/Input
Pin 3RF Low Band Pin 3 is DC short to Pin 1 and open to GND, Pin 4, and Pin 5.Equivalent circuit for the RF Low Band
Pin 4RF Mid Band Pin 4 is DC open to GND, Pin 1, Pin 3, and Pin 5.Equivalent circuit for the RF Mid Band
Pin 5RF High Band Pin 5 is DC open to GND Pin 1, Pin 3, and Pin 4.Equivalent circuit for the RF High Band

Operation

Application Circuit

Application Circuit for MTPX-00001CSP3

Application Circuit Description

A top-down x-ray view of the MDPX-00010CSP3 package outline drawing is shown above as a low pass reflectionless filter. A high pass reflectionless filter can be achieved by terminating Pin 3 and taking the output at Pin 5 instead.

Mechanical Data

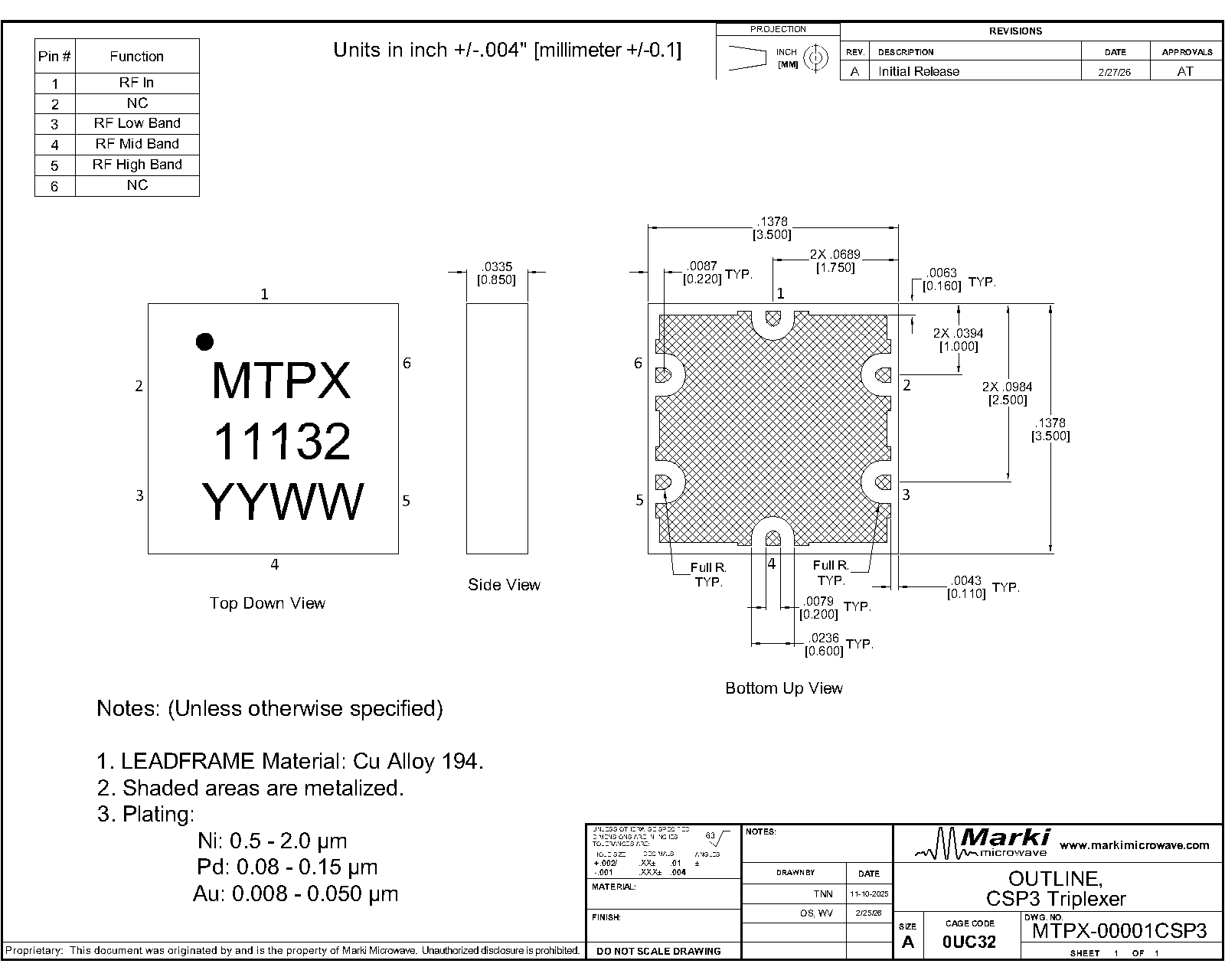

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing

Footprint Image

Footprint of the package for MTPX-00001CSP3

Evaluation Board

Evaluation Board - Outline Drawing

Outline Drawing

Revision History

Revision CodeRevision DateComment
-2026-08-12Initial Release
