T3H-20GICTG-1_Two-Tone-Terminator .01

Device Overview

General Description

The T3H-20G is a high performance mixer featuring LO/RF from 10 MHz to 20 GHz and IF from 10 MHz to 18 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +15 dBm to +25 dBm. The T3H-20G is offered in connectorized, surface mount, and drop-in style packaging, suitable for any type of system level integration. The T3H-20G is a form-fit-function replacement for the obsolete T3H-20, built using GaAs diodes instead of Si.

Features

Ultra-Broadband RF, LO, and IF
Compatible with Sine or Square-Wave LO
Square-Wave LO delivers Industry-Leading Spurious, IP3, and P1dB Performance

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
T3H-20GLCTG-2	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99
T3H-20GICTG-2	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99
T3H-20GLCTG-1	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99
T3H-20GICTG-1	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
T3H-20GLCTG-2	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99
T3H-20GICTG-2	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99
T3H-20GLCTG-1	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99
T3H-20GICTG-1	Two-Tone-Terminator .01 - 20 GHz Mixer	CTG	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Functions
Revision History
Specifications
Mechanical Data
- Outline Drawing
Notes

Revision History

Revision Code	Revision Date	Comment
-	2020-08-25	Initial Release
A	2023-12-21	Revised conversion loss test conditions in the electrical specifications table.

Port Configuration and Functions

Port Functions

Port	Function	Description

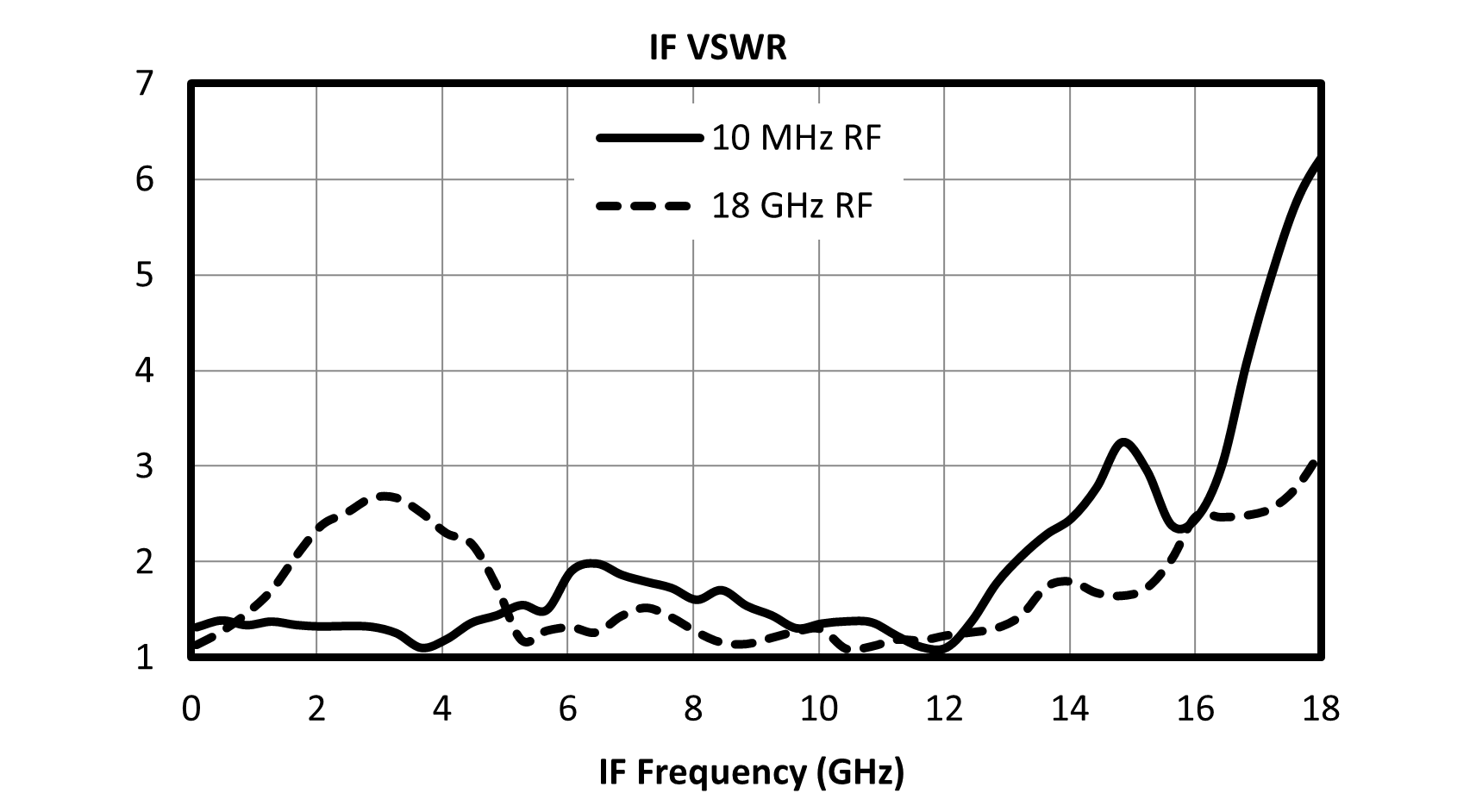

IF	IF	The IF port is DC blocked and AC matched to 50 Ohms from 10 MHz to 18 GHz.

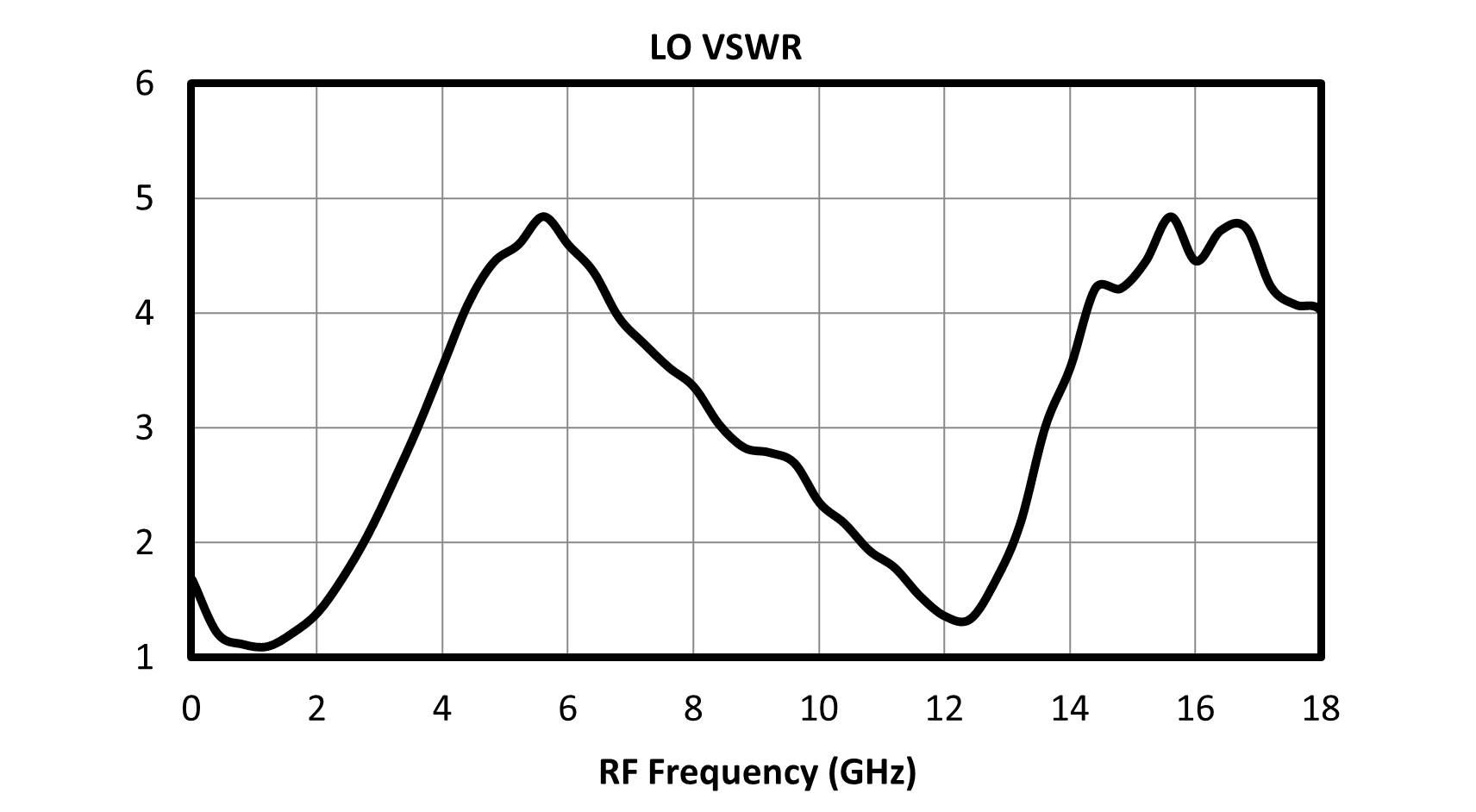

LO	LO	The LO port is DC short to ground and AC matched to 50 Ohms from 10 MHz to 20 GHz. Blocking capacitor is optional.

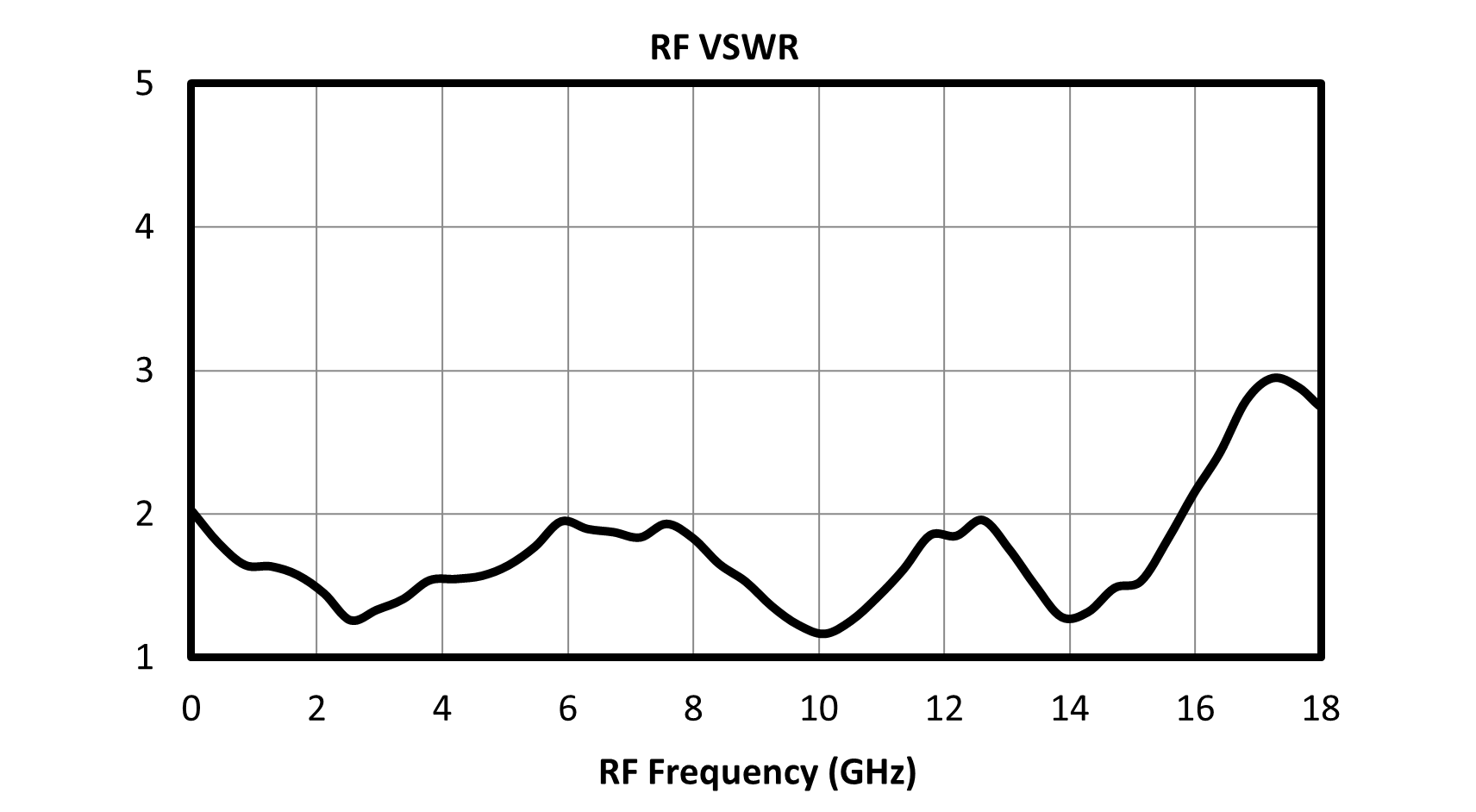

RF	RF	The RF port is DC short to ground and AC matched to 50 Ohms from 10 MHz to 20 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
LO DC Current	1	Amp
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
RF DC Current	1	Amp

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	8.13 x 8.13mm
Moisture Sensitivity Level	-	MSL 1

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	18	-	27	dBm

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

Parameter	Test Conditions	Min	Typ	Max	Unit

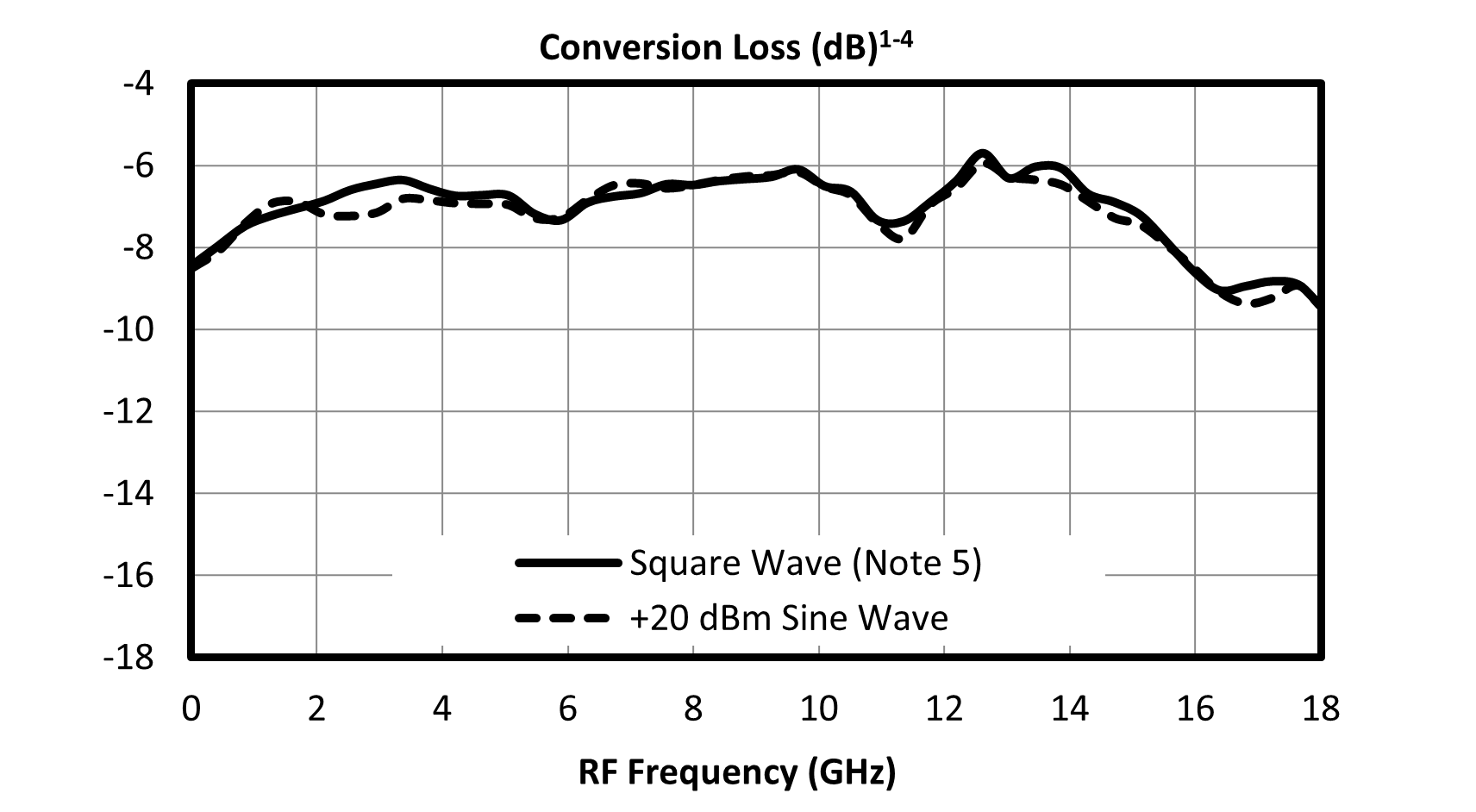

Conversion Loss	LO/RF = 0.01-18 GHz, IF = 91 MHz	-	9.5	15.5	dB
Conversion Loss	RF = 14 GHz, LO = 13.99-0.01 GHz, IF = 0.01-13.99 GHz	-	9.5	15.5	dB

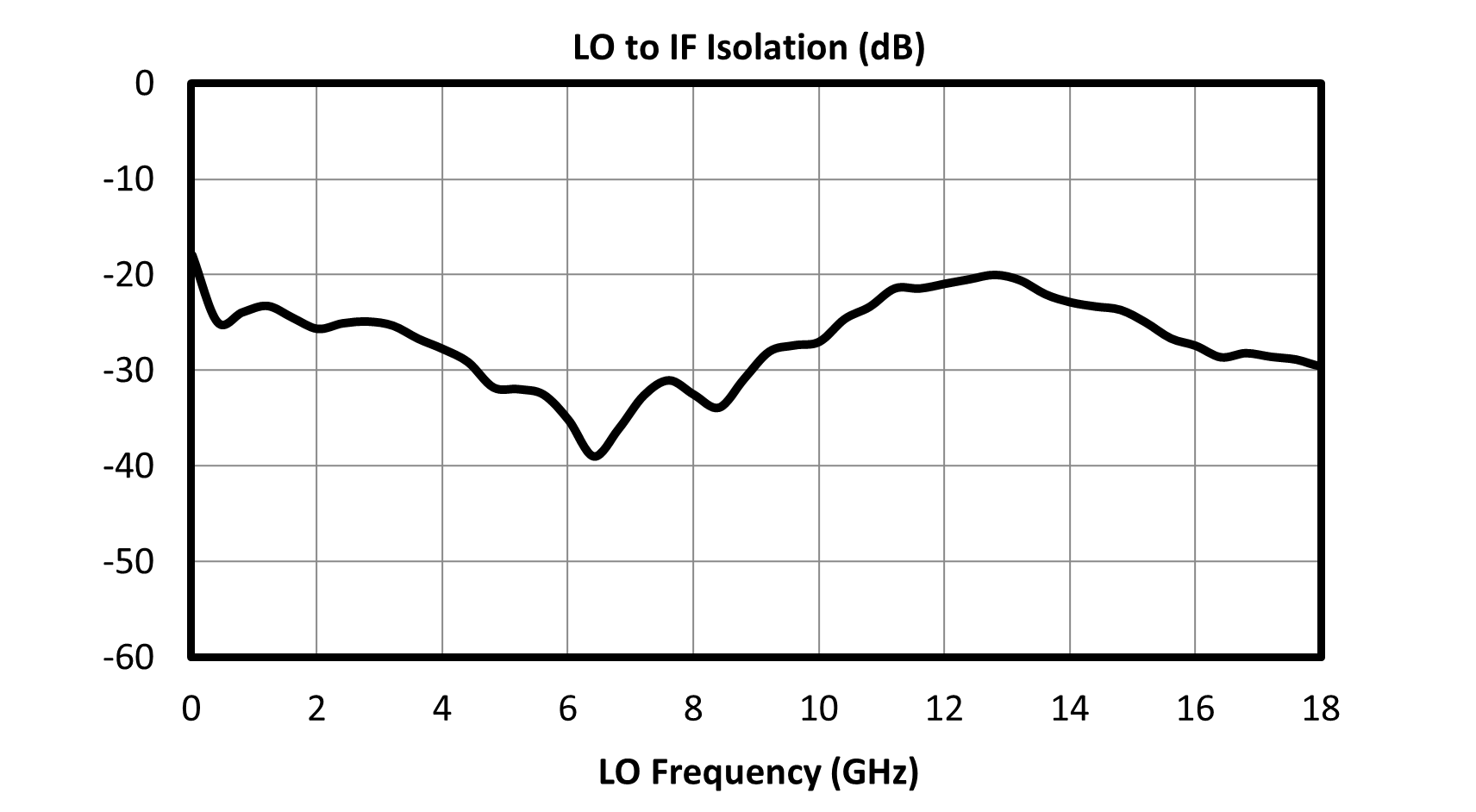

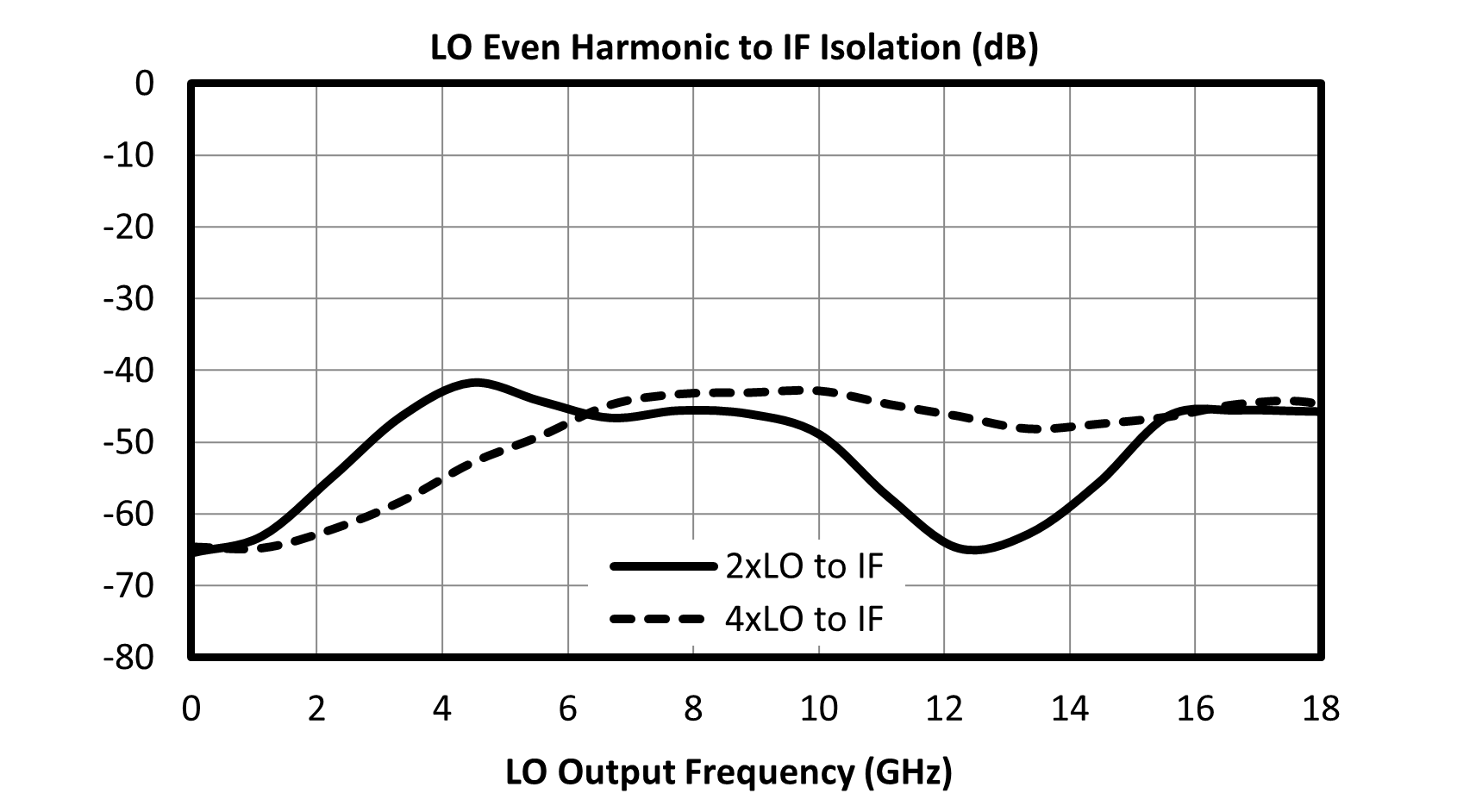

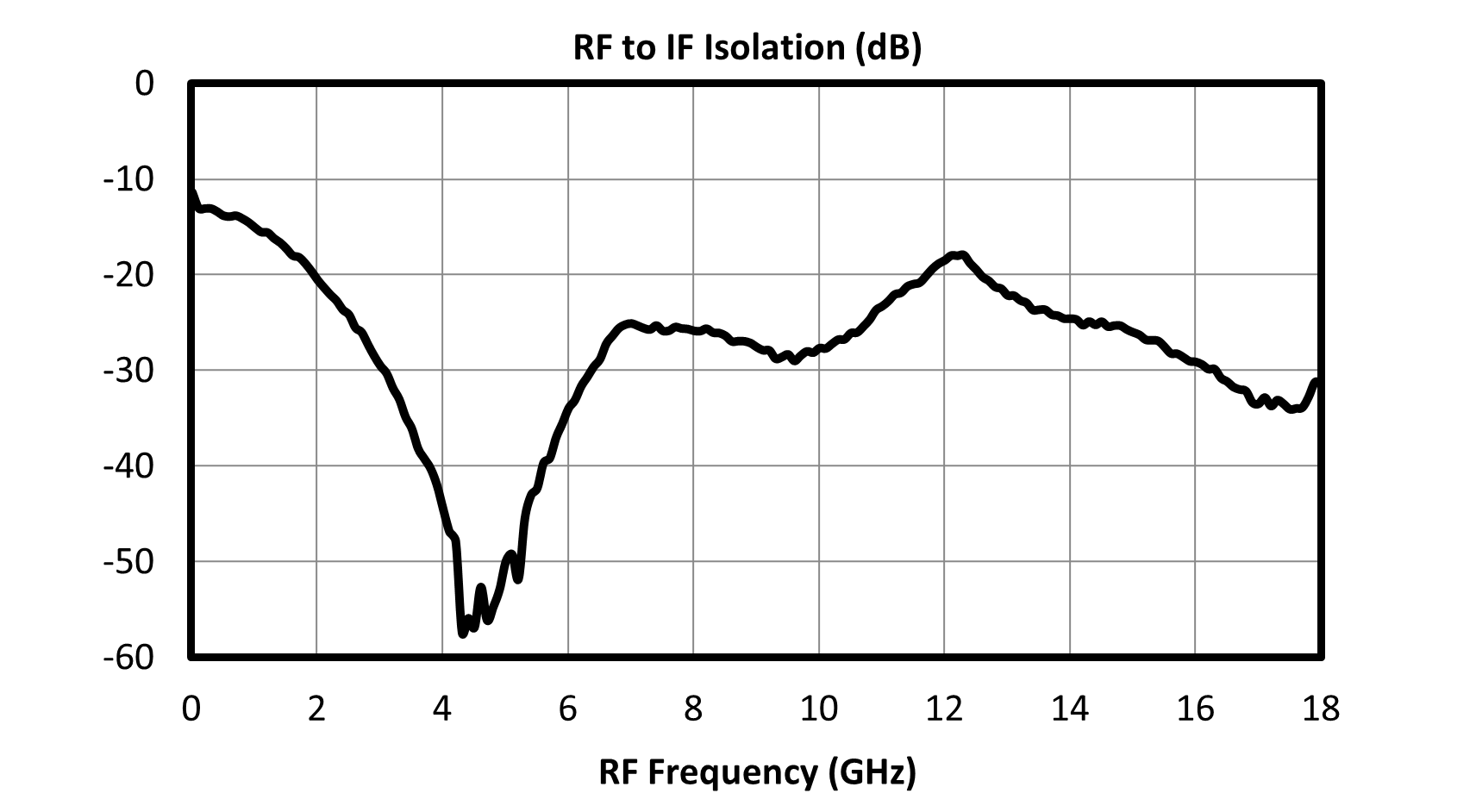

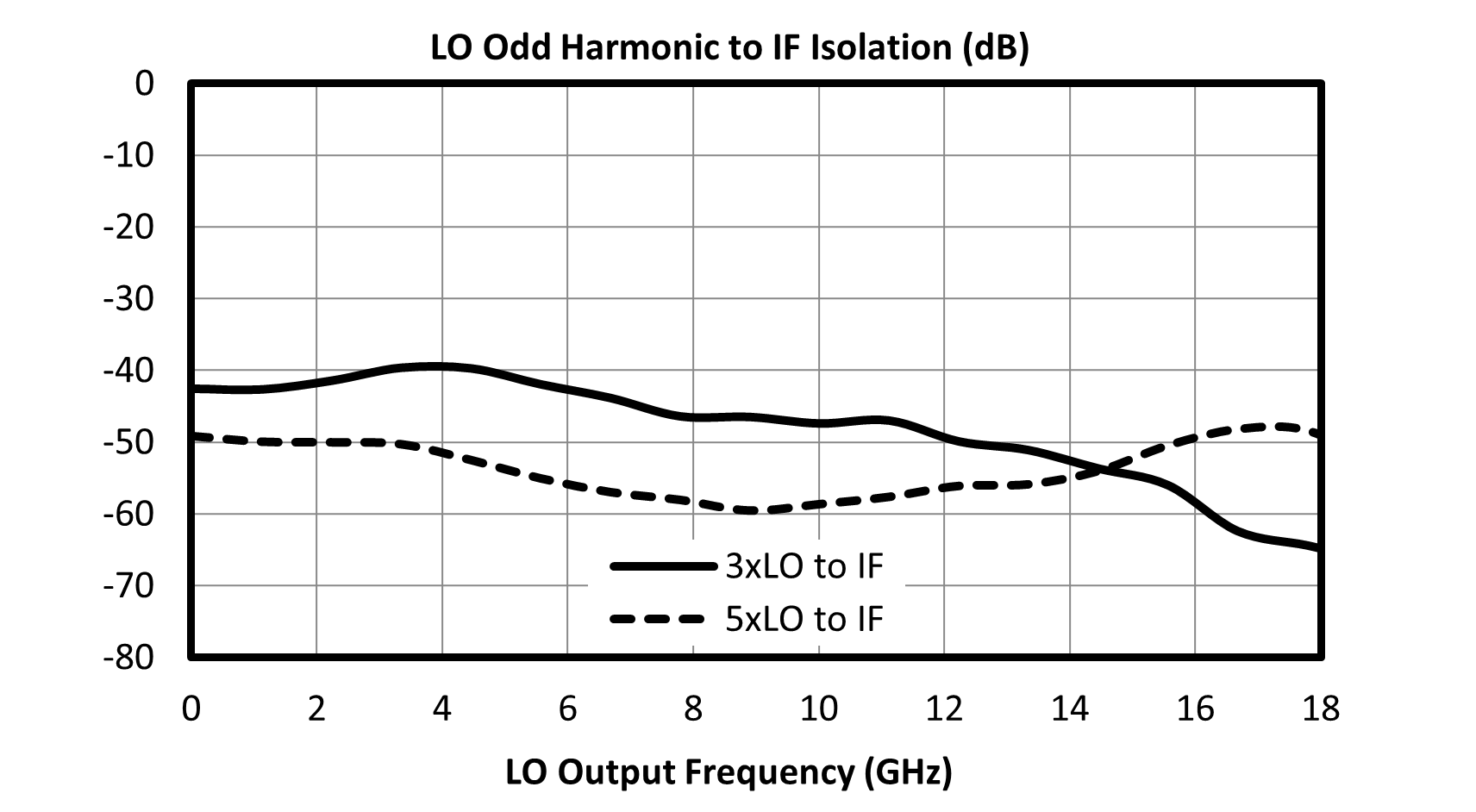

LO-IF Isolation	LO/RF= 0.01-20 GHz	15	-	-	dB

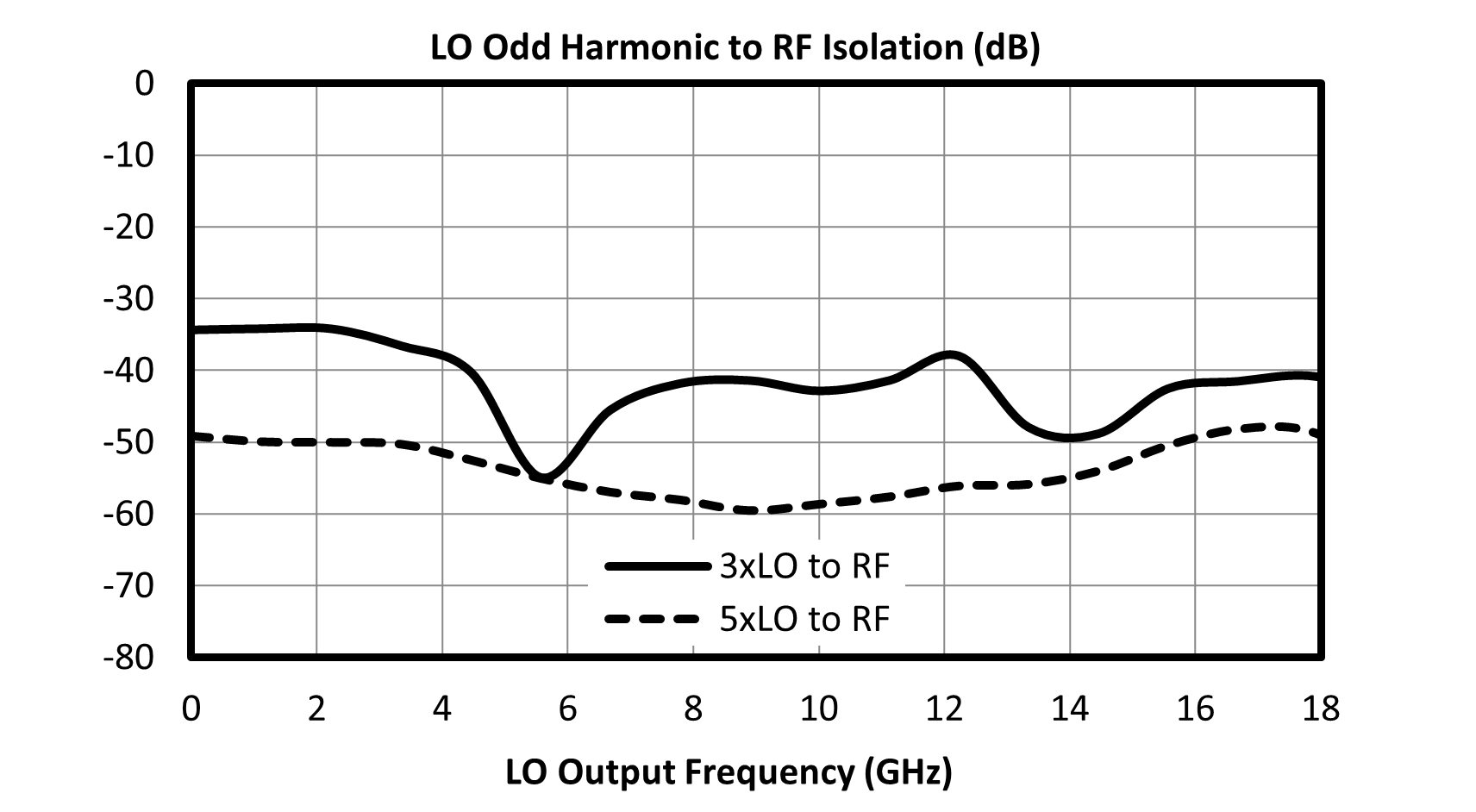

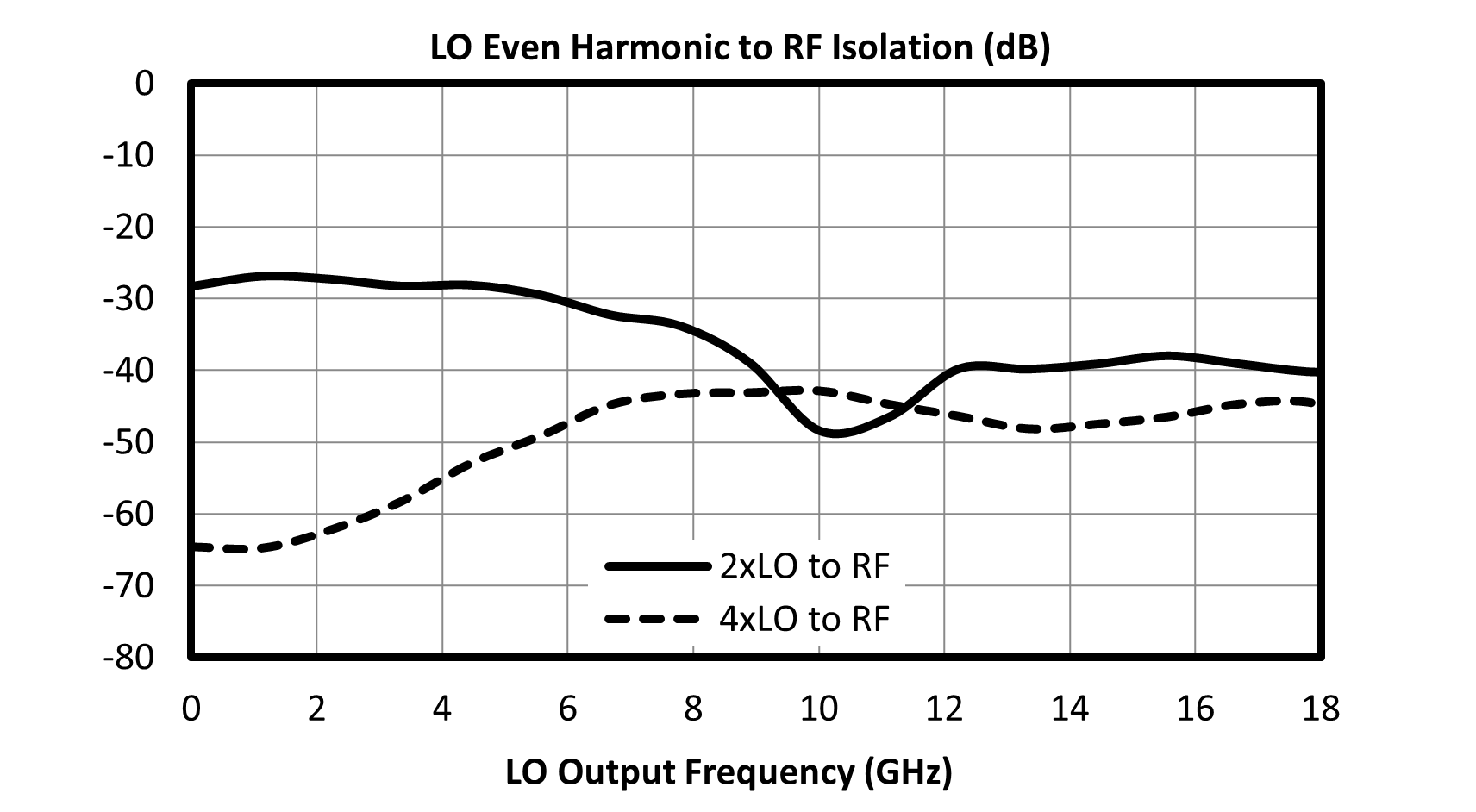

LO-RF Isolation	LO/RF= 0.01-20 GHz	15	-	-	dB

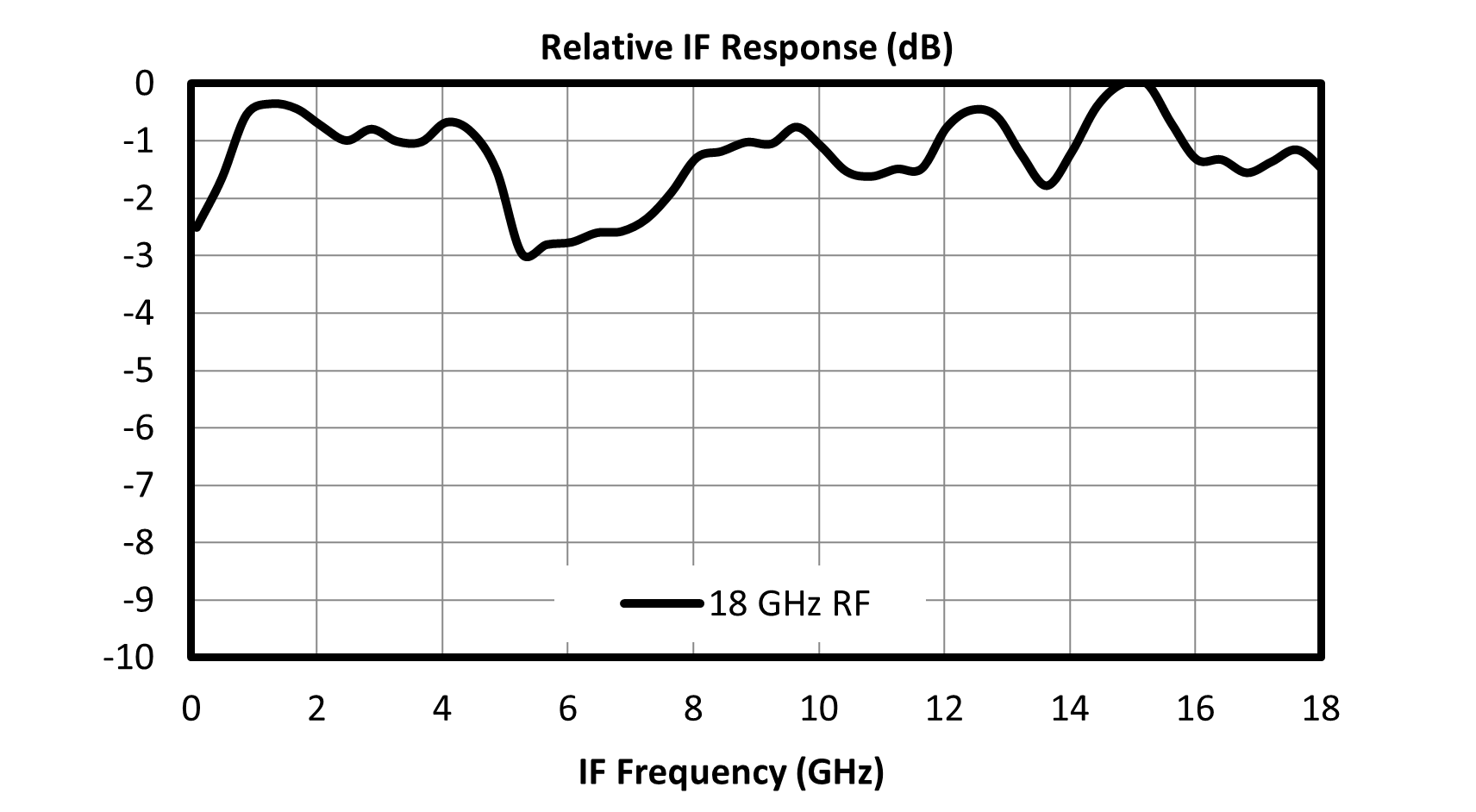

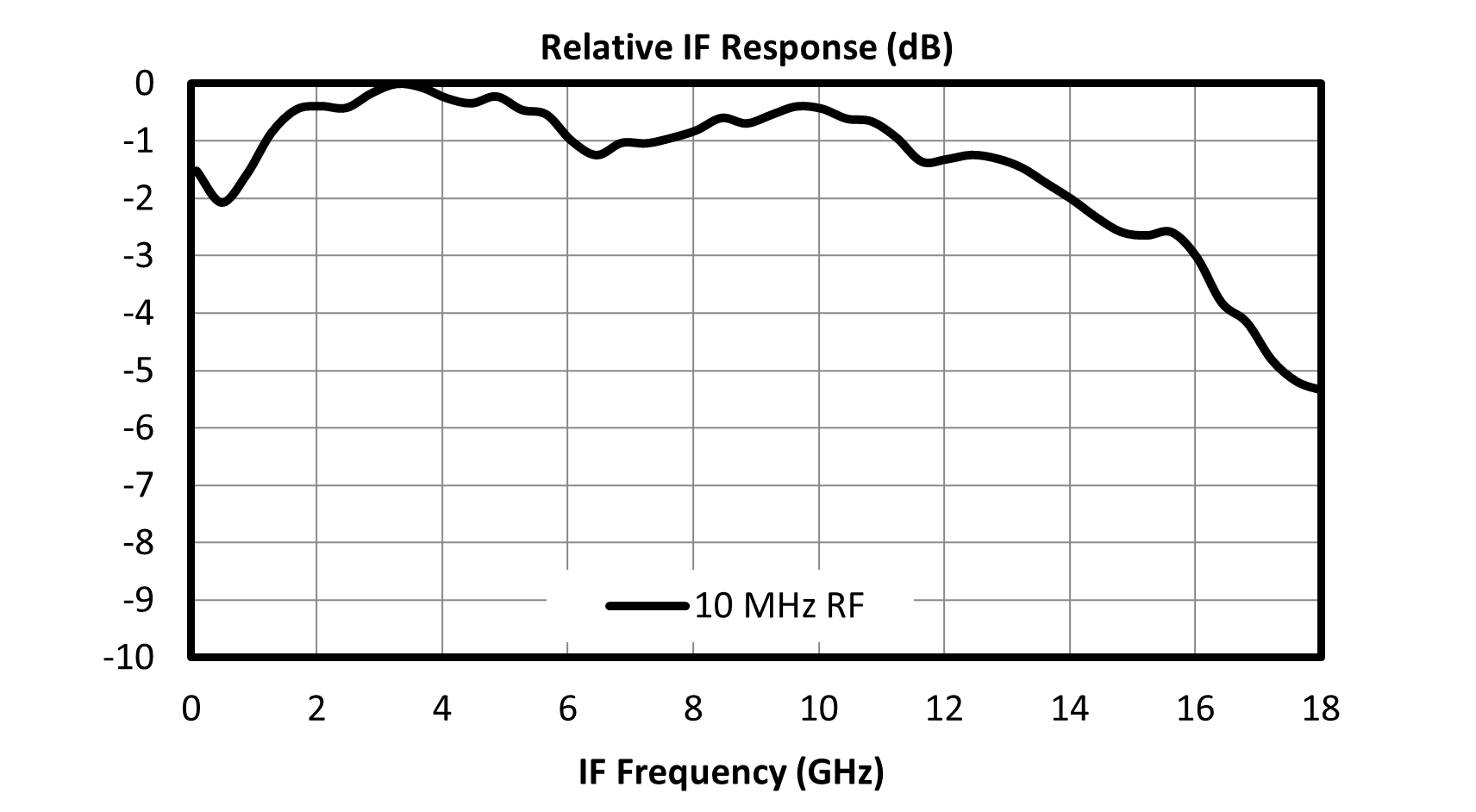

IF Frequency Range	-	0.01	-	18	GHz

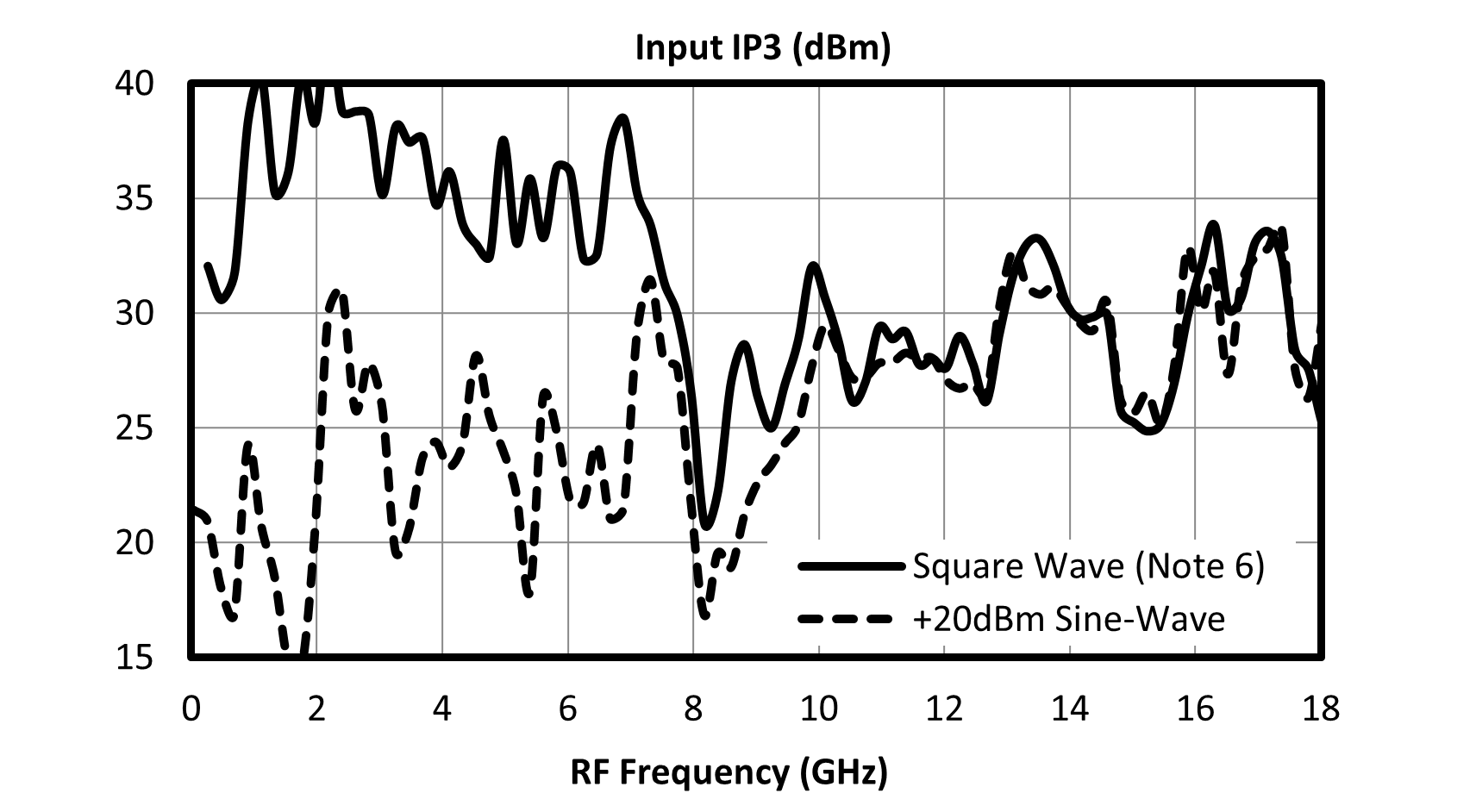

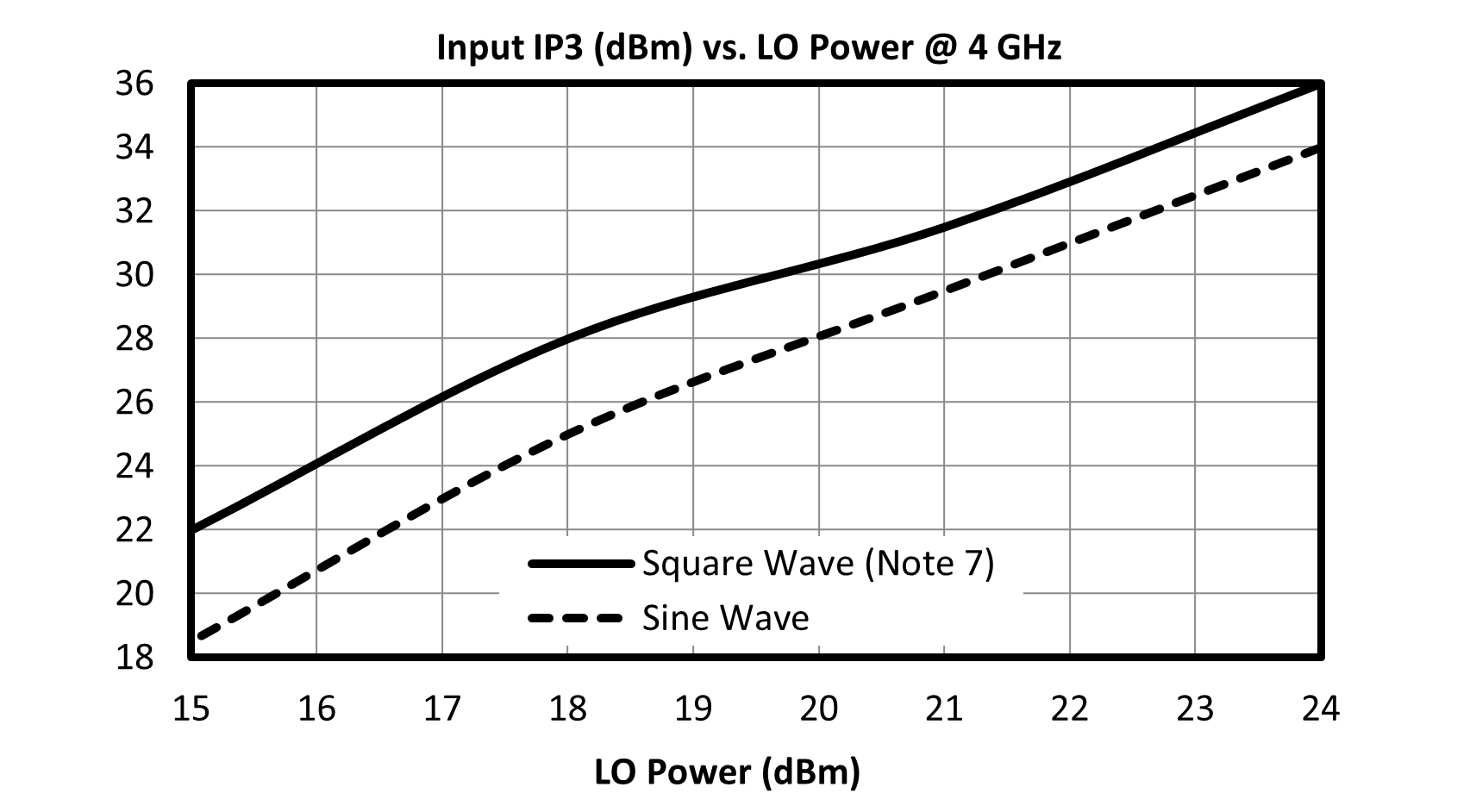

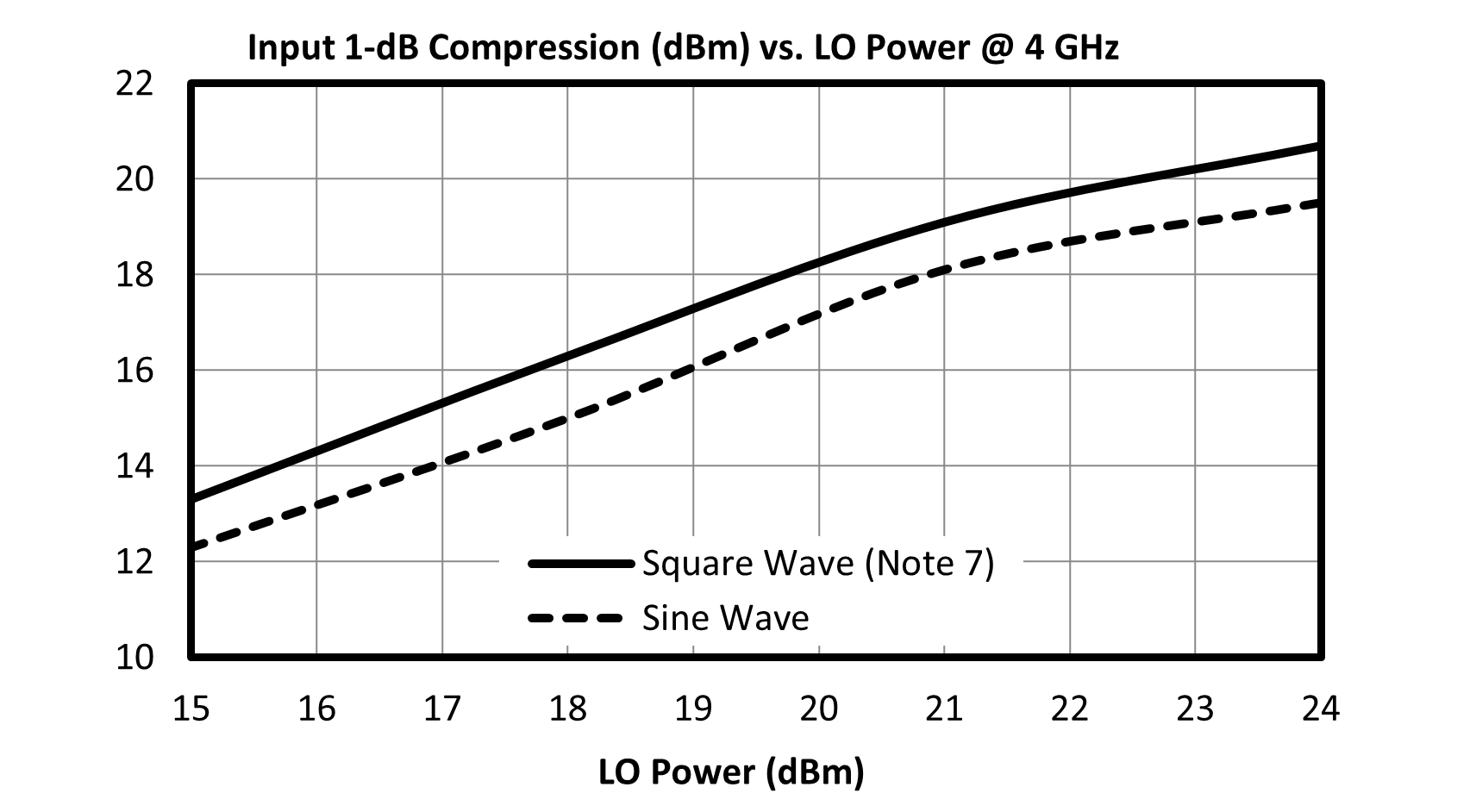

Input IP3	-	-	32	-	dBm

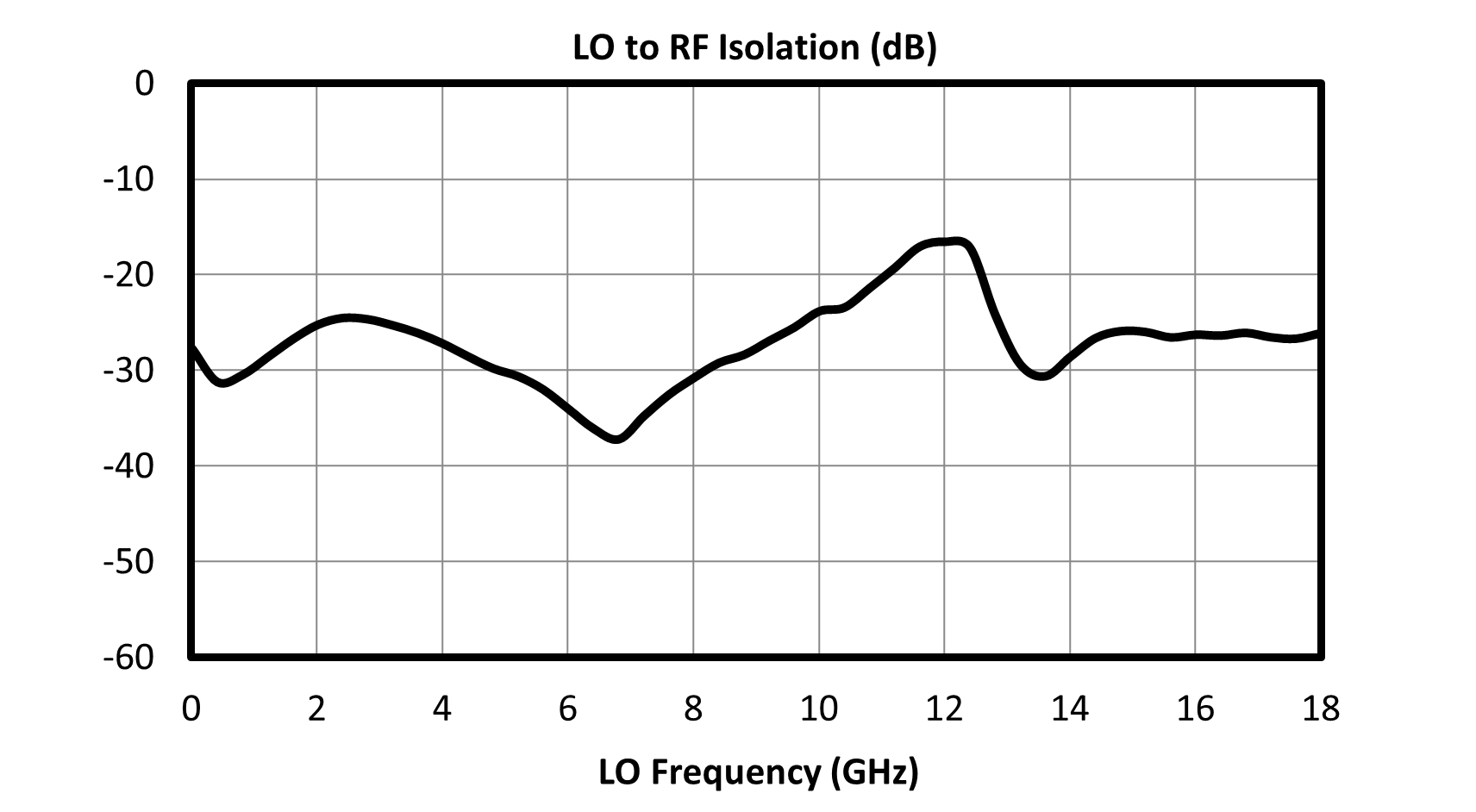

LO-RF Isolation	-	-	30	-	dB
RF Frequency Range	-	0.01	-	20	GHz

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	LO/RF = 0.01-18 GHz, IF = 91 MHz	-	9.5	15.5	dB
Conversion Loss	RF = 14 GHz, LO = 13.99-0.01 GHz, IF = 0.01-13.99 GHz	-	9.5	15.5	dB
LO-IF Isolation	LO/RF= 0.01-20 GHz	15	-	-	dB
LO-RF Isolation	LO/RF= 0.01-20 GHz	15	-	-	dB
IF Frequency Range	-	0.01	-	18	GHz
Input IP3	-	-	32	-	dBm
LO-RF Isolation	-	-	30	-	dB
RF Frequency Range	-	0.01	-	20	GHz
