MM1A-1040HPSM-2_Double Balanced Mixer/LO Amplifier

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MM1A-1040HPSM-2	Double Balanced Mixer/LO Amplifier	QFN	REACH RoHS	Released	EAR99
EVB-MM1A-1040HP	Evaluation Board, 10-40 GHz Double Balanced Mixer/LO Amplifier	EVB	REACH RoHS	Released	EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MM1A-1040HPSM-2	Double Balanced Mixer/LO Amplifier	QFN	REACH RoHS	Released	EAR99
EVB-MM1A-1040HP	Evaluation Board, 10-40 GHz Double Balanced Mixer/LO Amplifier	EVB	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Operation
- Application Circuit
- Application Circuit Description
Mechanical Data

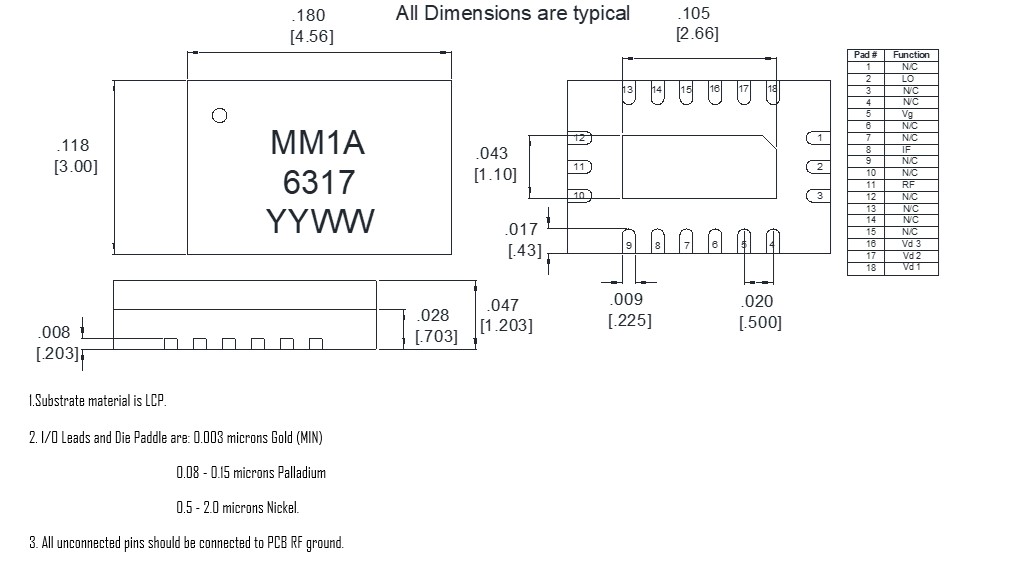

- Outline Drawing

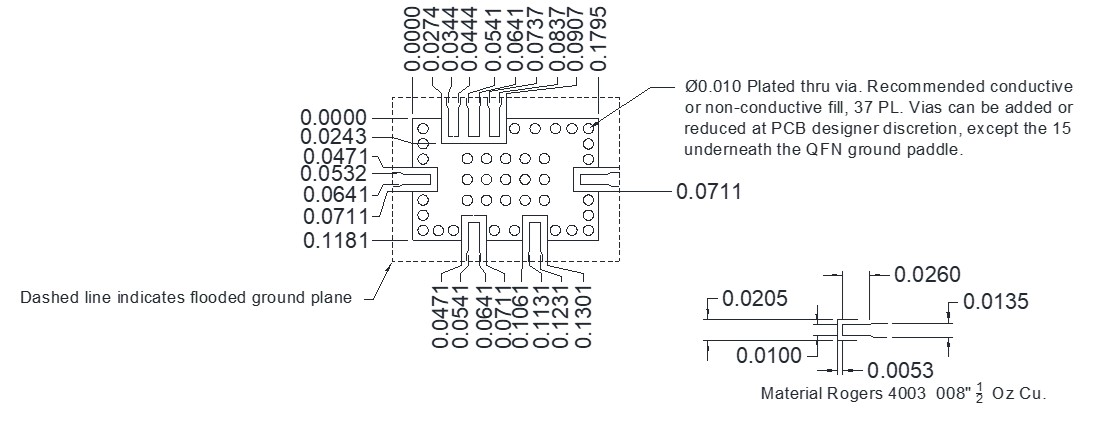

Footprint Image
Evaluation Board

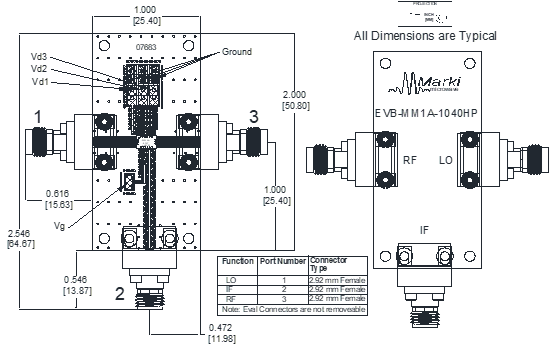

- Evaluation Board Outline Drawing
- Evaluation Board - Application Circuit

Revision History

Revision Code	Revision Date	Comment
-	2022-09-01	Datasheet Initial Release
A	2022-10-01	New RF-LO & IF-LO Isolation Plots
B	2024-09-11	Updated Recommended Power Supply Voltage

Port Configuration and Functions

Port Diagram

A top-down x-ray view of the MM1A-1040HPSM’s PSM Package outline drawing is shown below. The MM1A-1040HPSM has the input and output ports given in Port Functions.

Diagram of the port configuration for MM1A-1040HPSM-2

Port Functions

Port	Function	Description
GND	Ground	Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance.
Pin 11	RF	Pin 11 is DC open and AC matched to 50 Ohms from 10 to 40 GHz. Blocking capacitor is optional.
Pin 16	Positive DC Supply Vd3	Pins 16 provides +2.5V to +4V DC voltage to the amplifier’s third stage. Negative voltage must be supplied to Pin 5 before turning on the positive supply voltage.
Pin 17	Positive DC Supply Vd2	Pins 17 provides +2.5V to +4V DC voltage to the amplifier’s second stage. Negative voltage must be supplied to Pin 5 before turning on the positive supply voltage.
Pin 18	Positive DC Supply Vd1	Pins 18 provides +2.5V to +4V DC voltage to the amplifier’s first stage. Negative voltage must be supplied to Pin 5 before turning on the positive supply voltage.
Pin 2	LO	Pin 2 is the input of the integrated LO driver amplifier and is matched to 50 ohms. It is internally DC blocked.
Pin 5	Negative DC Supply Vg	Pin 5 requires -0.4V to -0.6V of DC voltage. This must be turned on before turning on the positive supply voltage to Pin 5.
Pin 8	IF	Pin 8 is DC coupled to the diodes. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. All limits are individual and should not be met in parallel, doing so will degrade the lifetime of the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
DC Voltage on VD	4.5	V
DC Voltage on VG	-2	V
LO Power Handling	20	dBm
Maximum Operating Temperature	85	°C
Maximum Storage Temperature	150	°C
Max Junction Temperature for MTTF> 1E6 hours	175	°C
Minimum Operating Temperature	-40	°C
Minimum Storage Temperature	-65	°C
Positive Drain Supply Current with RF Input (Id)	450	mA
RF Power Handling	25	dBm
θJC, Junction to Case Thermal Resistance	94	ºC/W

Package Information

Parameter	Details	Rating
Dimensions	-	3 x 4.6 mm
Moisture Sensitivity Level	-	MSL 3

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-40	25	85	°C
LO Input Power	3	6	9	dBm
Gate Bias DC Voltage (Vg)	-0.6	-0.5	-0.4	V
Saturated Current Consumption	-	240	350	mA
Quiescent Current Consumption	-	180	-	mA
Positive DC Voltage (Vd1)	2.5	3	4	V
Positive DC Voltage (Vd2)	2.5	3	4	V
Positive DC Voltage (Vd3)	2.5	3	-	V

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +6dBm LO input to the integrated LO driver amp biased at +3Vd1/+3Vd2/+3Vd3/-0.5Vg unless otherwise specified.

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 10 - 40 GHz I = 0.2 – 12 GHz	-	9	14	dB
Conversion Loss ²	RF/LO = 10 - 40 GHz I = DC – 0.2 GHz	-	8	-	dB
IF Frequency Range	-	0	-	12	GHz
Input IP3	RF/LO = 10 - 40 GHz	-	23	-	dBm
Input P1dB	-	-	11	-	dBm
LO Frequency Range	-	10	-	40	GHz
Noise Figure ³	RF/LO = 10 - 40 GHz I = DC – 0.2 GHz	-	10	-	dB
RF Frequency Range	-	10	-	40	GHz
RF-IF Isolation	RF/LO = 10 - 40 GHz	-	44	-	dB

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 10 - 40 GHz I = 0.2 – 12 GHz	-	9	14	dB
Conversion Loss ²	RF/LO = 10 - 40 GHz I = DC – 0.2 GHz	-	8	-	dB
IF Frequency Range	-	0	-	12	GHz
Input IP3	RF/LO = 10 - 40 GHz	-	23	-	dBm
Input P1dB	-	-	11	-	dBm
LO Frequency Range	-	10	-	40	GHz
Noise Figure ³	RF/LO = 10 - 40 GHz I = DC – 0.2 GHz	-	10	-	dB
RF Frequency Range	-	10	-	40	GHz
RF-IF Isolation	RF/LO = 10 - 40 GHz	-	44	-	dB
