Port Diagram
A top-down x-ray view of the MM1A-0626SPSM’s PSM package outline drawing is shown below. The MM1A-0626SPSM has the input and output ports given in Port Functions.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MM1A-0626SPSM is a versatile, robust, and broadband double balanced mixer with an integrated broadband LO driver amplifier. The MM1A-0626SPSM is ideal for applications with wide bandwidths and operation through the K band. The integrated LO driver amplifier allows for operation with LO powers as low as -4 dBm while retaining exceptional conversion loss and linearity.
Features
RF/LO response: 6GHz - 26 GHz
IF response: DC – 9 GHz
Conversion Loss: 7.5 dB
Minimum LO drive: -4 dBm
Applications
- Test and Measurement Equipment
- SATCOM
- Radar
- Low LO Drive Applications
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-0626SPSM | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-0626S | Evaluation Board, Integrated Drive GaAs MMIC Mixer | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-0626SPSM | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-0626S | Evaluation Board, Integrated Drive GaAs MMIC Mixer | EVB | RoHS REACH | Released | EAR99 |
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-12-10 | Initial Release |
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Port Configuration and Functions
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pin 12 | Vg1 | Pin 12 provides bias for an internal current mirror that sets the current draw for amplifier input stage. Increasing current will increase gain at the expense of efficiency. The default series resistor (270 Ohms) is chosen to optimize gain, output power and efficiency when Vg1 and Vd1 are both tied to 5V. | - |
| Pin 14 | Vg2 | Pin 14 provides bias for an internal current mirror that sets the current draw for amplifier output stage. Increasing current will increase gain at the expense of efficiency. The default series resistor (82.5 Ohms) is chosen to optimize gain, output power and efficiency when Vg2 and Vd2 are both tied to 5V. | - |
| Pin 18 | IF | Pin 18 is diode coupled and AC matched to 50Ω over the specified IF port frequency range. | - |
| Pin 22 | RF Input / Output | Pin 22 is DC short and AC matched to 50Ω over the specified RF frequency range. | - |
| Pin 37 | Vd2 | Pin 37 is the DC supply pin for the amplifier’s output stage. | - |
| Pin 39 | Vd1 | Pin 39 is the DC supply pin for the amplifier’s input stage. | - |
| Pin 9 | LO Input | Pin 9 is DC open and AC matched to 50Ω over the specified LO frequency range. | - |
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. All Absolute Maximum Ratings are individual and should not be met in parallel.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Bias Current (Ig1+Ig2) | 95 | mA |
| Bias Voltage (Vg1,Vg2) | 6 | V |
| Drain Current (Id1+Id2) | 400 | mA |
| Drain Supply Voltage (Vd1,Vd2) | 6 | V |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 18 DC Current (RF) | 15 | mA |
| Power Handling, at any Port | 15 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 6 x 6 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -40 | 25 | 85 | °C |
| Power Supply DC Voltage (Vg) | - | 5 | - | V |
| LO Input Power | -4 | 6 | 10 | dBm |
| Power Supply DC Current (Id) (No RF Input) 1 | 121 | 218 | 259 | mA |
| Power Supply DC Voltage (Vd) | - | 5 | - | V |
| Power Supply DC Current (Ig) (No RF Input) 2 | 11 | 19 | 23 | mA |
[1] Recommended operating current conditions without RF input applied. Bias current into Vd pin.
[2] Recommended operating current conditions without RF input applied. Bias current into Vg pin.
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +6dBm LO input to the integrated LO driver amp biased at +5Vd1/+5Vd2/+5Vg1/+5Vg2 unless otherwise specified.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss 1 | RF/LO = 6 - 26 GHz I = 91MHz | - | 7.5 | - | dB |
| Conversion Loss 2 | RF/LO = 6 - 26 GHz I = DC – 9 GHz | - | 9 | - | dB |
| IF Frequency Range | - | 0 | - | 9 | GHz |
| Input IP3 | RF/LO = 6 - 26 GHz I = 91 MHz | - | 27 | - | dBm |
| Input P1dB | RF=7GHz, LO=7.091GHz, IF=91MHz | - | 14 | - | dBm |
| LO Frequency Range | - | 6 | - | 26 | GHz |
| LO Leakage, LO to IF | IF/LO= 6 - 26 GHz | - | 15 | - | dBm |
| LO Leakage, LO to RF | RF/LO= 6 - 26 GHz | - | 30 | - | dBm |
| Noise Figure 3 | RF/LO = 6 - 26GHz I = DC – 9 GHz | - | 7.5 | - | dB |
| RF Frequency Range | - | 6 | - | 26 | GHz |
| RF-IF Isolation | RF = 6 - 26 GHz | - | 34 | - | dB |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss 1 | RF/LO = 6 - 26 GHz I = 91MHz | - | 7.5 | - | dB |
| Conversion Loss 2 | RF/LO = 6 - 26 GHz I = DC – 9 GHz | - | 9 | - | dB |
| IF Frequency Range | - | 0 | - | 9 | GHz |
| Input IP3 | RF/LO = 6 - 26 GHz I = 91 MHz | - | 27 | - | dBm |
| Input P1dB | RF=7GHz, LO=7.091GHz, IF=91MHz | - | 14 | - | dBm |
| LO Frequency Range | - | 6 | - | 26 | GHz |
| LO Leakage, LO to IF | IF/LO= 6 - 26 GHz | - | 15 | - | dBm |
| LO Leakage, LO to RF | RF/LO= 6 - 26 GHz | - | 30 | - | dBm |
| Noise Figure 3 | RF/LO = 6 - 26GHz I = DC – 9 GHz | - | 7.5 | - | dB |
| RF Frequency Range | - | 6 | - | 26 | GHz |
| RF-IF Isolation | RF = 6 - 26 GHz | - | 34 | - | dB |
[1] Measured as a down converter to a fixed 91 MHz IF.
[2] Measured as a down converter.
[3] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier

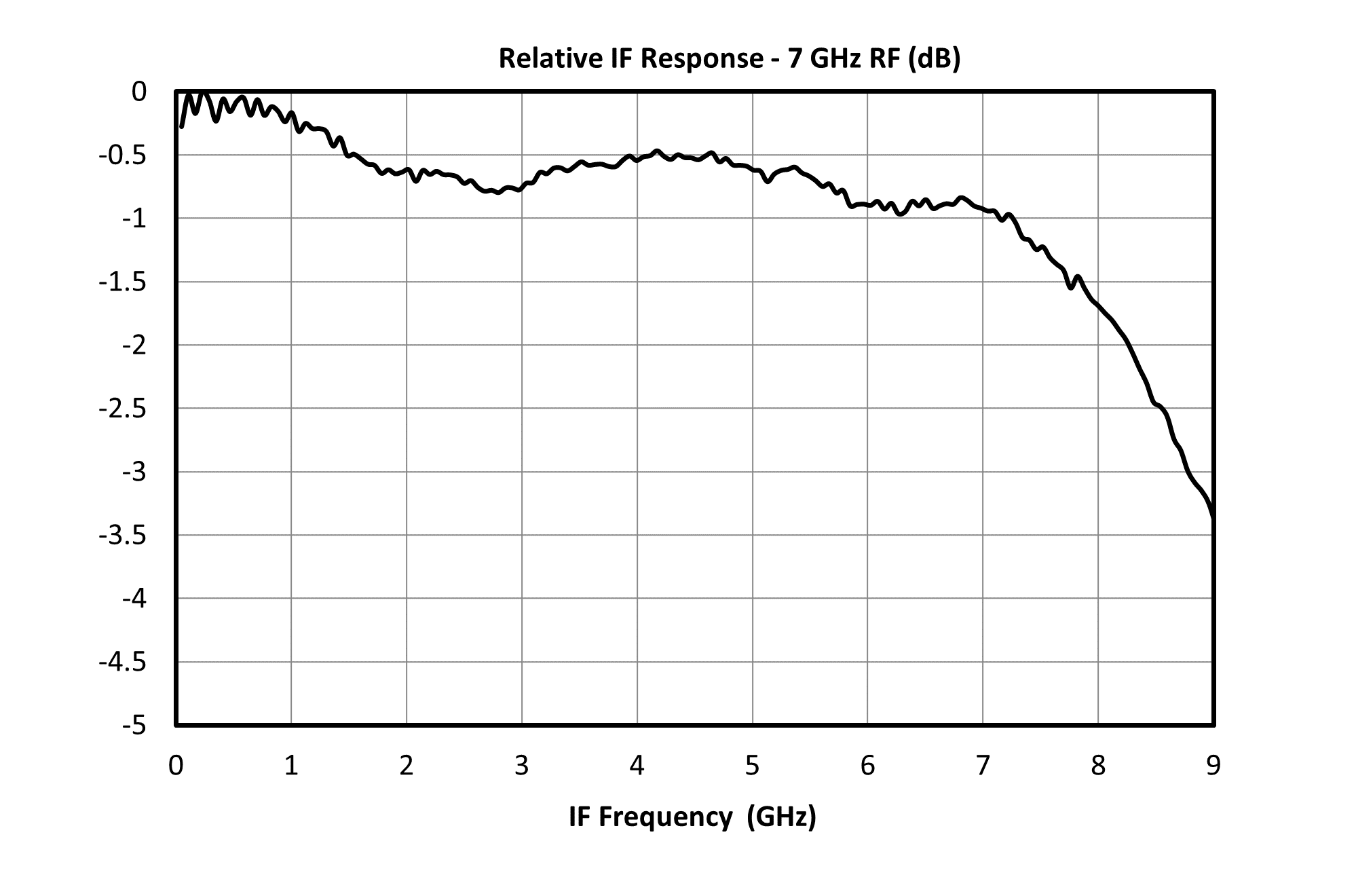

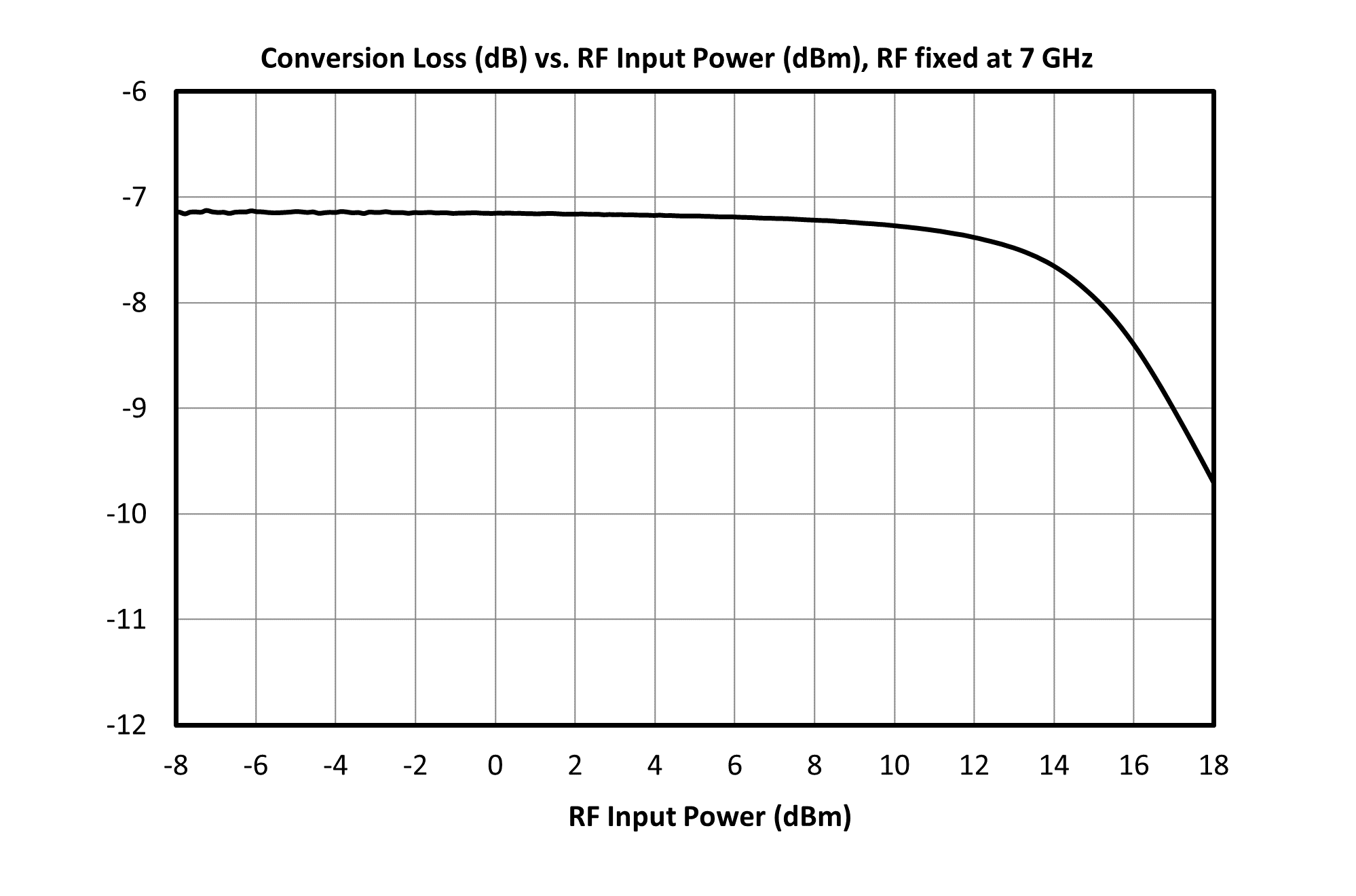

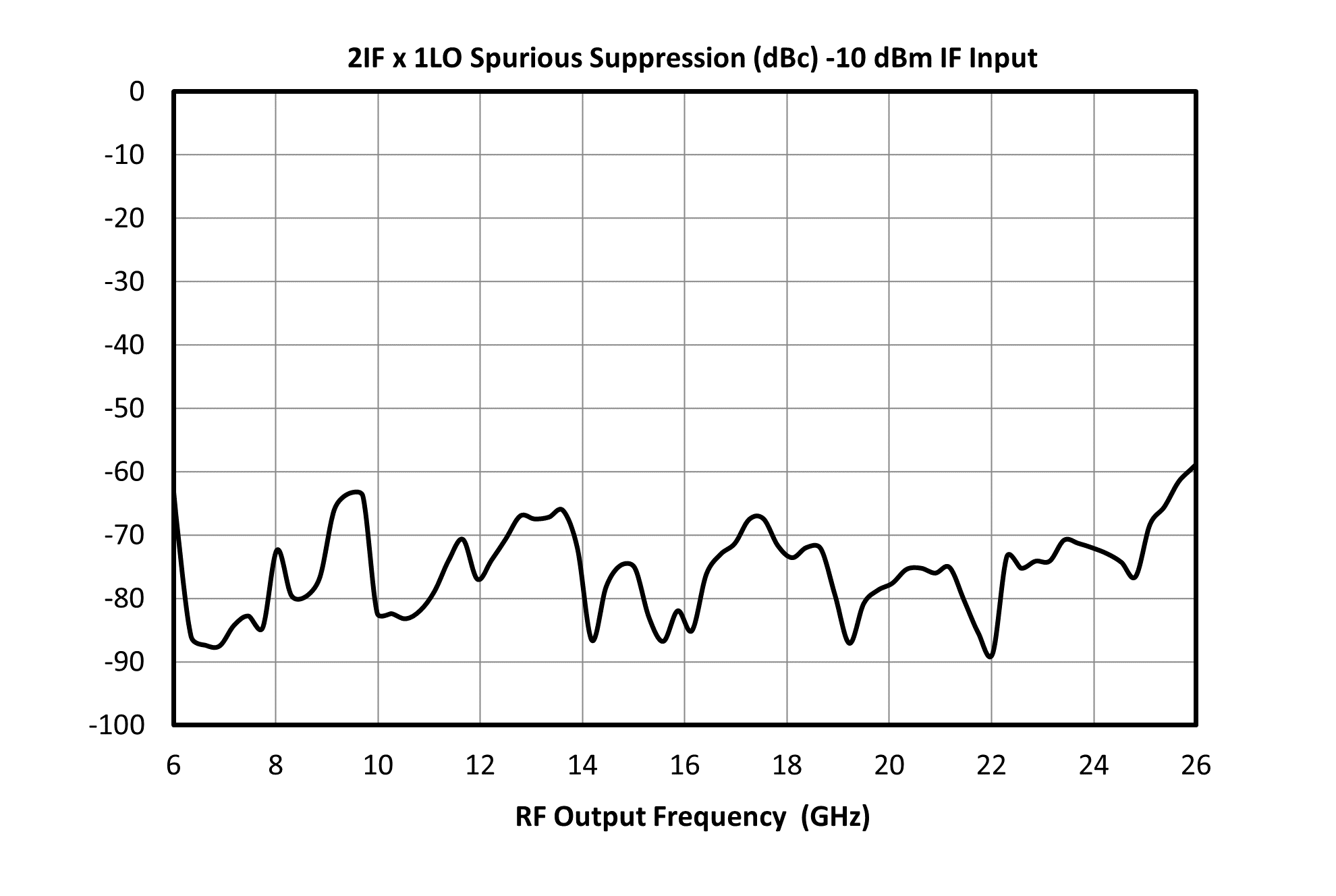

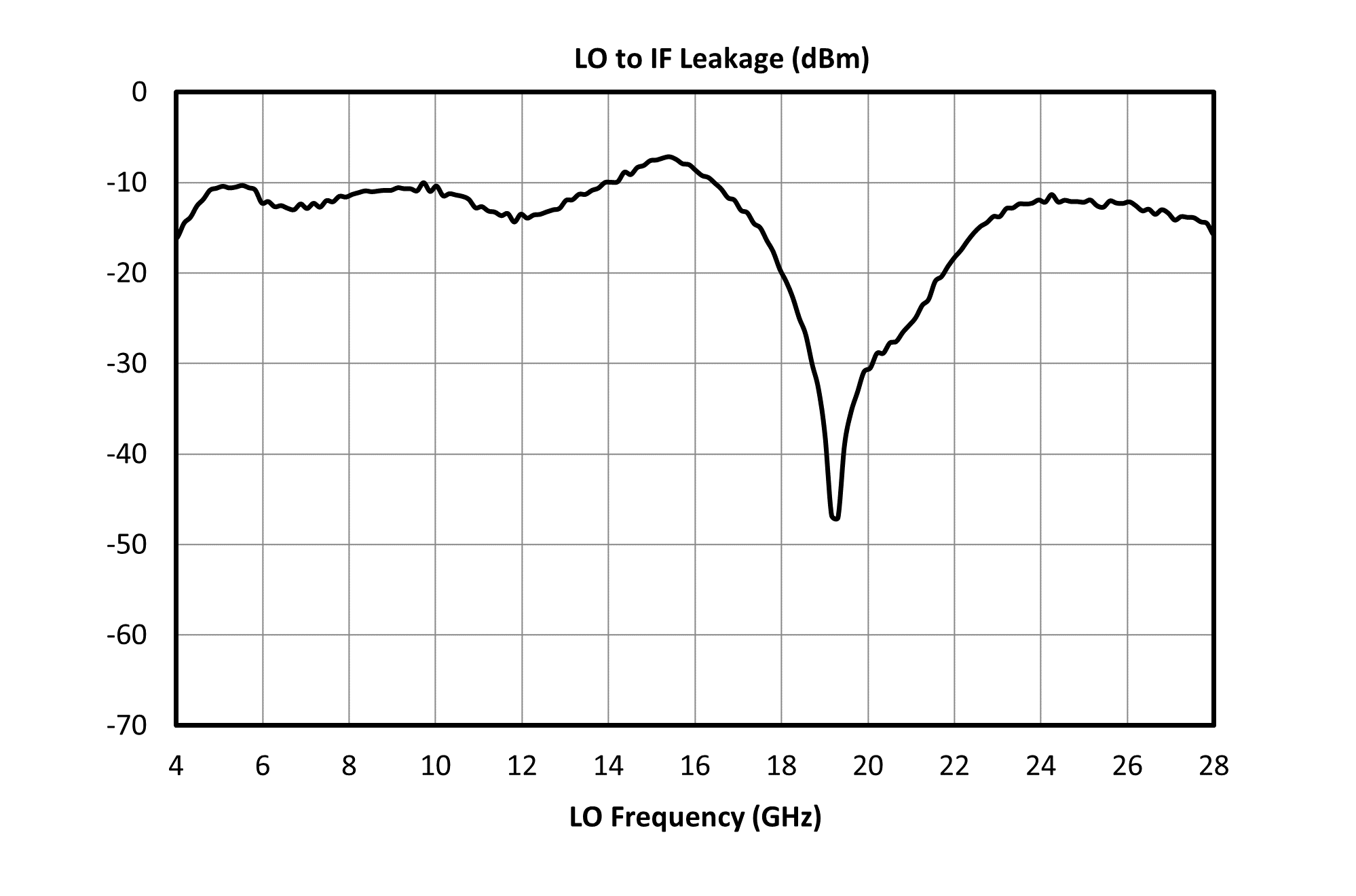

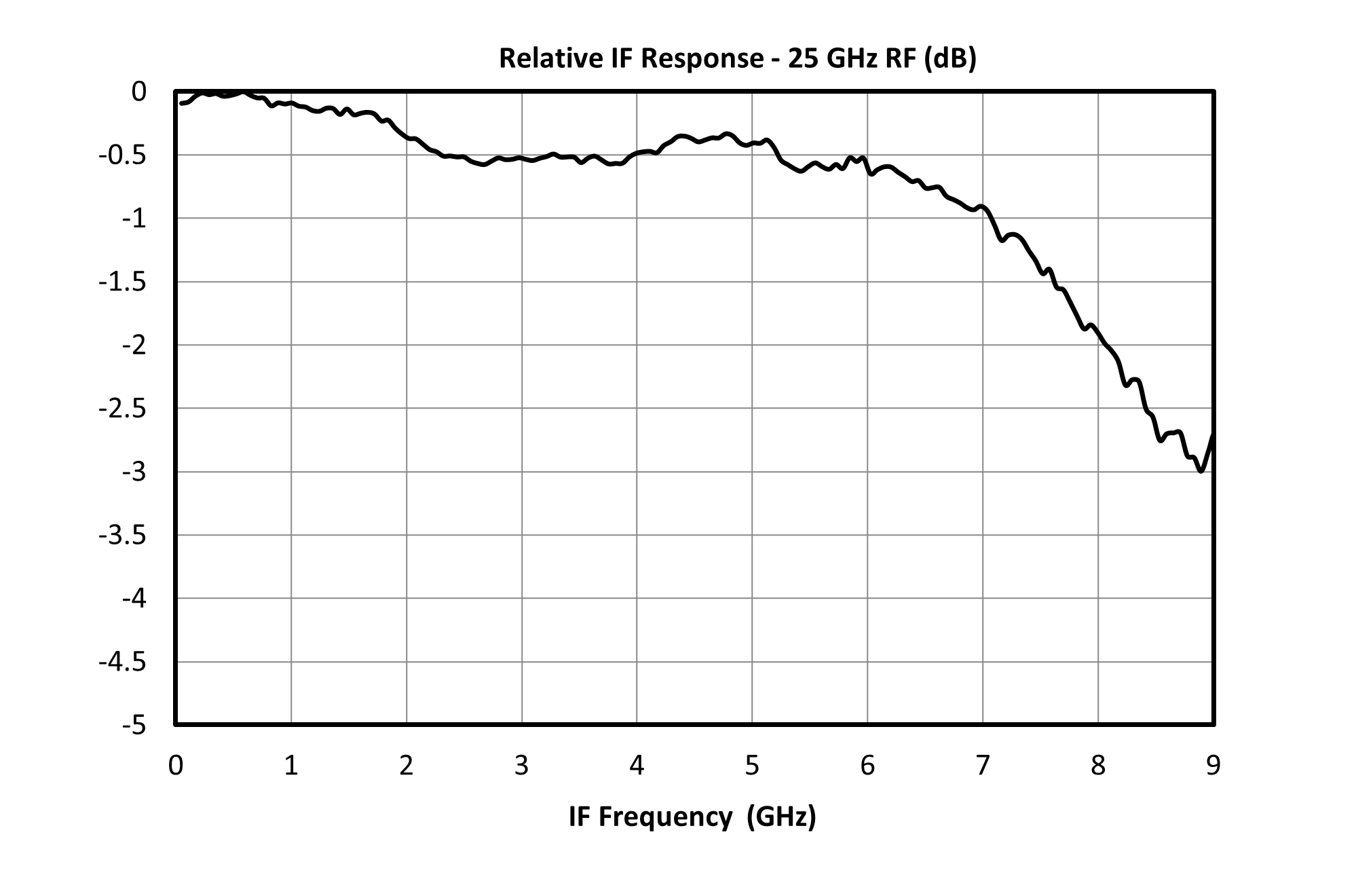

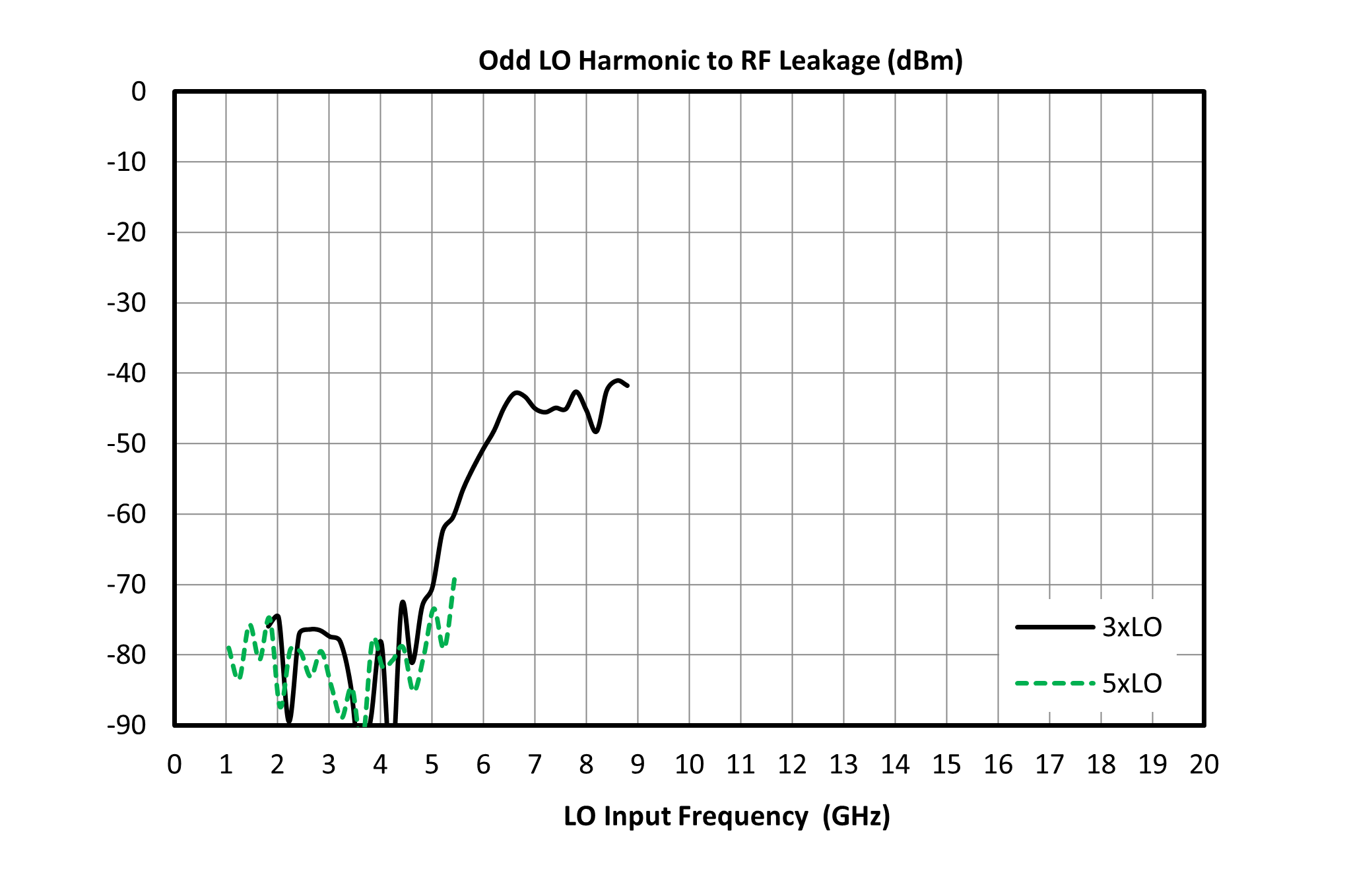

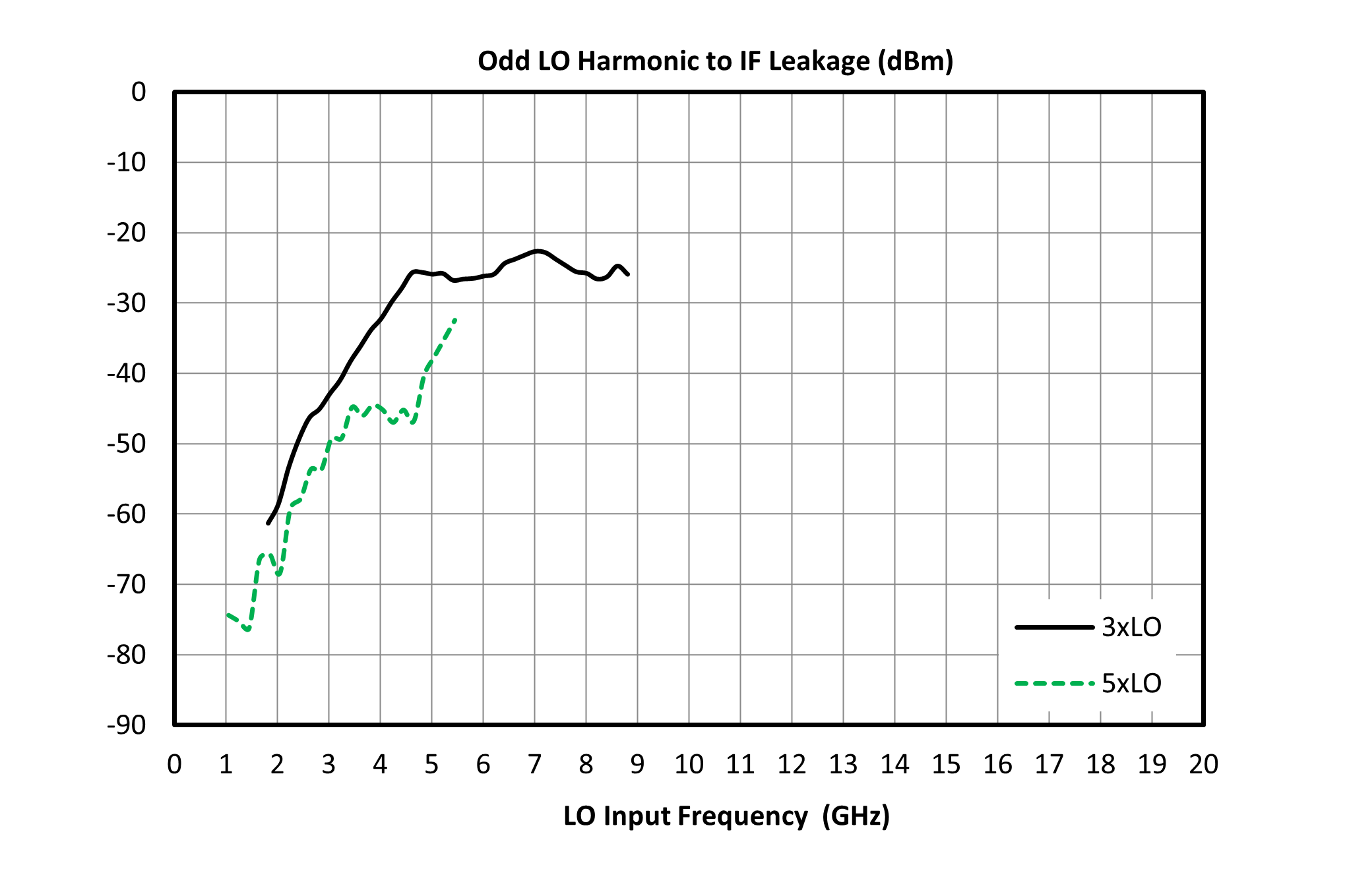

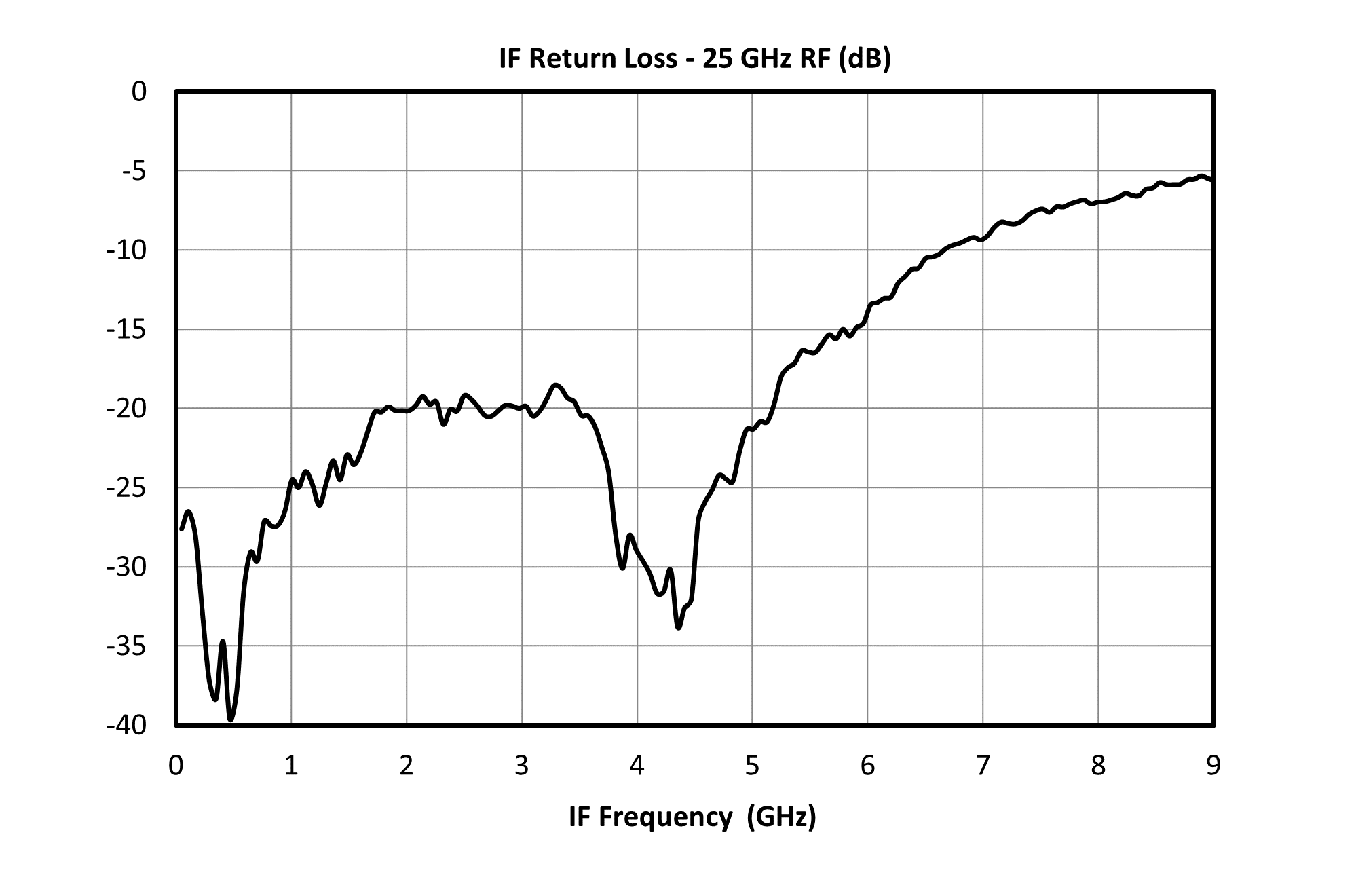

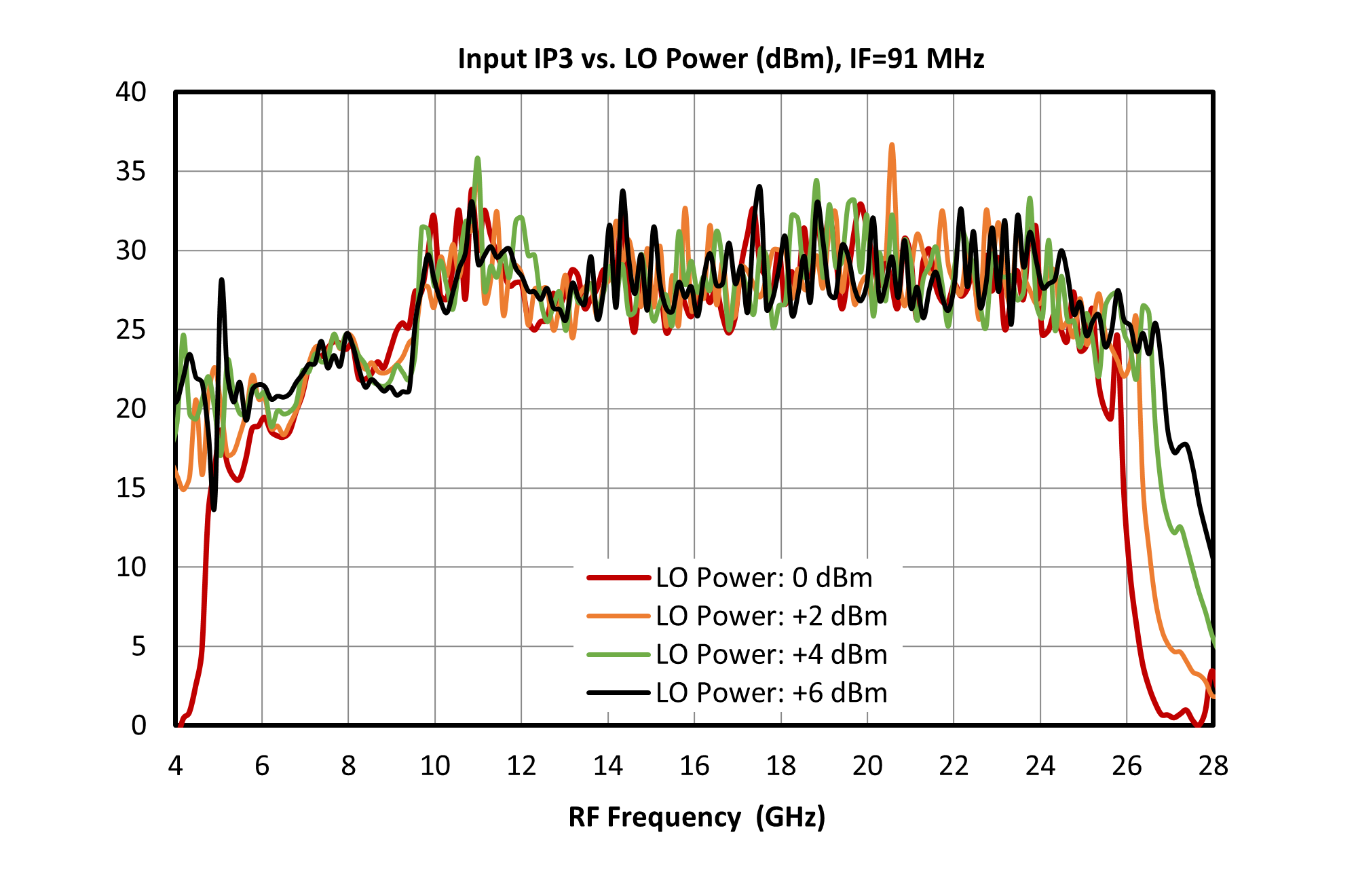

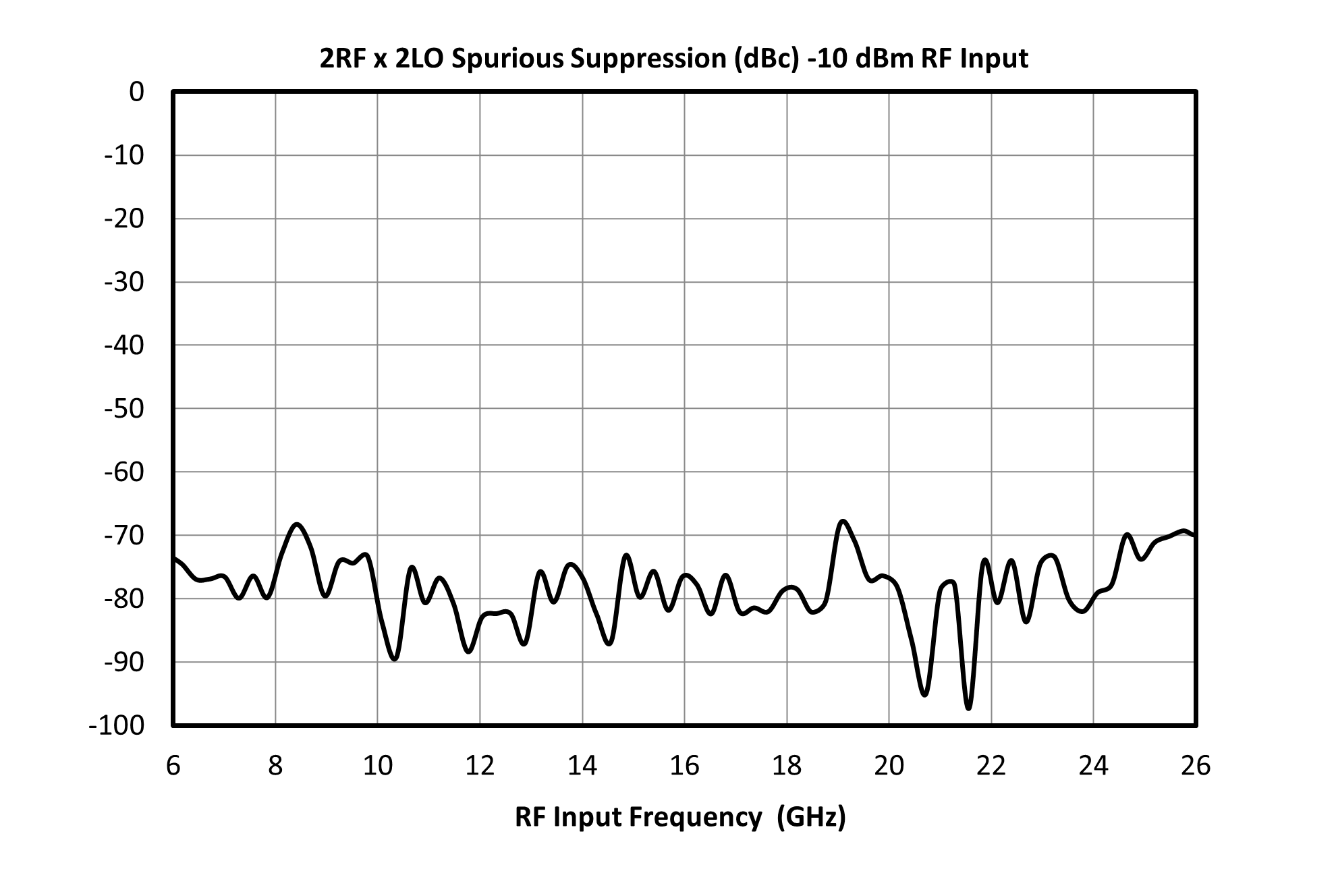

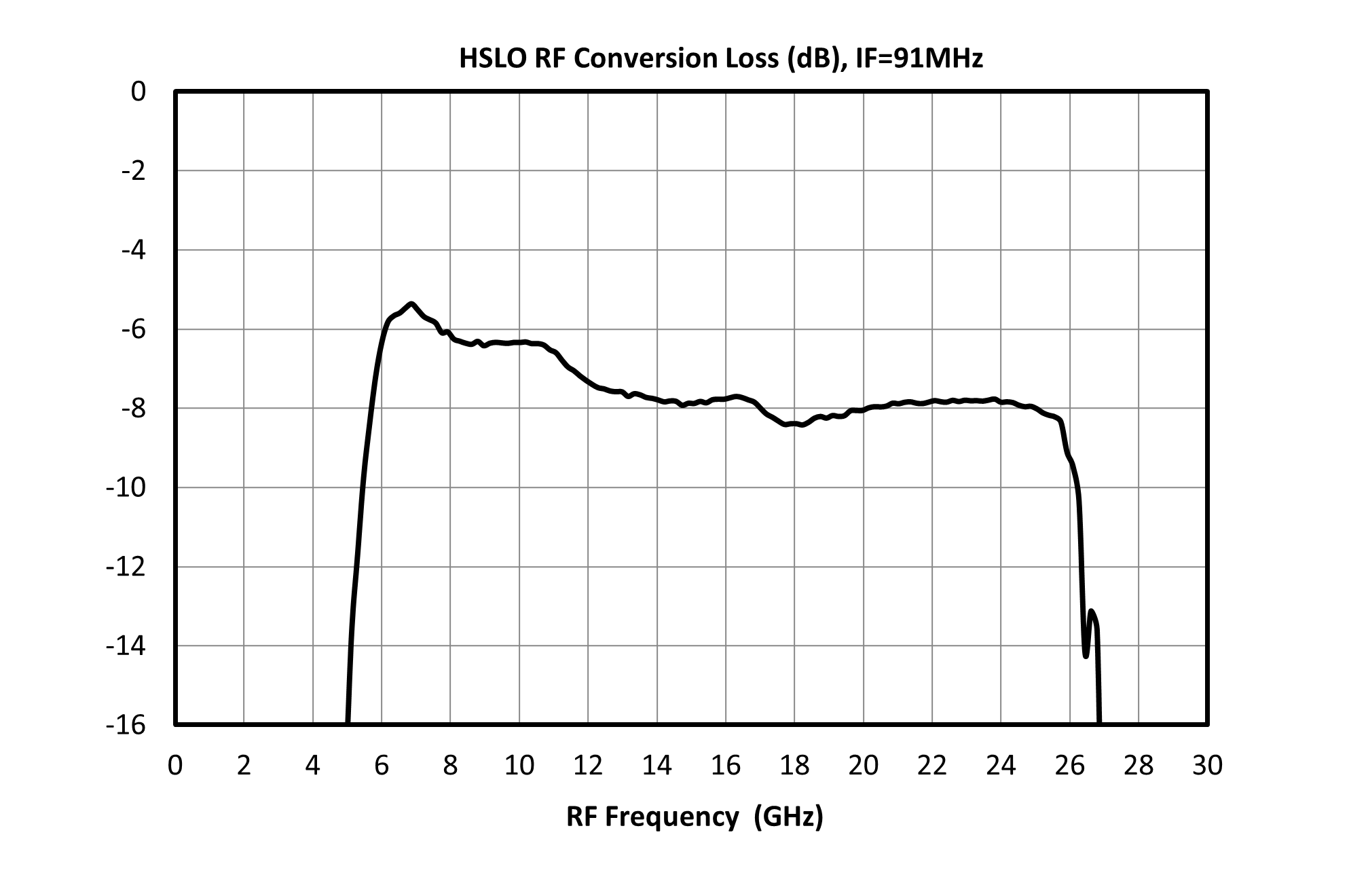

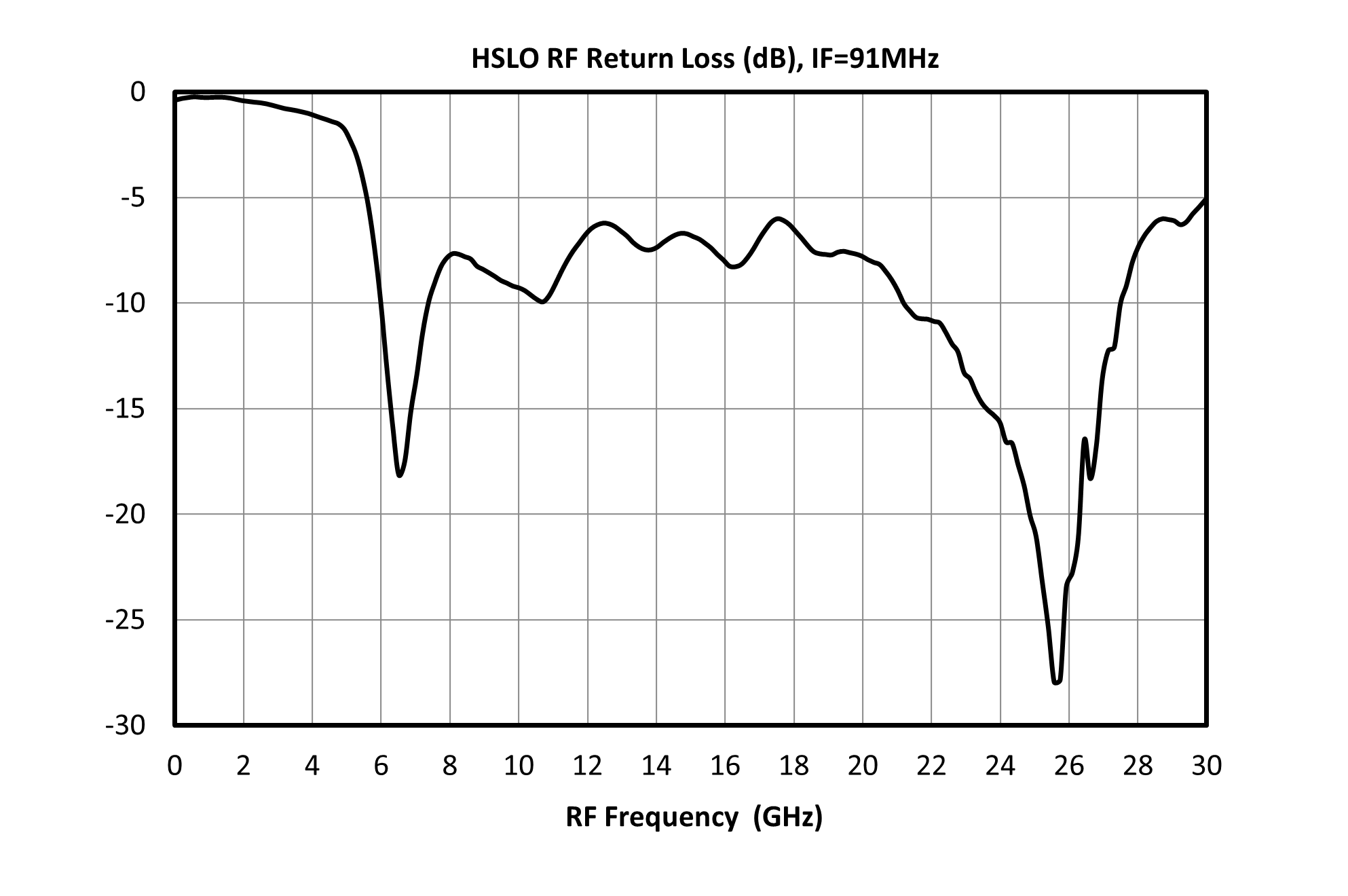

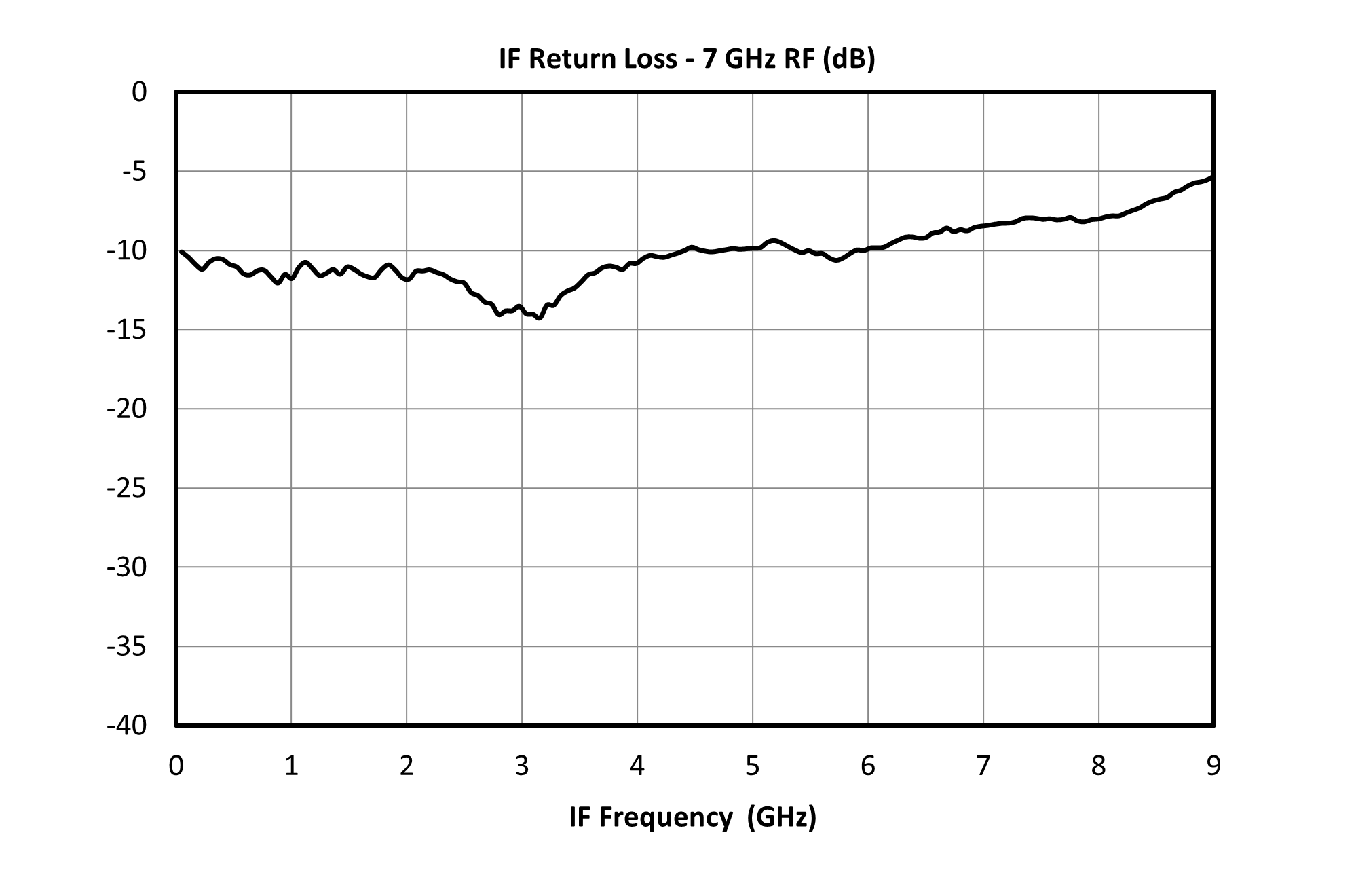

Typical Performance Plots
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Application Circuit
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier

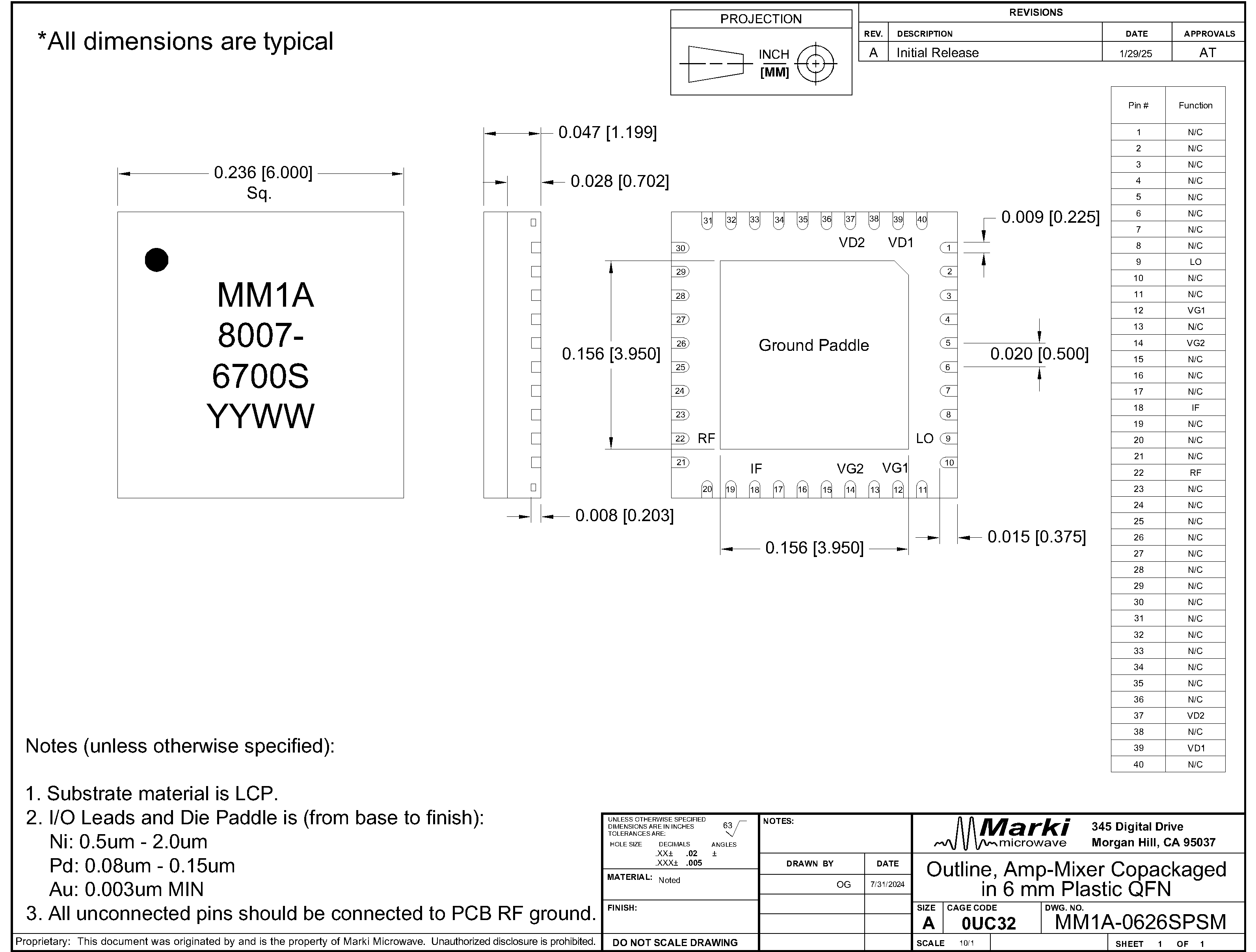

Mechanical Data
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Footprint Image
Download : Footprint Drawing
MM1A-0626SPSM
Double Balanced Mixer/LO Amplifier
Evaluation Board - Outline Drawing
