The MM1-2567LSM is a GaAs MMIC double balanced mixer that is optimized for high frequency applications. MM1-2567LSM is a Ka to V band mixer that works well as both an up and down converter. This mixer offers low conversion loss and high isolation at low LO powers. The MM1-2567LSM is available in a 3x3 mm QFN package. Evaluation boards are available.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-2567LSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MM1-2567L | Evaluation Board, GaAs MMIC 25 - 67 GHz Double-balanced Mixer | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-2567LSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MM1-2567L | Evaluation Board, GaAs MMIC 25 - 67 GHz Double-balanced Mixer | EVAL | REACH RoHS | Released | EAR99 |
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2019-11-01 | Datasheet Release |

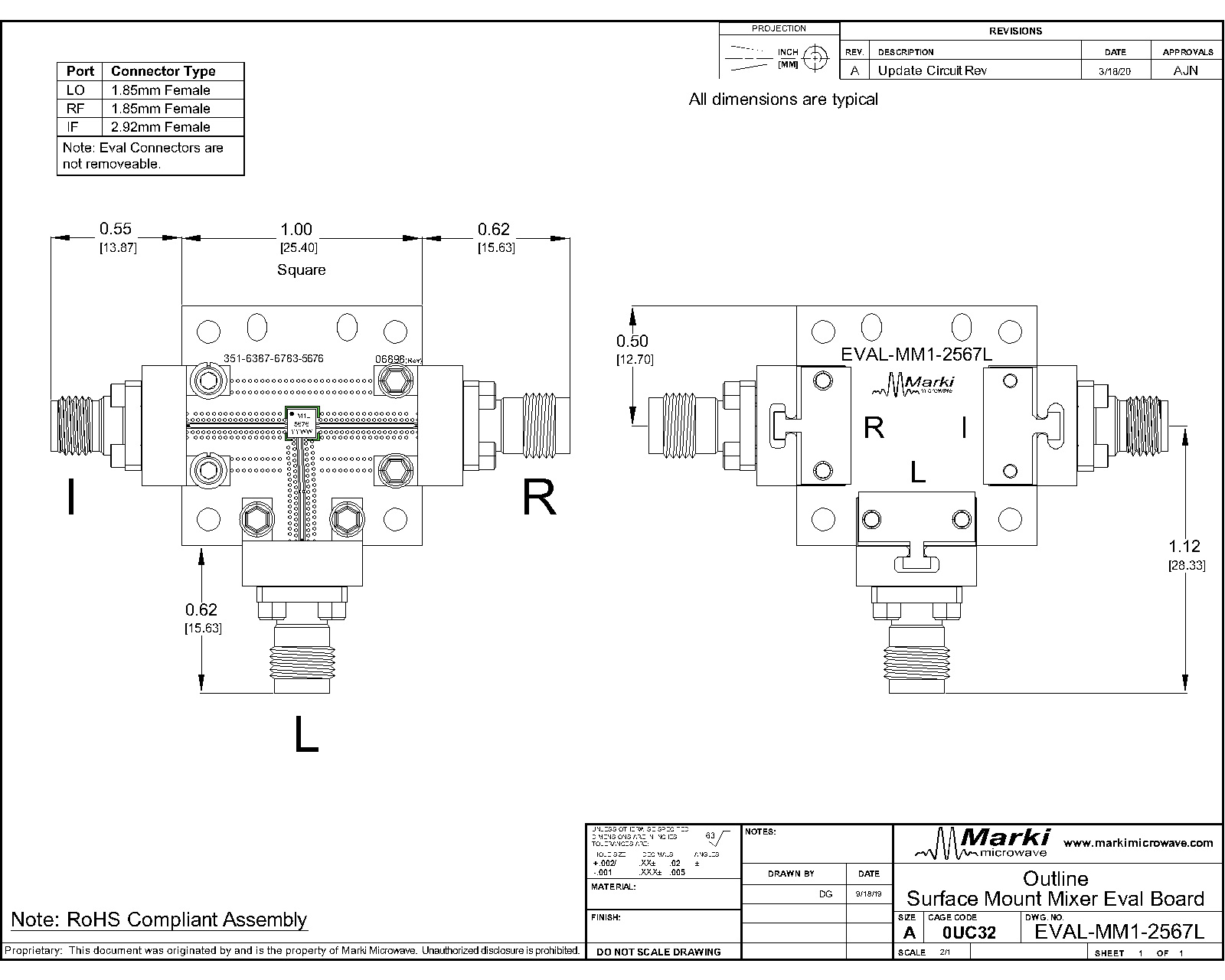

| A | 2020-10-01 | EVAL package outline drawing and board material added |
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer

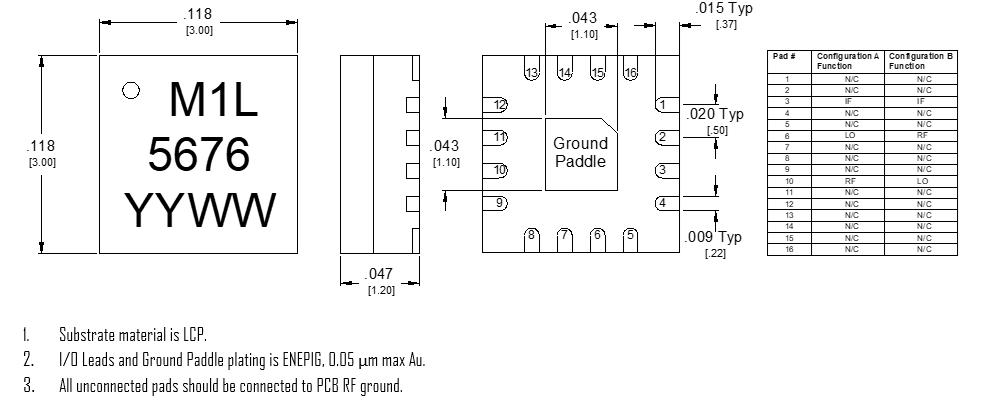

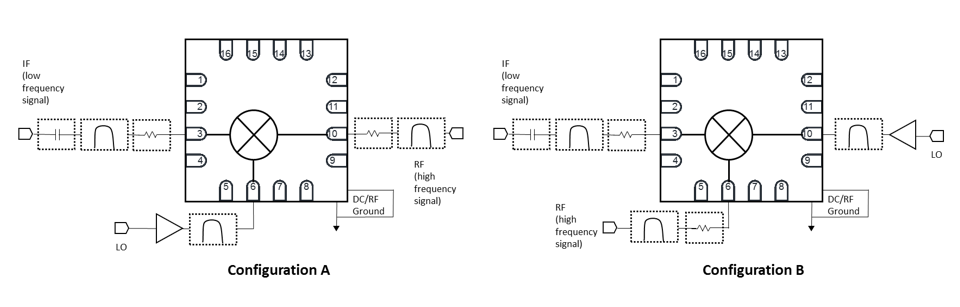

A bottom-up view of the MM1-2567LSM-2’s SM package outline drawing is shown below. The MM1-2567LSM-2 has the input and output ports given in Port Functions. The MM1-2567LSM-2 can be used in either an up or down conversion. For configuration A, input the LO into pin 6, use pin 10 for the RF, and pin 3 for the IF. For configuration B, input the LO into pin 10, use pin 6 for the RF, and pin 3 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 10 | RF | Pin 10 is DC short and AC matched to 50 Ohms from 25 to 67 GHz. Blocking capacitor is optional. |  |
| Pin 3 | IF | Pin 3 is DC coupled to the diodes. Blocking capacitor is optional |  |
| Pin 6 | LO | Pin 6 is DC open and AC matched to 50 Ohms from 25 to 67 GHz. Blocking capacitor is optional. |  |
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. | |
| Pin 10 | LO | Pin 10 is DC short and AC matched to 50 Ohms from 25 to 67 GHz. Blocking capacitor is optional. | |
| Pin 3 | IF | Pin 3 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Pin 6 | RF | Pin 6 is DC open and AC matched to 50 Ohms from 25 to 67 GHz. Blocking capacitor is optional. | |
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Power Handling, at any Port | 28 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | - | 25 | - | °C |
| LO Input Power | 10 | 13 | 16 | dBm |
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +13dBm sine wave LO input unless otherwise specified.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 25 - 67 GHz IF = 0.2 - 30 GHz | - | 11 | - | dB |
| Conversion Loss 2 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 9.5 | 17 | dB |
| Input IP3 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 9 | - | dBm |
| Input P1dB | A | - | - | 1 | - | dBm |
| Noise Figure 3 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 9.5 | - | dB |
| Output IP3 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | -1 | - | dBm |
| Conversion Loss 4 | B | RF/LO = 25 - 67 GHz IF = 0.2 - 30 GHz | - | 17 | - | dB |
| Conversion Loss 5 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 15 | 22 | dB |
| Input IP3 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 18 | - | dBm |
| Input P1dB | B | - | - | 5 | - | dBm |
| Noise Figure 6 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 15 | - | dB |
| Output IP3 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 3 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 30 | GHz |
| LO Frequency Range | - | - | 25 | - | 67 | GHz |
| LO-IF Isolation | - | IF/LO = 25 - 67 GHz | - | 28 | - | dB |
| LO-RF Isolation | - | RF/LO = 25 - 67 GHz | - | 40 | - | dB |
| RF Frequency Range | - | - | 25 | - | 67 | GHz |
| RF-IF Isolation | - | RF/IF = 25 - 67 GHz | - | 25 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 25 - 67 GHz IF = 0.2 - 30 GHz | - | 11 | - | dB |
| Conversion Loss 2 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 9.5 | 17 | dB |
| Input IP3 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 9 | - | dBm |
| Input P1dB | A | - | - | 1 | - | dBm |
| Noise Figure 3 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 9.5 | - | dB |
| Output IP3 | A | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | -1 | - | dBm |
| Conversion Loss 4 | B | RF/LO = 25 - 67 GHz IF = 0.2 - 30 GHz | - | 17 | - | dB |
| Conversion Loss 5 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 15 | 22 | dB |
| Input IP3 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 18 | - | dBm |
| Input P1dB | B | - | - | 5 | - | dBm |
| Noise Figure 6 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 15 | - | dB |
| Output IP3 | B | RF/LO = 25 - 67 GHz IF = DC - 0.2 GHz | - | 3 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 30 | GHz |
| LO Frequency Range | - | - | 25 | - | 67 | GHz |
| LO-IF Isolation | - | IF/LO = 25 - 67 GHz | - | 28 | - | dB |
| LO-RF Isolation | - | RF/LO = 25 - 67 GHz | - | 40 | - | dB |
| RF Frequency Range | - | - | 25 | - | 67 | GHz |
| RF-IF Isolation | - | RF/IF = 25 - 67 GHz | - | 25 | - | dB |
[1] Measured as a down converter to a fixed 91MHz IF.
[2] Measured as a down converter to a fixed 91MHz IF.
[3][6] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
[4][5] Measured as a down converter to a fixed 91MHz IF.
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
MM1-2567LSM-2
GaAs MMIC Double Balanced Mixer
Download : Footprint Drawing
