The MM1-1453HSM is a high frequency GaAs MMIC double balanced mixer that features excellent conversion loss, superior isolations and spurious performances across a broad bandwidth. MM1-1453HSM works well as both an up and down converter in the K/Ka band and is recommend for moderate power applications that demand high linearity. If a lower LO drive is required, the MM1-1453LSM offers similar specs in the same surface mount package. The MM1-1453HSM is available in a 4x4 mm QFN package. Evaluation boards are also available.
RF/LO response: 14GHz - 53GHz
IF response: DC – 22 GHz
Conversion Loss: 7 dB
LO to RF Isolation: 52 dB
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-1453HSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MM1-1453H | Evaluation Board, GaAs MMIC 14 - 53 GHz Double Balanced Mixer | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-1453HSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MM1-1453H | Evaluation Board, GaAs MMIC 14 - 53 GHz Double Balanced Mixer | EVAL | REACH RoHS | Released | EAR99 |
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2020-05-01 | Datasheet Initial Release |
| A | 2020-09-01 | Updated Pin Designations, Tuner Plot Units & Outline Drawings |
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
A bottom-up view of the MM1-1453HSM’s SM package outline drawing is shown below. The MM1-1453HSM has the input and output ports given in Port Functions. The MM1-1453HSM can be used in either an up or down conversion. For configuration A, input the LO into pin 3, use pin 11 for the RF, and pin 7 for the IF. For configuration B, input the LO into pin 11, use pin 3 for the RF, and pin 7 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 11 | RF | Pin 11 is DC open and AC matched to 50 Ohms from 14 to 53 GHz. |  |
| Pin 3 | LO | Pin 3 is DC open and AC matched to 50 Ohms from 14 to 53 GHz. | |
| Pin 7 | IF | Pin 7 is DC coupled to the diodes. Blocking capacitor is optional. |  |
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. | |
| Pin 11 | LO | Pin 11 is DC open and AC matched to 50 Ohms from 14 to 53 GHz. | |
| Pin 3 | RF | Pin 3 is DC open and AC matched to 50 Ohms from 14 to 53 GHz. | |
| Pin 7 | IF | Pin 7 is DC coupled to the diodes. Blocking capacitor is optional. | |
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 7 DC Current | 30 | mA |
| Power Handling, at any Port | 30 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: QFN | 0.041g |
| Dimensions | - | 4 x 4 mm |
| Moisture Sensitivity Level | - | MSL 1 |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 12 | - | 20 | dBm |
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +15dBm sine wave LO input.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 14 - 50 GHz I = 91 MHz | - | 7 | 13 | dB |
| Conversion Loss 2 | A | RF/LO = 50 – 53 GHz I = 91 MHz | - | 12 | 14 | dB |
| Input IP3 | A | RF/LO = 14 - 53 GHz I = 91 MHz | - | 17 | - | dBm |
| Input P1dB | A | - | - | 8 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 14 - 50 GHz I = 91 MHz | - | 8 | 14 | dB |
| Conversion Loss 4 | B | RF/LO = 50 – 53 GHz I = 91 MHz | - | 12 | 14 | dB |
| Input IP3 | B | RF/LO = 14 - 53 GHz I = 91 MHz | - | 19 | - | dBm |
| Input P1dB | B | - | - | 9 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 22 | GHz |
| LO Frequency Range | - | - | 14 | - | 53 | GHz |
| LO-IF Isolation | - | IF/LO = 14 - 53 GHz | - | 36 | - | dB |
| LO-RF Isolation | - | RF/LO = 14 - 53 GHz | - | 52 | - | dB |
| Noise Figure 5 | - | RF/LO = 14 - 53 GHz I = 91 MHz | - | 8 | - | dB |
| RF Frequency Range | - | - | 14 | - | 53 | GHz |
| RF-IF Isolation | - | RF/IF = 14 - 53 GHz | - | 48 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 14 - 50 GHz I = 91 MHz | - | 7 | 13 | dB |
| Conversion Loss 2 | A | RF/LO = 50 – 53 GHz I = 91 MHz | - | 12 | 14 | dB |
| Input IP3 | A | RF/LO = 14 - 53 GHz I = 91 MHz | - | 17 | - | dBm |
| Input P1dB | A | - | - | 8 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 14 - 50 GHz I = 91 MHz | - | 8 | 14 | dB |
| Conversion Loss 4 | B | RF/LO = 50 – 53 GHz I = 91 MHz | - | 12 | 14 | dB |
| Input IP3 | B | RF/LO = 14 - 53 GHz I = 91 MHz | - | 19 | - | dBm |
| Input P1dB | B | - | - | 9 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 22 | GHz |
| LO Frequency Range | - | - | 14 | - | 53 | GHz |
| LO-IF Isolation | - | IF/LO = 14 - 53 GHz | - | 36 | - | dB |
| LO-RF Isolation | - | RF/LO = 14 - 53 GHz | - | 52 | - | dB |
| Noise Figure 5 | - | RF/LO = 14 - 53 GHz I = 91 MHz | - | 8 | - | dB |
| RF Frequency Range | - | - | 14 | - | 53 | GHz |
| RF-IF Isolation | - | RF/IF = 14 - 53 GHz | - | 48 | - | dB |
[1][2][3][4] Measured as a down converter to a fixed 91MHz IF.
[5] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer

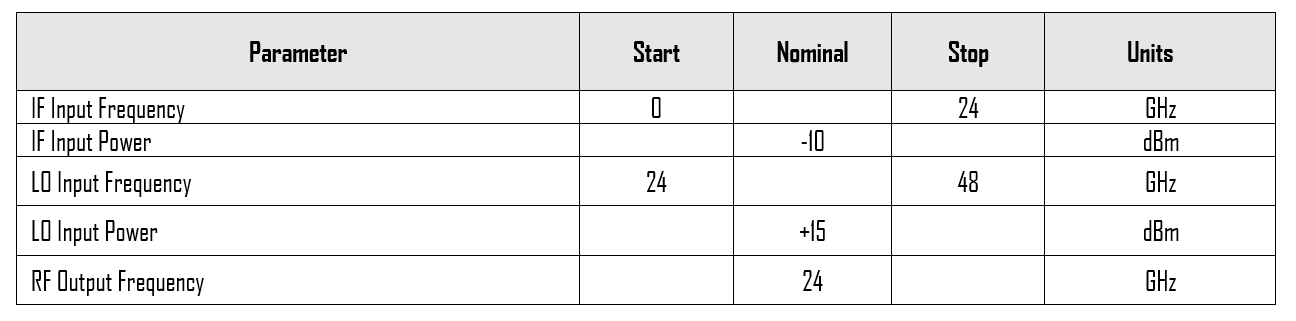

Tuner mixer performance plots are taken with the following test conditions and frequency plan:
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer
MM1-1453HSM-2
GaAs MMIC Double Balanced Mixer

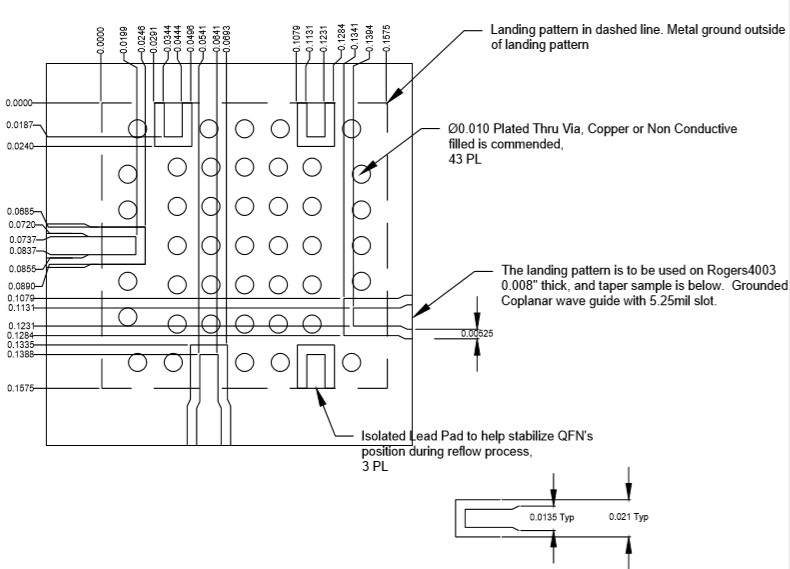

Download : Footprint Drawing
