The MM1-1040HPSM is a GaAs MMIC double balanced mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-1040HPSM is available in a lead-free, RoHS compliant 3x3 mm QFN package and is compatible with standard leaded and lead-free PCB reflow soldering processes. Evaluation boards are also available.
RF/LO response: 10GHz – 40 GHz
IF response: DC – 12 GHz
Conversion Loss: 7 dB
LO to RF Isolation: 45 dB
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-1040HPSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |

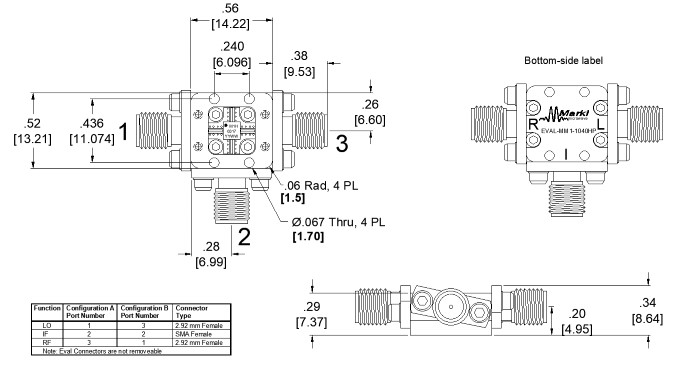

| EVAL-MM1-1040HP | Evaluation Board, GaAs MMIC 10 - 40 GHz Double Balanced Mixer | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-1040HPSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MM1-1040HP | Evaluation Board, GaAs MMIC 10 - 40 GHz Double Balanced Mixer | EVAL | REACH RoHS | Released | EAR99 |
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2021-06-01 | Datasheet Initial Release |
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer

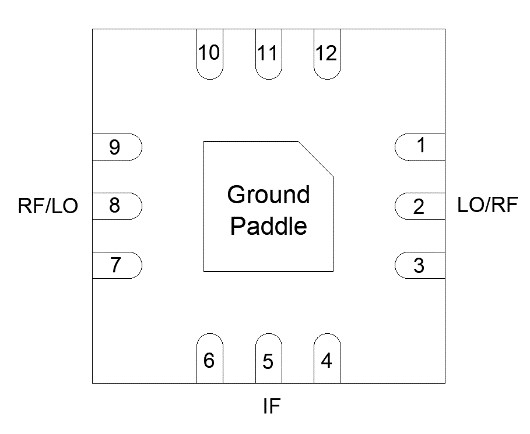

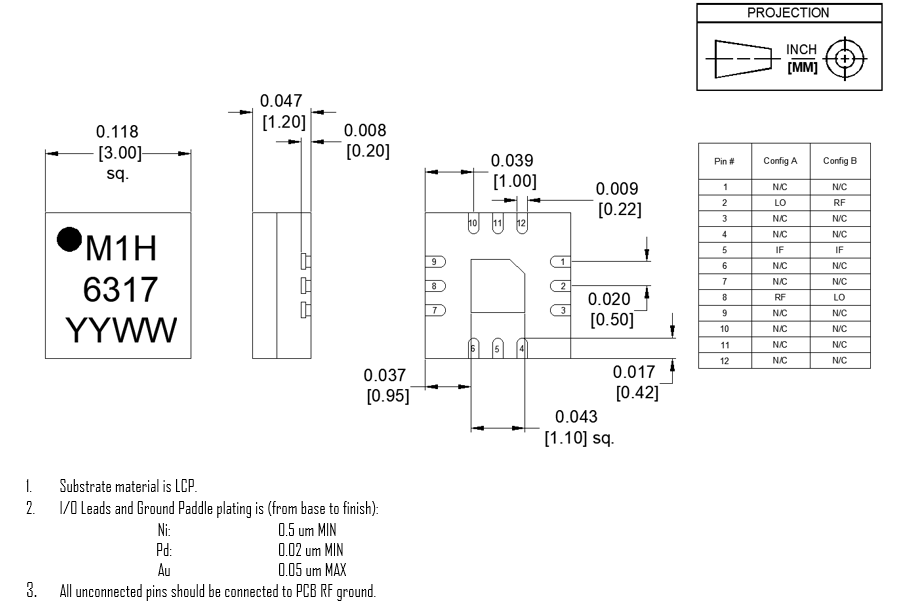

A bottom-up view of the MM1-1040HPSM’s PSM package outline drawing is shown below. The MM1-1040HPSM has the input and output ports given in Port Functions. The MM1-1040HPSM can be used in either an up or down conversion application. For configuration A, input the LO into pin 2, use pin 8 for the RF, and pin 5 for the IF. For configuration B, input the LO into pin 8, use pin 2 for the RF, and pin 5 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | PSM package ground path is provided through the ground paddle. |  |
| Pin 2 | LO | Pin 2 is DC short and AC matched to 50 Ohms from 10 to 40 GHz. |  |
| Pin 5 | IF | Pin 5 is DC coupled to the diodes. Blocking capacitor is optional. |  |
| Pin 8 | RF | Pin 8 is DC open and AC matched to 50 Ohms from 10 to 40 GHz. |  |
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | PSM package ground path is provided through the ground paddle. | |
| Pin 2 | RF | Pin 2 is DC short and AC matched to 50 Ohms from 10 to 40 GHz. | |
| Pin 5 | IF | Pin 5 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Pin 8 | LO | Pin 8 is DC open and AC matched to 50 Ohms from 10 to 40 GHz. | |
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 2 DC Current | 15 | mA |
| Pin 5 DC Current | 24 | mA |
| Power Handling, at any Port (100°C) | 21 | dBm |
| Power Handling, at any Port (25°C) | 25 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 12 | 17 | 20 | dBm |
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +17 dBm sine wave LO input.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 10 - 40 GHz I = 0.2 - 12 GHz | - | 9 | - | dB |
| Conversion Loss 2 | A | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 7 | 12 | dB |
| Input IP3 | A | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 20 | - | dBm |
| Input P1dB | A | - | - | 11 | - | dBm |
| LO-IF Isolation | A | IF/LO = 10 - 40 GHz | - | 24 | - | dB |
| LO-RF Isolation | A | RF/LO = 10 - 40 GHz | - | 45 | - | dB |
| Noise Figure 3 | A | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 7 | - | dB |
| RF-IF Isolation | A | RF/IF = 10 - 40 GHz | - | 45 | - | dB |
| Conversion Loss 4 | B | RF/LO = 10 - 40 GHz I = 0.2 - 12 GHz | - | 9 | - | dB |
| Conversion Loss 5 | B | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 8 | 14 | dB |
| Input IP3 | B | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 24 | - | dBm |
| Input P1dB | B | - | - | 10 | - | dBm |
| LO-IF Isolation | B | IF/LO = 10 - 40 GHz | - | 45 | - | dB |
| LO-RF Isolation | B | RF/LO = 10 - 40 GHz | - | 46 | - | dB |
| Noise Figure 6 | B | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 8 | - | dB |
| RF-IF Isolation | B | RF/IF = 10 - 40 GHz | - | 23 | - | dB |
| IF Frequency Range | - | - | 0 | - | 12 | GHz |
| LO Frequency Range | - | - | 10 | - | 40 | GHz |
| RF Frequency Range | - | - | 10 | - | 40 | GHz |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 10 - 40 GHz I = 0.2 - 12 GHz | - | 9 | - | dB |
| Conversion Loss 2 | A | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 7 | 12 | dB |
| Input IP3 | A | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 20 | - | dBm |
| Input P1dB | A | - | - | 11 | - | dBm |
| LO-IF Isolation | A | IF/LO = 10 - 40 GHz | - | 24 | - | dB |
| LO-RF Isolation | A | RF/LO = 10 - 40 GHz | - | 45 | - | dB |
| Noise Figure 3 | A | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 7 | - | dB |
| RF-IF Isolation | A | RF/IF = 10 - 40 GHz | - | 45 | - | dB |
| Conversion Loss 4 | B | RF/LO = 10 - 40 GHz I = 0.2 - 12 GHz | - | 9 | - | dB |
| Conversion Loss 5 | B | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 8 | 14 | dB |
| Input IP3 | B | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 24 | - | dBm |
| Input P1dB | B | - | - | 10 | - | dBm |
| LO-IF Isolation | B | IF/LO = 10 - 40 GHz | - | 45 | - | dB |
| LO-RF Isolation | B | RF/LO = 10 - 40 GHz | - | 46 | - | dB |
| Noise Figure 6 | B | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | - | 8 | - | dB |
| RF-IF Isolation | B | RF/IF = 10 - 40 GHz | - | 23 | - | dB |
| IF Frequency Range | - | - | 0 | - | 12 | GHz |
| LO Frequency Range | - | - | 10 | - | 40 | GHz |
| RF Frequency Range | - | - | 10 | - | 40 | GHz |
[1][2][4][5] Measured as a down converter to a fixed 91MHz IF.
[3][6] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
Download : Footprint Drawing
MM1-1040HPSM-2
GaAs MMIC Double Balanced Mixer
