The MM1-0832HSM is a GaAs MMIC double balanced mixer that is optimized for high frequency applications. MM1-0832HSM is a high frequency X band mixer that works well as both an up and down converter through Ka band. This mixer offers low conversion loss and high LO to RF isolations at moderate LO powers. The sister MM1-0832LSM is recommended for low power applications. The MM1-0832HSM is available in a 3x3 mm QFN package. Evaluation boards are available.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| MM1-0832HSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Not Recommended for New Design | EAR99 | MM1-0832HPSM-2 |
| EVAL-MM1-0832H | Evaluation Board, GaAs MMIC 8 - 32 GHz Double Balanced Mixer | EVAL | REACH RoHS | Not Recommended for New Design | EAR99 | - |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| MM1-0832HSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Not Recommended for New Design | EAR99 | MM1-0832HPSM-2 |
| EVAL-MM1-0832H | Evaluation Board, GaAs MMIC 8 - 32 GHz Double Balanced Mixer | EVAL | REACH RoHS | Not Recommended for New Design | EAR99 | - |
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2019-01-01 | Datasheet Initial Release |
| A | Updated Low Side LO Plot Titles | |
| B | Updated Pin 2 Description & Equivalent Circuit |
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer

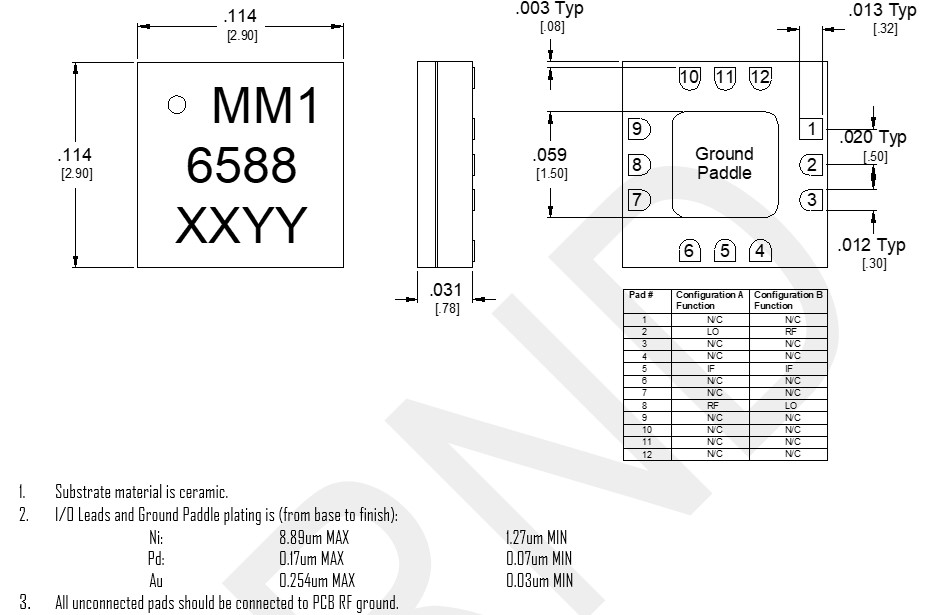

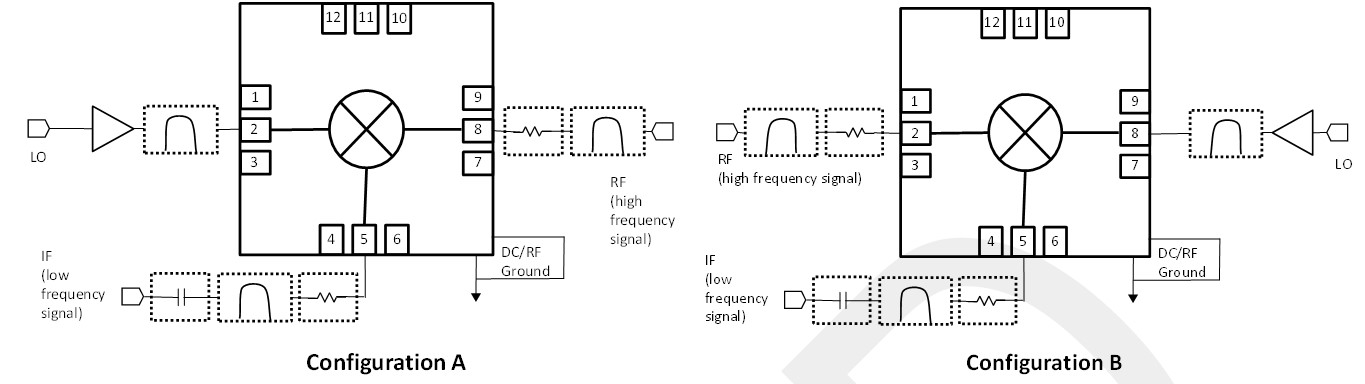

A bottom-up view of the MM1-0832HSM’s SM package outline drawing is shown below. The MM1-0832HSM has the input and output ports given in Port Functions. The MM1-0832HSM can be used in either an up or down conversion. For configuration A, input the LO into pin 2, use pin 8 for the RF, and pin 5 for the IF. For configuration B, input the LO into pin 8, use pin 2 for the RF, and pin 5 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 2 | LO | Pin 2 is DC open and AC matched to 50 Ohms from 8 to 32 GHz. |  |
| Pin 5 | IF | Pin 5 is DC coupled to the diodes. Blocking capacitor is optional. |  |
| Pin 8 | RF | Pin 8 is DC open and AC matched to 50 Ohms from 8 to 32 GHz. | |
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. | |
| Pin 2 | RF | Pin 2 is DC open and AC matched to 50 Ohms from 8 to 32 GHz. | |
| Pin 5 | IF | Pin 5 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Pin 8 | LO | Pin 8 is DC open and AC matched to 50 Ohms from 8 to 32 GHz. | |
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 2 DC Current | 30 | mA |
| Pin 5 DC Current | 15 | mA |
| Power Handling, at any Port | 28 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 16 | - | 23 | dBm |
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +18dBm sine wave LO input.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 8 - 30 GHz I = 0.2 - 12 GHz | - | 8 | - | dB |
| Conversion Loss 2 | A | RF/LO = 8 - 30 GHz I = DC - 0.2 GHz | - | 7 | 10.5 | dB |
| Input IP3 | A | RF/LO = 8 - 32 GHz I = DC - 0.2 GHz | - | 20.5 | - | dBm |
| Input P1dB | A | - | - | 9 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 8 - 30 GHz I = 0.2 - 12 GHz | - | 9.5 | - | dB |
| Conversion Loss 4 | B | RF/LO = 8 - 30 GHz I = DC - 0.2 GHz | - | 8.5 | 12 | dB |
| Input IP3 | B | RF/LO = 8 - 32 GHz I = DC - 0.2 GHz | - | 22 | - | dBm |
| Input P1dB | B | - | - | 11 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 12 | GHz |
| LO Frequency Range | - | - | 8 | - | 30 | GHz |
| LO-IF Isolation | - | IF/LO = 8 - 32 GHz | - | 23 | - | dB |
| LO-RF Isolation | - | RF/LO = 8 - 32 GHz | - | 36 | - | dB |
| Noise Figure 5 | - | RF/LO = 8 - 30 GHz I = DC - 0.2 GHz | - | 8.5 | - | dB |
| RF Frequency Range | - | - | 8 | - | 32 | GHz |
| RF-IF Isolation | - | RF/IF = 8 - 32 GHz | - | 23 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 8 - 30 GHz I = 0.2 - 12 GHz | - | 8 | - | dB |
| Conversion Loss 2 | A | RF/LO = 8 - 30 GHz I = DC - 0.2 GHz | - | 7 | 10.5 | dB |
| Input IP3 | A | RF/LO = 8 - 32 GHz I = DC - 0.2 GHz | - | 20.5 | - | dBm |
| Input P1dB | A | - | - | 9 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 8 - 30 GHz I = 0.2 - 12 GHz | - | 9.5 | - | dB |
| Conversion Loss 4 | B | RF/LO = 8 - 30 GHz I = DC - 0.2 GHz | - | 8.5 | 12 | dB |
| Input IP3 | B | RF/LO = 8 - 32 GHz I = DC - 0.2 GHz | - | 22 | - | dBm |
| Input P1dB | B | - | - | 11 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 12 | GHz |
| LO Frequency Range | - | - | 8 | - | 30 | GHz |
| LO-IF Isolation | - | IF/LO = 8 - 32 GHz | - | 23 | - | dB |
| LO-RF Isolation | - | RF/LO = 8 - 32 GHz | - | 36 | - | dB |
| Noise Figure 5 | - | RF/LO = 8 - 30 GHz I = DC - 0.2 GHz | - | 8.5 | - | dB |
| RF Frequency Range | - | - | 8 | - | 32 | GHz |
| RF-IF Isolation | - | RF/IF = 8 - 32 GHz | - | 23 | - | dB |
[1][2][3][4] Measured as a down converter to a fixed 91MHz IF.
[5] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
MM1-0832HSM-2
GaAs MMIC Double Balanced Mixer
Download : Footprint Drawing
