General Description

The MM1-0626HSM is a passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-0626HSM is available in a lead-free, RoHS compliant QFN surface mount package and is compatible with standard leaded and lead-free PCB reflow soldering processes. The MM1-0626HSM is a superior alternative to Marki Microwave surface mount M1 and M3 mixers.

Photo of MM1-0626HSM-2

Features

  • Compact 3mm QFN SMT Style Package
  • Broadband Performance
  • Excellent Unit-to-Unit Repeatability
  • RoHS Compliant

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackagePacking SizeGreen StatusProduct LifecycleExport Classification
MM1-0626HSM-2GaAs MMIC Double Balanced MixerQFN-

REACH

RoHS

ReleasedEAR99
EVAL-MM1-0626HEvaluation Board, GaAs MMIC Double Balanced MixerEVAL-

REACH

RoHS

ReleasedEAR99
MM1-0626H-2-TRTape and Reel, GaAs MMIC Double Balanced MixerQFN7"

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
A2017-11-01Change to internal device.
B2018-10-01Change to product image on page 1

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MM1-0626HSM-2

Port Functions

Configuration A

PortFunctionDescriptionDC Equivalent
Circuit
Port 2LO Port 2 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
Port 5IF Port 5 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 8RF Port 8 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

3

Configuration B

PortFunctionDescriptionDC Equivalent
Circuit
Port 2RF Port 2 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the RF
Port 5IF Port 5 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 8LO Port 8 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the LO

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 5 DC Current 15mA
RF Power Handling (RF+LO), 100°C 21dBm
RF Power Handling (RF+LO), 25°C 25dBm

Package Information

ParameterDetailsRating
Dimensions-3 x 3 mm
Moisture Sensitivity Level-MSL 1
ParameterMinNominalMaxUnit
LO Input Power 13-20-

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

5

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. Specifications are shown for Configurations A & B.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
Conversion Loss ALO/RF=6-26.5GHz
IF=DC-9
LO drive level=15dBm
-7.9-dB
Input IP3 ALO/RF=6-26.5GHz
IF=DC-9
LO drive level=13-20dBm
-21-dBm
Input P1dB ALO/RF=6-26.5GHz
IF=DC-9
LO drive level=13-20dBm
-9-dBm
Conversion Loss BLO/RF=6-26.5GHz
IF=DC-9
LO drive level=15dBm
-9-dB
Input IP3 BLO/RF=6-26.5GHz
IF=DC-9
LO drive level=13-20dBm
-23-dBm
Input P1dB BLO/RF=6-26.5GHz
IF=DC-9
LO drive level=13-20dBm
-9-dBm
IF Frequency Range --0-9GHz
LO-IF Isolation -LO/RF=6-26.5GHz
IF=DC-9
LO drive level=13-20dBm
-34-dB
LO-RF Isolation -LO/RF=6-26.5GHz
IF=DC-9
LO drive level=13-20dBm
-47-dB
RF Frequency Range --6-26GHz
RF-IF Isolation -LO/RF=6-26.5GHz
IF=DC-9
LO drive level=13-20dBm
-35-dB

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

6

Typical Performance

Conversion Loss: 100 MHz IF (dB) graph for MM1-0626HSM-2
Relative IF Response (dB) graph for MM1-0626HSM-2
Configuration A Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0626HSM-2
Configuration B Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0626HSM-2
LO to RF Isolation (dB) graph for MM1-0626HSM-2
LO to IF Isolation (dB) graph for MM1-0626HSM-2
RF to IF Isolation (dB) graph for MM1-0626HSM-2
RF Return Loss (dB) graph for MM1-0626HSM-2

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

7

LO Return Loss (dB) graph for MM1-0626HSM-2
IF Return Loss (dB) graph for MM1-0626HSM-2
Input IP3: 100 MHz IF (dBm) graph for MM1-0626HSM-2
Output IP3: 100 MHz IF (dBm) graph for MM1-0626HSM-2
Even LO Harmonic to RF Isolation (dB) graph for MM1-0626HSM-2
Even LO Harmonic to IF Isolation (dB) graph for MM1-0626HSM-2
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0626HSM-2
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0626HSM-2

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

8

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM1-0626HSM-2
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0626HSM-2

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

9

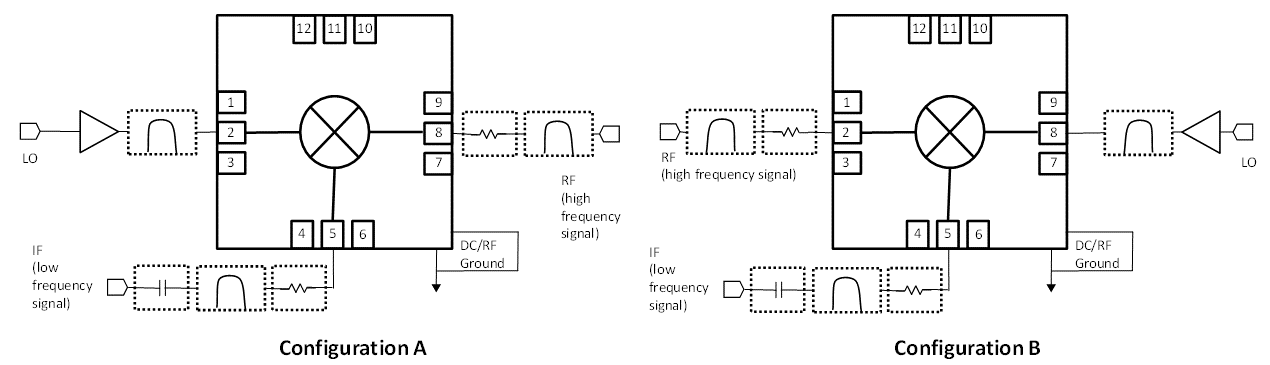

Application Circuit

Application Circuit for MM1-0626HSM-2

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

10

Mechanical Data

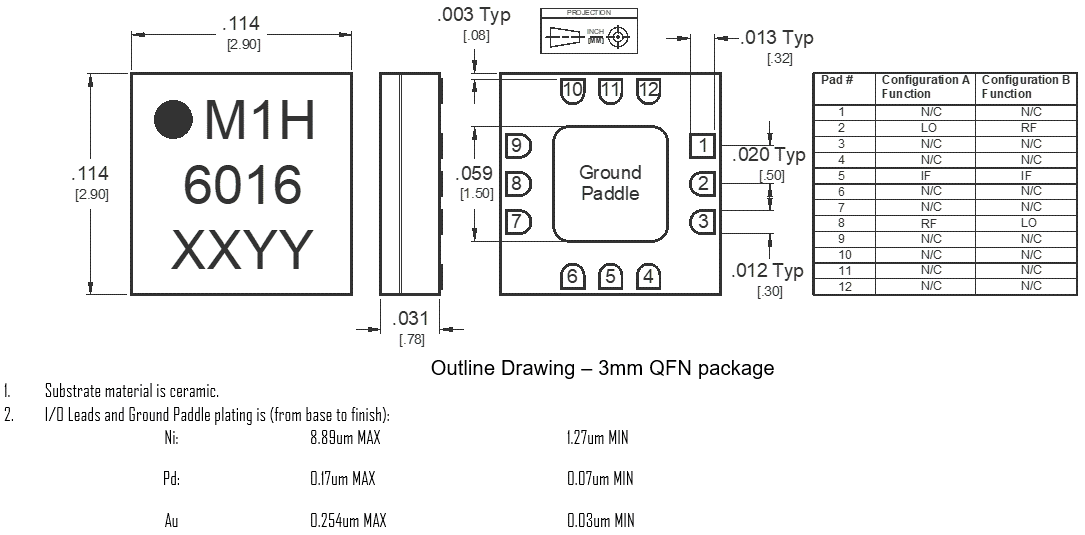

Outline Drawing

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

Outline Drawing

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

11

Rev: B | Copyright © 2017 - 2018 Marki Microwave LLC.

12

Evaluation Board - Performance Data

ParameterTest ConditionsFrequency Range (GHz)MinTypMaxUnit
RF Frequency Range--6-26GHz
