Device Overview

General Description

The MM1-0312SSM is a highly linear passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-0312SSM is available in a lead-free, RoHS compliant QFN surface mount package and is compatible with standard leaded and lead-free PCB reflow soldering processes. The MM1-0312SSM is a superior alternative to Marki Microwave surface mount M1 and M3 mixers.

Photo of MM1-0312SSM-2

Features

  • +14 dBm Typical Input 1 dB Compression
  • +24 dBm Typical Input IP3
  • Compact 3mm QFN SMT Style Package
  • Excellent Unit-to-Unit Repeatability
  • RoHS Compliant

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackagePacking SizeGreen StatusProduct LifecycleExport Classification
MM1-0312SSM-2GaAs Double Balanced MixerQFN-

REACH

RoHS

ReleasedEAR99
EVAL-MM1-0312SEvaluation Board, GaAs DOUBLE-BALANCED MIXEREVAL-

REACH

RoHS

ReleasedEAR99
MM1-0312S-2-TRTape and Reel, GaAs Double Balanced MixerQFN7"

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2016-08-01Initial Release
A2019-04-01Updated plating to ENEPIG

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

2

Port Configuration and Functions

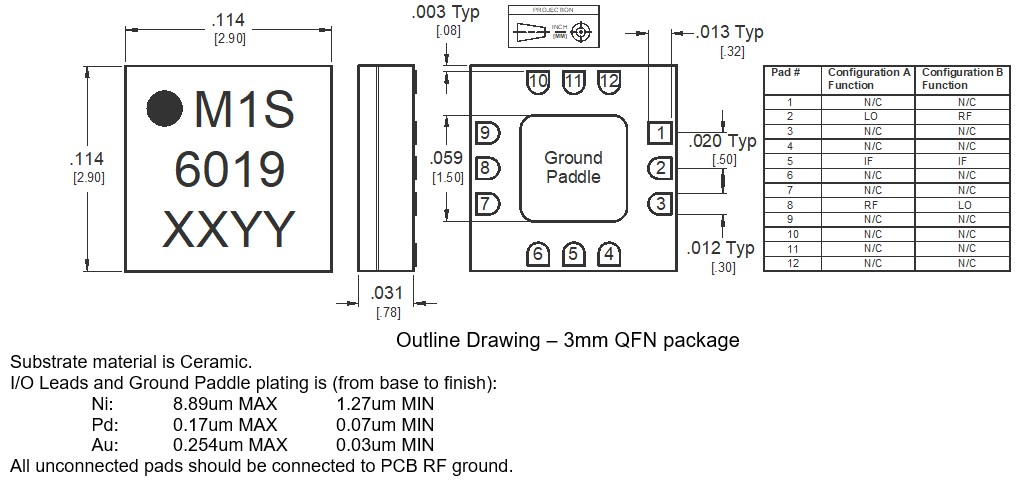

Port Diagram

Diagram of the port configuration for MM1-0312SSM-2

Port Functions

Configuration A

PortFunctionDescriptionDC Equivalent
Circuit
Port 2LO Port 2 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
Port 5IF Port 5 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 8RF Port 8 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

3

Configuration B

PortFunctionDescriptionDC Equivalent
Circuit
Port 2RF Port 2 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional.Equivalent circuit for the RF
Port 5IF Port 5 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 8LO Port 8 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional.Equivalent circuit for the LO

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 5 DC Current 30mA
RF Power Handling (RF+LO), 100°C 24dBm
RF Power Handling (RF+LO), 25°C 28dBm

Package Information

ParameterDetailsRating
Dimensions-3 x 3 mm
Moisture Sensitivity Level-MSL 1
ParameterMinNominalMaxUnit
LO Input Power 17-23-

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

5

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
Conversion Loss ALO/RF=3-12GHz
IF=DC-4.5GHz
-7.5-dB
Input IP3 ALO/RF=3-12GHz
IF=DC-4.5GHz
LO drive level 18-23dBm
-24-dBm
Input P1dB ALO/RF=3-12GHz
IF=DC-4.5GHz
LO drive level 18-23dBm
-14-dBm
Conversion Loss BLO/RF=3-12GHz
IF=DC-4.5GHz
-9-dB
Input IP3 BLO/RF=3-12GHz
IF=DC-4.5GHz
LO drive level 17-23dBm
-26-dBm
Input P1dB BLO/RF=3-12GHz
IF=DC-4.5GHz
LO drive level 17-23dBm
-14-dBm
Conversion Loss ---7-dB
IF Frequency Range --0-4.5GHz
LO Frequency Range --3-12GHz
LO-RF Isolation ---49-dB
RF Frequency Range --3-12GHz

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

6

Typical Performance Plots

Conversion Loss: 100 MHz IF (dB) graph for MM1-0312SSM-2
Relative IF Response (dB) graph for MM1-0312SSM-2
Configuration A Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0312SSM-2
Configuration B Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0312SSM-2
LO to RF Isolation (dB) graph for MM1-0312SSM-2
LO to IF Isolation (dB) graph for MM1-0312SSM-2
RF to IF Isolation (dB) graph for MM1-0312SSM-2
IF Return Loss (dB) graph for MM1-0312SSM-2

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

7

RF Return Loss (dB) graph for MM1-0312SSM-2
LO Return Loss (dB) graph for MM1-0312SSM-2
Input IP3: 100 MHz IF (dBm) graph for MM1-0312SSM-2
Output IP3: 100 MHz IF (dBm) graph for MM1-0312SSM-2
Even LO Harmonic to RF Isolation (dB) graph for MM1-0312SSM-2
Even LO Harmonic to IF Isolation (dB) graph for MM1-0312SSM-2
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0312SSM-2
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0312SSM-2

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

8

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM1-0312SSM-2
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0312SSM-2

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

9

Application Circuit

Application Circuit for MM1-0312SSM-2

Rev: A | Copyright © 2016, 2019 Marki Microwave LLC.

10

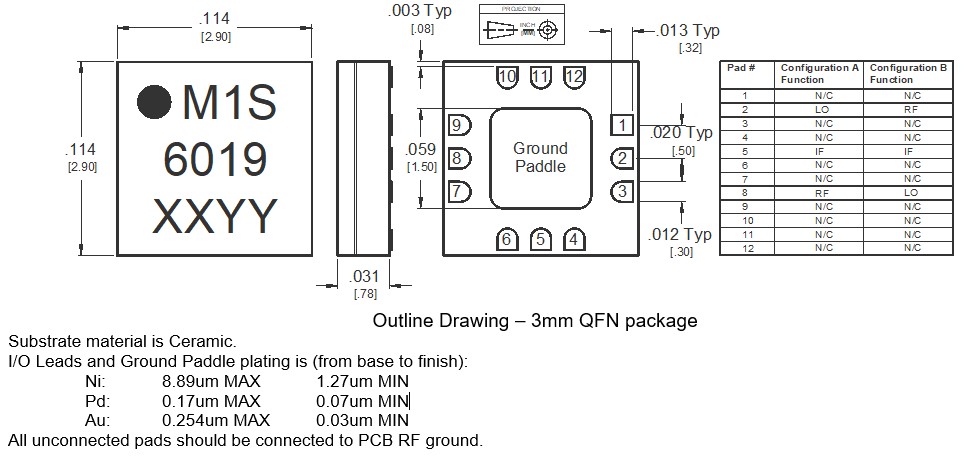

Mechanical Data
