Device Overview
General Description
The MM1-0312HSM is a passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-0312HSM is available in a lead-free, RoHS compliant QFN surface mount package and is compatible with standard leaded and lead-free PCB reflow soldering processes. The MM1-0312HSM is a superior alternative to Marki Microwave surface mount M1 and M3 mixers.
Features
- Compact 3mm QFN SMT Style Package
- Broadband Performance
- Excellent Unit-to-Unit Repeatability
- RoHS Compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0312HSM-2 | GaAs Double-Balanced Mixer | QFN | - | REACH RoHS | Released | EAR99 |
| EVAL-MM1-0312H | Evaluation Board, GaAs DOUBLE-BALANCED MIXER | EVAL | - | REACH RoHS | Released | EAR99 |
| MM1-0312H-2-TR | Tape and Reel, GaAs Double-Balanced Mixer | QFN | 7" | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0312HSM-2 | GaAs Double-Balanced Mixer | QFN | - | REACH RoHS | Released | EAR99 |
| EVAL-MM1-0312H | Evaluation Board, GaAs DOUBLE-BALANCED MIXER | EVAL | - | REACH RoHS | Released | EAR99 |
| MM1-0312H-2-TR | Tape and Reel, GaAs Double-Balanced Mixer | QFN | 7" | REACH RoHS | Released | EAR99 |
MM1-0312HSM-2
GaAs Double-Balanced Mixer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2016-08-01 | Initial Release |
| A | 2019-04-01 | Updated plating to ENEPIG |
MM1-0312HSM-2
GaAs Double-Balanced Mixer
Port Configuration and Functions
Port Functions
Configuration A
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 2 | LO | Port 2 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional. |  |
| Port 5 | IF | Port 5 is DC coupled to the diodes. Blocking capacitor is optional. |  |
| Port 8 | RF | Port 8 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional. | |
MM1-0312HSM-2
GaAs Double-Balanced Mixer
Configuration B
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 2 | RF | Port 2 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional. | |
| Port 5 | IF | Port 5 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Port 8 | LO | Port 8 is DC open and AC matched to 50 Ohms from 3 to 12 GHz. Blocking capacitor is optional. | |
MM1-0312HSM-2
GaAs Double-Balanced Mixer
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 5 DC Current | 30 | mA |
| RF Power Handling (RF+LO), 100°C | 21 | dBm |
| RF Power Handling (RF+LO), 25°C | 25 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 12 | - | 20 | - |
MM1-0312HSM-2
GaAs Double-Balanced Mixer
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss | A | LO/RF=3-12 GHz IF=DC-4.5 GHz | - | 7 | - | dB |
| Input IP3 | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20 dBm | - | 19 | - | dBm |
| Input P1dB | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20 dBm | - | 9 | - | dBm |
| Conversion Loss | B | LO/RF=3-12 GHz IF=DC-4.5 GHz | - | 9 | - | dB |
| Input IP3 | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=12-19 dBm | - | 22 | - | dBm |
| Input P1dB | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=12-19 dBm | - | 9 | - | dBm |
| Conversion Loss | - | - | - | 7 | - | dB |
| IF Frequency Range | - | - | 0 | - | 4.5 | GHz |
| LO Frequency Range | - | - | 3 | - | 12 | GHz |
| LO-RF Isolation | - | - | - | 49 | - | dB |
| RF Frequency Range | - | - | 3 | - | 12 | GHz |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss | A | LO/RF=3-12 GHz IF=DC-4.5 GHz | - | 7 | - | dB |
| Input IP3 | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20 dBm | - | 19 | - | dBm |
| Input P1dB | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20 dBm | - | 9 | - | dBm |
| Conversion Loss | B | LO/RF=3-12 GHz IF=DC-4.5 GHz | - | 9 | - | dB |
| Input IP3 | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=12-19 dBm | - | 22 | - | dBm |
| Input P1dB | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=12-19 dBm | - | 9 | - | dBm |
| Conversion Loss | - | - | - | 7 | - | dB |
| IF Frequency Range | - | - | 0 | - | 4.5 | GHz |
| LO Frequency Range | - | - | 3 | - | 12 | GHz |
| LO-RF Isolation | - | - | - | 49 | - | dB |
| RF Frequency Range | - | - | 3 | - | 12 | GHz |
MM1-0312HSM-2
GaAs Double-Balanced Mixer
Typical Performance
MM1-0312HSM-2
GaAs Double-Balanced Mixer
MM1-0312HSM-2
GaAs Double-Balanced Mixer
MM1-0312HSM-2
GaAs Double-Balanced Mixer

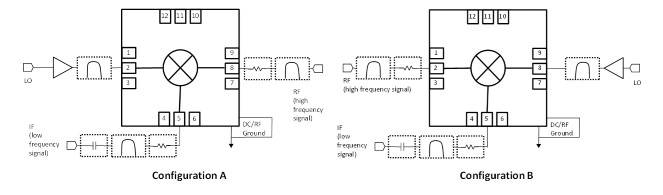

Application Circuit
MM1-0312HSM-2
GaAs Double-Balanced Mixer

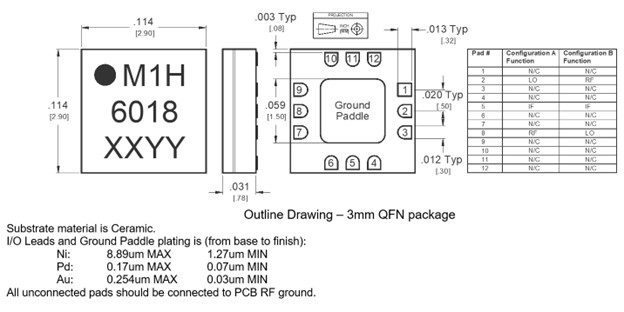

Mechanical Data
MM1-0312HSM-2
GaAs Double-Balanced Mixer
Footprint Image
Download : Footprint Drawing
