Port Diagram
NOT RECOMMENDED FOR NEW DESIGN
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MM1-0115HPSM is a GaAs MMIC double balanced mixer that features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth. MM1-0115HPSM works well as both an up and down converter through Ku band. The MM1-0115HPSM is recommend for moderate power applications that demand high linearity. The MM1-0115HPSM is available in a 4x4 mm QFN package. Evaluation boards are also available.
Features
- Parameter Typical
- RF/LO response 1GHz - 15GHz
- IF response DC – 2.5 GHz
- Conversion Loss 8.0dB
- LO to RF Isolation 52dB
Applications
- SATCOM
- Radar
- Test and Measurement Equipment
- Electronic Warfare
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| MM1-0115HPSM | GaAs MMIC Double Balanced Mixer | QFN | Consult Factory | Not Recommended for New Design | - | - |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| MM1-0115HPSM | GaAs MMIC Double Balanced Mixer | QFN | Consult Factory | Not Recommended for New Design | - | - |
MM1-0115HPSM
GaAs MMIC Double Balanced Mixer
Table Of Contents
MM1-0115HPSM
GaAs MMIC Double Balanced Mixer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Paddle | Ground | SM package ground path is provided through the ground paddle |  |
| Pin 13 | RF | Pin 13 is DC short and AC matched to 50 Ohms from 1 to 15 GHz. Blocking capacitor is optional. |  |
| Pin 3 | LO | Pin 3 is DC short and AC matched to 50 Ohms from 1 to 15 GHz. Blocking capacitor is optional. | |
| Pin 9 | IF | Pin 9 is DC coupled to the diodes. Blocking capacitor is optional. |  |
MM1-0115HPSM
GaAs MMIC Double Balanced Mixer
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 30 | mA |
| DC Current | 30 | mA |
| DC Current | 30 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 33 | dBm |
| RF Power Handling | 33 | dBm |
| RF Power Handling | 33 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 4 x 4 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 13 | 17 | 21 | dBm |
MM1-0115HPSM
GaAs MMIC Double Balanced Mixer
Electrical Specifications
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | RF/LO = 1 - 15GHz, IF = 0.2-2.5GHz, LO = +17dBm, TA = 25°C, Config A | - | 9 | - | dB |
| Conversion Loss | RF/LO = 1-15GHz, IF = DC-0.2GHz, LO = +17dBm, TA = 25°C, Config A | - | 8 | 14 | dB |
| Input IP3 | RF/LO = 1 - 15GHz, IF = DC - 0.2GHz, LO = +17dBm, TA = 25°C, Config A | - | 21 | - | dBm |
| Input P1dB | Config A | - | 10 | - | dBm |
| LO-IF Isolation | IF/LO = 1-15GHz, TA = 25°C, Config A | - | 23 | - | dB |
| LO-RF Isolation | RF/LO = 1 - 15GHz, TA = 25°C, Config A | - | 52 | - | dB |
| Noise Figure | RF/LO = 1 - 15GHz, IF = DC-0.2GHz | - | 8 | - | dB |
| RF-IF Isolation | RF/IF = 1 - 15GHz, TA = 25°C, Config A | - | 34 | - | dB |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | RF/LO = 1 - 15GHz, IF = 0.2-2.5GHz, LO = +17dBm, TA = 25°C, Config A | - | 9 | - | dB |
| Conversion Loss | RF/LO = 1-15GHz, IF = DC-0.2GHz, LO = +17dBm, TA = 25°C, Config A | - | 8 | 14 | dB |
| Input IP3 | RF/LO = 1 - 15GHz, IF = DC - 0.2GHz, LO = +17dBm, TA = 25°C, Config A | - | 21 | - | dBm |
| Input P1dB | Config A | - | 10 | - | dBm |
| LO-IF Isolation | IF/LO = 1-15GHz, TA = 25°C, Config A | - | 23 | - | dB |
| LO-RF Isolation | RF/LO = 1 - 15GHz, TA = 25°C, Config A | - | 52 | - | dB |
| Noise Figure | RF/LO = 1 - 15GHz, IF = DC-0.2GHz | - | 8 | - | dB |
| RF-IF Isolation | RF/IF = 1 - 15GHz, TA = 25°C, Config A | - | 34 | - | dB |
MM1-0115HPSM
GaAs MMIC Double Balanced Mixer

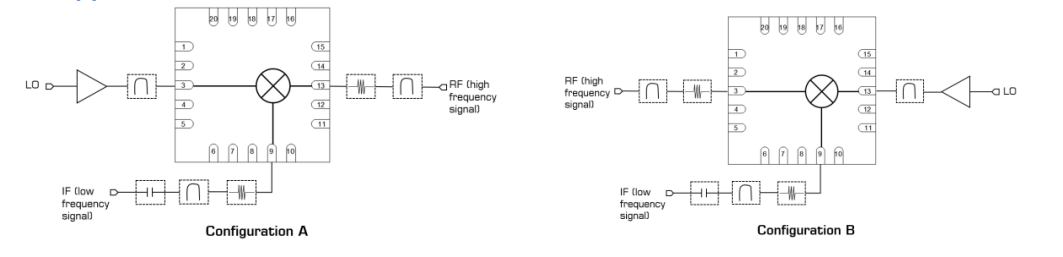

Application Circuit
MM1-0115HPSM
GaAs MMIC Double Balanced Mixer

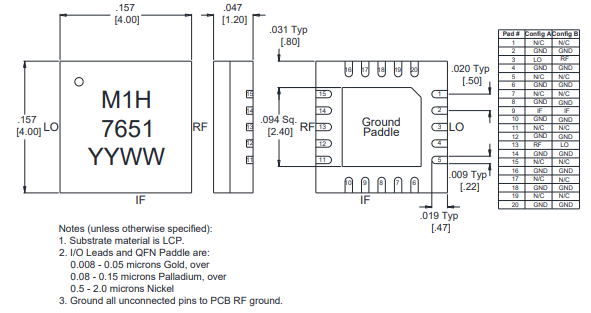

Mechanical Data
MM1-0115HPSM
GaAs MMIC Double Balanced Mixer

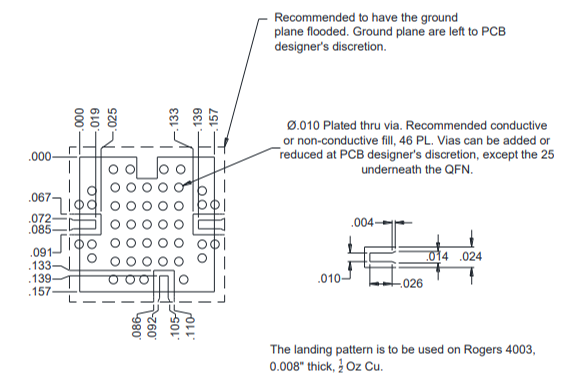

Footprint Image
Download : Footprint Drawing
