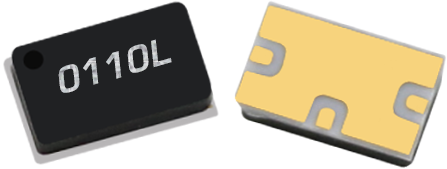

The ML1-0110SM is a Surface Mount Microlithic™ double balanced mixer. As with all Microlithic™ mixers, it features excellent conversion loss, isolation, and spurious performance across a broad bandwidth and in a miniaturized form factor. Accurate, nonlinear software models are available for Microwave Office through the Marki Microwave PDK. The ML1-0110SM is a lead free, RoHS compliant package compatible with standard leaded and lead-free solder reflows. SMA connectorized evaluation packages are available. The ML1-0110SM is an excellent alternative to Marki Microwave M1 and M3 mixers packaged in surface mount packages such as the EZ package.
N/A
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| ML1-0110SSM-2 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | Obsolete | EAR99 | - |
| ML1-0110LSM-2 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110HSM-1 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110HSM-2 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110LSM-1 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110SSM-1 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | Obsolete | EAR99 | - |
| EVAL-ML1-0110S | Evaluation Board, Microlithic™ Double-Balanced 1.5 - 10 GHz Mixer | EVAL | REACH RoHS | Obsolete | EAR99 | - |
| EVAL-ML1-0110L | Evaluation Board, Microlithic Double-balanced 1.5 - 10 GHz Mixer | EVAL | REACH RoHS | End of Life | EAR99 | - |
| EVAL-ML1-0110H | Evaluation Board, Microlithic™ Double-Balanced Mixer | EVAL | REACH RoHS | End of Life | EAR99 | - |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| ML1-0110SSM-2 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | Obsolete | EAR99 | - |
| ML1-0110LSM-2 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110HSM-1 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110HSM-2 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110LSM-1 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | End of Life | EAR99 | - |
| ML1-0110SSM-1 | Microlithic™ Double-Balanced Mixer | SMT | REACH RoHS | Obsolete | EAR99 | - |
| EVAL-ML1-0110S | Evaluation Board, Microlithic™ Double-Balanced 1.5 - 10 GHz Mixer | EVAL | REACH RoHS | Obsolete | EAR99 | - |
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| IF | IF Input/Output | The IF port is DC coupled to the diodes. Blocking capacitor is optional. |  |
| LO | LO Input | The LO port is DC short to ground and AC matched to 50 Ohms from 1.5 to 10 GHz. Blocking capacitor is optional. |  |
| RF | RF Input / Output | The RF port is DC short to ground and AC matched to 50 Ohms from 1.5 to 10 GHz. Blocking capacitor is optional. | |
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
| Parameter | Maximum Rating | Unit |
|---|---|---|
| IF DC Current | 50 | mA |
| LO DC Current | 1 | Amp |
| Maximum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF DC Current | 1 | Amp |
| RF Power Handling (RF+LO), 100°C | 20 | dBm |
| RF Power Handling (RF+LO), 25°C | 25 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3.86x2.29mm |
| Moisture Sensitivity Level | - | MSL 1 |
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=1.5-10 GHz ID=1-2 GHz | - | 9 | 11 | dB |
| Conversion Loss | LO/RF=1.5-10 GHz ID=DC-1 GHz | - | 7 | 10 | dB |
| Input IP3 | LO/RF=1.5-10 GHz LO drive level, L Diode Option=8-13 dBm | - | 12 | - | dBm |
| Input P1dB | LO/RF=1.5-10 GHz LO drive level, L Diode Option=8-13 dBm | - | 3 | - | dBm |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=1.5-10 GHz ID=1-2 GHz | - | 9 | 11 | dB |
| Conversion Loss | LO/RF=1.5-10 GHz ID=DC-1 GHz | - | 7 | 10 | dB |
| Input IP3 | LO/RF=1.5-10 GHz LO drive level, L Diode Option=8-13 dBm | - | 12 | - | dBm |
| Input P1dB | LO/RF=1.5-10 GHz LO drive level, L Diode Option=8-13 dBm | - | 3 | - | dBm |
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
ML1-0110LSM-2
Microlithic™ Double-Balanced Mixer
Download : Footprint Drawing
