Port Diagram

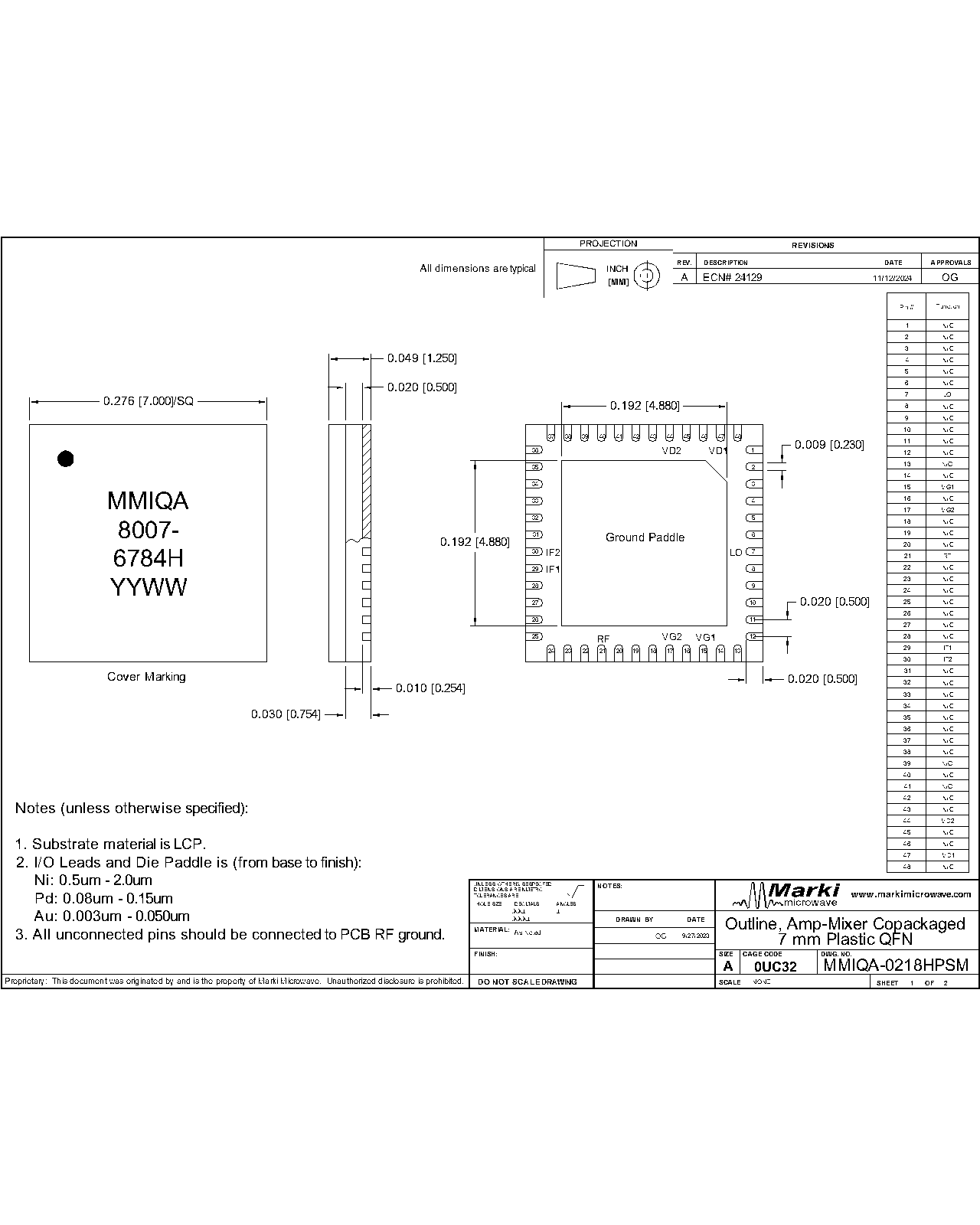

A top-down x-ray view of the MMIQA-0218HPSM’s PSM package outline drawing is shown below. The MMIQA-0218HPSM has the input and output ports given in Port Functions.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MMIQA-0218HPSM is a versatile, robust, and broadband IQ mixer with an integrated broadband LO driver amplifier. The MMIQA-0218HPSM is ideal for IQ, single sideband, and image reject mixing applications with wide bandwidths. The integrated LO driver amplifier allows for operation with LO powers as low as +0dBm while retaining exceptional conversion loss and linearity.
Features
RF/LO response: 2GHz - 18GHz
IF response: DC – 3GHz
I+Q Conversion Loss: 7.5 dB
Image Rejection: 28dBc
Minimum LO drive: +0dBm
Applications
- Single Sideband and Image Rejection Mixing
- IQ Modulation / Demodulation
- Vector Amplitude Modulation
- Band Shifting
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MMIQA-0218HPSM | Integrated Drive GaAs MMIC IQ Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVB-MMIQA-0218H | Integrated Drive GaAs MMIC IQ Mixer | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MMIQA-0218HPSM | Integrated Drive GaAs MMIC IQ Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVB-MMIQA-0218H | Integrated Drive GaAs MMIC IQ Mixer | EVB | RoHS REACH | Released | EAR99 |
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-12-15 | Datasheet Initial Release |
| A | 2024-03-06 | Port functions table updated to reflect proper pin IDs. |
| B | 2024-11-21 | Updated 2D outline drawing per ECN#24129. Corrected number of decimal places in dimensions. |
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Port Configuration and Functions
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pin 15 | Vg1 | Pin 15 provides bias for an internal current mirror that sets the current draw for amplifier input stage. Increasing current will increase gain at the expense of efficiency. The default series resistor (270 Ohms) is chosen to optimize gain, output power and efficiency when Vg1 and Vd1 are both tied to 5V. |  |
| Pin 17 | Vg2 | Pin 17 provides bias for an internal current mirror that sets the current draw for amplifier output stage. Increasing current will increase gain at the expense of efficiency. The default series resistor (82.5 Ohms) is chosen to optimize gain, output power and efficiency when Vg2 and Vd2 are both tied to 5V. |  |
| Pin 21 | RF Input / Output | Pin 21 is DC short and AC matched to 50Ω over the specified RF frequency range. |  |
| Pin 29 | IF-1 | Pin 29 is diode coupled and AC matched to 50Ω over the specified IF-1 port frequency range. |  |
| Pin 30 | IF-2 | Pin 30 is diode coupled and AC matched to 50Ω over the specified IF-2 port frequency range. | |
| Pin 44 | Vd2 | Pin 44 is the DC supply pin for the amplifier’s output stage. |  |
| Pin 47 | Vd1 | Pin 47 is the DC supply pin for the amplifier’s input stage. | |
| Pin 7 | LO Input | Pin 7 is DC open and AC matched to 50Ω over the specified LO frequency range. |  |
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If any one of these limits are exceeded, the device may become inoperable or have a reduced lifetime. Reliability limits are individual, instantaneous catastrophic limits only. Functional operation limits are indicated below. Operation of the device at multiple absolute maximum limits or for extended periods at a single limit can cause degradation and damage to the device.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Bias Current (Ig1+Ig2) | 95 | mA |
| Bias Voltage (Vg1,Vg2) | 6 | V |
| Drain Current (Id1+Id2) | 400 | mA |
| Drain Supply Voltage (Vd1,Vd2) | 6 | V |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 29 DC Current (IF1) | 30 | mA |
| Pin 30 DC Current (IF2) | 30 | mA |
| Power Handling, at any Port | 15 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 7x7 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Positive DC Voltage | - | 5 | - | V |
| Power Supply DC Current (Ig) (No RF Input) | 11 | 19 | 23 | mA |
| Power Supply DC Current (Id) (No RF Input) | 121 | 218 | 259 | mA |
| LO Input Power | 0 | 4 | 8 | - |
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +4dBm LO input to the integrated LO driver amp biased at +5Vd1/+5Vd2/+5Vg1/+5Vg2 unless otherwise specified.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | - | - | - | 0.3 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
I = 0.2 - 3 GHz | - | - | - | 10.5 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
I = DC - 0.2 GHz | - | - | - | 10 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
I+Q = DC - 0.2 GHz | - | - | - | 7.5 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
Q= 0.2 - 3 GHz | - | - | - | 11 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
Q = DC - 0.2 GHz | - | - | - | 10.5 | - | dB |
| I Frequency Range | - | - | - | 0 | - | 3 | GHz |
| Image Rejection | RF/LO = 2 - 18 GHz
I+Q = DC - 0.2 GHz | - | - | - | 28 | - | dBc |
| Input IP3 | RF/LO = 2 - 18 GHz
I/Q = DC - 0.2 GHz | - | - | - | 25 | - | dBm |
| Input P1dB, I | - | 0 | 3 | - | 13 | - | dBm |
| Input P1dB, Q | - | 0 | 3 | - | 13 | - | dBm |
| LO Frequency Range | - | - | - | 2 | - | 18 | GHz |
| LO Leakage, LO to IF | IF/LO = 2 - 18 GHz | - | - | - | 5 | - | dBm |
| LO Leakage, LO to RF | RF/LO = 2 - 18 GHz | - | - | - | 32 | - | dBm |
| Noise Figure | RF/LO = 2 - 18 GHz
I = DC - 0.2 GHz | - | - | - | 10 | - | dB |
| Noise Figure | RF/LO = 2 - 18 GHz
Q = DC - 0.2 GHz | - | - | - | 10.5 | - | dB |
| Phase Balance | - | - | - | - | 5 | - | ° |
| Q Frequency Range | - | - | - | 0 | - | 3 | GHz |
| RF Frequency Range | - | - | - | 2 | - | 18 | GHz |
| RF-IF Isolation | RF/IF = 2 - 18 GHz | - | - | - | 37 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | - | - | - | 0.3 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
I = 0.2 - 3 GHz | - | - | - | 10.5 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
I = DC - 0.2 GHz | - | - | - | 10 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
I+Q = DC - 0.2 GHz | - | - | - | 7.5 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
Q= 0.2 - 3 GHz | - | - | - | 11 | - | dB |
| Conversion Loss | RF/LO = 2 - 18 GHz
Q = DC - 0.2 GHz | - | - | - | 10.5 | - | dB |
| I Frequency Range | - | - | - | 0 | - | 3 | GHz |
| Image Rejection | RF/LO = 2 - 18 GHz
I+Q = DC - 0.2 GHz | - | - | - | 28 | - | dBc |
| Input IP3 | RF/LO = 2 - 18 GHz
I/Q = DC - 0.2 GHz | - | - | - | 25 | - | dBm |
| Input P1dB, I | - | 0 | 3 | - | 13 | - | dBm |
| Input P1dB, Q | - | 0 | 3 | - | 13 | - | dBm |
| LO Frequency Range | - | - | - | 2 | - | 18 | GHz |
| LO Leakage, LO to IF | IF/LO = 2 - 18 GHz | - | - | - | 5 | - | dBm |
| LO Leakage, LO to RF | RF/LO = 2 - 18 GHz | - | - | - | 32 | - | dBm |
| Noise Figure | RF/LO = 2 - 18 GHz
I = DC - 0.2 GHz | - | - | - | 10 | - | dB |
| Noise Figure | RF/LO = 2 - 18 GHz
Q = DC - 0.2 GHz | - | - | - | 10.5 | - | dB |
| Phase Balance | - | - | - | - | 5 | - | ° |
| Q Frequency Range | - | - | - | 0 | - | 3 | GHz |
| RF Frequency Range | - | - | - | 2 | - | 18 | GHz |
| RF-IF Isolation | RF/IF = 2 - 18 GHz | - | - | - | 37 | - | dB |
Eval board IF and RF traces were de-embedded using AFR and LO trace power correction was applied to show the true performance of the QFN. Measured as an I/Q down converter, unless otherwise stated Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz. Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid. Typical IIP3 is measured with I and Q ports combined with an external IF quadrature hybrid coupler.
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Typical Performance Plots
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Typical Performance Plots: IP3
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Typical Performance Plots: Harmonic Leakage
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Application Circuit
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Mechanical Data
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Footprint Image
Download : Footprint Drawing
MMIQA-0218HPSM
Integrated Drive GaAs MMIC IQ Mixer
Evaluation Board - Outline Drawing
