MMIQ-0520HSM-2_Passive GaAs MMIC IQ Mixer

Part Number	Description	Package	Packing Size	Green Status	Product Lifecycle	Export Classification
MMIQ-0520HSM-2	Passive GaAs MMIC IQ Mixer	QFN	-	REACH RoHS	Released	EAR99
EVAL-MMIQ-0520H	Evaluation Board, Passive GaAs MMIC 5 - 20 GHz IQ Mixer	EVAL	-	REACH RoHS	Released	EAR99
MMIQ-0520H-2-TR	Tape and Reel, Passive GaAs MMIC IQ Mixer	QFN	7"	REACH RoHS	Released	EAR99

Part Number	Description	Package	Packing Size	Green Status	Product Lifecycle	Export Classification
MMIQ-0520HSM-2	Passive GaAs MMIC IQ Mixer	QFN	-	REACH RoHS	Released	EAR99
EVAL-MMIQ-0520H	Evaluation Board, Passive GaAs MMIC 5 - 20 GHz IQ Mixer	EVAL	-	REACH RoHS	Released	EAR99
MMIQ-0520H-2-TR	Tape and Reel, Passive GaAs MMIC IQ Mixer	QFN	7"	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2018-08-01	Datasheet Initial Release
A	2019-08-01	Changed I/A Max Current Handling
B	2019-10-01	Changed Max Power Handling
C	2025-07-10	Updated I/Q Port Drawings / Diagram / Table

Port Configuration and Functions

Port Diagram

A bottom-up view of the MMIQ-0520H’s SM package outline drawing is shown below. The mixer may be operated as either a downconverter or an upconverter. Use of the RF or IF as the input or output port will depend on the application.

Diagram of the port configuration for MMIQ-0520HSM-2

Port Functions

Port	Function	Description
GND	Ground	SM package ground path is provided through the ground paddle.
Pin 10	Q Input / Output	Pin 10 is diode coupled and AC matched to 50Ω over the specified I port frequency range.
Pin 12	I Input / Output	Pin 12 is diode coupled and AC matched to 50Ω over the specified Q port frequency range.
Pin 16	RF Input / Output	Pin 16 is DC short and AC matched to 50Ω over the specified RF frequency range.
Pin 23	LO Input/Output	Pin 23 is DC open and AC matched to 50Ω over the specified LO frequency range.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Pin 10 DC Current	30	mA
Pin 12 DC Current	30	mA
Power Handling, at any Port	26	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	4 x 4 mm
Moisture Sensitivity Level	-	MSL 1

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
RF/IF Input Power	-	-	11	dBm
LO Input Power	13	19	23	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +19dBm sine wave LO input.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance ¹	-	-	-	-	0.3	-	dB
Conversion Loss ²	RF/LO = 5 - 20 GHz I = 0.2 - 6 GHz	5	20	-	14	-	dB
Conversion Loss ³	RF/LO = 5 - 20 GHz I = DC - 0.2 GHz	5	20	-	12	14	dB
Conversion Loss ⁴	RF/LO = 5 - 20 GHz Q = 0.2 - 6 GHz	5	20	-	14	-	dB
Conversion Loss ⁵	RF/LO = 5 - 20 GHz Q = DC - 0.2 GHz	5	20	-	12	14	dB
IF Frequency Range	-	-	-	0	-	6	GHz
Image Rejection ⁶	RF/LO = 5 - 20 GHz I+Q = DC – 0.2 GHz	5	20	-	35	-	dBc
Input 1 dB Gain Compression Point, I	-	-	-	-	11	-	dBm
Input 1 dB Gain Compression Point, Q	-	-	-	-	11	-	dBm
Input IP3 ⁷	RF/LO = 5 - 20 GHz I = DC – 0.2 GHz	5	20	-	25	-	dBm
LO Frequency Range	-	-	-	5	-	20	GHz
LO-IF Isolation	IF/LO = 5 - 20 GHz	5	20	-	50	-	dB
LO-RF Isolation	RF/LO = 5 - 20 GHz	5	20	-	39	-	dB
Noise Figure ⁸	RF/LO = 5 - 20 GHz I = DC – 0.2 GHz	5	20	-	12	-	dB
Noise Figure ⁹	RF/LO = 5 - 20 GHz Q = DC – 0.2 GHz	5	20	-	12	-	dB
Phase Balance	-	-	-	-	2	-	°
Q (Port 4) Frequency Range	-	-	-	0	-	6	GHz
RF Frequency Range	-	-	-	5	-	20	GHz
RF-IF Isolation	RF/IF = 5 - 20 GHz	5	20	-	37	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance ¹	-	-	-	-	0.3	-	dB
Conversion Loss ²	RF/LO = 5 - 20 GHz I = 0.2 - 6 GHz	5	20	-	14	-	dB
Conversion Loss ³	RF/LO = 5 - 20 GHz I = DC - 0.2 GHz	5	20	-	12	14	dB
Conversion Loss ⁴	RF/LO = 5 - 20 GHz Q = 0.2 - 6 GHz	5	20	-	14	-	dB
Conversion Loss ⁵	RF/LO = 5 - 20 GHz Q = DC - 0.2 GHz	5	20	-	12	14	dB
IF Frequency Range	-	-	-	0	-	6	GHz
Image Rejection ⁶	RF/LO = 5 - 20 GHz I+Q = DC – 0.2 GHz	5	20	-	35	-	dBc
Input 1 dB Gain Compression Point, I	-	-	-	-	11	-	dBm
Input 1 dB Gain Compression Point, Q	-	-	-	-	11	-	dBm
Input IP3 ⁷	RF/LO = 5 - 20 GHz I = DC – 0.2 GHz	5	20	-	25	-	dBm
LO Frequency Range	-	-	-	5	-	20	GHz
LO-IF Isolation	IF/LO = 5 - 20 GHz	5	20	-	50	-	dB
LO-RF Isolation	RF/LO = 5 - 20 GHz	5	20	-	39	-	dB
Noise Figure ⁸	RF/LO = 5 - 20 GHz I = DC – 0.2 GHz	5	20	-	12	-	dB
Noise Figure ⁹	RF/LO = 5 - 20 GHz Q = DC – 0.2 GHz	5	20	-	12	-	dB
Phase Balance	-	-	-	-	2	-	°
Q (Port 4) Frequency Range	-	-	-	0	-	6	GHz
RF Frequency Range	-	-	-	5	-	20	GHz
RF-IF Isolation	RF/IF = 5 - 20 GHz	5	20	-	37	-	dB

^[1] Amplitude and phase balance measured in a down conversion.

^[2]^[3]^[4]^[5] Measured as an I/Q down converter (i.e., I and Q powers are not combined)

^[6] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.

^[7] Typical IIP3 is measured with I and Q ports combined with an external quadrature hybrid coupler in a down conversion.

^[8]^[9] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Typical Performance Plots

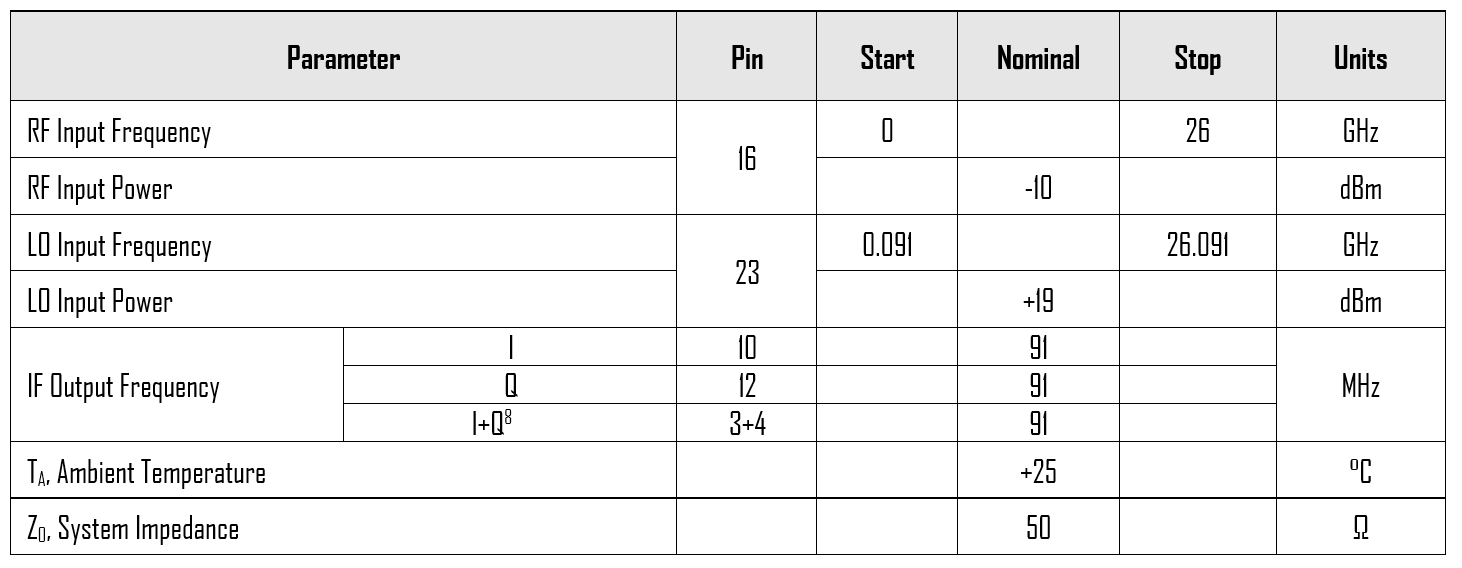

Mmiq 0520 Hsm 2 Typical Performance Plots

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.

⁸ I+Q measurements taken with an external quadrature hybrid attached to the I and Q ports of the mixer. Orientation depends on up conversion or down conversion measurement.
