MMIQ-0218HSM-2_Broadband Drive Surface Mount MMIC IQ Mixer

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MMIQ-0218HSM-2	Broadband Drive Surface Mount MMIC IQ Mixer	QFN	REACH RoHS	Released	EAR99

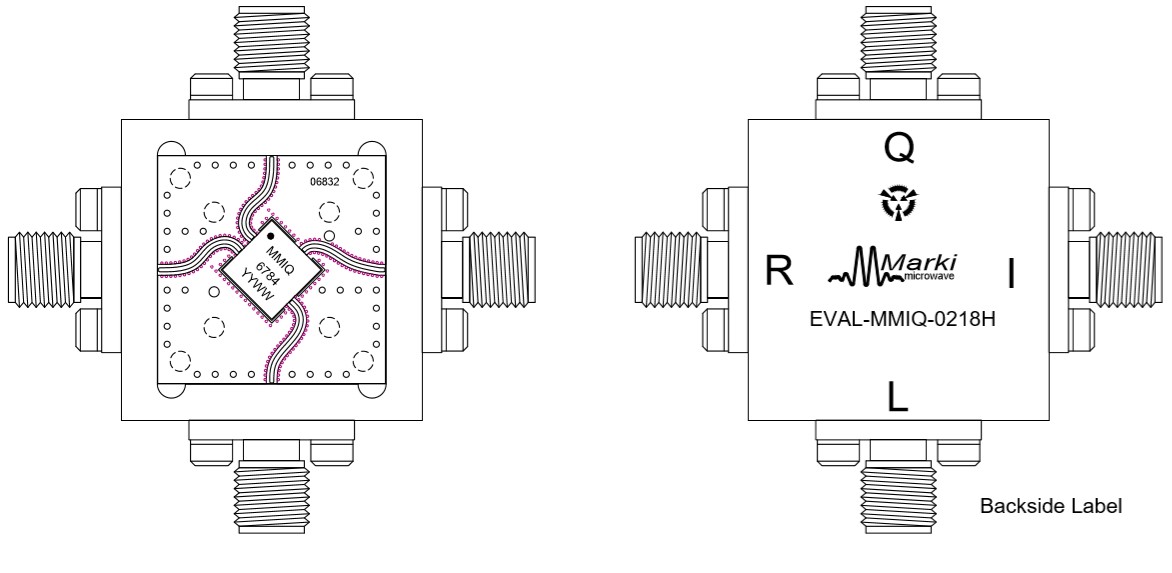

EVAL-MMIQ-0218H	Evaluation Board, Broadband Drive MMIC 2 - 18 GHz IQ Mixer	EVAL	REACH RoHS	Released	EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MMIQ-0218HSM-2	Broadband Drive Surface Mount MMIC IQ Mixer	QFN	REACH RoHS	Released	EAR99
EVAL-MMIQ-0218H	Evaluation Board, Broadband Drive MMIC 2 - 18 GHz IQ Mixer	EVAL	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2020-03-01	Initial Datasheet Release

Port Configuration and Functions

Port Diagram

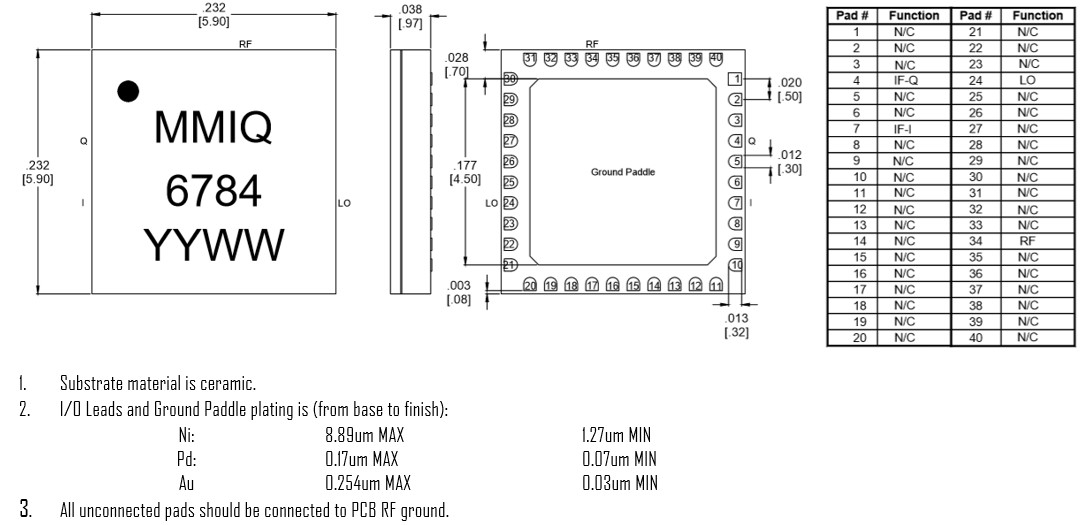

A bottom-up view of the MMIQ-0218H’s SM package outline drawing is shown below. The mixer may be operated as either a downconverter or an upconverter. Use of the RF or IF as the input or output port will depend on the application.

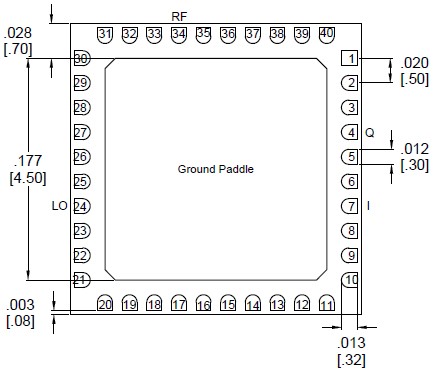

Diagram of the port configuration for MMIQ-0218HSM-2

Port Functions

Port	Function	Description
GND	Ground	SM package ground path is provided through the ground paddle.
Pin 24	LO Input	Pin 24 is DC short and AC matched to 50Ω over the specified LO frequency range.
Pin 34	RF Input / Output	Pin 34 is DC short and AC matched to 50Ω over the specified RF frequency range.
Pin 4	Q Input / Output	Pin 4 is diode coupled and AC matched to 50Ω over the specified Q port frequency range.
Pin 7	I Input / Output	Pin 7 is diode coupled and AC matched to 50Ω over the specified I port frequency range.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
DC Current, any pin	30	mA
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	6 x 6 mm
Moisture Sensitivity Level	-	MSL 1

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
RF/IF Input Power	-	-	5	dBm
LO Input Power	18	-	26	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +26 dBm sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	0.25	2	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = 0.2 - 3 GHz	2	18	-	12	-	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = DC - 0.2 GHz	2	18	-	10	15	dB
IF Frequency Range	-	-	-	0	-	3	GHz
Image Rejection ¹	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	35	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	7.5	-	dB
Input 1 dB Gain Compression Point, Combined Upconversion	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	13	-	dBm
Input 1 dB Gain Compression Point, Downconversion	RF/LO = 2 - 18 GHz I/Q/IF = 0.091 GHz	2	18	-	13	-	dBm
Input 1 dB Gain Compression Point, I/Q Upconversion	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	10	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I = 0.091 GHz	2	18	-	24.5	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	27	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	26	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	25	-	dBm
LO Frequency Range	-	-	-	2	-	18	GHz
LO-IF Isolation	IF/LO = 2 - 18 GHz	2	18	-	26.5	-	dB
LO-RF Isolation	RF/LO = 2 - 18 GHz	2	18	-	53	-	dB
Noise Figure ²	RF/LO = 2 - 18 GHz I/Q = DC – 0.2 GHz	2	18	-	10	-	dB
Phase Balance	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	1	11	°
Q Port Frequency Range	-	-	-	0	-	3	GHz
RF Frequency Range	-	-	-	2	-	18	GHz
RF-IF Isolation	RF/IF = 2 - 18 GHz	2	18	-	36	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	0.25	2	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = 0.2 - 3 GHz	2	18	-	12	-	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = DC - 0.2 GHz	2	18	-	10	15	dB
IF Frequency Range	-	-	-	0	-	3	GHz
Image Rejection ¹	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	35	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	7.5	-	dB
Input 1 dB Gain Compression Point, Combined Upconversion	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	13	-	dBm
Input 1 dB Gain Compression Point, Downconversion	RF/LO = 2 - 18 GHz I/Q/IF = 0.091 GHz	2	18	-	13	-	dBm
Input 1 dB Gain Compression Point, I/Q Upconversion	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	10	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I = 0.091 GHz	2	18	-	24.5	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	27	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	26	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	25	-	dBm
LO Frequency Range	-	-	-	2	-	18	GHz
LO-IF Isolation	IF/LO = 2 - 18 GHz	2	18	-	26.5	-	dB
LO-RF Isolation	RF/LO = 2 - 18 GHz	2	18	-	53	-	dB
Noise Figure ²	RF/LO = 2 - 18 GHz I/Q = DC – 0.2 GHz	2	18	-	10	-	dB
Phase Balance	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	1	11	°
Q Port Frequency Range	-	-	-	0	-	3	GHz
RF Frequency Range	-	-	-	2	-	18	GHz
RF-IF Isolation	RF/IF = 2 - 18 GHz	2	18	-	36	-	dB

^[1] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.

^[2] Mixer Noise Figure given for single sided I/Q conversion typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz. Image reject downconversion will show noise figure improvements in the presence of image noise.

Typical Performance Plots

The test conditions and frequency plan below applies to all following sections, unless otherwise specified.

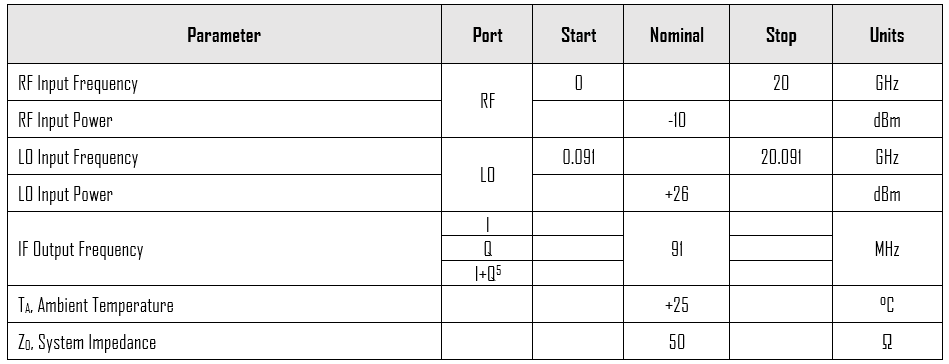

Mmiq 0218 Hsm 2 Typical Performance Plot Table

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.

⁵ I+Q measurements taken with an external quadrature hybrid attached to the I and Q ports of the mixer. Orientation depends on up conversion or down conversion measurement.

I/Q Conversion Loss (dB) graph for MMIQ-0218HSM-2

LO to RF Isolation (dB) graph for MMIQ-0218HSM-2

LO to IF Isolation (dB) graph for MMIQ-0218HSM-2

RF to IF Isolation (dB) graph for MMIQ-0218HSM-2

Relative IF Response (dB) graph for MMIQ-0218HSM-2

I/Q Amplitude Balance vs. LO Power (dB) graph for MMIQ-0218HSM-2

I/Q Quadrature Phase Balance vs. LO Power (°) graph for MMIQ-0218HSM-2

LO Return Loss (dB) graph for MMIQ-0218HSM-2

RF Return Loss (dB) graph for MMIQ-0218HSM-2

IF Return Loss (dB) graph for MMIQ-0218HSM-2

I+Q Downconversion Loss vs. LO Power (dB) graph for MMIQ-0218HSM-2

I+Q Upconversion Loss vs. LO Power (dB) graph for MMIQ-0218HSM-2

Downconversion Image Rejection vs. LO Power (dBc) graph for MMIQ-0218HSM-2

Upconversion Sideband Suppression vs. LO Power (dBc) graph for MMIQ-0218HSM-2

Image Reject Downconversion Input IP3 vs. LO Power (dBm) graph for MMIQ-0218HSM-2

Image Reject Downconversion Output IP3 vs. LO Power (dBm) graph for MMIQ-0218HSM-2

I/Q Downconversion Input IP3 (dBm) graph for MMIQ-0218HSM-2

I/Q Downconversion Output IP3 (dBm) graph for MMIQ-0218HSM-2

Single Sideband Upconversion Input IP3 vs. LO Power (dBm) graph for MMIQ-0218HSM-2

Single Sideband Upconversion Output IP3 vs. LO Power (dBm) graph for MMIQ-0218HSM-2

I/Q Upconversion Input IP3 (dBm) graph for MMIQ-0218HSM-2

I/Q Upconversion Output IP3 (dBm) graph for MMIQ-0218HSM-2

Downconversion Conversion Loss Compression (dB) 23 dBm LO Power graph for MMIQ-0218HSM-2

Combined Conversion Loss Compression (dB) 23 dBm LO Power, 13 dBm Input Power graph for MMIQ-0218HSM-2

Downconversion Conversion Loss Compression (dB) 23 dBm LO Power, 13 dBm RF Power graph for MMIQ-0218HSM-2

Upconversion Conversion Loss Compression (dB) 23 dBm LO Power, 13 dBm IF Power graph for MMIQ-0218HSM-2

Vector Modulator Insertion Loss (dB) graph for MMIQ-0218HSM-2

Typical Harmonic Performance

RF/IF harmonics are measured with a fixed LO of 6.337 GHz at 26 dBm. Note that LO/IF/RF Harmonics are measured across more than the operating band of the mixer. LO Harmonics are not provided due to the lack of a low harmonic, high power LO source.
