Surface Mount Fixed Filters

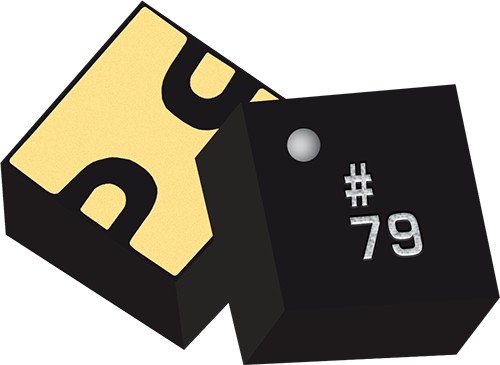

MFHP-00029CSP1

Passive GaAs MMIC 9.0 GHz Highpass Filter

The MFHP-00029CSP1 MMIC surface mount highpass filter is an ideal solution for extremely small form factor, high rejection filtering. The MFHP-00029CSP1 features a 9.2 GHz 3 dBc cutoff and 18 dB passband return loss. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFHP-00029CSP1 is available as a 1.5x1.5 mm CSP. Low unit to unit variation allows for accurate simulations using the provided S2P file.
