Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 2 | A |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 5 | W |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MFHP-00023GSM2 surface-mount highpass filter is an ideal solution for extremely small form factor, high rejection filtering. The MFHP-00023GSM2 features a 2.9GHz 3dBc passband and 17dB passband return loss. Its advanced glass substrate technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication ensures tighter unit-to-unit consistency than legacy filter technologies, supporting accurate simulation with the provided S2P data. The MFHP-00023GSM2 is offered in a 4.00 x 4.25 mm package.
Features
- Low Passband Insertion Loss with Fast Roll-off
- 17 dB Return Loss
- High Stop Band Suppression
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFHP-00023GSM2 | Passive Glass 2.9 GHz Surface Mount Highpass Filter | GSM2 | REACH RoHS | Released | EAR99 |
| EVB-MFHP-00023G | Evaluation Board, Passive Glass MMIC 2.9GHz Highpass Filter | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFHP-00023GSM2 | Passive Glass 2.9 GHz Surface Mount Highpass Filter | GSM2 | REACH RoHS | Released | EAR99 |
| EVB-MFHP-00023G | Evaluation Board, Passive Glass MMIC 2.9GHz Highpass Filter | EVB | REACH RoHS | Released | EAR99 |
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-12-10 | Initial Release |
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pin 1 | RF Input | Pin 1 is DC Open to GND |  |
| Pin 2 | RF Output | Pin 2 is DC Open to GND | |
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 4.25 x 4.00 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 3.11 | - | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 2.89 | - | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 2.33 | - | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 16.56 | - | GHz |
| Passband Return Loss | Temp = 25°C | - | - | - | 17 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 63 | - | ps |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 3.11 | - | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 2.89 | - | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 2.33 | - | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 16.56 | - | GHz |
| Passband Return Loss | Temp = 25°C | - | - | - | 17 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 63 | - | ps |
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter

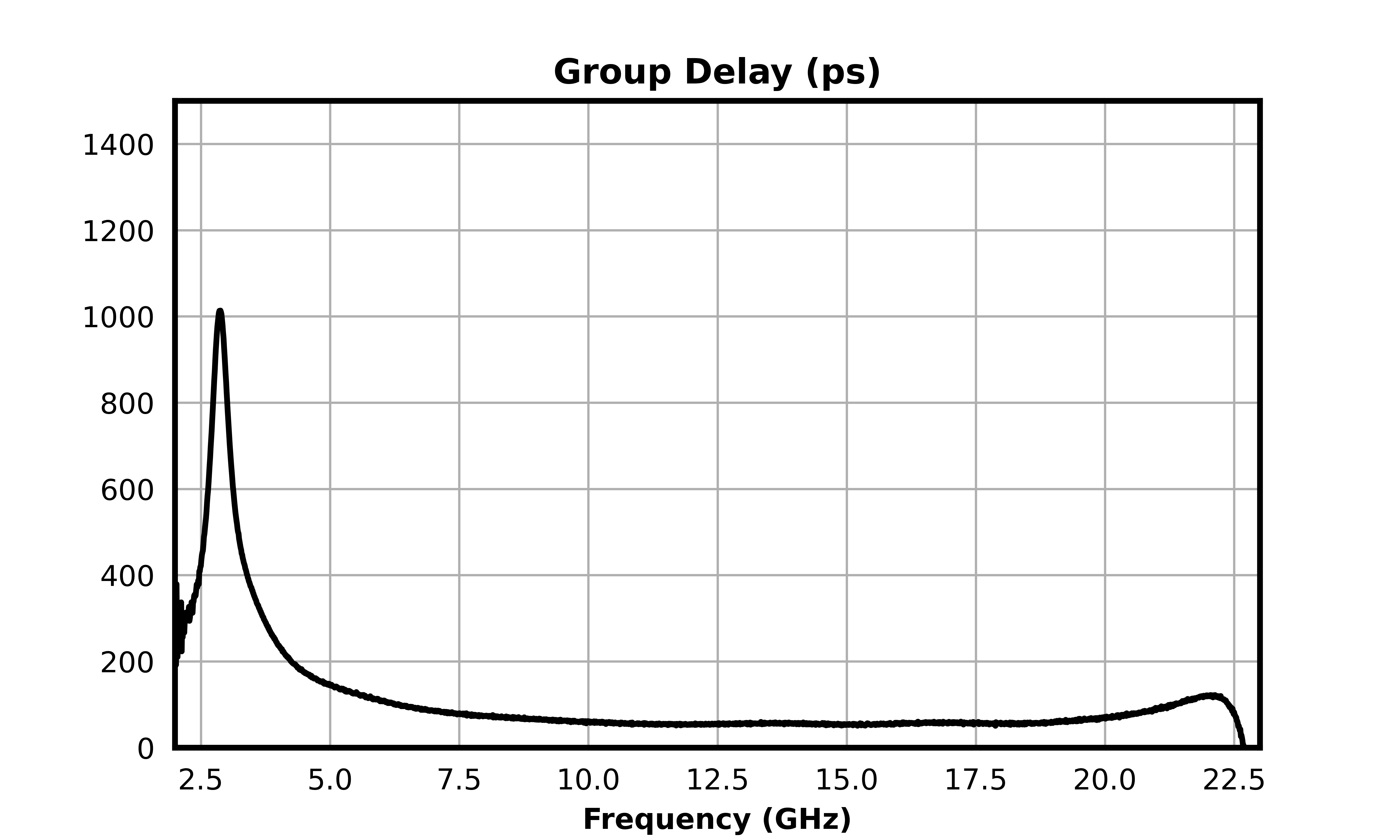

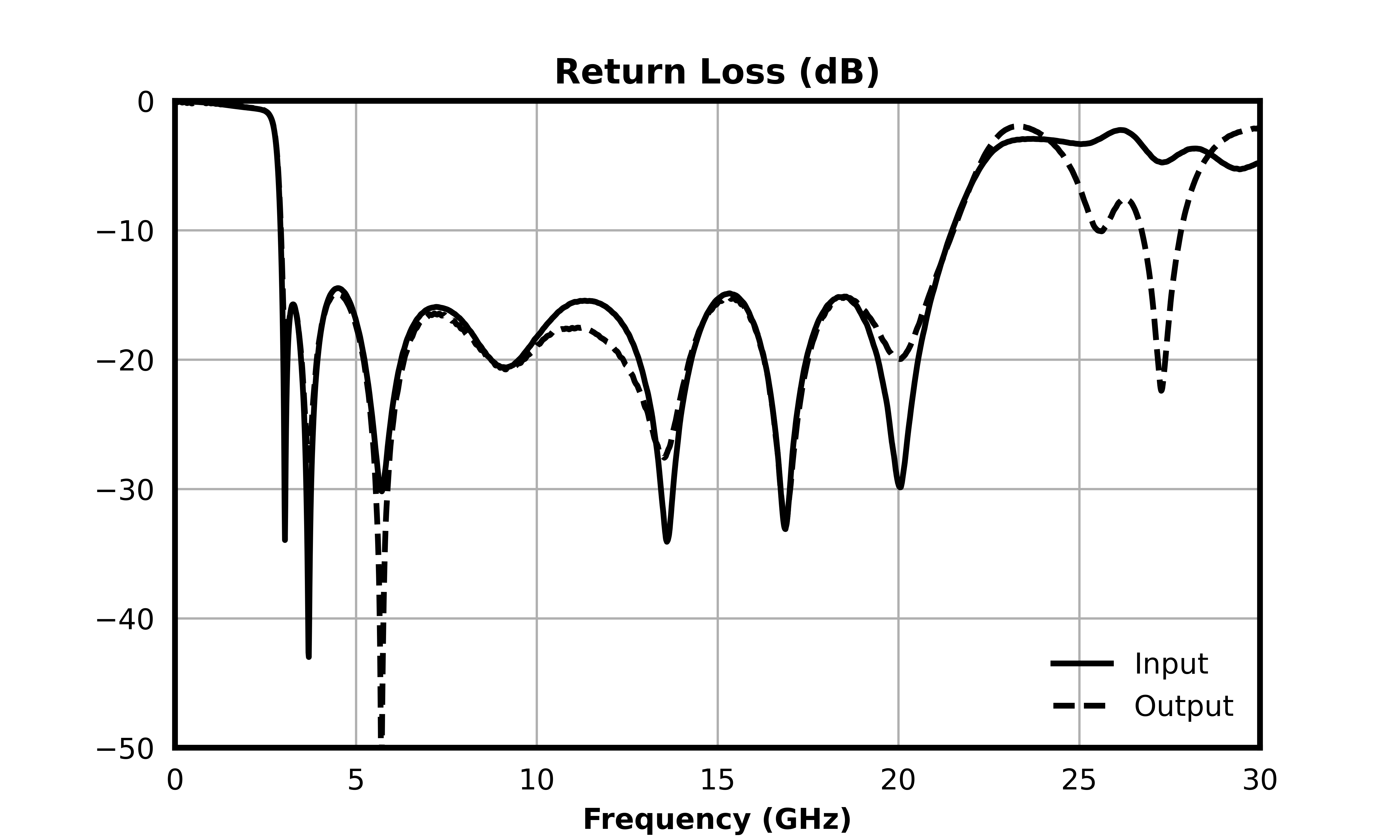

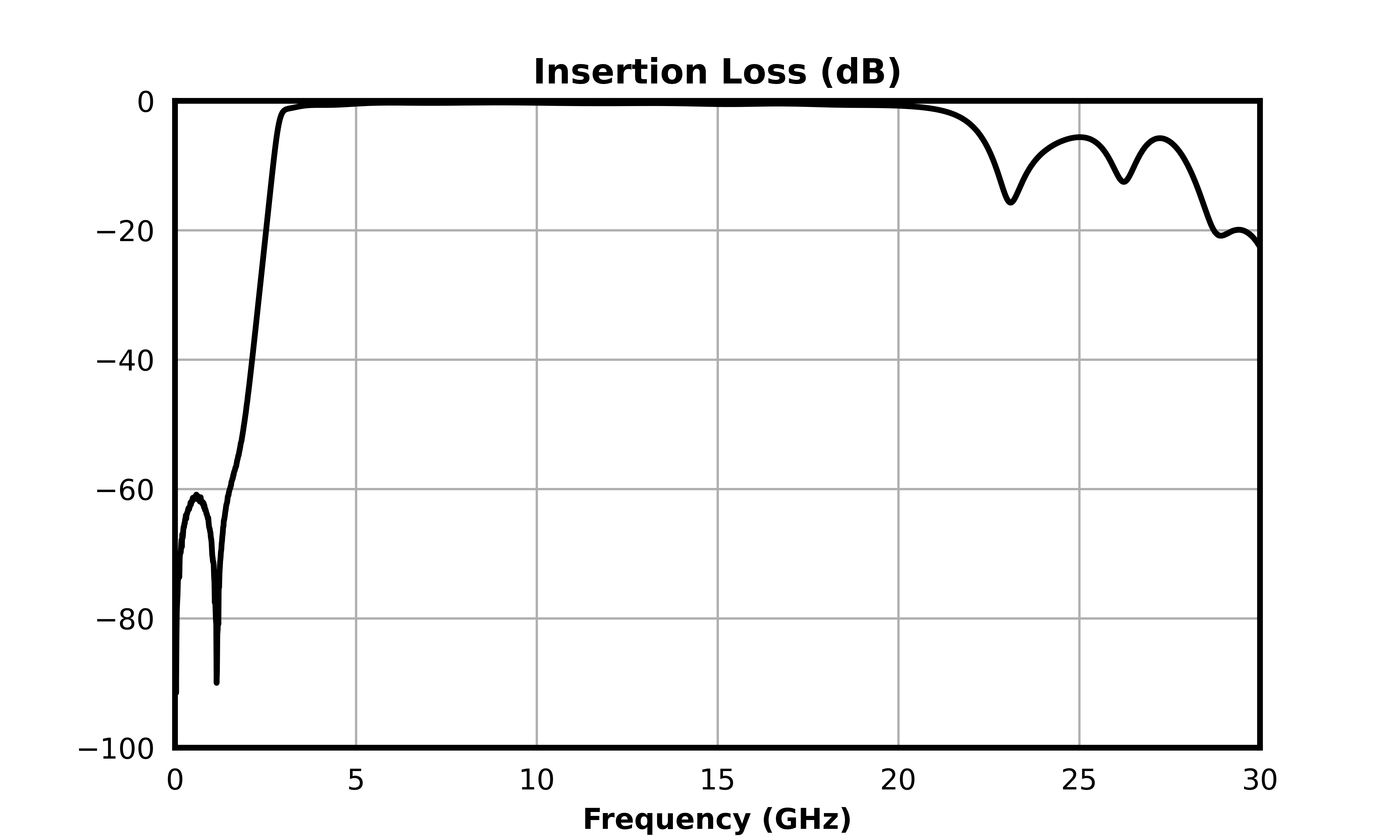

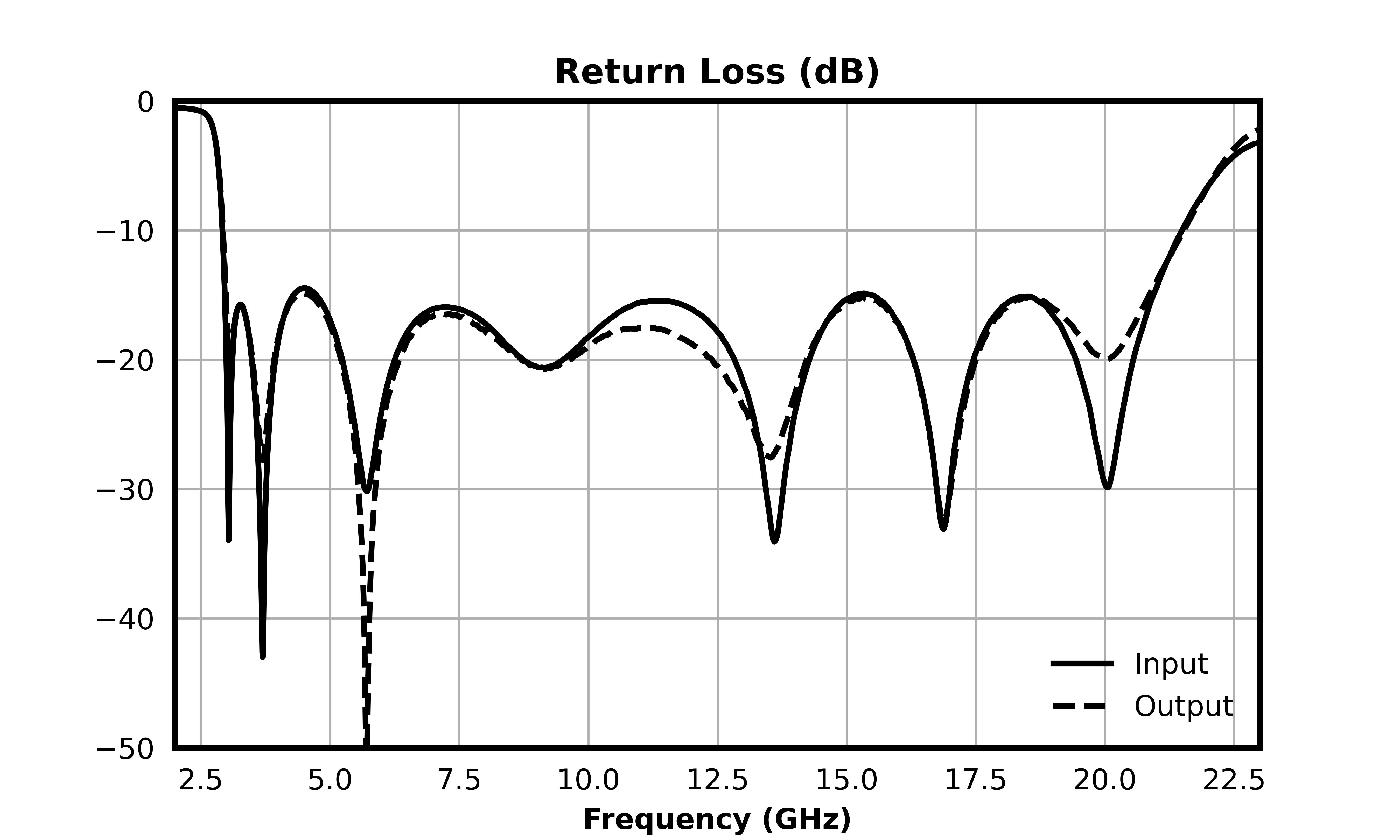

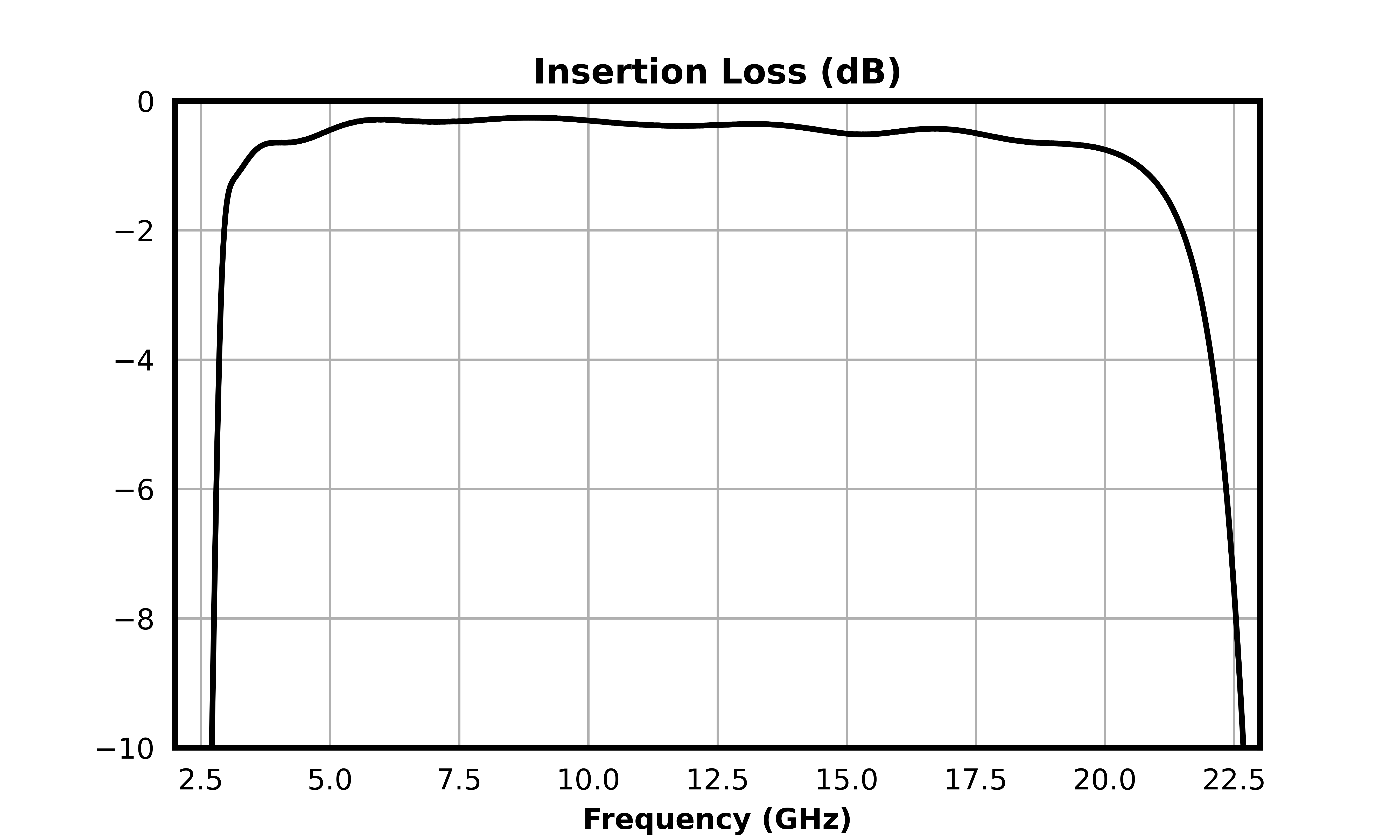

Typical Performance Plot
.png)
.png)
.png)
.png)
.png)
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter

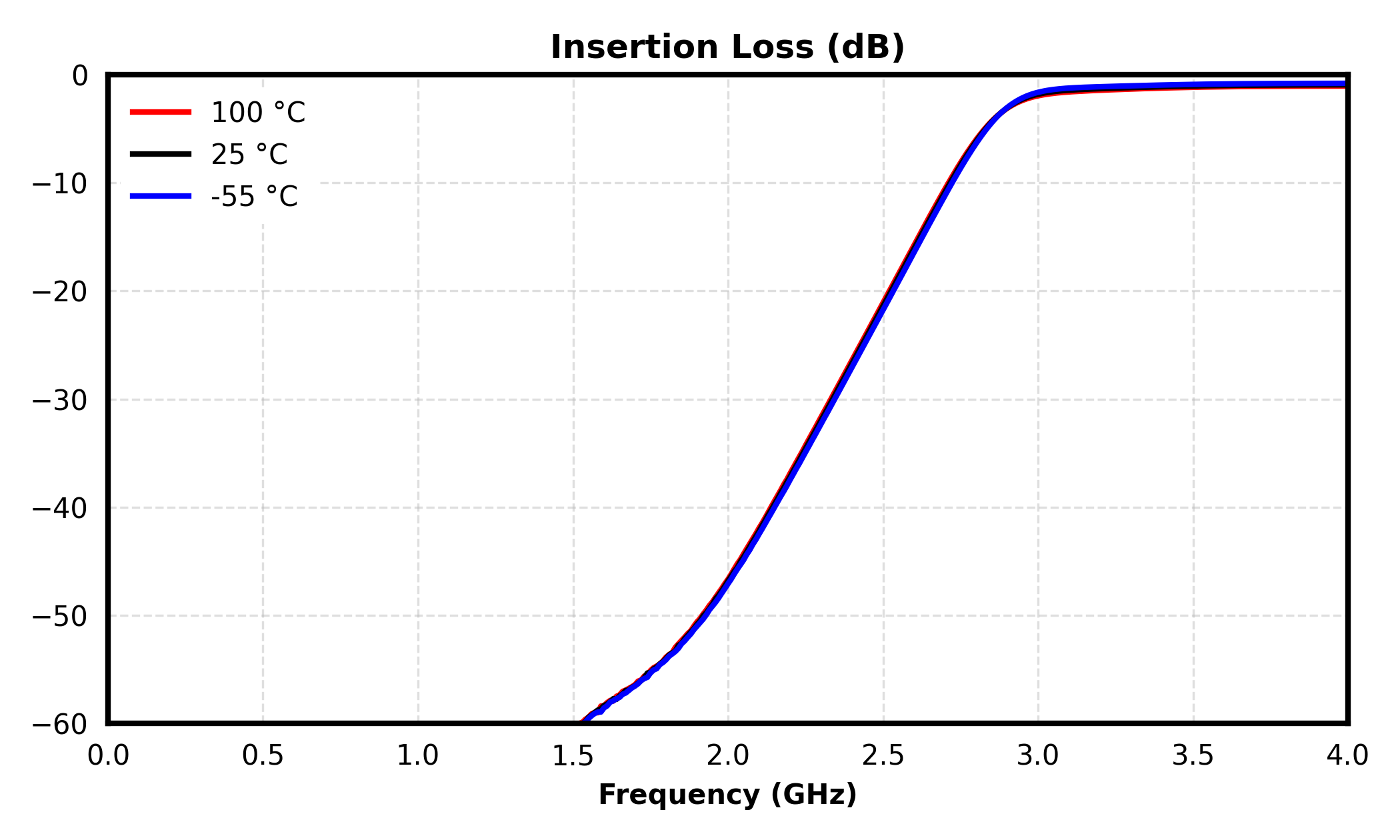

Performance Over Temperature
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter

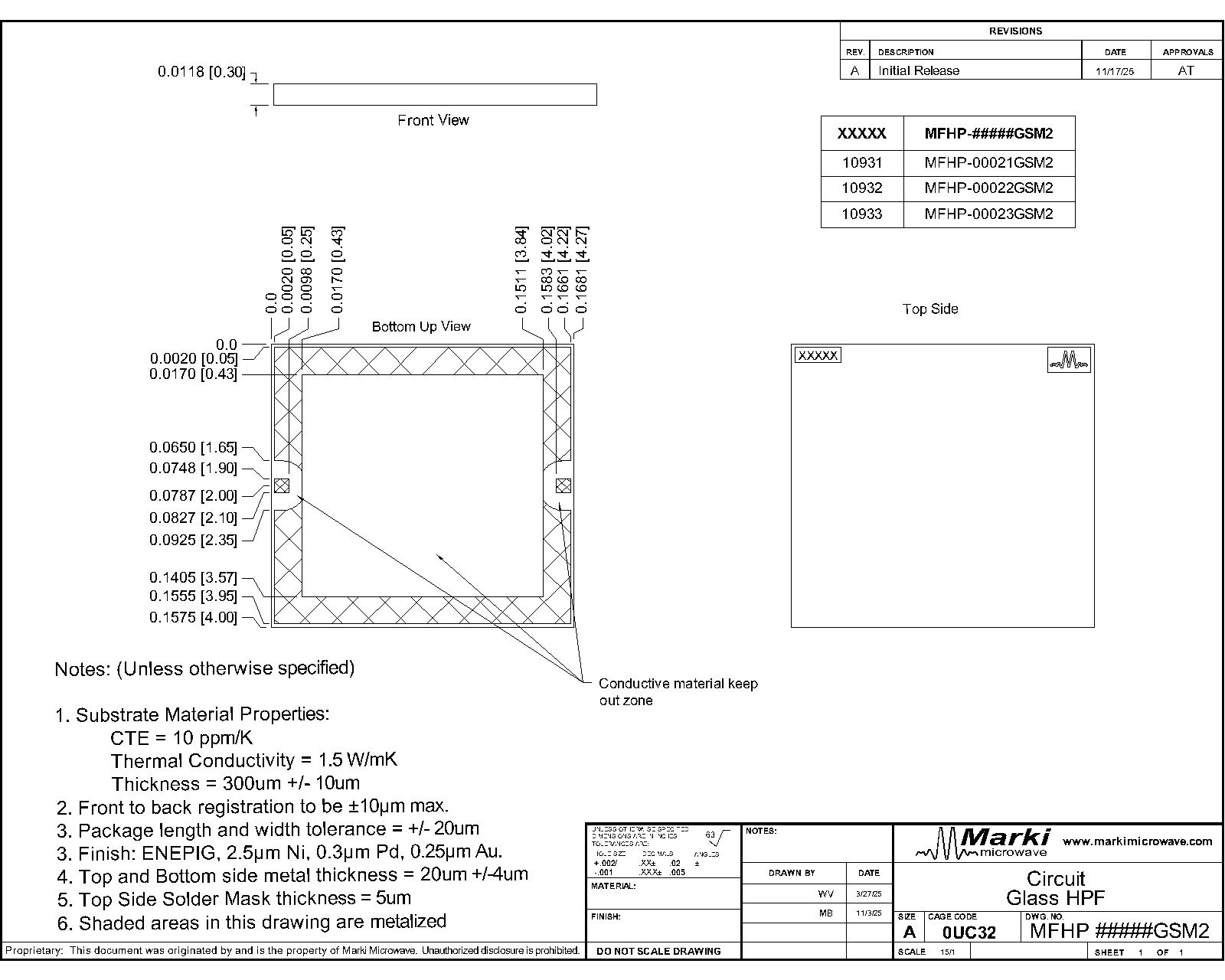

Mechanical Data
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter

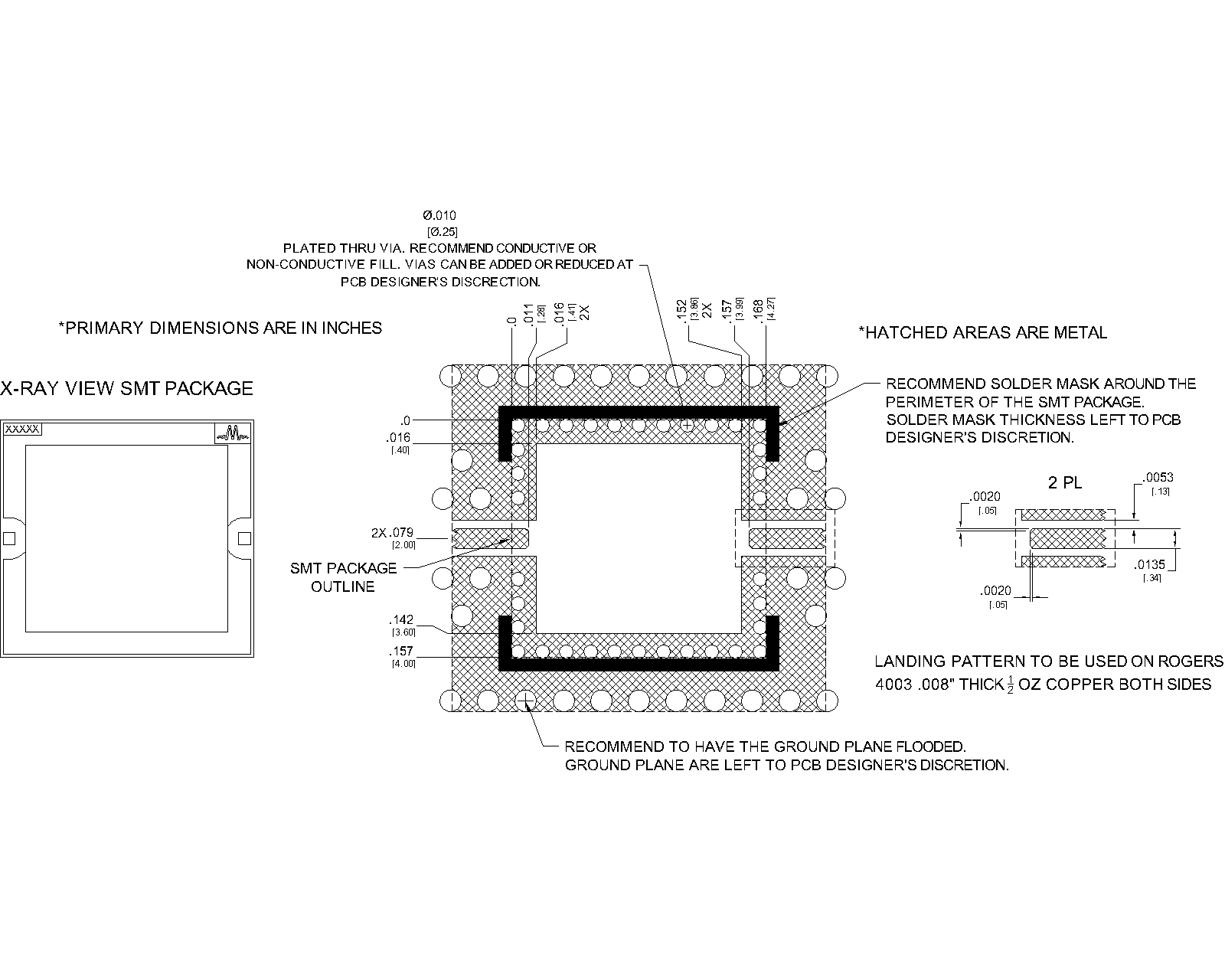

Footprint Image
Download : Footprint Drawing
MFHP-00023GSM2
Passive Glass 2.9 GHz Surface Mount Highpass Filter

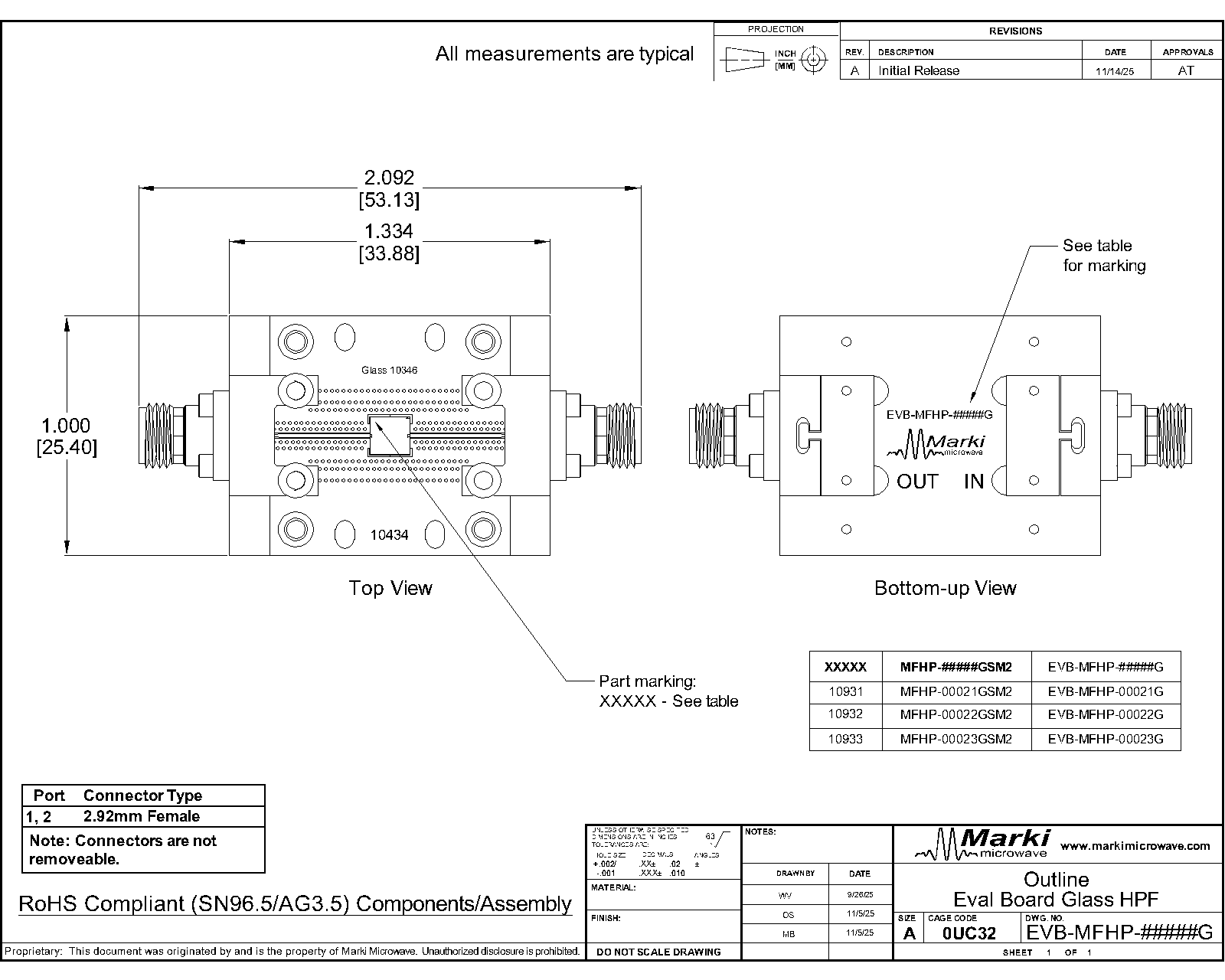

Evaluation Board - Outline Drawing
