MFBP-00165GSM1_Passive Glass 0.8 - 1.6 GHz Surface Mount Bandpass Filter

Device Overview

General Description

The MFBP-00165GSM1 surface-mount bandpass filter is an ideal solution for extremely small form factor, high rejection filtering. The MFBP-00165GSM1 features a 0.8-1.6GHz 1dBc passband and 1.0dB center frequency insertion loss. Its advanced glass substrate technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication ensures tighter unit-to-unit consistency than legacy filter technologies, supporting accurate simulation with the provided S2P data. The MFBP-00165GSM1 is offered in a 4.25 x 7.5mm package.

Download s-parameters here

Features

22 dB Return Loss
1.0dB Insertion Loss @ Fc
High Stop Band Suppression
Wide Stop Band with Fast Roll-Off

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFBP-00165GSM1	Passive Glass 0.8 - 1.6 GHz Surface Mount Bandpass Filter	GSM1	RoHS	Released	EAR99
EVB-MFBP-00165G	Evaluation Board, Passive Glass MMIC 0.8 - 1.6 GHz Bandpass Filter	EVB	REACH RoHS	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

MFBP-00165GSM1

Passive Glass 0.8 - 1.6 GHz Surface Mount Bandpass Filter

GSM1

RoHS

Released

EAR99

EVB-MFBP-00165G

Evaluation Board, Passive Glass MMIC 0.8 - 1.6 GHz Bandpass Filter

EVB

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFBP-00165GSM1	Passive Glass 0.8 - 1.6 GHz Surface Mount Bandpass Filter	GSM1	RoHS	Released	EAR99
EVB-MFBP-00165G	Evaluation Board, Passive Glass MMIC 0.8 - 1.6 GHz Bandpass Filter	EVB	REACH RoHS	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

MFBP-00165GSM1

Passive Glass 0.8 - 1.6 GHz Surface Mount Bandpass Filter

GSM1

RoHS

Released

EAR99

EVB-MFBP-00165G

Evaluation Board, Passive Glass MMIC 0.8 - 1.6 GHz Bandpass Filter

EVB

REACH

RoHS

Released

EAR99

Device Overview
Port Configuration and Functions
- Port Functions
Revision History
Specifications
Mechanical Data

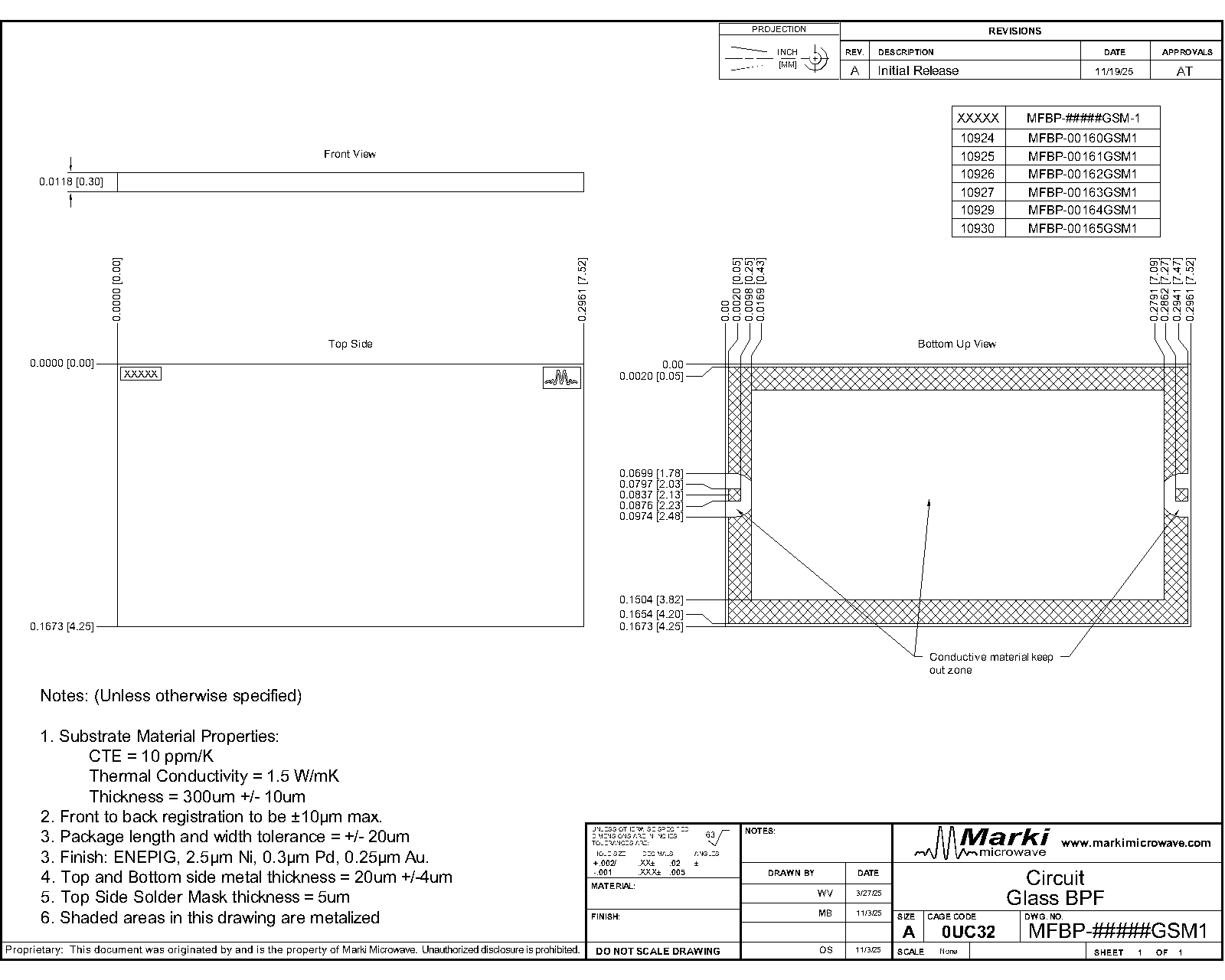

- Outline Drawing

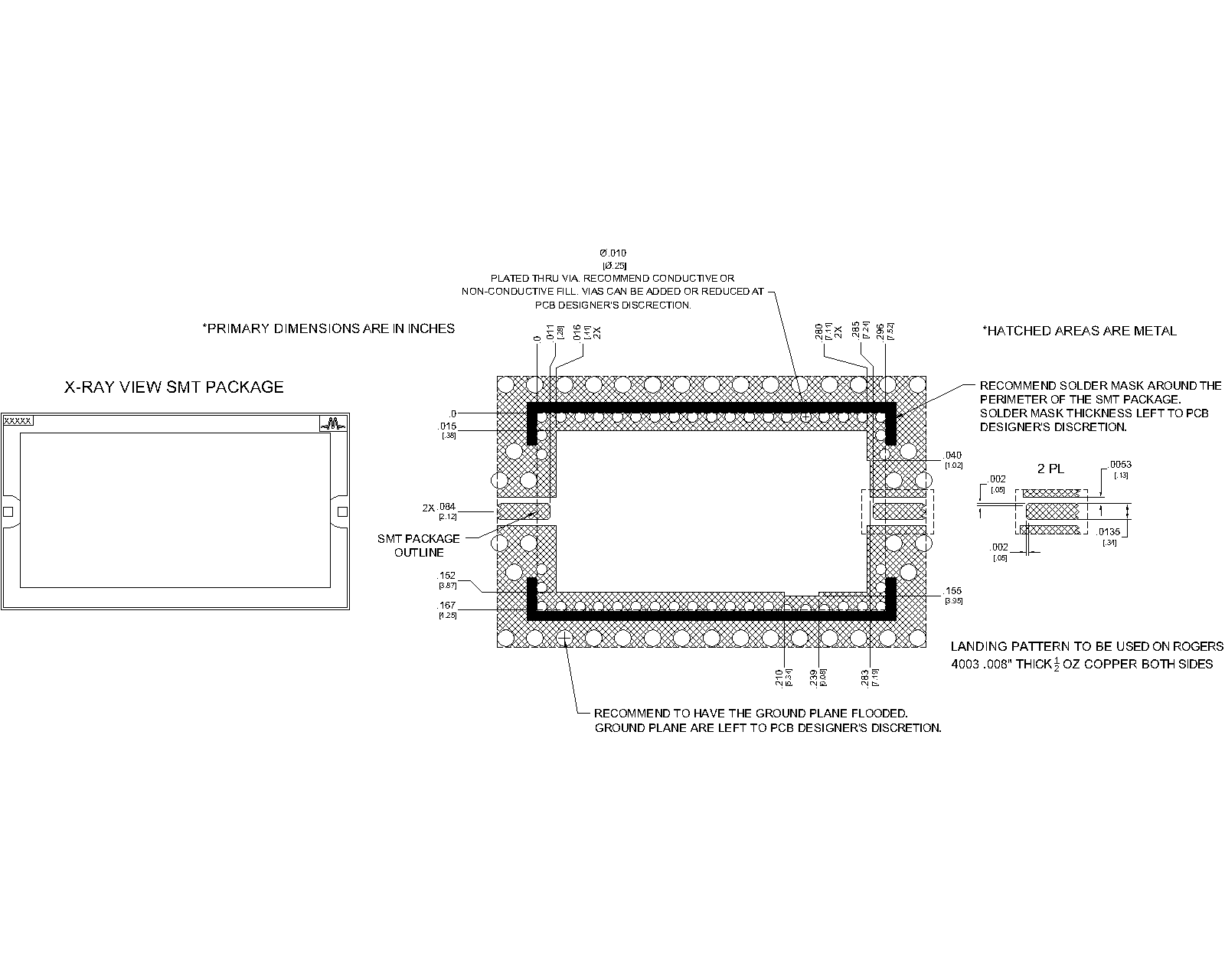

Footprint Image
Evaluation Board
- Evaluation Board Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2025-12-10	Initial Release

Port Configuration and Functions

Port Functions

Port	Function	Description	DC Equivalent Circuit
Pin 1	RF Input	Pin 1 is DC short to GND
Pin 2	RF Output	Pin 2 is DC short to GND

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
DC Current	2	A
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
RF Power Handling	5	W

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	7.50 x 4.25 mm
Moisture Sensitivity Level	-	MSL 1

Electrical Specifications

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband	Temp = 25°C	0.82	1.55	-	-	-	GHz
3 dBc Passband	Temp = 25°C	0.78	1.61	-	-	-	GHz
30 dBc Rejection Point	Temp = 25°C	0.68	1.92	-	-	-	GHz
Center Freq	Temp = 25°C	-	-	-	1.13	-	GHz

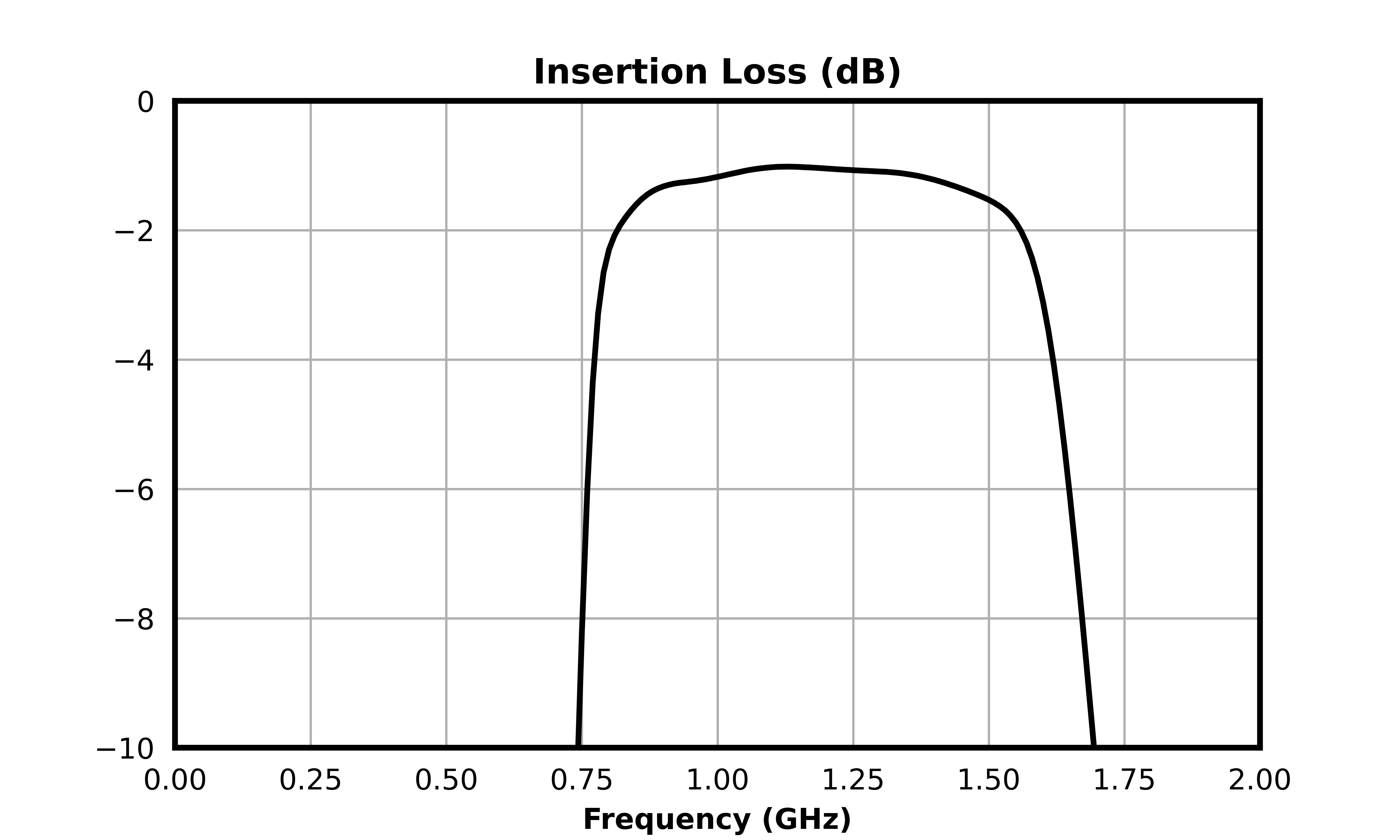

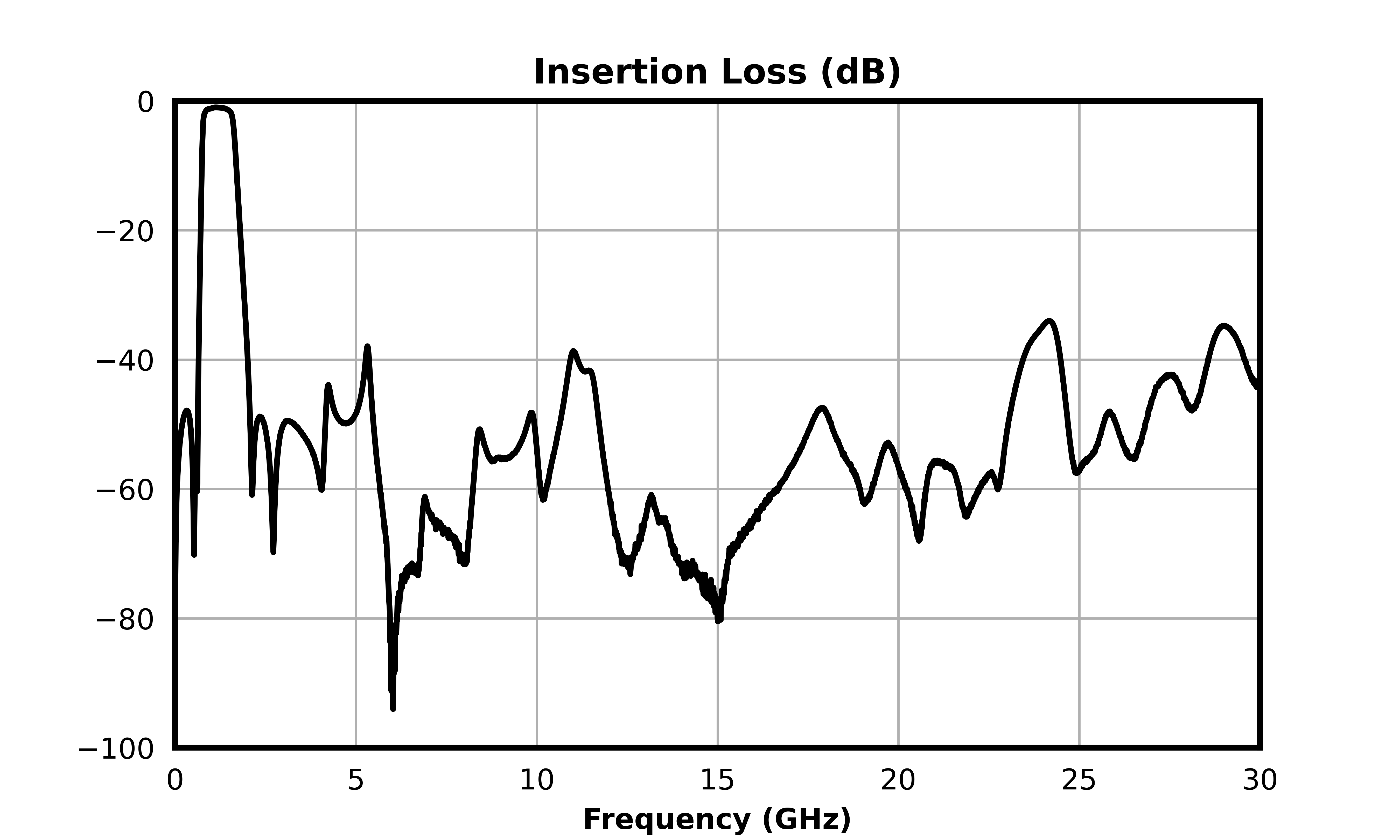

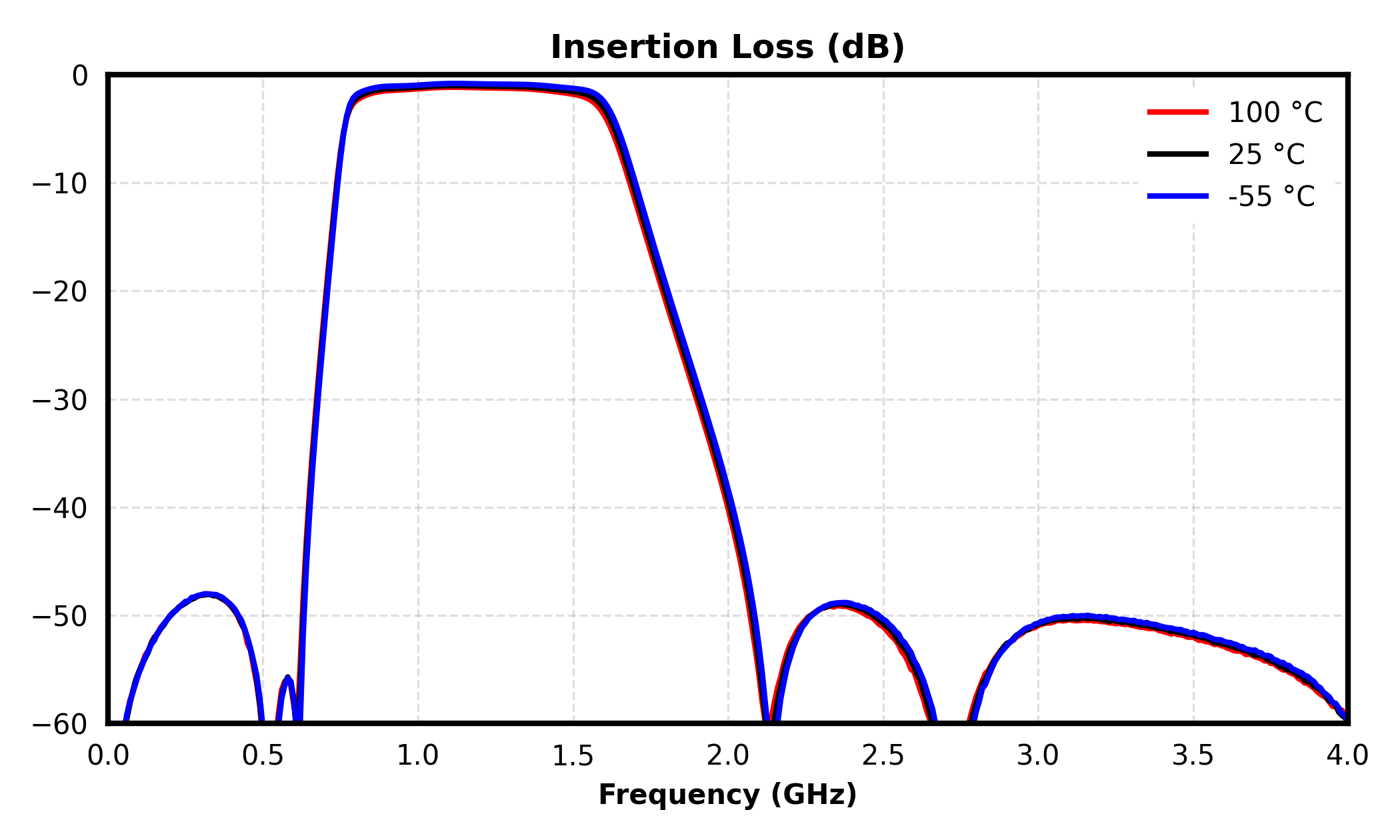

Insertion Loss @ fc	Temp = 25°C	-	-	-	1.0	-	dB

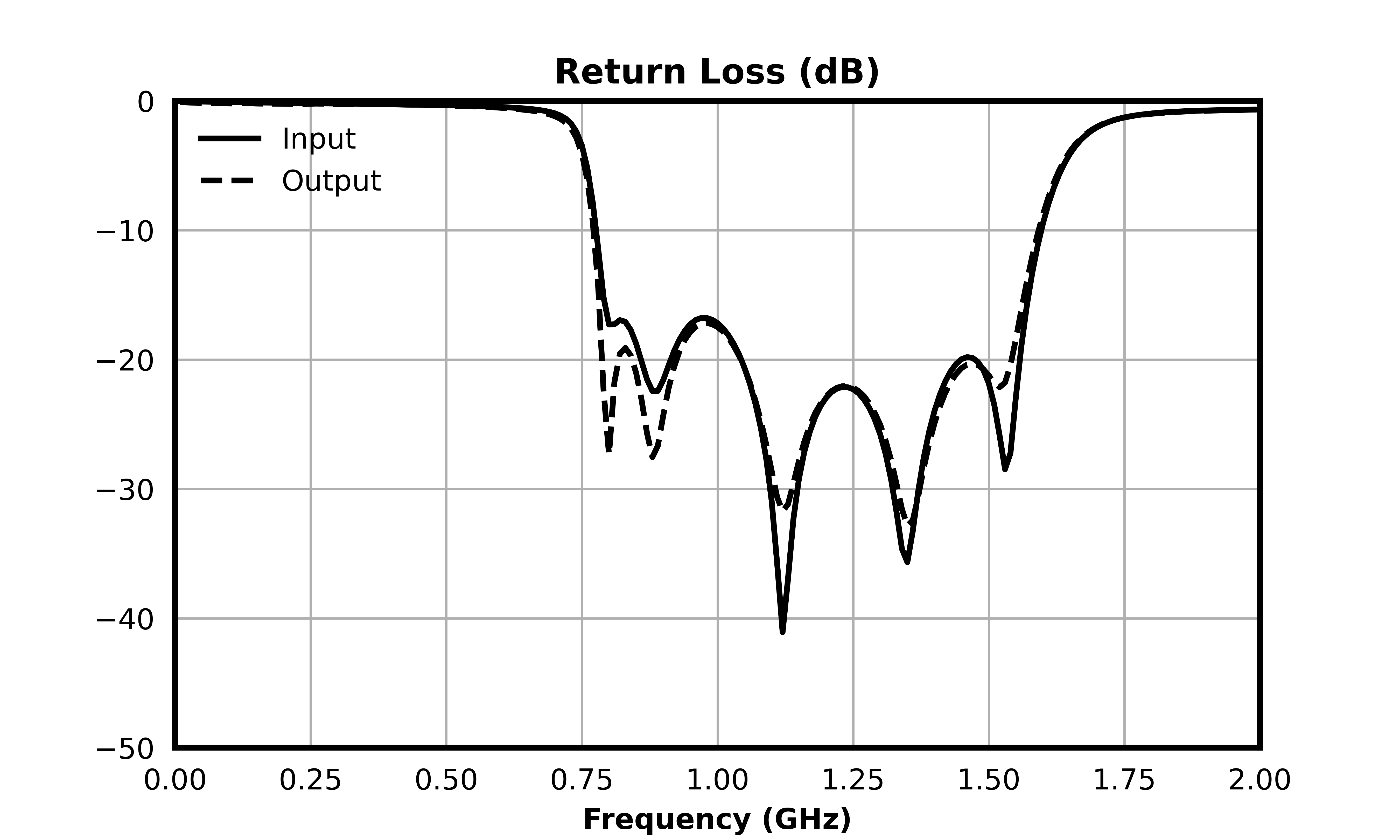

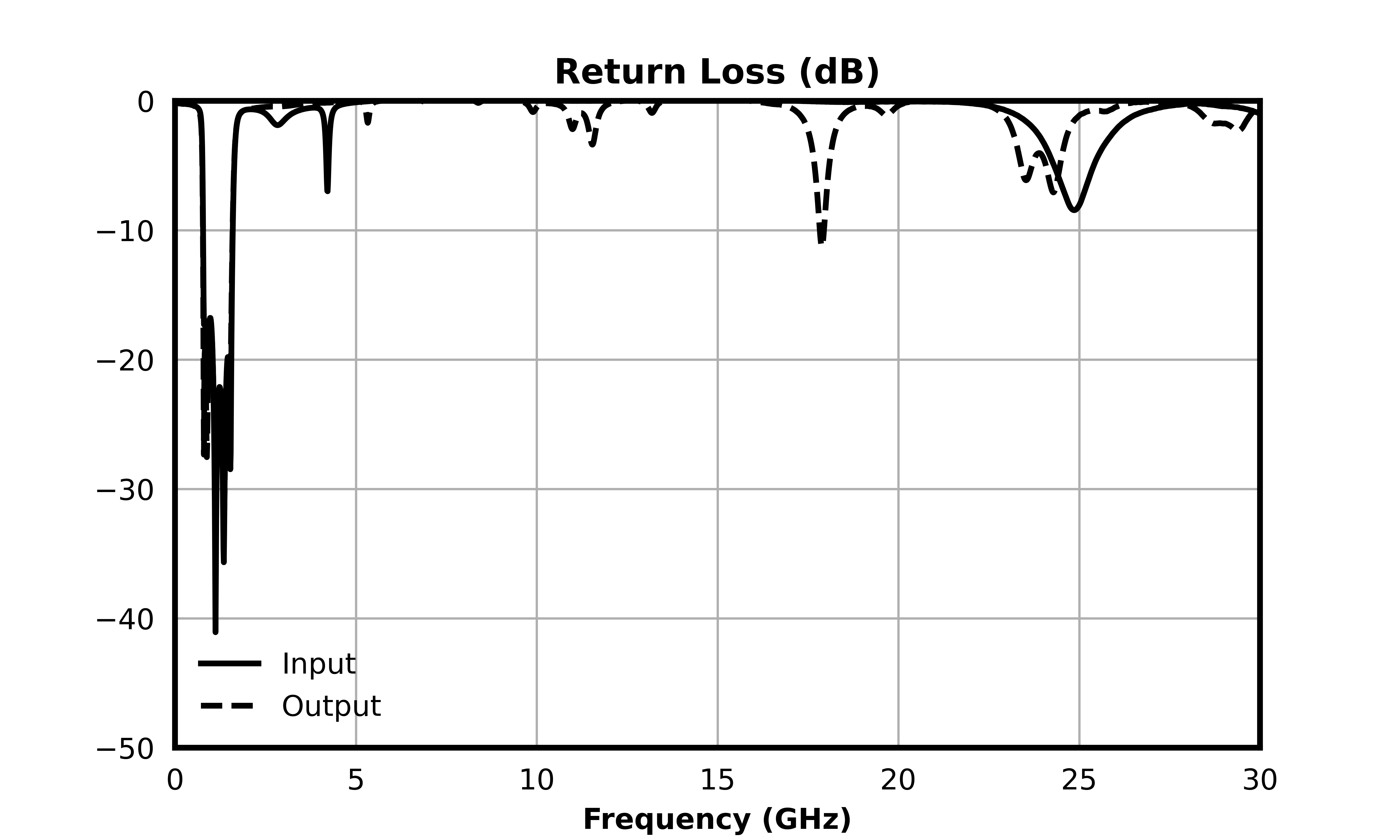

Passband Return Loss	Temp = 25°C	-	-	-	22	-	dB

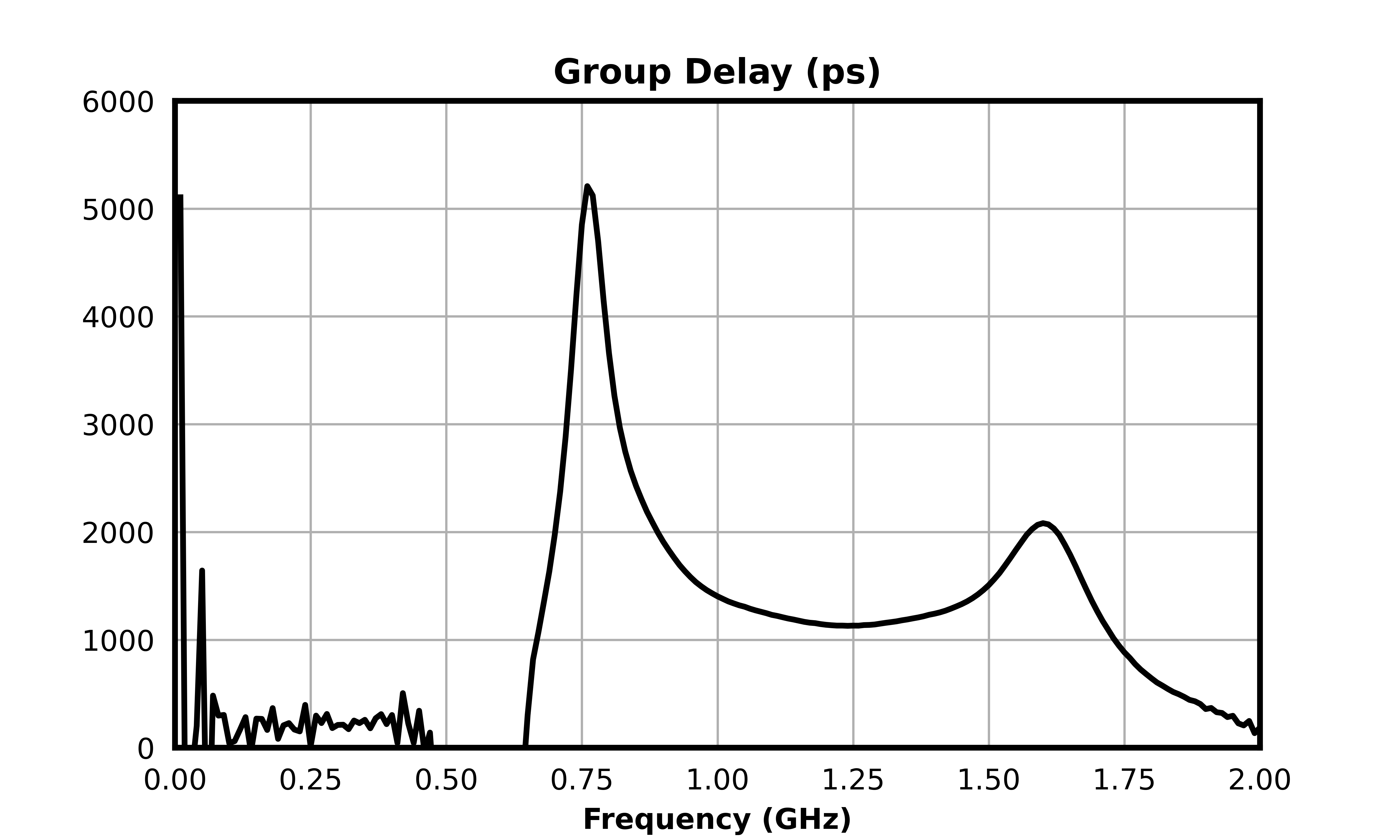

Group Delay	Temp = 25°C	-	-	-	1288	-	ps

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband	Temp = 25°C	0.82	1.55	-	-	-	GHz
3 dBc Passband	Temp = 25°C	0.78	1.61	-	-	-	GHz
30 dBc Rejection Point	Temp = 25°C	0.68	1.92	-	-	-	GHz
Center Freq	Temp = 25°C	-	-	-	1.13	-	GHz
Insertion Loss @ fc	Temp = 25°C	-	-	-	1.0	-	dB
Passband Return Loss	Temp = 25°C	-	-	-	22	-	dB
Group Delay	Temp = 25°C	-	-	-	1288	-	ps
