Device Overview

General Description

The MFBP-00151CSP3 passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. The MFBP-00151CSP3 features a 7.8-11.8GHz 1dBc passband and 1.9dB center frequency insertion loss. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00151CSP3 is available in our 3.5 x 3.5mm CSP3 chip scale package. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Photo of MFBP-00151CSP3

Features

  • 23 dB Return Loss
  • 1.9 dB Insertion Loss @ Fc
  • High Stop Band Suppression
  • Wide Stop Band with Fast Roll-Off
  • This product embodies Marki Microwave's U.S. Pat. 11,869,858.

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MFBP-00151CSP3Passive GaAs MMIC 7.8 - 11.8 GHz Bandpass FilterCSP3

RoHS

REACH

ReleasedEAR99
EVB-MFBP-00151Evaluation Board, Passive GaAs 7.8 - 11.8 GHz MMIC Bandpass FilterEVB

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2025-10-27Initial Release

Rev: - | Copyright © 2025 Marki Microwave LLC.

2

Port Configuration and Functions

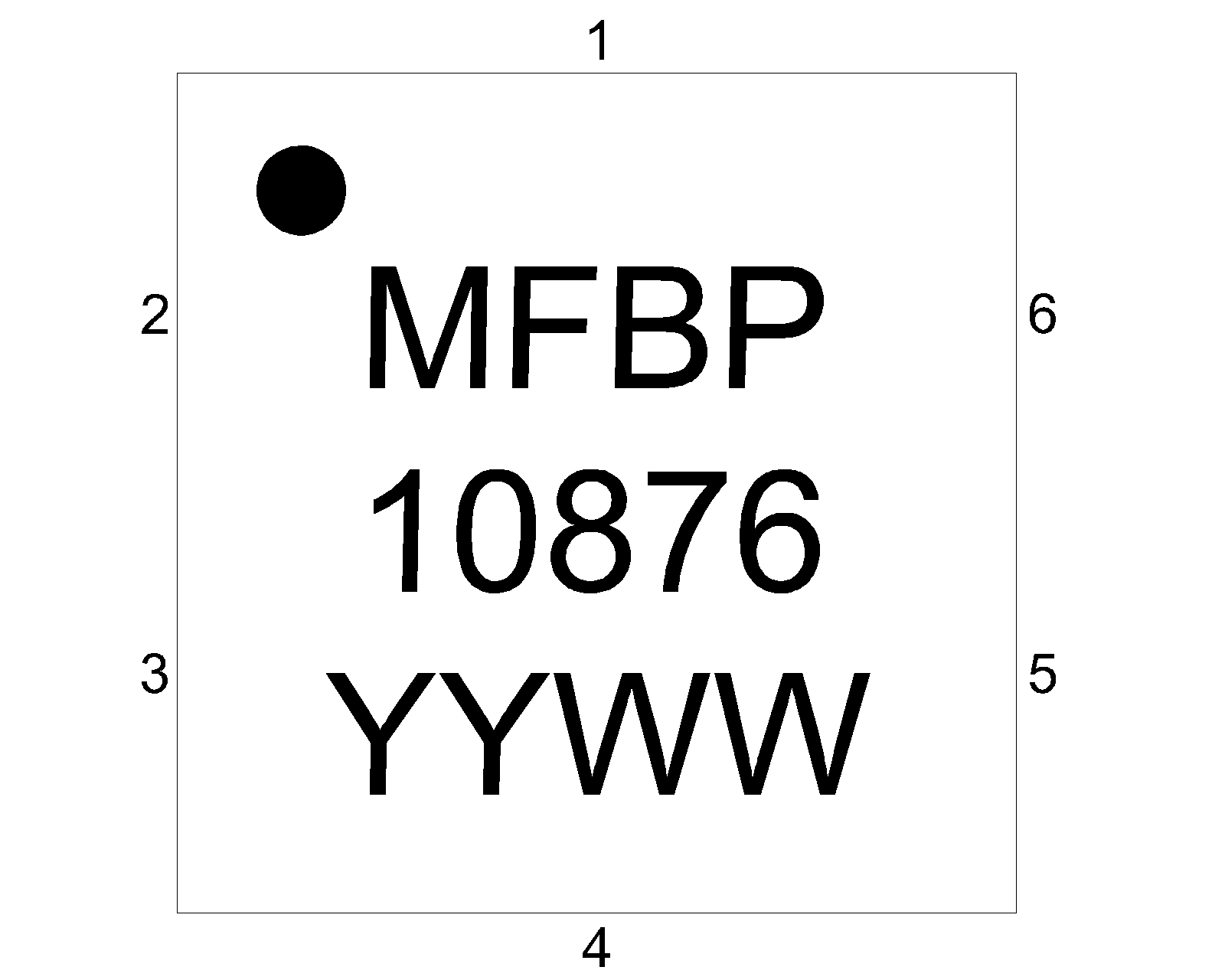

Port Diagram

Diagram of the port configuration for MFBP-00151CSP3

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Ground PaddleGround CSP3 package ground path is provided through the ground paddle and should be connected to RF ground.Equivalent circuit for the Ground
Pin 1Input/Output Pin 1 is DC short to ground for the CSP3 package.Equivalent circuit for the Input/Output
Pin 4Input/Output Pin 4 is DC short to ground for the CSP3 package.Equivalent circuit for the Input/Output

Rev: - | Copyright © 2025 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 1 DC Current 40mA
Port 2 DC Current 40mA

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-3.50 x 3.50 mm
Moisture Sensitivity Level-MSL 1

Rev: - | Copyright © 2025 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a CSP3 package with a sine wave input applied to Pin 1. Min and Max limits are guaranteed at TA=+25°C.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
1 dBc Passband Temp = 25°C
7.81 11.82---GHz
3 dBc Passband Temp = 25°C
7.66 12.55---GHz
30 dBc Rejection Point Temp = 25°C
6.97 13.3---GHz
Center Freq Temp = 25°C
- --9.61-GHz
Insertion Loss @ fc Temp = 25°C
- --1.9-dB
Passband Return Loss Temp = 25°C
- --23-dB
Group Delay Temp = 25°C
- --555-ps
Impedance Temp = 25°C
- --50-Ω

Rev: - | Copyright © 2025 Marki Microwave LLC.

5

Typical Performance Plot

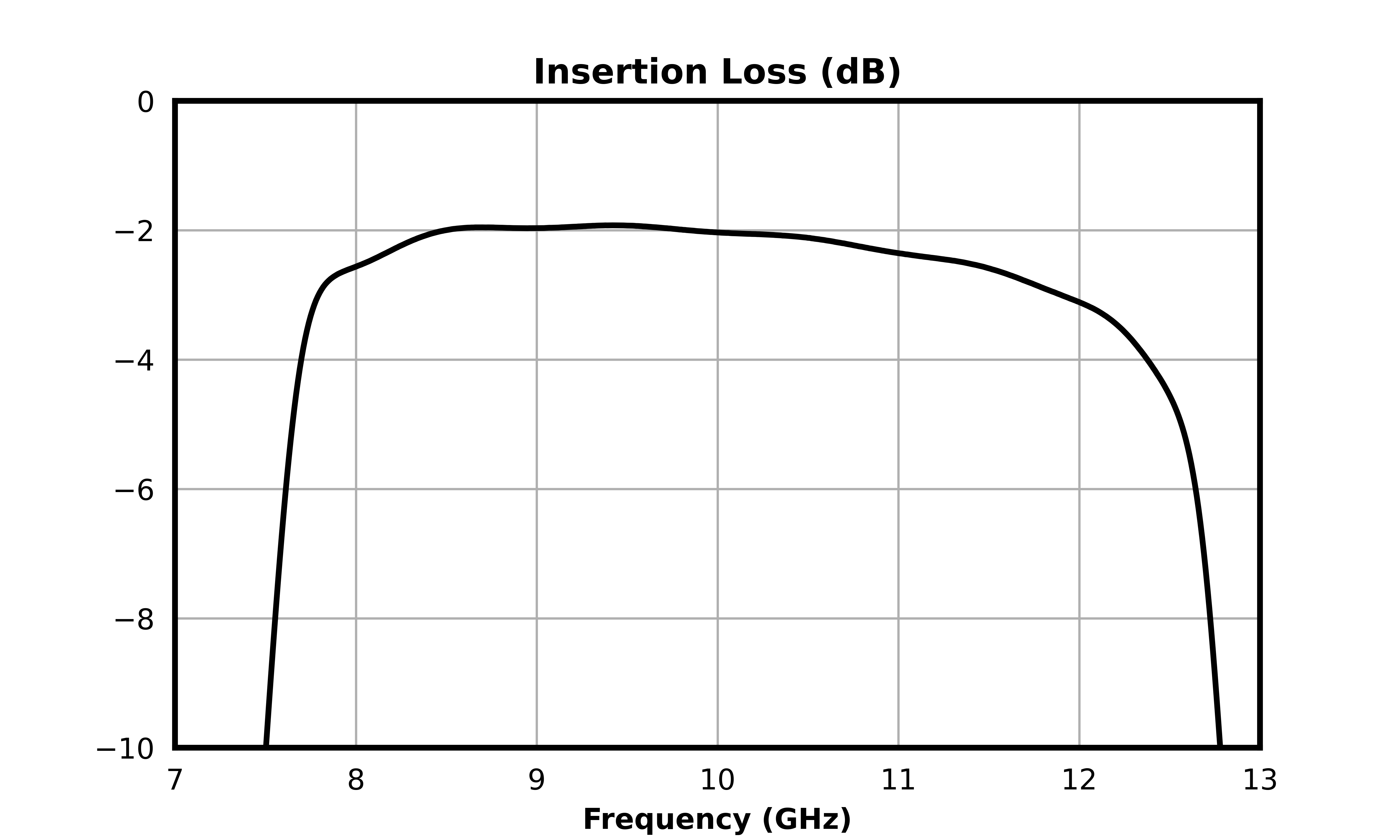

Insertion Loss (dB) graph for MFBP-00151CSP3

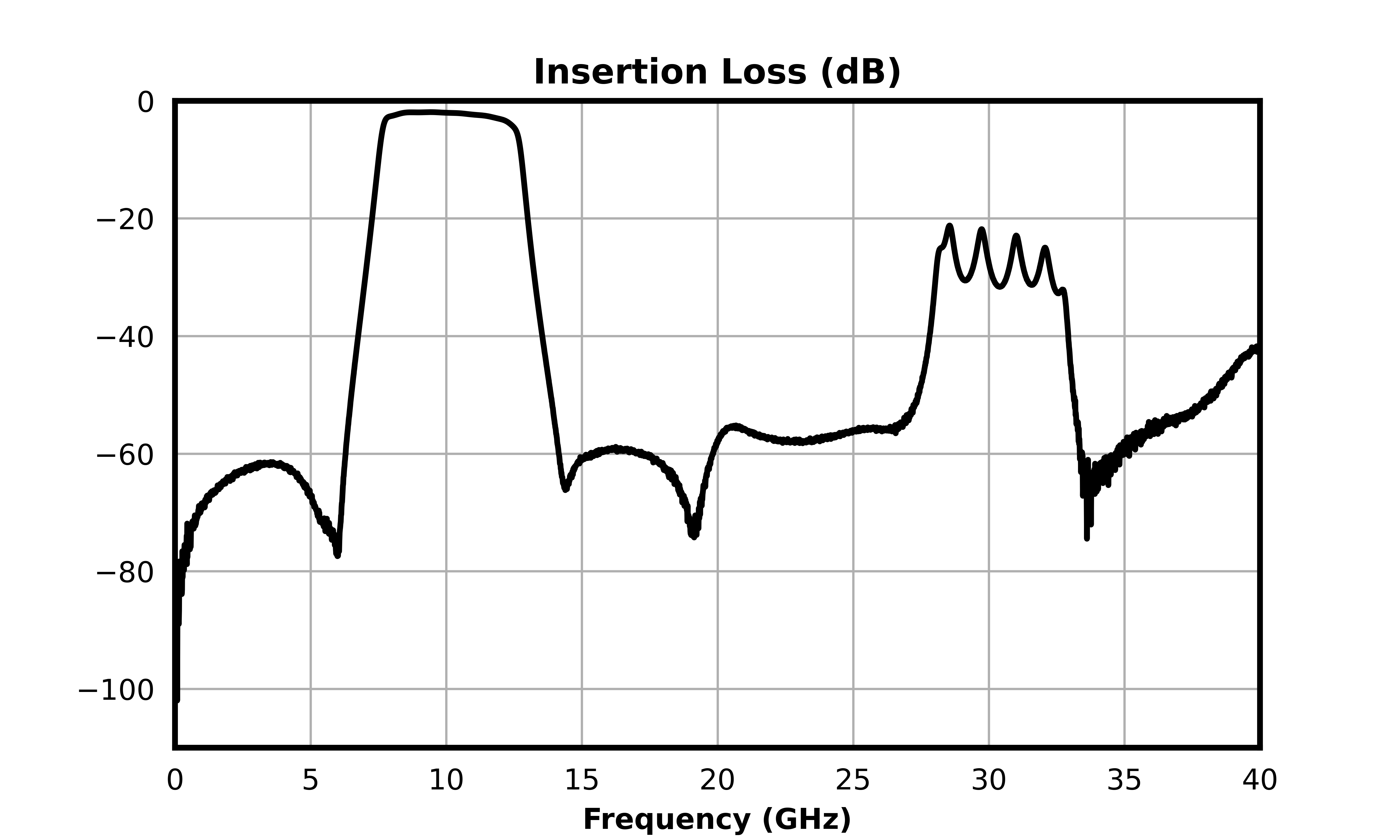

Insertion Loss (dB) graph for MFBP-00151CSP3

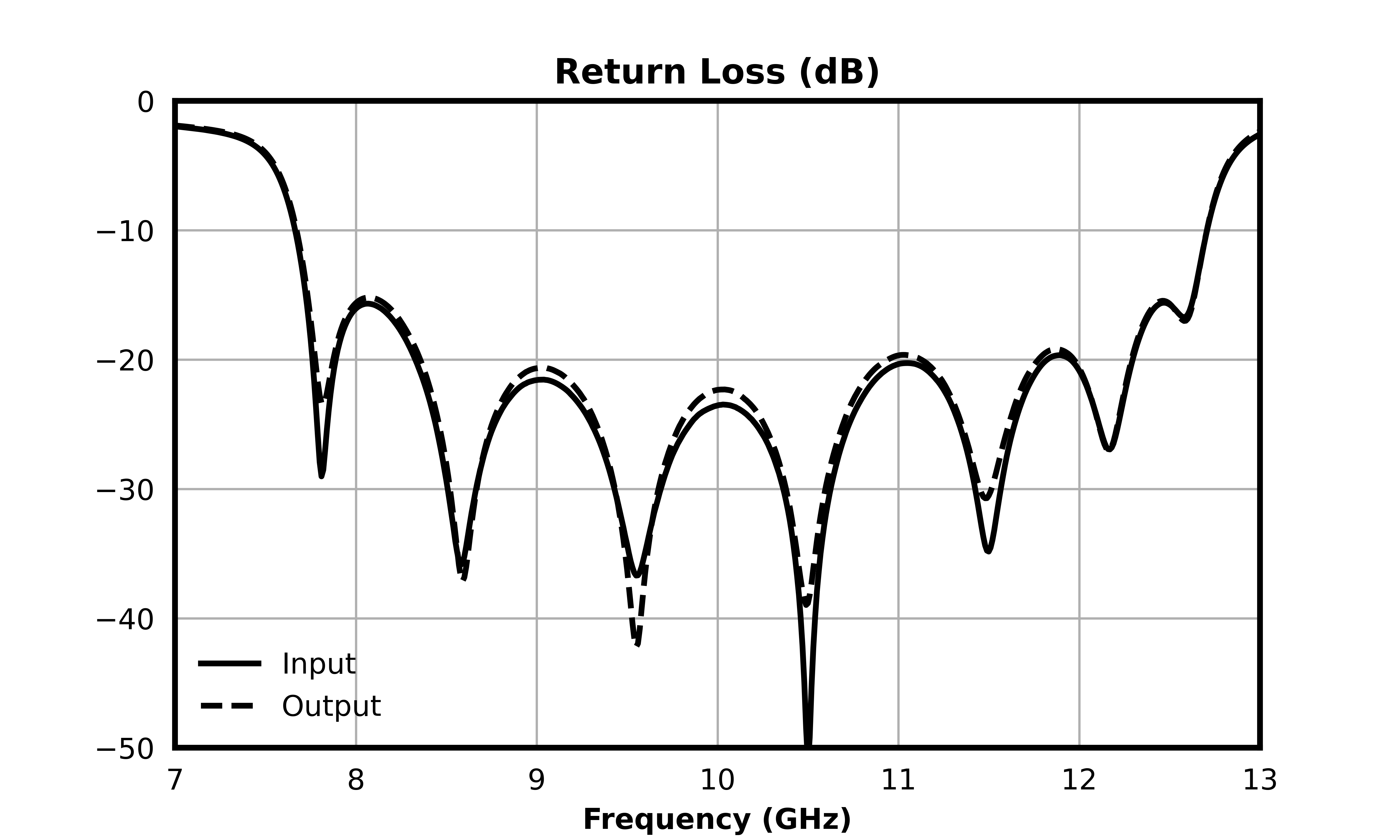

Return Loss (dB) graph for MFBP-00151CSP3

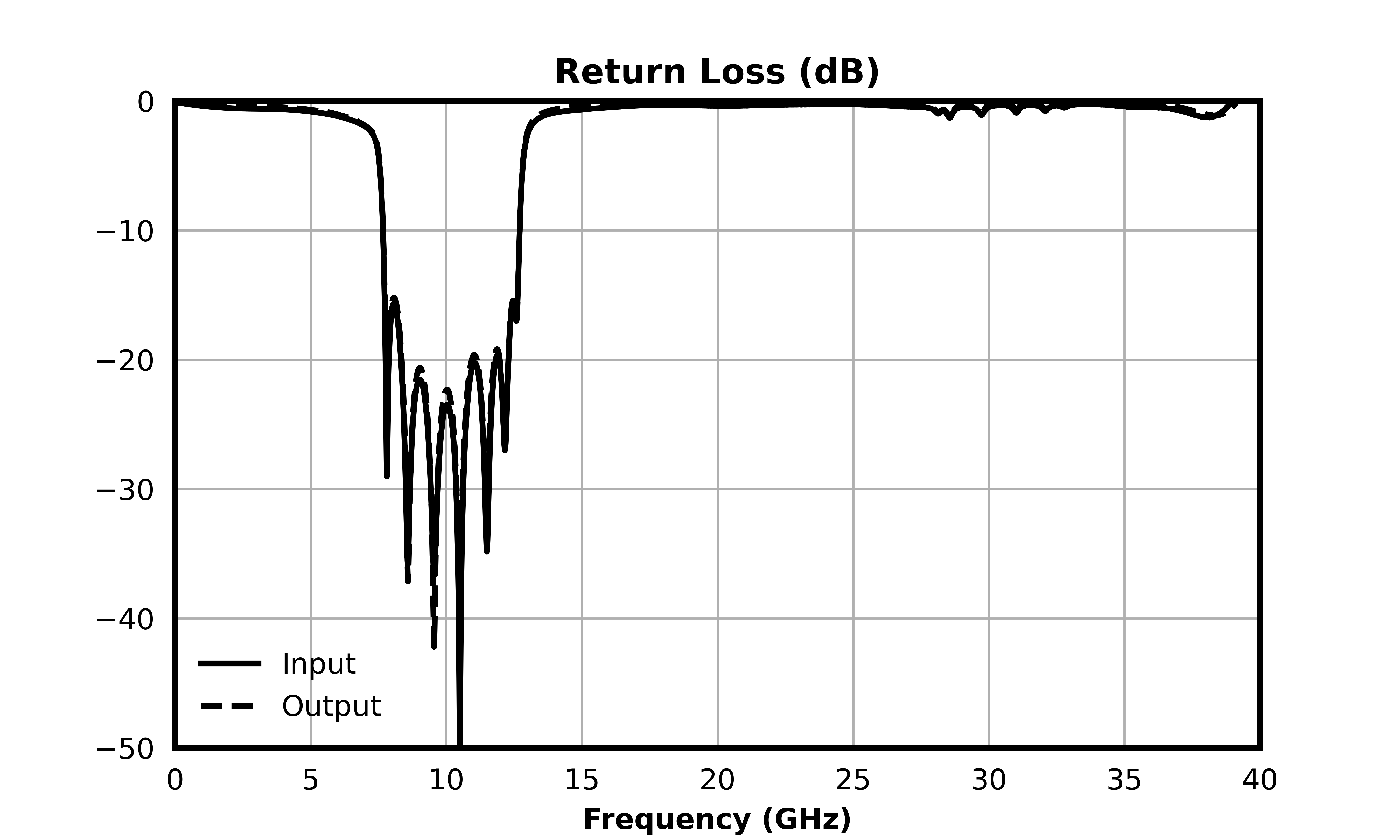

Return Loss (dB) graph for MFBP-00151CSP3

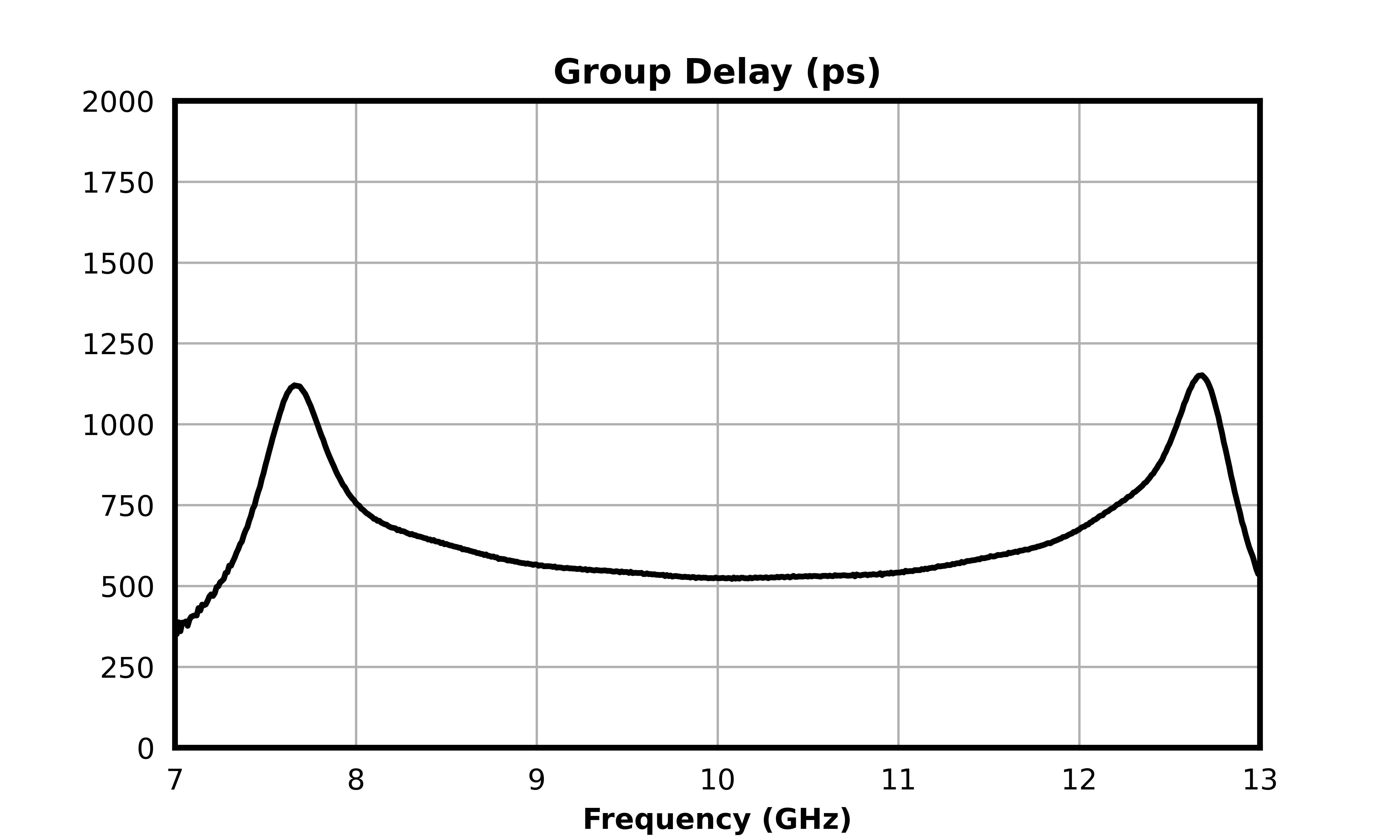

Group Delay (ps) graph for MFBP-00151CSP3

Measured data is de-embedded from fixture using automatic fixture removal (AFR).

Rev: - | Copyright © 2025 Marki Microwave LLC.

6

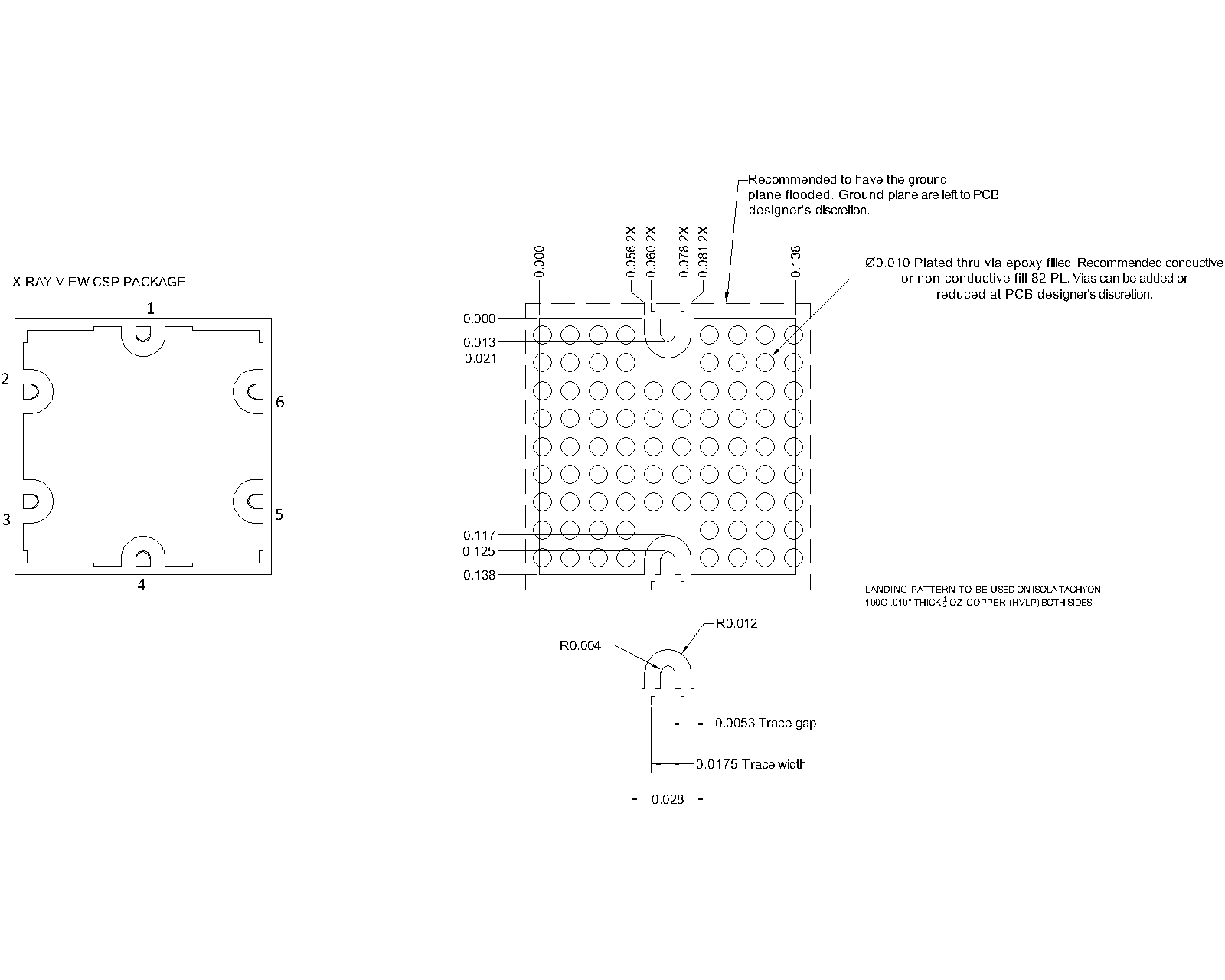

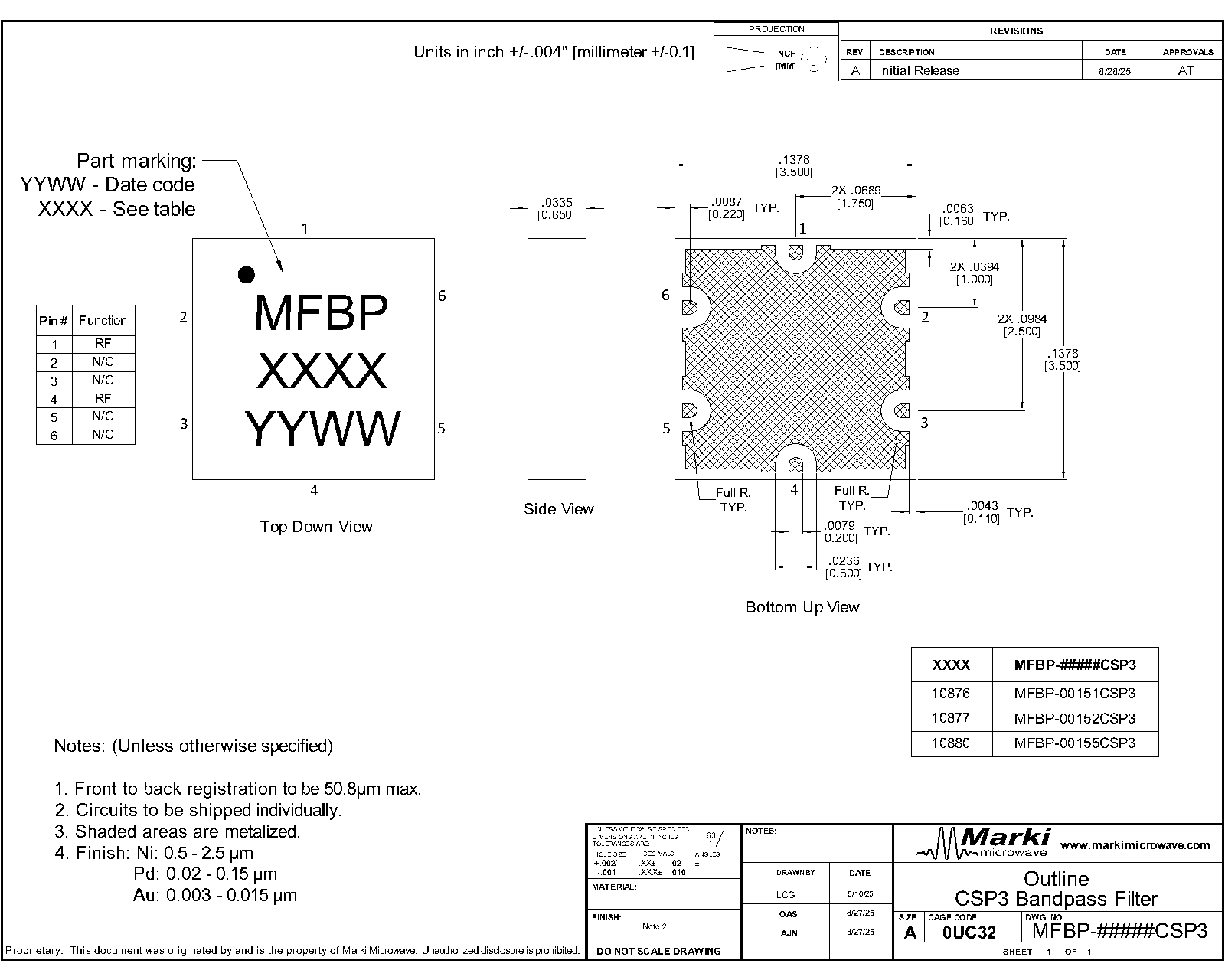

Mechanical Data

Rev: - | Copyright © 2025 Marki Microwave LLC.

7

Rev: - | Copyright © 2025 Marki Microwave LLC.

8

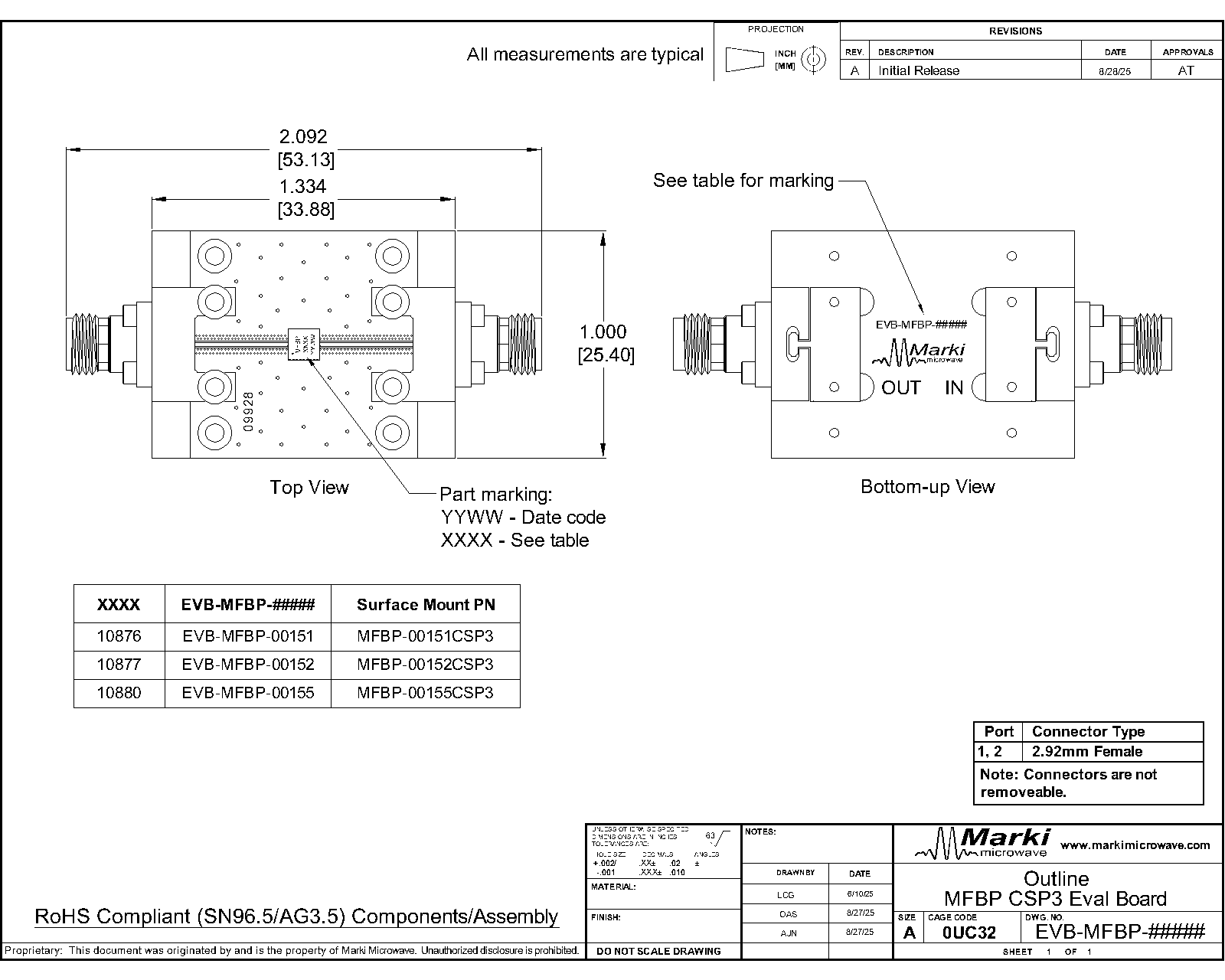

Evaluation Board - Outline Drawing

Outline Drawing

Rev: - | Copyright © 2025 Marki Microwave LLC.

9
