MFBP-00130PSM

Passive GaAs MMIC 17.3 - 19.0 GHz Bandpass Filter

The MFBP-00130PSM passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. The MFBP-00130PSM features a 17.3-19.0GHz 1dBc passband and 2.8dB center frequency insertion loss. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00130PSM is available as a 5 mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

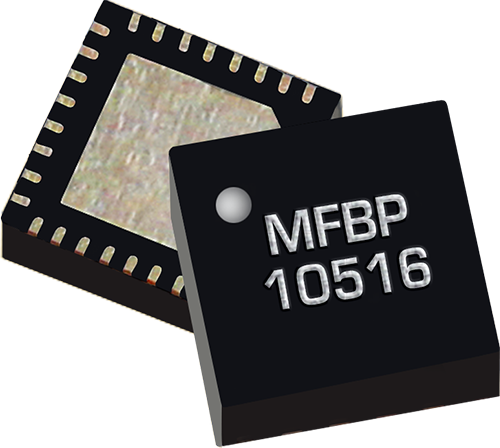

Product Variant : MFBP-00130PSM
Sorted by: No sorting applied
MFBP-00130PSM
Bandpass
18.1316.9817.2818.1118.9819.3318.132.85 x 5 mmReleased
EVB-MFBP-00130P
Bandpass
---------Released

Technical Resources
