Device Overview

General Description

The MFBP-00095PSM passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00095PSM is available as a 5 mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Photo of MFBP-00095PSM

Features

  • Excellent Return Loss
  • High Stop Band Suppression
  • Wide Stop Band with Fast Roll-Off

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MFBP-00095PSMPassive GaAs MMIC 4 - 6 GHz Bandpass FilterPSM

RoHS

REACH

ReleasedEAR99
EVB-MFBP-00095PEvaluation Board, Passive GaAs 4-6 GHz MMIC Bandpass FilterEVB

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2024-12-13Initial Release
A2025-03-06Port Function Description correction

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Ground PaddleGround PSM package ground path is provided through the ground paddle and should be connected to RF ground.Equivalent circuit for the Ground
Pin 20Input/Output Pin 20 is DC open for the PSM package.Equivalent circuit for the Input/Output
Pin 5Input/Output Pin 5 is DC open for the PSM package.Equivalent circuit for the Input/Output

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C

Package Information

ParameterDetailsRating
Dimensions-5 x 5 mm
Moisture Sensitivity Level-MSL 1

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a PSM package with a sine wave input applied to Pin 5. Min and Max limits are guaranteed at TA=+25°C.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
1 dBc Passband 25°C
4.01 6.05---GHz
30 dBc Rejection Point 25°C
3.13 7.04---GHz
3 dBc Passband 25°C
3.73 6.36---GHz
Center Freq 25°C
- --4.93-GHz
Group Delay 25°C
- --506-ps
Impedance 25°C
- --50-Ω
Insertion Loss @ fc 25°C
- --2.5-dB
Passband Return Loss 25°C
- --25-dB

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

5

Typical Performance Plot

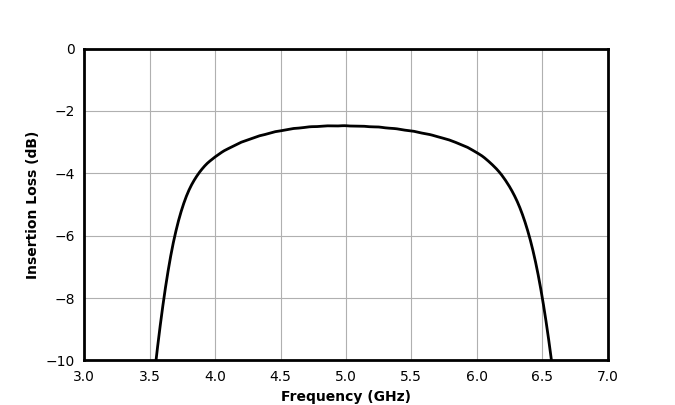

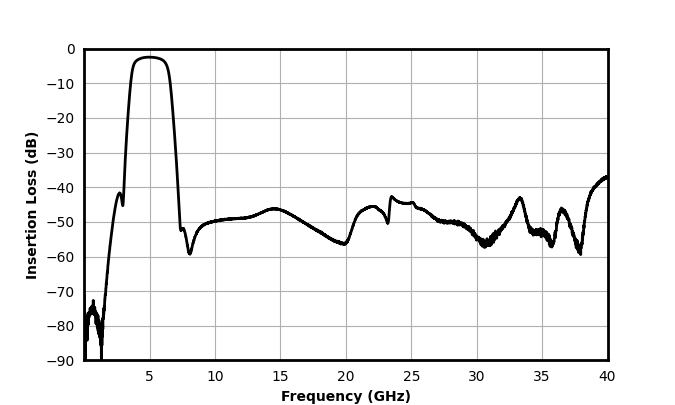

Insertion Loss (dB) graph for MFBP-00095PSM
Insertion Loss (dB) graph for MFBP-00095PSM

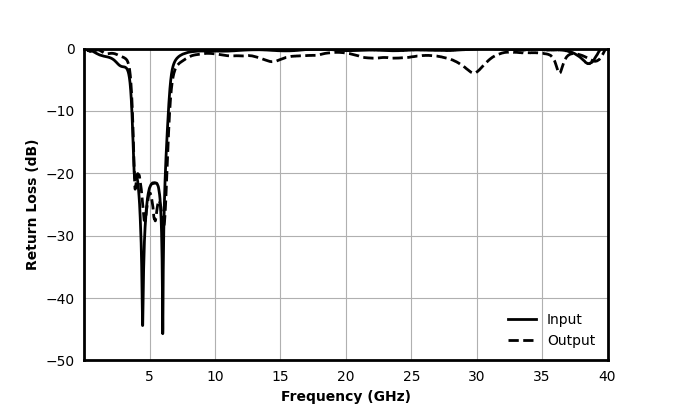

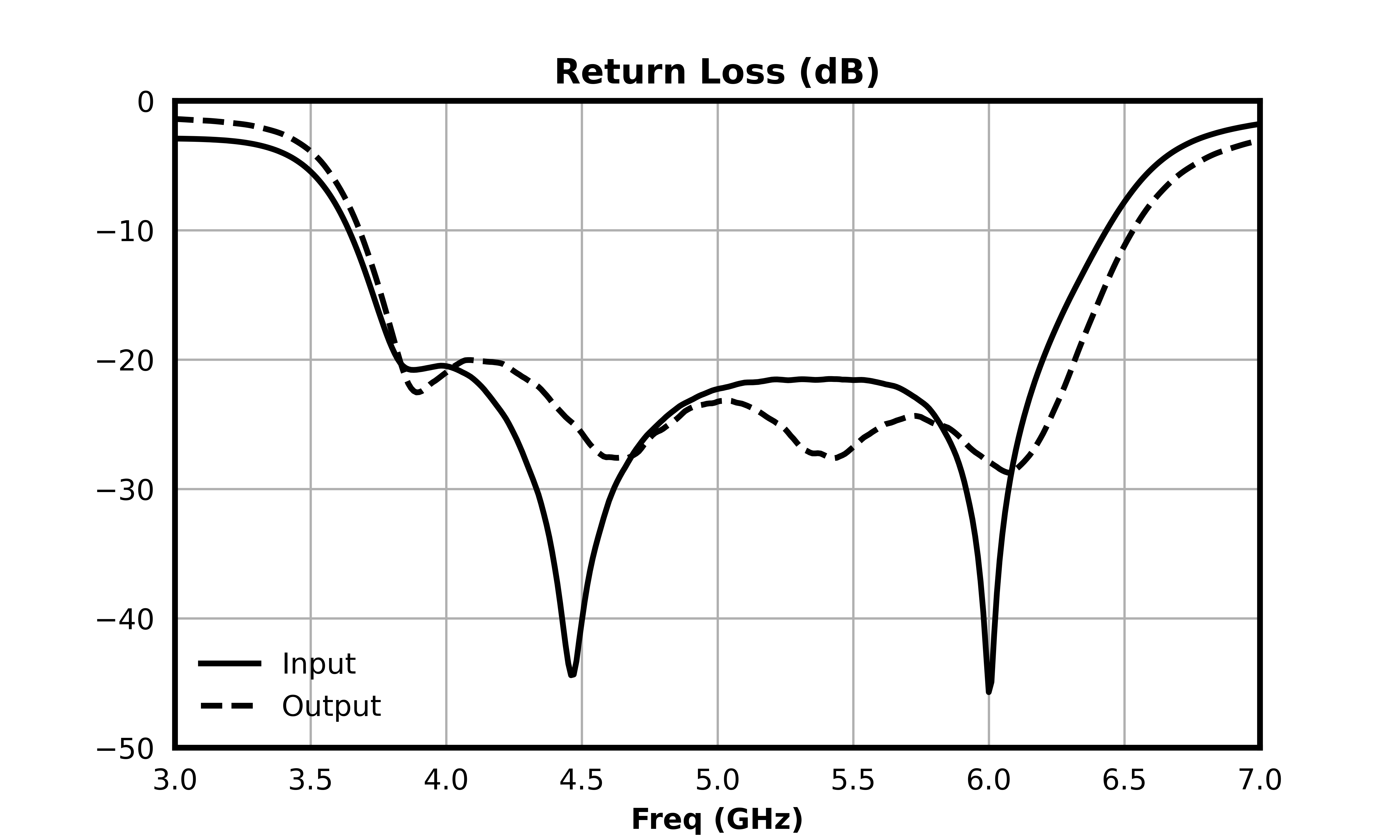

Return Loss (dB) graph for MFBP-00095PSM
Return Loss (dB) graph for MFBP-00095PSM

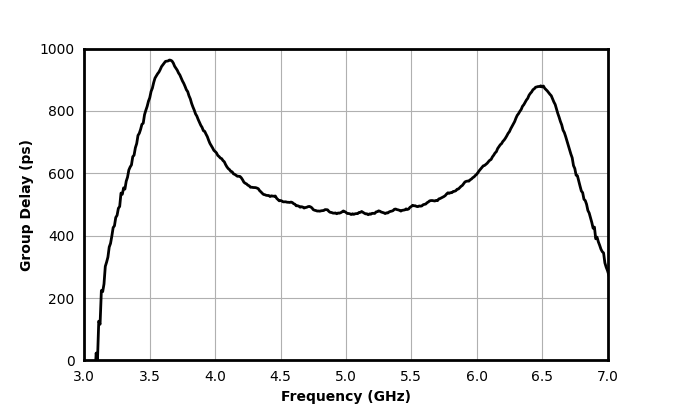

Group Delay (ps) graph for MFBP-00095PSM

All measurements are de-embedded from the fixture with Automatic Fixture Removal (AFR).

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

6

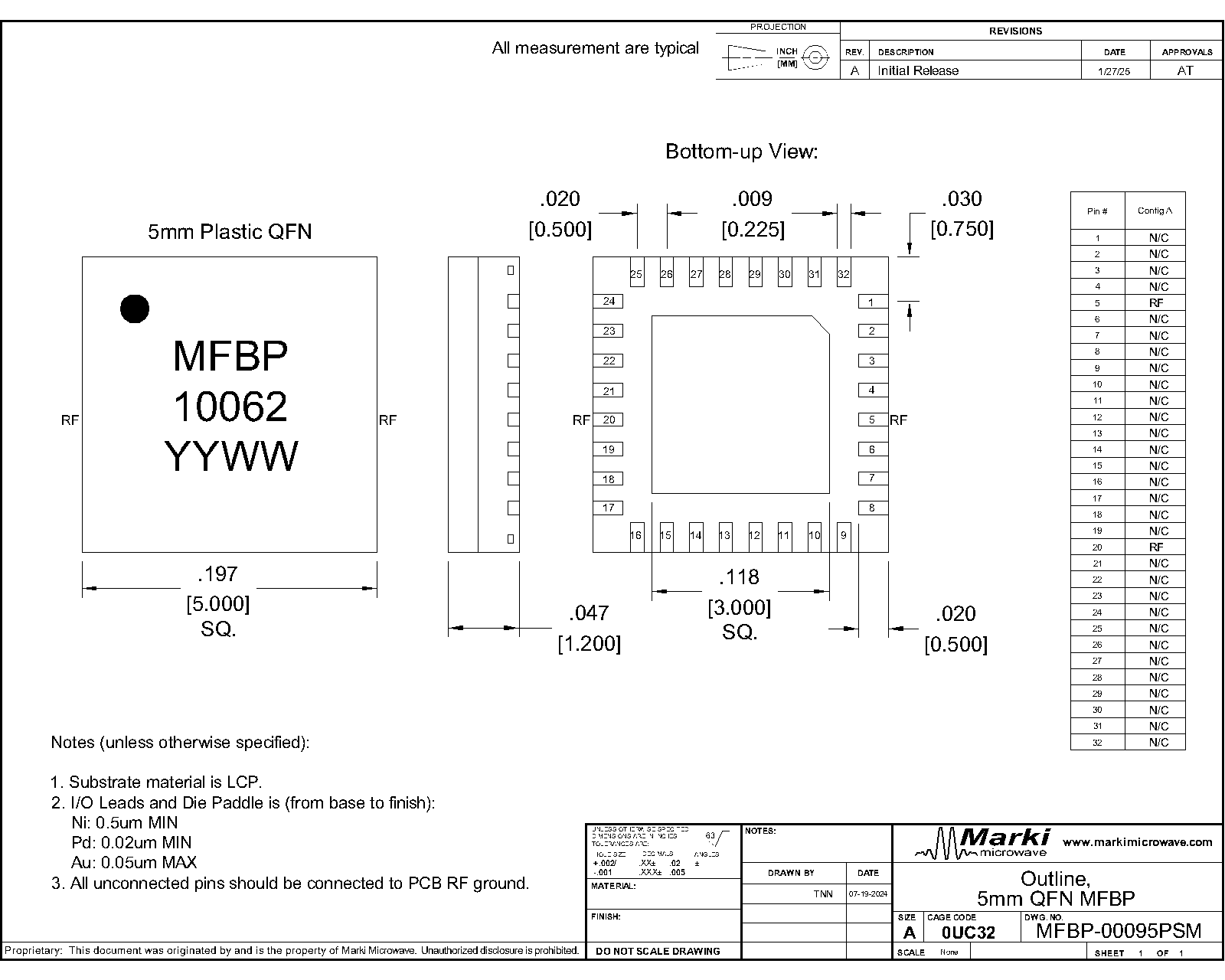

Mechanical Data

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

7

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

8

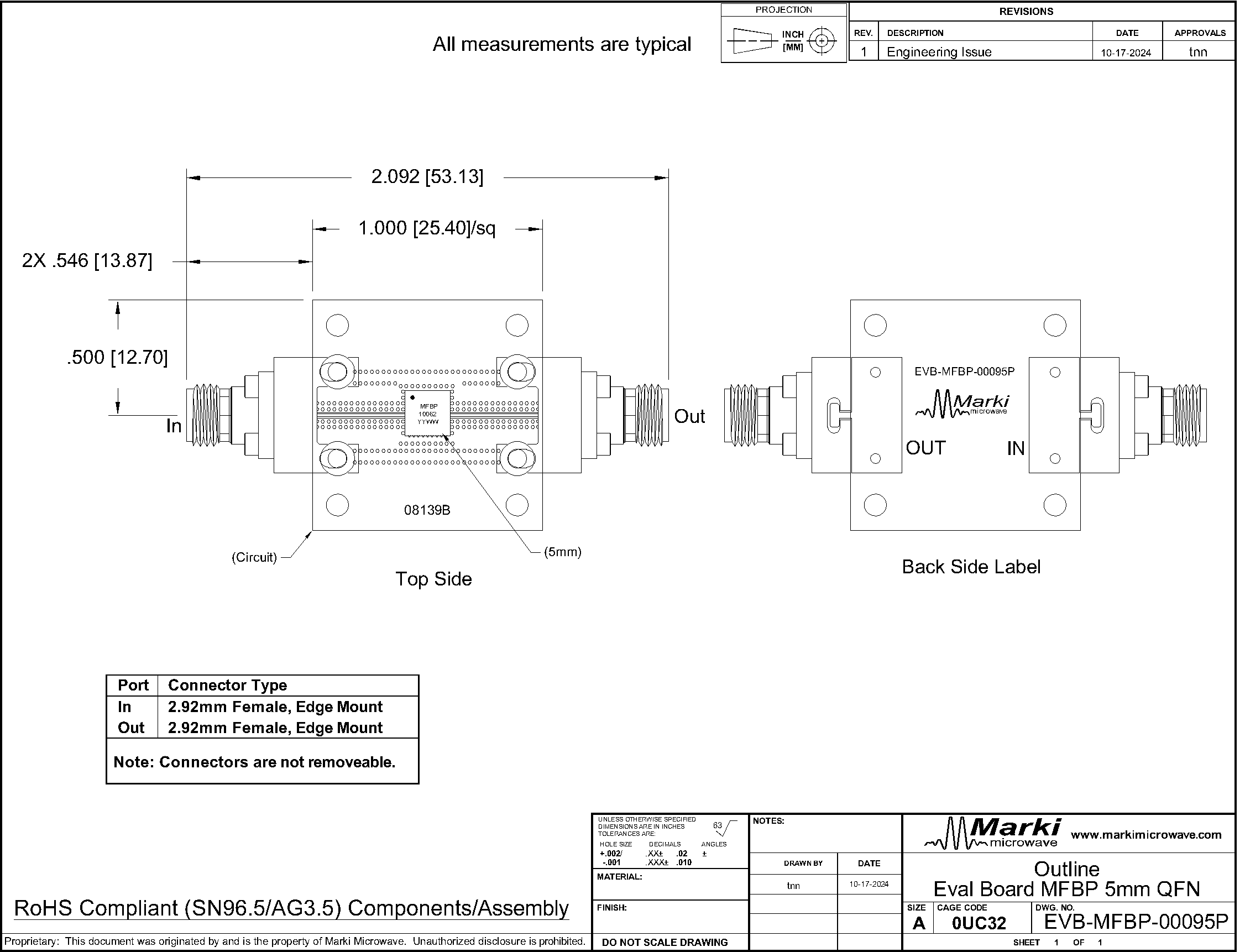

Evaluation Board - Outline Drawing

Outline Drawing

Rev: A | Copyright © 2024 - 2025 Marki Microwave LLC.

9
