Device Overview

General Description

The FB series bandpass filters are CAD-optimized microstrip filter designs built on a low-loss substrate. These filters feature low insertion loss, excellent return loss and are suitable for high rejection filtering.

Photo of FB-1140SM

Features

  • Chebyshev Response
  • Typical 3 dB Bandwidth, ± 8.5%
  • 50 dB Stop Band Suppression
  • 5 Section Filter
  • Reflow Solderable

Applications

  • Test and Measurement Equipment
  • SATCOM
  • Radar
  • RF Transceivers

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
FB-1140SM11.4 GHz Surface Mount Bandpass FilterSM

Non-RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2016-02-09Datasheet Initial Release

Rev: - | Copyright © 2016 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Port 1Input/Output Port 1 is DC open to Port 2 and GND. GND is provided through the case.Equivalent circuit for the Input/Output
Port 2Input/Output Port 2 is DC open to Port 1 and GND. GND is provided through the case.Equivalent circuit for the Input/Output

Rev: - | Copyright © 2016 Marki Microwave LLC.

3

Specifications

Package Information

ParameterDetailsRating
Dimensions-40.64 x 8.13 mm
Moisture Sensitivity Level-MSL 3

Rev: - | Copyright © 2016 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
1 dBc Passband Temp = 25°C
10.39 12.36---GHz
3 dBc Passband Temp = 25°C
10.15 12.57---GHz
30 dBc Rejection Point Temp = 25°C
8.44 14.07---GHz
Center Freq Temp = 25°C
- --11.33-GHz
Insertion Loss @ fc Temp = 25°C
- --2.03.0dB
Passband Return Loss Temp = 25°C
- --23-dB
Group Delay Temp = 25°C
- --600-ps
Impedance Temp = 25°C
- --50-Ω
RF Power -- ---1W
Stopband Suppression, High Band 14.4 GHz
14.4 14.4-35-dB
Stopband Suppression, High Band 15.5 GHz
15.5 15.5-50-dB
Stopband Suppression, Low Band 6.9 GHz
6.9 6.9-50-dB
Stopband Suppression, Low Band 8.1 GHz
8.1 8.1-35-dB

Rev: - | Copyright © 2016 Marki Microwave LLC.

5

Typical Performance Plots

Magnitude response for a typical FB-1140SM, measured in a connectorized fixture graph for FB-1140SM

Rev: - | Copyright © 2016 Marki Microwave LLC.

6

Typical Performance Plot

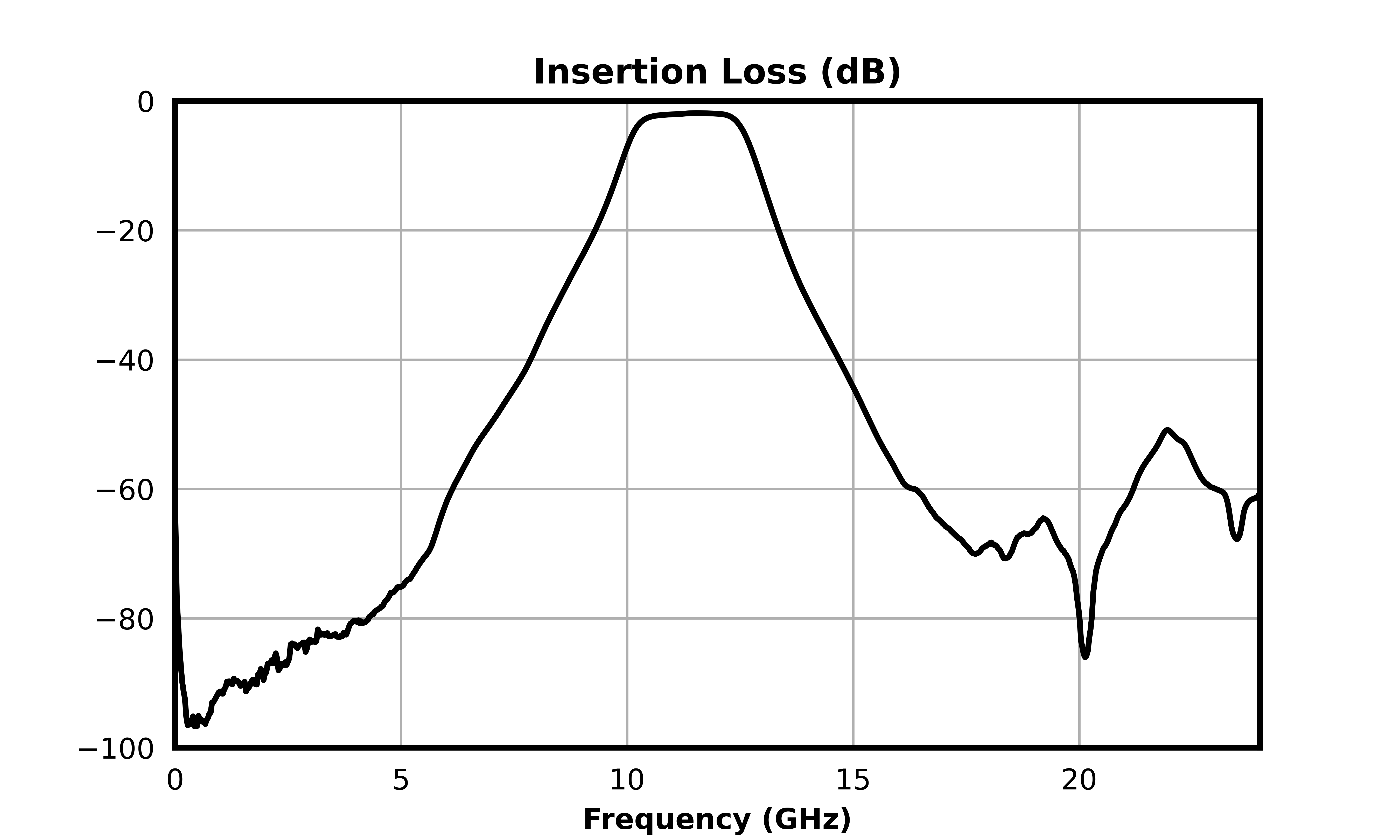

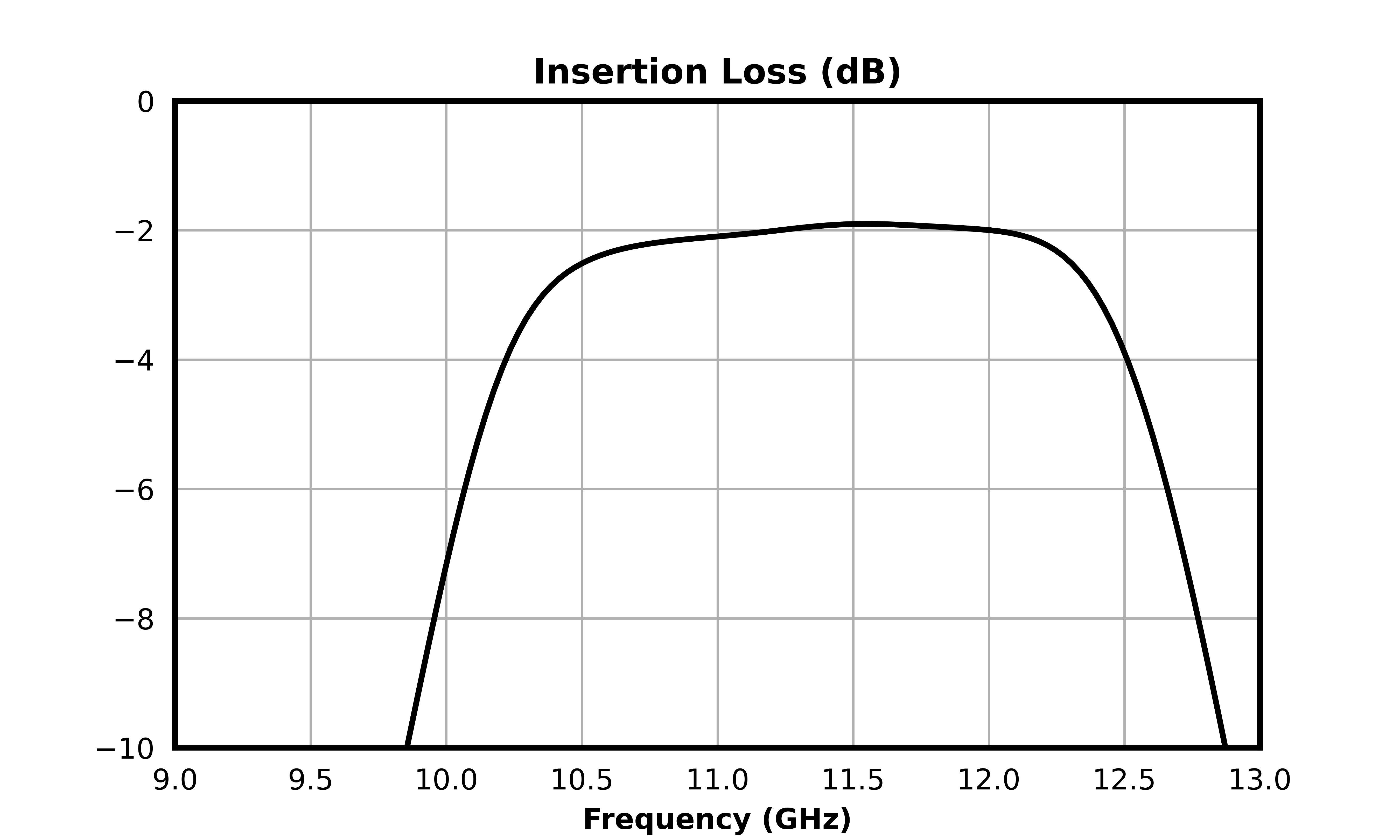

Insertion Loss (dB) graph for FB-1140SM
Insertion Loss (dB) graph for FB-1140SM

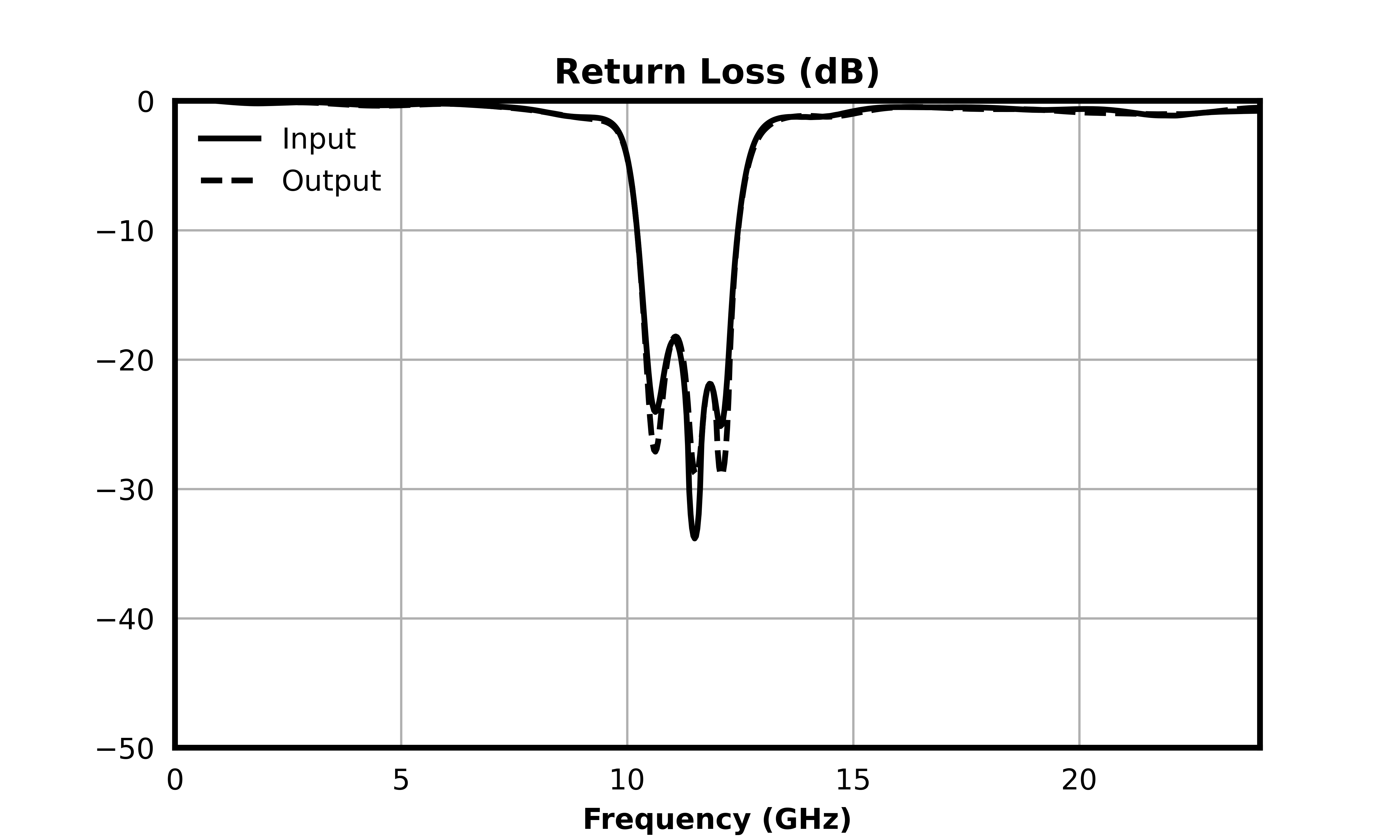

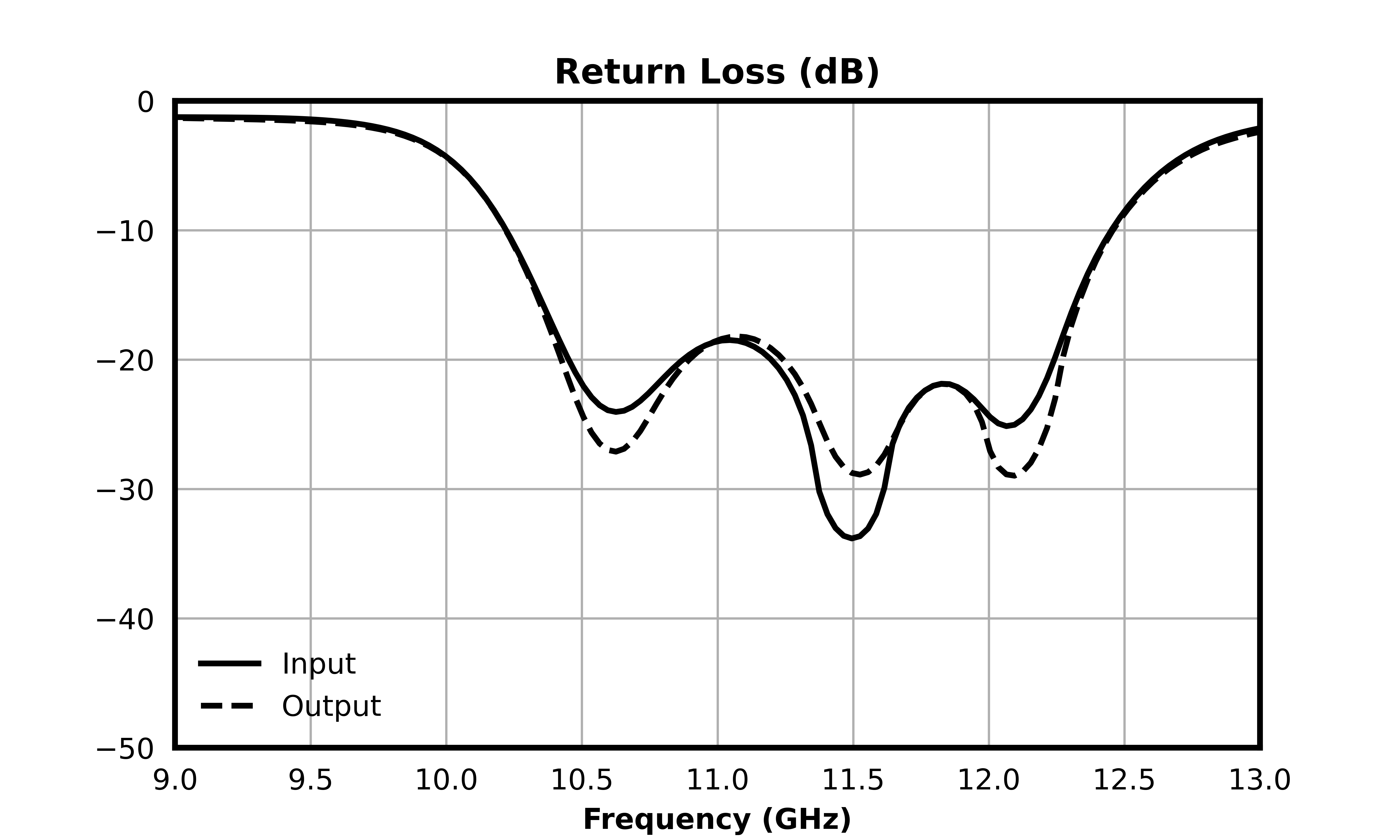

Return Loss (dB) graph for FB-1140SM
Return Loss (dB) graph for FB-1140SM

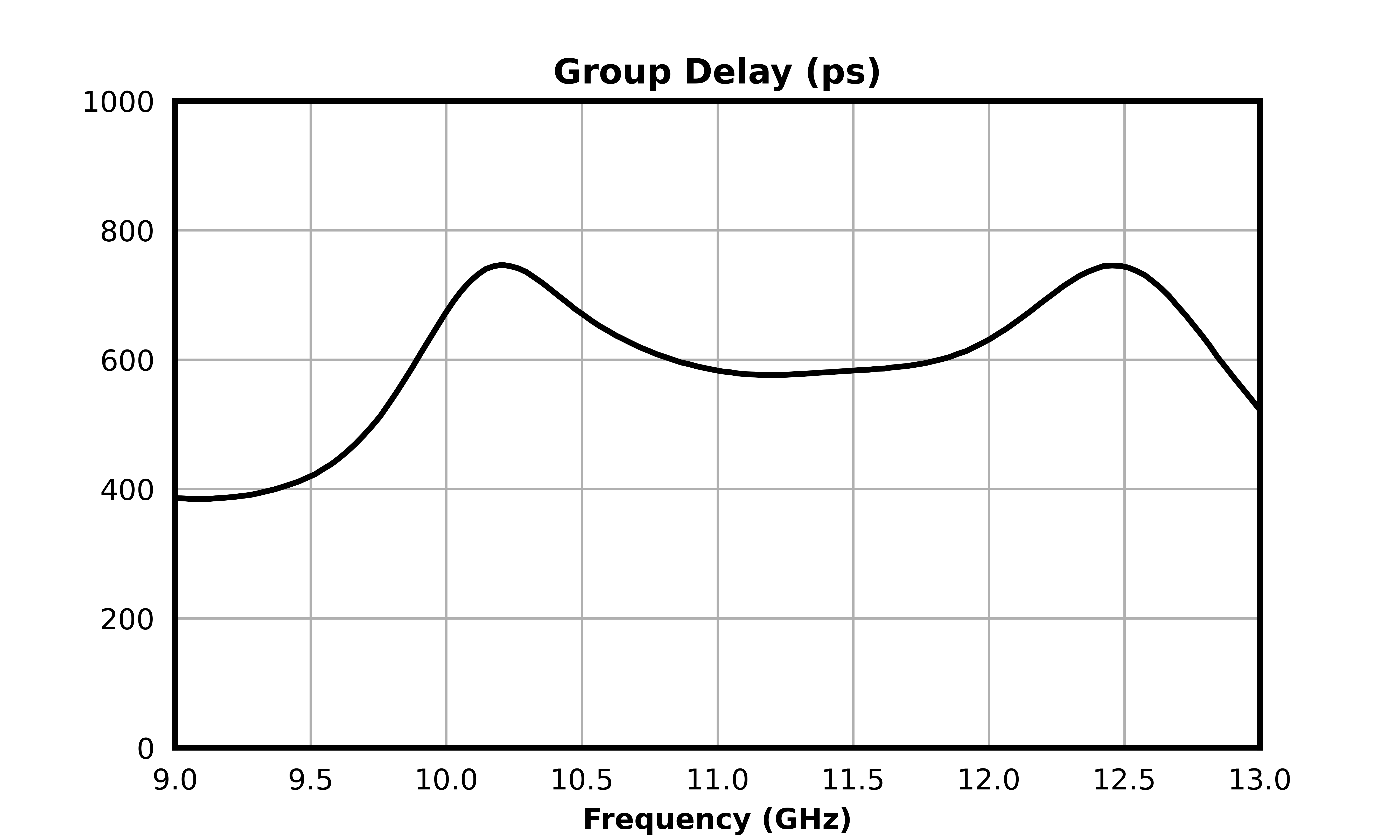

Group Delay (ps) graph for FB-1140SM

Rev: - | Copyright © 2016 Marki Microwave LLC.

7

Mechanical Data

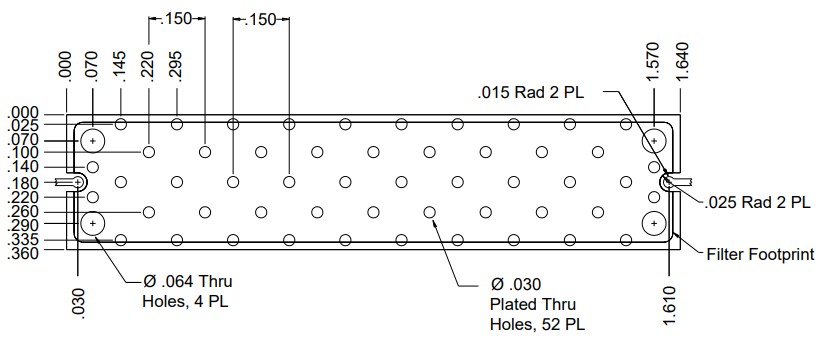

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP
