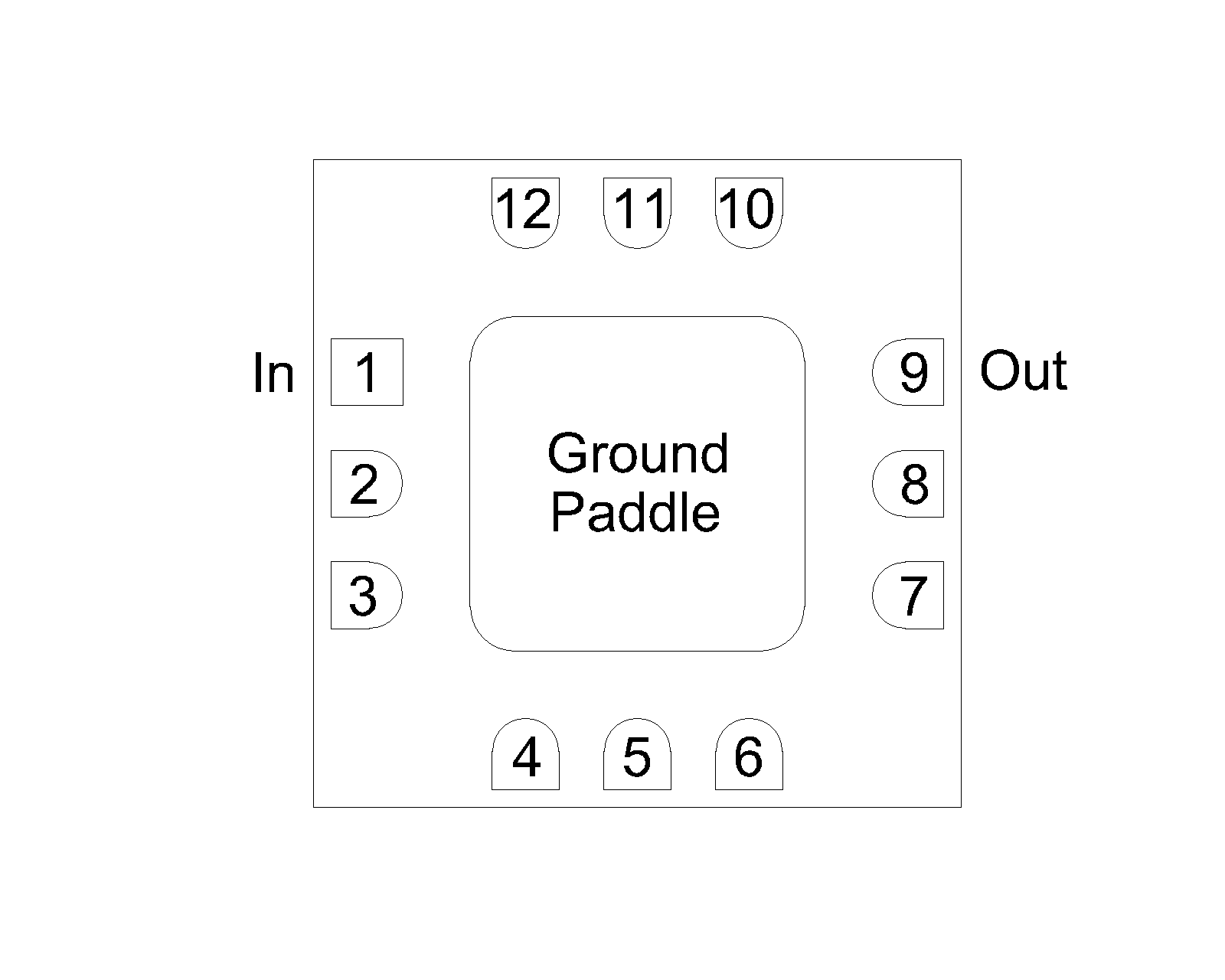

Port Diagram
A top-down view of the MEQ7-20ASM package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MEQ7-20ASM family of passive MMIC equalizer QFN is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. They provide positive slope from DC to 20GHz with DC attenuation options between 0 and 11dB. The unique design offers superior return loss to competitors. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.
Features
- DC attenuation options from 0 to 11dB
- Typical Insertion Loss 1.2 dB at 20GHz
- VSWR < 1.5:1 Over Entire Band
Applications
- RF Transceivers
- High-Speed Data
- Telecom
- Cable Loss Compensation
- Amplifier Compensation
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ7-20ASM | Passive GaAs MMIC 20 GHz Equalizer | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MEQ7-20A | Evaluation Board, Passive GaAs MMIC 20 GHz Equalizer | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ7-20ASM | Passive GaAs MMIC 20 GHz Equalizer | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MEQ7-20A | Evaluation Board, Passive GaAs MMIC 20 GHz Equalizer | EVAL | REACH RoHS | Released | EAR99 |
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-06-27 | Datasheet Initial Release |
| A | 2018-08-01 | Added EVAL Outline |
| B | 2018-11-01 | Added EVAL Outline |
| C | 2019-03-01 | Added ESD Rating |
| D | 2019-05-01 | Added Package Dimension Tolerance Spec |
| E | 2019-08-01 | Added SM Footprint |
| F | 2024-01-18 | Corrected max operating temp from 10C to 100C. |
| G | 2025-11-18 | Updated Port Diagram |
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 1 | Input/Output | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Pin 9 | Input/Output | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 40 | mA |
| Port 2 DC Current | 40 | mA |
| Power Handling, at any Port | 30 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a SM package with a sine wave input applied to port 1. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=20GHz | 20 | 20 | - | 1.1 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 7.5 | - | dB |
| Return Loss | - | 0 | 20 | - | 26 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=20GHz | 20 | 20 | - | 1.1 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 7.5 | - | dB |
| Return Loss | - | 0 | 20 | - | 26 | - | dB |
Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in eval board without de-embedding.
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Typical Performance Plots
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Mechanical Data
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Footprint Image
Download : Footprint Drawing
MEQ7-20ASM
Passive GaAs MMIC 20 GHz Equalizer
Evaluation Board - Outline Drawing
