MEQ6N-26CSP1-01_Chip Scale Package MMIC 26 GHz Equalizer

Device Overview

General Description

The MEQ6N-26CSP1-01 is a passive surface mount GaAs MMIC equalizer in a chip scale package (CSP). This equalizer is deal for compensating for low pass filtering effects in RF/microwave and high-speed digital systems. The MEQ6N-26CSP1-01 provides positive slope from DC to 26GHz with a DC attenuation of 6dB. The CSP allows for extreme miniaturization of the SMT footprint while providing die-like performance. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor.

Features

Small 1.5 x 1.5 mm package size
2W Power Handling
DC attenuation of 6dB
Typical Insertion Loss 0.3 dB at 26GHz
VSWR < 1.5 Over Operating Band
Low SWaP
This product embodies Marki Microwave's U.S. Pat. 11,869,858.

Applications

RF Transceivers
High-Speed Data
Telecom
Cable Loss Compensation
Amplifier Compensation

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MEQ6N-26CSP1-01	Chip Scale Package MMIC 26 GHz Equalizer	CSP1	REACH RoHS	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

MEQ6N-26CSP1-01

Chip Scale Package MMIC 26 GHz Equalizer

CSP1

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MEQ6N-26CSP1-01	Chip Scale Package MMIC 26 GHz Equalizer	CSP1	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Mechanical Data

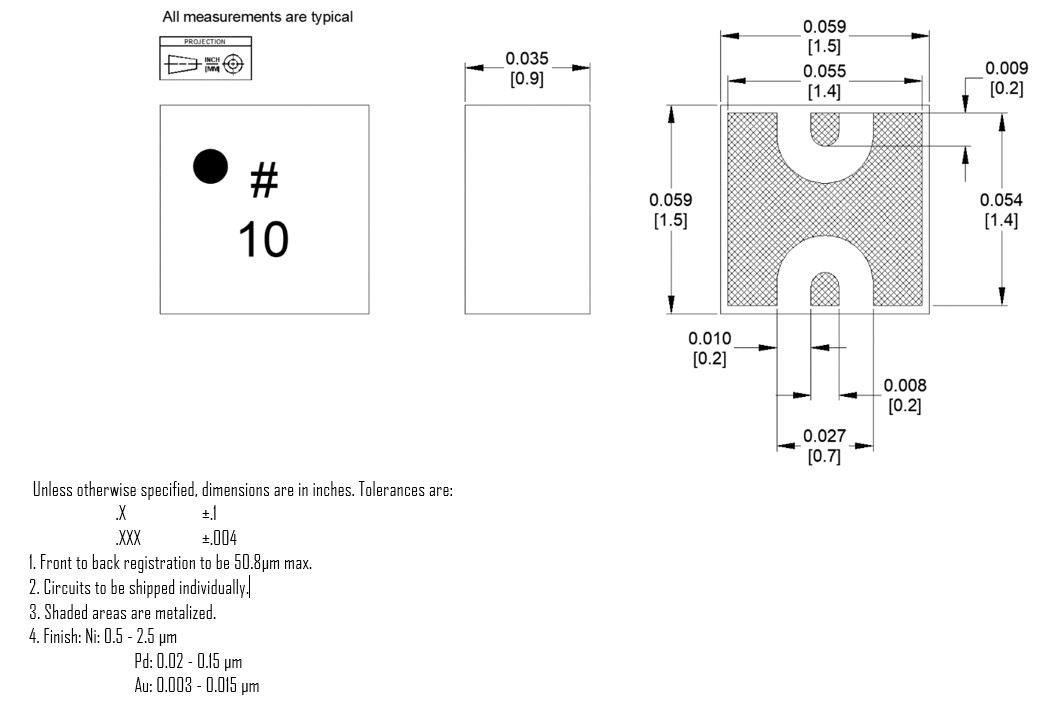

- Outline Drawing
Footprint Image

Revision History

Revision Code	Revision Date	Comment
PRE	2023-12-04	Datasheet Pre-Release

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MEQ6N-26CSP1-01

Port Functions

Port	Function	Description
GND	Ground	SM package ground path is provided through the ground paddle.
Pin 1	Input/Output	Pin 1 is DC connected to ground through a resistor. DC block is required if voltage present.
Pin 2	Output/Input	Pin 2 is DC connected to ground through a resistor. DC block is required if voltage present.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Power Handling, at any Port	2	W

Package Information

Parameter	Details	Rating
Weight	Package name: CSP1	0.04g
Dimensions	-	1.50 x 1.50 mm
Moisture Sensitivity Level	-	MSL 3

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a SM package with a sine wave input applied to port 1. Min and Max limits are guaranteed between TA=-50°C and TA=+100°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Impedance ¹	-	0	26	-	50	-	Ω
Input Return Loss ²	-	0	26	13	23	-	dB
Insertion Loss ³	-	0	0	-	6	7.1	dB
Insertion Loss ⁴	-	11.75	11.75	-	-	4.7	dB
Insertion Loss ⁵	-	26	26	-	0.3	3.4	dB
Output Return Loss ⁶	-	0	26	13	23	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Impedance ¹	-	0	26	-	50	-	Ω
Input Return Loss ²	-	0	26	13	23	-	dB
Insertion Loss ³	-	0	0	-	6	7.1	dB
Insertion Loss ⁴	-	11.75	11.75	-	-	4.7	dB
Insertion Loss ⁵	-	26	26	-	0.3	3.4	dB
Output Return Loss ⁶	-	0	26	13	23	-	dB

^[1]^[2]^[3]^[4]^[5]^[6] Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in eval and de-embedded to the CSP1 pad interface.
