MEQ6-45CSP1

Chip Scale Package MMIC 45 GHz Equalizer

The MEQ6-45CSP1 is a passive MMIC equalizer CSP ideal for compensating for low pass filtering effects in RF/microwave and high speed digital systems. The MEQ6-45CSP1 provides positive slope from DC to 45GHz with a DC attenuation of 6dB. The chip scale package allows for extreme miniaturization of the SMT footprint. The unique design offers superior return loss to competitors in an extremely small footprint. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.

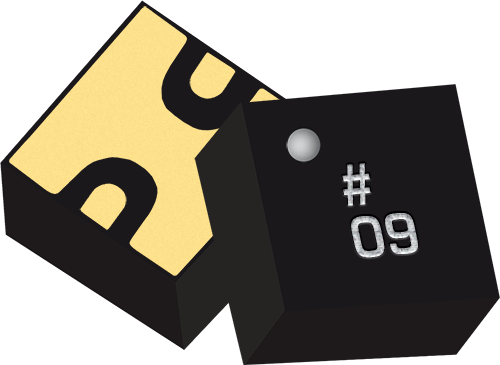

Product Variant : MEQ6-45CSP1
Sorted by: No sorting applied
EVB-MEQ6-45

-

045---Released
MEQ6-45CSP1

-

0456171.50 x 1.50 mmReleased
