MEQ6-26CSP1
Chip Scale Package MMIC 26 GHz Equalizer
The MEQ6-26CSP1 is a passive surface mount GaAs MMIC equalizer in a chip scale package (CSP). This equalizer is deal for compensating for low pass filtering effects in RF/microwave and high-speed digital systems. The MEQ6-26CSP1 provides positive slope from DC to 26GHz with a DC attenuation of 6dB. The CSP allows for extreme miniaturization of the SMT footprint while providing die-like performance. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0 to 26 | GHz |
| Return Loss | 23 | dB |
| Insertion Loss | 0.3 | dB |
| Insertion Loss at DC | 6 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ6-26CSP1 | Chip Scale Package MMIC 26 GHz Equalizer | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-MEQ6-26 | Evaluation Board, Chip Scale Package MMIC 26 GHz Equalizer | EVB | REACH RoHS | Released | EAR99 |
Electrical Performance Plots are de-embedded to the CSP package ports.
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a SM package with a sine wave input applied to port 1.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0 | 26 | - | - | - | GHz |
| Impedance | - | 0 | 26 | - | 50 | - | Ω |
| Insertion Loss | - | 26 | 26 | - | 0.3 | - | dB |
| Insertion Loss at DC | - | 0 | 0 | - | 6 | - | dB |
| Return Loss | - | 0 | 26 | - | 23 | - | dB |
Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in eval and de-embedded to the CSP1 pad interface.
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Power Handling, at any Port | 2 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: CSP1 | 0.04g |
| Dimensions | - | 1.50 x 1.50 mm |
| Moisture Sensitivity Level | - | MSL 3 |
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 1 | Input/Output | Pin 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Pin 2 | Output/Input | Pin 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |

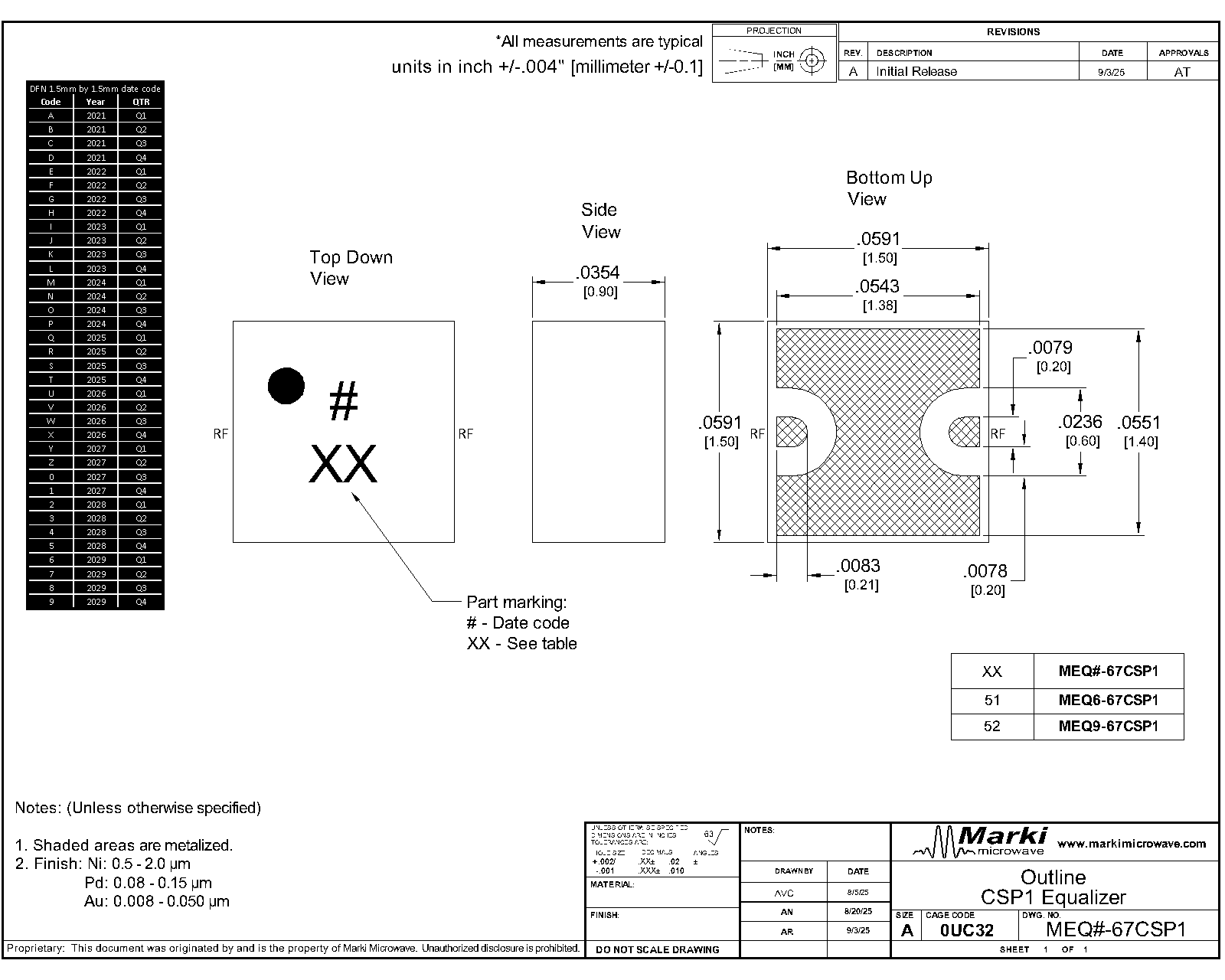

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Download : Footprint Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2022-04-01 | Datasheet Initial Release |
| A | 2023-02-01 | Package Description Updated |
