Port Diagram
An x-ray view of the MEQ20-20CSP1 package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MEQ20-20CSP1 is a passive MMIC equalizer CSP ideal for compensating for low pass filtering effects in RF/microwave and high speed digital systems. The MEQ20-20CSP1 provides 18.3dB positive slope equalization from DC to 20GHz with a DC attenuation of 20.3dB. The chip scale package allows for extreme miniaturization of the SMT footprint. The unique design offers superior 25dB return loss to competitors in an extremely small footprint. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.
Features
- Small 1.5 x 1.5 mm package size
- DC attenuation of 20.3dB
- Typical Insertion Loss 2.0 dB at 20GHz
- Typical VSWR of 1.12 Over Operating Band
- Low SWaP
- This product embodies Marki Microwave's U.S. Pat. 11,869,858.
Applications
- RF Transceivers
- High-Speed Data
- Telecom
- Cable Loss Compensation
- Amplifier Compensation
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ20-20CSP1 | Chip Scale Package MMIC 20 GHz 20 dB Equalizer | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-MEQ20-20 | Evaluation Board, Chip Scale Package MMIC 20 GHz Equalizer | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ20-20CSP1 | Chip Scale Package MMIC 20 GHz 20 dB Equalizer | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-MEQ20-20 | Evaluation Board, Chip Scale Package MMIC 20 GHz Equalizer | EVB | REACH RoHS | Released | EAR99 |
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-06-13 | Initial Release |
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 1 | Input/Output | Pin 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Pin 2 | Input/Output | Pin 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: CSP1 | 0.04g |
| Dimensions | - | 1.50 x 1.50 mm |
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a SM package with a sine wave input applied to port 1. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss at DC | Temp = 25°C | 0 | 0 | - | 20.3 | - | dB |
| Insertion Loss | Temp = 25°C | 10 | 10 | - | 9.6 | - | dB |
| Insertion Loss | Temp = 25°C | 20 | 20 | - | 2.0 | - | dB |
| Equalization Value 1 | Temp = 25°C | 0 | 20 | - | 18.3 | - | dB |
| Return Loss | Temp = 25°C | 0 | 20 | - | 25 | - | dB |
| Group Delay | Temp = 25°C | 0 | 20 | - | 16 | - | ps |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss at DC | Temp = 25°C | 0 | 0 | - | 20.3 | - | dB |
| Insertion Loss | Temp = 25°C | 10 | 10 | - | 9.6 | - | dB |
| Insertion Loss | Temp = 25°C | 20 | 20 | - | 2.0 | - | dB |
| Equalization Value 1 | Temp = 25°C | 0 | 20 | - | 18.3 | - | dB |
| Return Loss | Temp = 25°C | 0 | 20 | - | 25 | - | dB |
| Group Delay | Temp = 25°C | 0 | 20 | - | 16 | - | ps |
[1] Equalization Value = Max Insertion Loss - Min Insertion Loss
Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in EVB package and de-embedded to the CSP1 pad interface.
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer

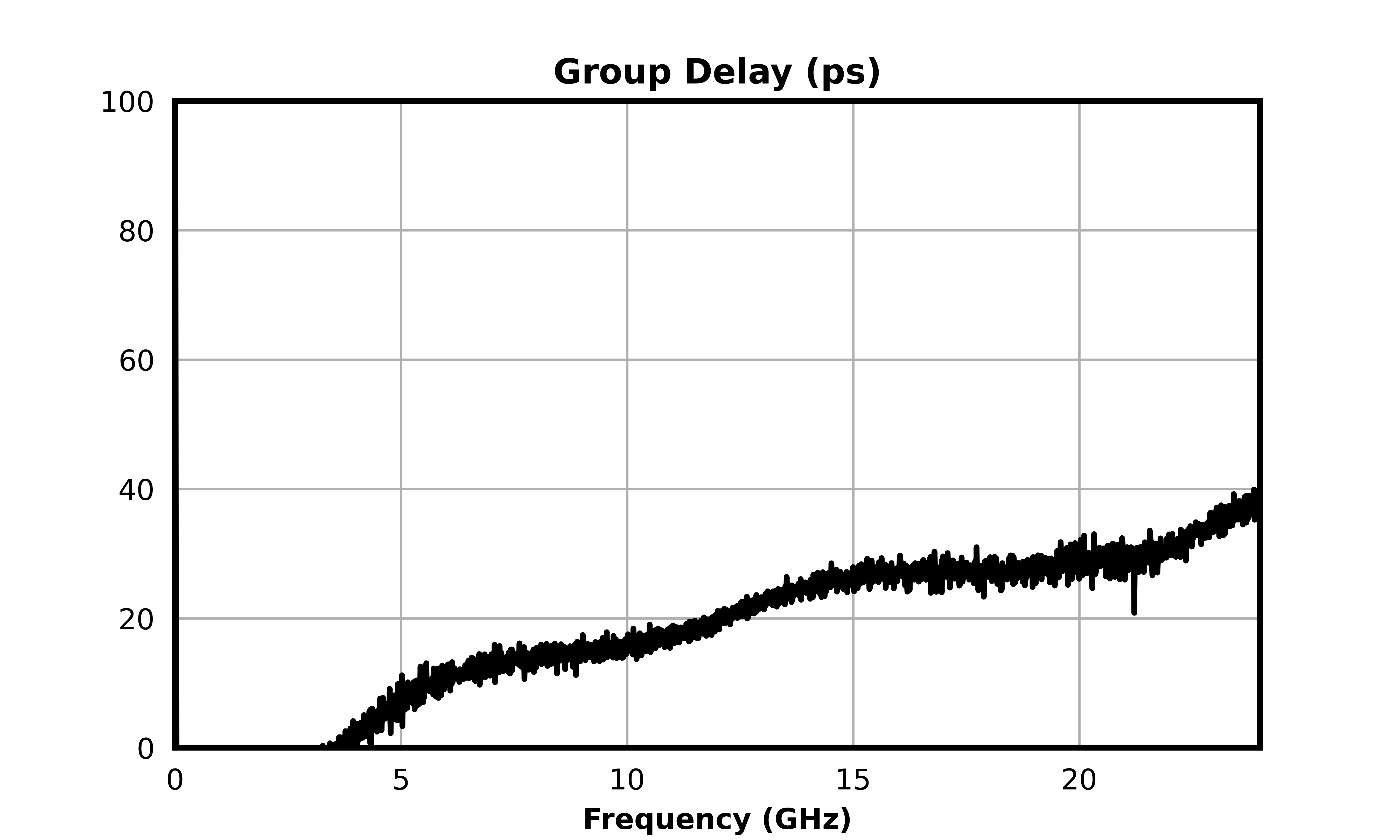

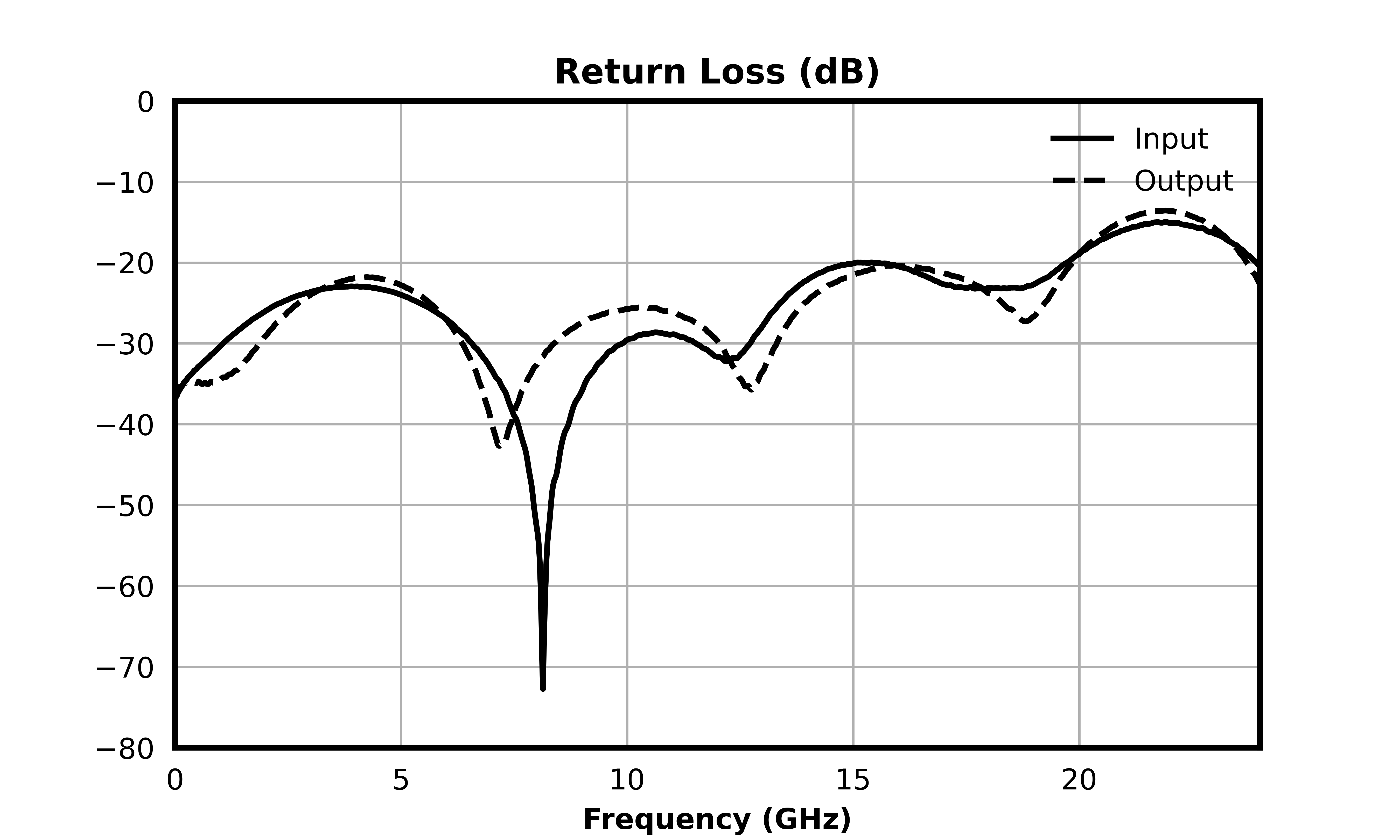

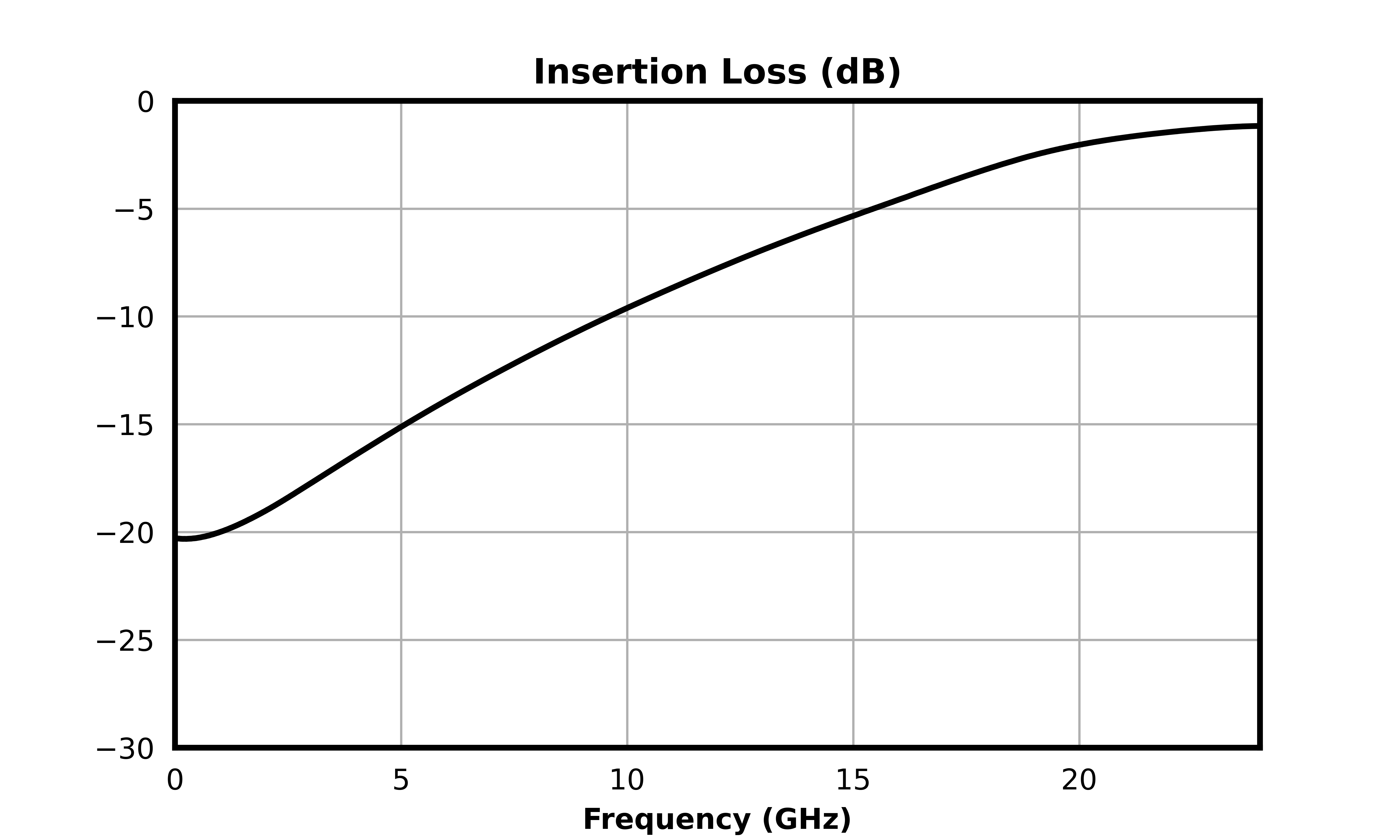

Typical Performance Plot
.png)
.png)
.png)
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer

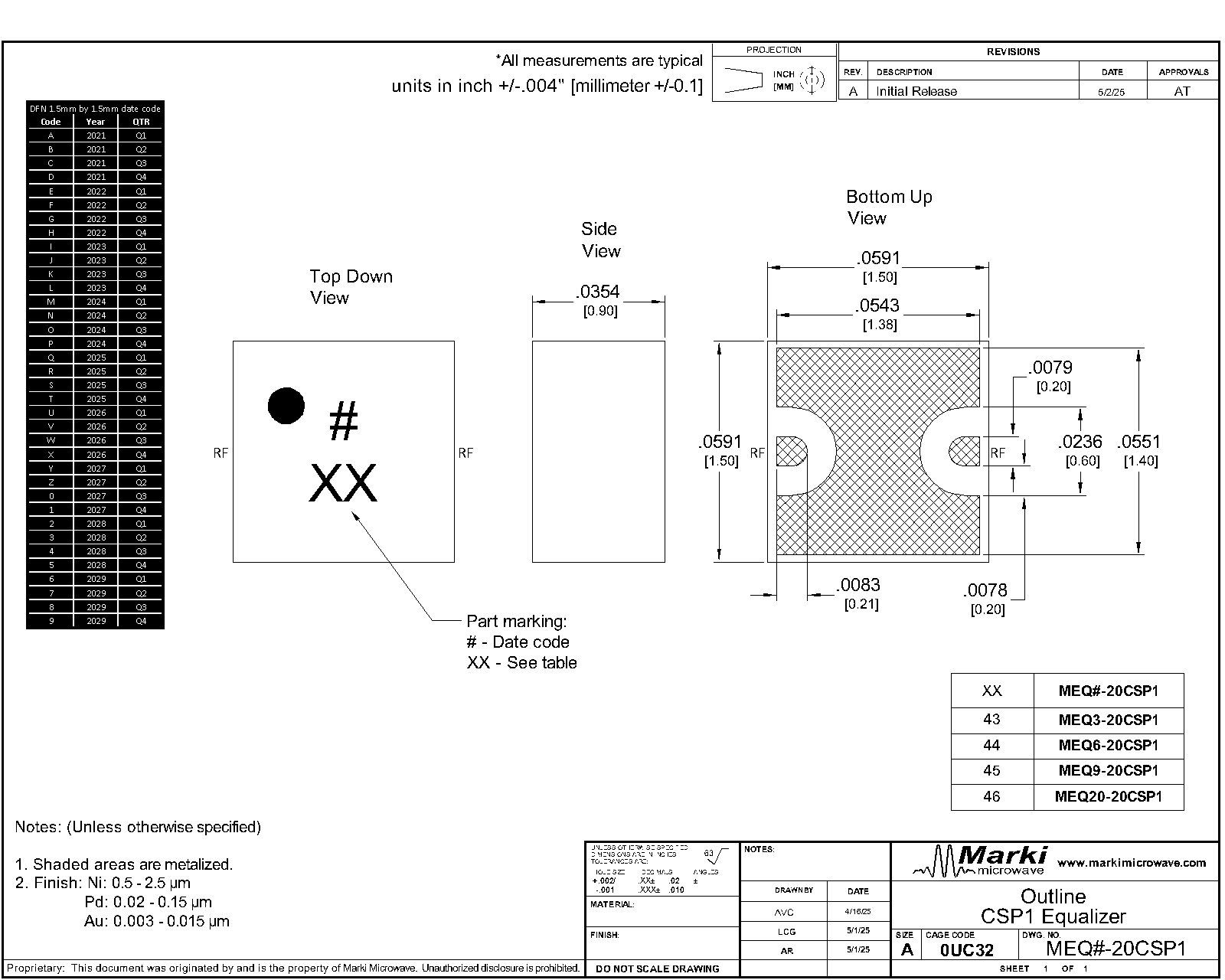

Mechanical Data
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer
Footprint Image
Download : Footprint Drawing
MEQ20-20CSP1
Chip Scale Package MMIC 20 GHz 20 dB Equalizer

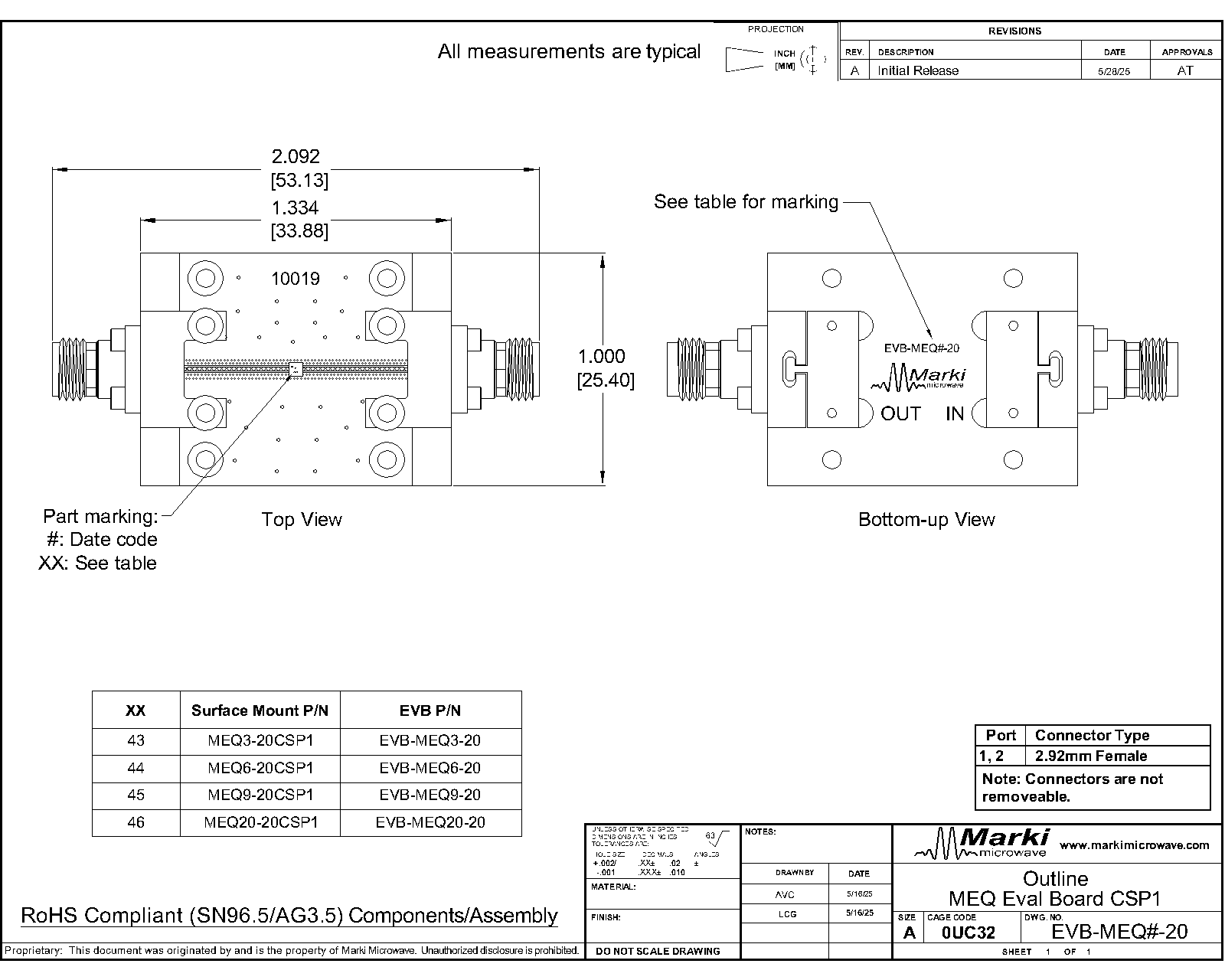

Evaluation Board - Outline Drawing
