Device Overview

General Description

The MEQ14-14ASM passive MMIC equalizer QFN is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. It provides positive slope from DC to 14GHz with DC attenuation 14dB. The unique design offers superior return loss to competitors. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.

Photo of MEQ14-14ASM

Features

  • Other DC attenuation options of 3, 6, 10dB available
  • Typical Insertion Loss 1.3 dB at 14GHz
  • VSWR < 1.12:1 Over Entire Band

Applications

  • High-Speed Data
  • RF Transceivers
  • Telecom
  • Cable Loss Compensation
  • Amplifier Compensation

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackagePacking SizeGreen StatusProduct LifecycleExport Classification
MEQ14-14ASMPassive GaAs MMIC 14 GHz EqualizerQFN-

REACH

RoHS

ReleasedEAR99
EVAL-MEQ14-14AEvaluation Board, Passive GaAs MMIC 14 GHz EqualizerEVAL-

REACH

RoHS

ReleasedEAR99
MEQ14-14ASM-TRTape and Reel, Passive GaAs MMIC 14 GHz EqualizerQFN7"

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2024-07-26Initial Release

Rev: - | Copyright © 2024 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

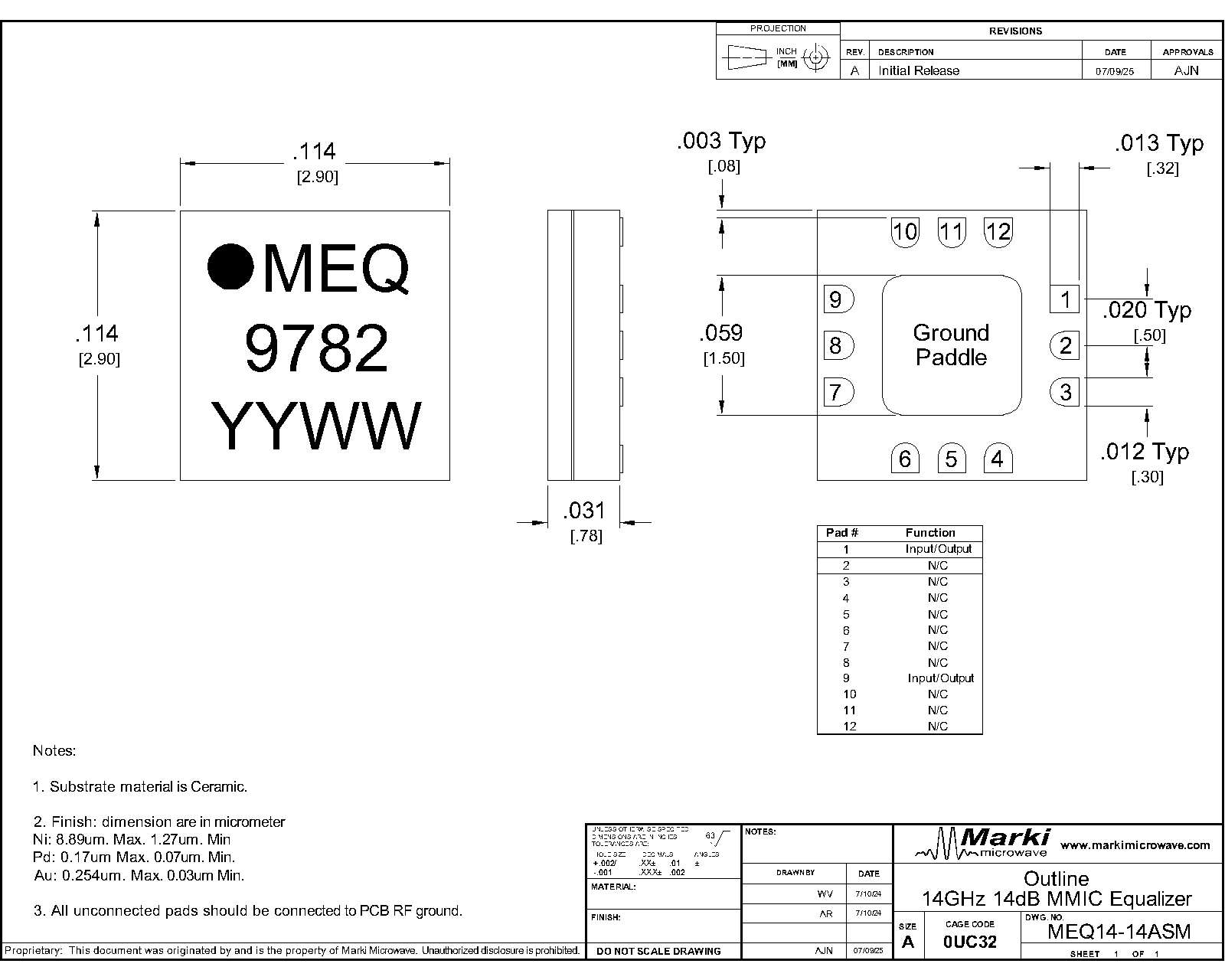

A bottom-up view of the MEQ14-14ASM package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.

Diagram of the port configuration for MEQ14-14ASM

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
GNDGround SM package ground path is provided through the ground paddle.Equivalent circuit for the Ground
Pin 1Input/Output Pin 1 is DC connected to ground through a resistor. DC block is required if voltage present.Equivalent circuit for the Input/Output
Pin 9Input/Output Pin 9 is DC connected to ground through a resistor. DC block is required if voltage present.Equivalent circuit for the Input/Output

Rev: - | Copyright © 2024 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 1 DC Current 40mA
Port 2 DC Current 40mA
Power Handling, at any Port 30dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-3 x 3 mm
Moisture Sensitivity Level-MSL 1

Rev: - | Copyright © 2024 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a SM package with a sine wave input applied to pin 1. Min and Max limits are guaranteed at TA=+25°C.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Insertion Loss Freq=14GHz
14 14-1.3-dB
Insertion Loss at DC Freq=0GHz
0 0-14-dB
Return Loss Freq=0GHz
0 14-29-dB

Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in eval board without de-embedding.

Rev: - | Copyright © 2024 Marki Microwave LLC.

5

Typical Performance Plots

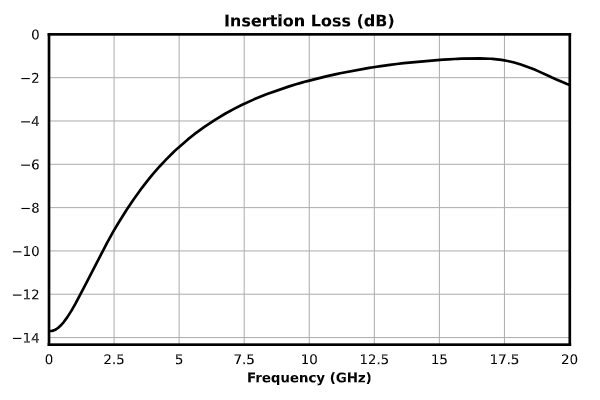

Insertion Loss vs Frequency graph for MEQ14-14ASM

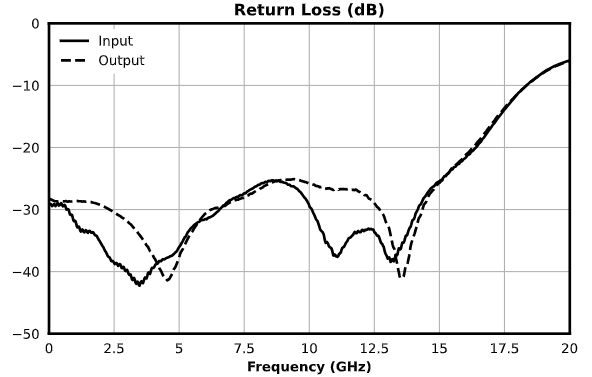

Return Loss vs Frequency graph for MEQ14-14ASM

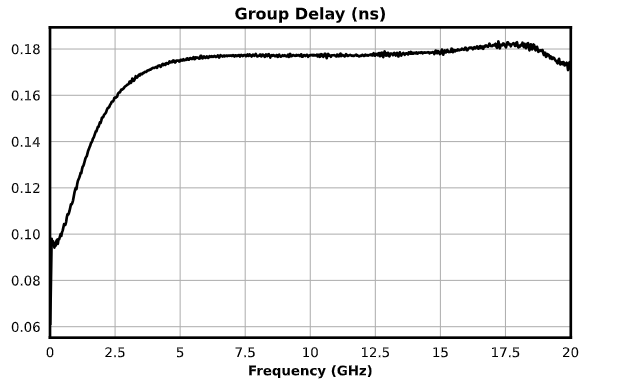

Group Delay vs Frequency graph for MEQ14-14ASM

Rev: - | Copyright © 2024 Marki Microwave LLC.

6

Mechanical Data

Rev: - | Copyright © 2024 Marki Microwave LLC.

7

Rev: - | Copyright © 2024 Marki Microwave LLC.

8

Evaluation Board - Outline Drawing

Outline Drawing
