Port Diagram
A top-down view of the MEQ12-7A CH package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description

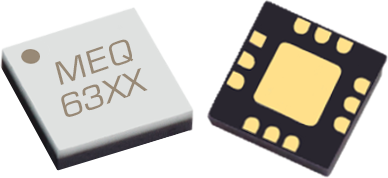

The MEQ12-7ASM passive MMIC equalizer QFN is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. They provide positive slope from DC to 7GHz with DC attenuation options between 3 and 12dB. The unique design offers superior return loss to competitors. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.
Features
- DC attenuation options from 3 to 12dB
- Typical Insertion Loss 1.1dB at 7GHz
- VSWR < 1.5:1 Over Entire Band
Applications
- RF Transceivers
- High-Speed Data
- Telecom
- Cable Loss Compensation
- Amplifier Compensation
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MEQ12-7ASM | Passive GaAs MMIC 7GHz Equalizer | QFN | - | REACH RoHS | Released | EAR99 |
| EVAL-MEQ12-7A | Evaluation Board, Passive GaAs MMIC 7 GHz Equalizer | EVAL | - | REACH RoHS | Released | EAR99 |
| MEQ12-7A-TR | Tape and Reel, Passive GaAs MMIC 7GHz Equalizer | QFN | 7" | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MEQ12-7ASM | Passive GaAs MMIC 7GHz Equalizer | QFN | - | REACH RoHS | Released | EAR99 |
| EVAL-MEQ12-7A | Evaluation Board, Passive GaAs MMIC 7 GHz Equalizer | EVAL | - | REACH RoHS | Released | EAR99 |
| MEQ12-7A-TR | Tape and Reel, Passive GaAs MMIC 7GHz Equalizer | QFN | 7" | REACH RoHS | Released | EAR99 |
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-05-01 | Datasheet Initial Release |
| A | 2018-08-01 | Added EVAL Outline Section |
| B | 2018-11-01 | Updated EVAL Outline Section |
| C | 2019-03-01 | Updated ESD Rating |
| D | 2019-05-01 | Added Package Dimension Tolerance Spec |
| E | 2019-08-01 | Added SM Footprint |
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 1 | RF Input / Output | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Pin 9 | RF Input / Output | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 40 | mA |
| Port 2 DC Current | 40 | mA |
| Power Handling, at any Port | 30 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a CH package with a sine wave input applied to port 1. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=7GHz | 7 | 7 | - | 1.3 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 12.5 | - | dB |
| Return Loss | Freq=0-7GHz | 0 | 7 | - | 27 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=7GHz | 7 | 7 | - | 1.3 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 12.5 | - | dB |
| Return Loss | Freq=0-7GHz | 0 | 7 | - | 27 | - | dB |
Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in eval board without de-embedding.
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer
Typical Performance Plots
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer
Mechanical Data
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer

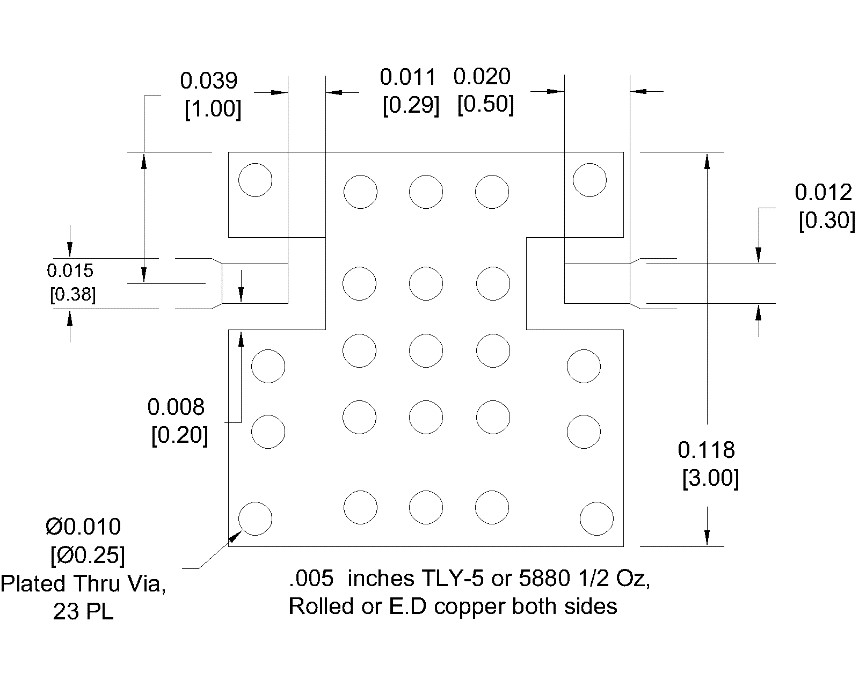

Footprint Image
Download : Footprint Drawing
MEQ12-7ASM
Passive GaAs MMIC 7GHz Equalizer
Evaluation Board - Outline Drawing
