Port Diagram

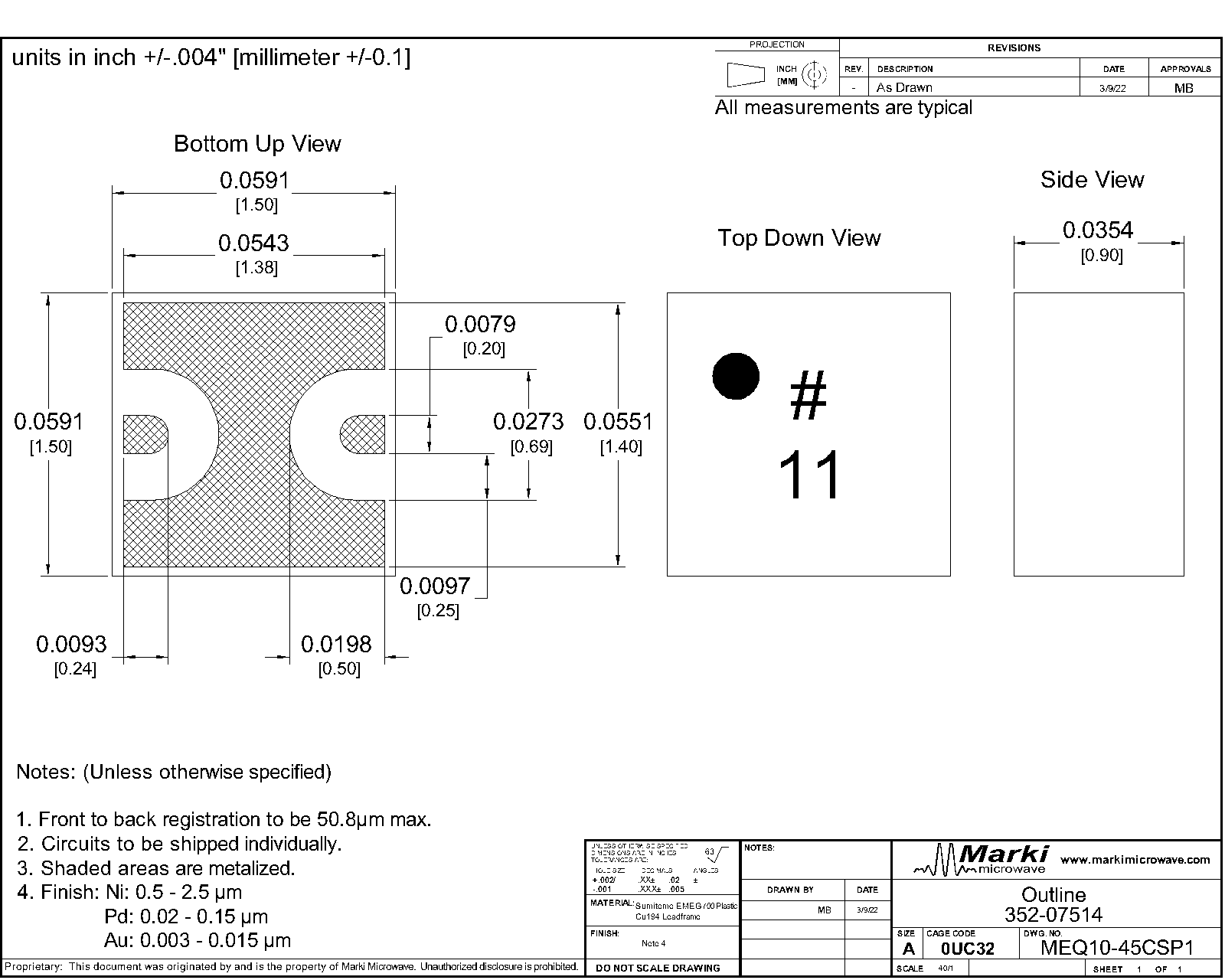

An x-ray view of the MEQ10-45CSP1 package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MEQ10-45CSP1 is a passive MMIC equalizer CSP ideal for compensating for low pass filtering effects in RF/microwave and high speed digital systems. The MEQ10-45CSP1 provides positive slope from DC to 45GHz with a DC attenuation of 10dB. The new chip scale package allows for extreme miniaturization of the SMT footprint. The unique design offers superior return loss to competitors in an extremely small footprint. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.
Features
- Small 1.5 x 1.5 mm package size
- DC attenuation of 10dB
- Typical Insertion Loss 0.7 dB at 45GHz
- Typical VSWR of 1.5 Over Operating Band
- Low SWaP
- This product embodies Marki Microwave's U.S. Pat. 11,869,858.
Applications
- RF Transceivers
- High-Speed Data
- Telecom
- Cable Loss Compensation
- Amplifier Compensation
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MEQ10-45CSP1 | Chip Scale Package MMIC 45 GHz Equalizer | CSP1 | - | REACH RoHS | Released | EAR99 |
| EVB-MEQ10-45 | Evaluation Board, Chip Scale Package MMIC 45 GHz Equalizer | EVB | - | REACH RoHS | Released | EAR99 |
| MEQ10-45CSP1-TR | Tape and Reel, Chip Scale Package MMIC 45 GHz Equalizer | CSP1 | 13" | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MEQ10-45CSP1 | Chip Scale Package MMIC 45 GHz Equalizer | CSP1 | - | REACH RoHS | Released | EAR99 |
| EVB-MEQ10-45 | Evaluation Board, Chip Scale Package MMIC 45 GHz Equalizer | EVB | - | REACH RoHS | Released | EAR99 |
| MEQ10-45CSP1-TR | Tape and Reel, Chip Scale Package MMIC 45 GHz Equalizer | CSP1 | 13" | REACH RoHS | Released | EAR99 |
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2022-03-01 | Datasheet Initial Release |
| A | 2022-06-01 | Outline Drawing and evaluation board name updated |
| B | 2023-02-01 | Package Description Updated |
| C | 2026-03-05 | ESD Class Added |
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 1 | Input/Output | Pin 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Pin 2 | Input/Output | Pin 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 1000 to < 2000 Volts | HBM Class 1C |
| Dimensions | - | 1.5 x 1.5 mm |
| Moisture Sensitivity Level | - | MSL 3 |
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a SM package with a sine wave input applied to port 1. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance | - | 0 | 45 | - | 50 | - | Ω |
| Insertion Loss | - | 45 | 45 | - | 0.7 | - | dB |
| Insertion Loss at DC | - | 0 | 0 | - | 10 | - | dB |
| Return Loss | - | 0 | 45 | - | 13 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance | - | 0 | 45 | - | 50 | - | Ω |
| Insertion Loss | - | 45 | 45 | - | 0.7 | - | dB |
| Insertion Loss at DC | - | 0 | 0 | - | 10 | - | dB |
| Return Loss | - | 0 | 45 | - | 13 | - | dB |
Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in EVB package and de-embedded to the CSP1 pad interface.
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Typical Performance Plots
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Mechanical Data
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Footprint Image
Download : Footprint Drawing
MEQ10-45CSP1
Chip Scale Package MMIC 45 GHz Equalizer
Evaluation Board - Outline Drawing
