MMPX-00002PSM_Passive MMIC DC-18 GHz Quadplexer

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MMPX-00002PSM	Passive MMIC DC-18 GHz Quadplexer	QFN	RoHS REACH	Released	EAR99
EVB-MMPX-00002P	Evaluation Board, Passive MMIC 4-18 GHz Quadplexer	EVB	RoHS REACH	Released	EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MMPX-00002PSM	Passive MMIC DC-18 GHz Quadplexer	QFN	RoHS REACH	Released	EAR99
EVB-MMPX-00002P	Evaluation Board, Passive MMIC 4-18 GHz Quadplexer	EVB	RoHS REACH	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2024-07-09	Datasheet Initial Release

Port Configuration and Functions

Port Functions

Port	Function	Description
Ground Paddle	Ground	PSM package ground path is provided through the substrate and ground bond pads.
Pin 15	Input/common	Pin 15 is DC short to Pin 29 and open to all other ports and ground.
Pin 2	Band 1 Input/Output	Pin 2 is DC short to Pin 15 and open to all other ports and ground.
Pin 29	Band 3 Input/Output	Pin 29 is DC open to all other ports and ground.
Pin 33	Band 4 Input/Output	Pin 33 is DC open to all other ports and ground.
Pin 37	Band 2 Input/Output	Pin 37 is DC open to all other ports and ground.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. All Absolute Maximum Ratings are individual and should not be met in parallel. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
RF Power Handling	30	dBm

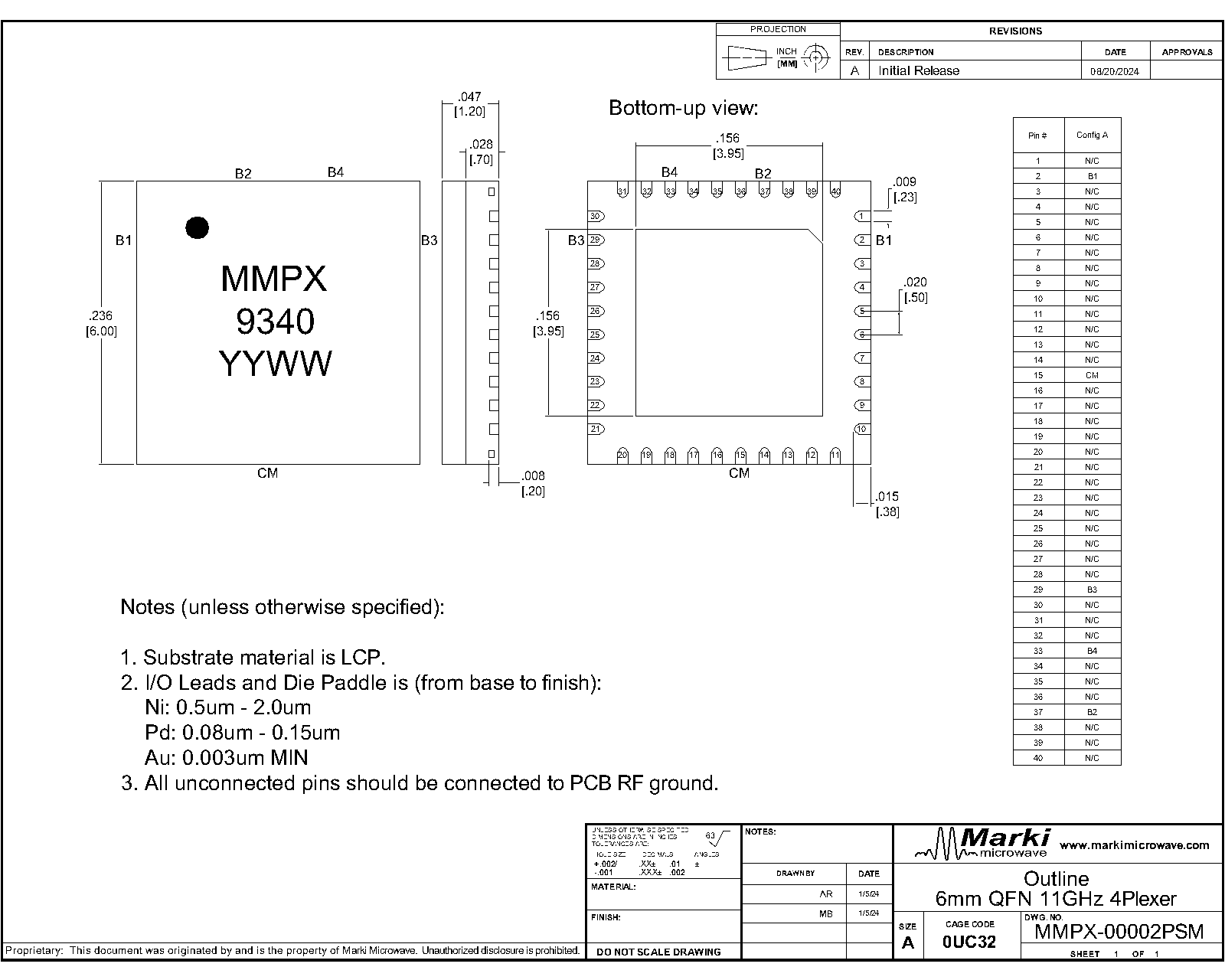

Package Information

Parameter	Details	Rating
ESD	< 50 Volts	HBM 0Z
Dimensions	-	6 x 6 mm
Moisture Sensitivity Level	-	MSL 1

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a PSM package with a sine wave input applied to Pin 15. Min and Max limits are guaranteed at TA=+25°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc High Passband	Temp = 25°C	-	-	7.11	-	-	GHz
3 dBc High Passband	Temp = 25°C	-	-	6.98	-	-	GHz
30 dBc High Pass Rejection Point	Temp = 25°C	-	-	6.08	-	-	GHz
High Passband Return Loss	Temp = 25°C	-	-	-	8	-	dB
High Pass Isolation	Temp = 25°C	-	-	-	9	-	dB
High Pass Group Delay	Temp = 25°C	-	-	-	992	-	ps
1 dBc Low Passband	Temp = 25°C	-	-	-	-	5.09	GHz
3 dBc Low Passband	Temp = 25°C	-	-	-	-	6.77	GHz
30 dBc Low Pass Rejection Point	Temp = 25°C	-	-	-	-	7.94	GHz
Low Passband Return Loss	Temp = 25°C	-	-	-	21	-	dB
Low Pass Isolation	Temp = 25°C	-	-	-	40	-	dB
Low Pass Group Delay	Temp = 25°C	-	-	-	227	-	ps
Crossover Isolation	Temp = 25°C	-	-	-	16	-	dB
Crossover Frequency	Temp = 25°C	-	-	-	8.59	-	GHz
Common Port Return Loss	Temp = 25°C	-	-	-	9	-	dB
Impedance	Temp = 25°C	-	-	-	50	-	Ω
Band 1	-	-	-	0	-	6	GHz
Band 2	-	-	-	8	-	10	GHz
Band 3	-	-	-	12	-	14	GHz
Band 4	-	-	-	16	-	18	GHz
Center Frequency	Band 1	0	6	-	3	-	GHz
Center Frequency	Band 2	8	10	-	9.1	-	GHz
Center Frequency	Band 3	12	14	-	13	-	GHz
Center Frequency	Band 4	16	18	-	17	-	GHz
Cross Over Frequency	Band 1 to Band 2	-	-	-	7.3	-	GHz
Cross Over Frequency	Band 2 to Band 3	-	-	-	11.2	-	GHz
Cross Over Frequency	Band 3 to Band 4	-	-	-	15	-	GHz
Group Delay	Band 1	0	6	-	227	-	ps
Group Delay	Band 2	8	10	-	344	-	ps
Group Delay	Band 3	12	14	-	243	-	ps
Group Delay	Band 4	16	18	-	181	-	ps
Insertion Loss @ fc	Band 1	0	6	-	0.8	-	dB
Insertion Loss @ fc	Band 2	8	10	-	2.3	-	dB
Insertion Loss @ fc	Band 3	12	14	-	2.2	-	dB
Insertion Loss @ fc	Band 4	16	18	-	2.1	-	dB
Return Loss	Band 1	0	6	-	21	-	dB
Return Loss	Band 2	8	10	-	20	-	dB
Return Loss	Band 3	12	14	-	16	-	dB
Return Loss	Band 4	16	18	-	17	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc High Passband	Temp = 25°C	-	-	7.11	-	-	GHz
3 dBc High Passband	Temp = 25°C	-	-	6.98	-	-	GHz
30 dBc High Pass Rejection Point	Temp = 25°C	-	-	6.08	-	-	GHz
High Passband Return Loss	Temp = 25°C	-	-	-	8	-	dB
High Pass Isolation	Temp = 25°C	-	-	-	9	-	dB
High Pass Group Delay	Temp = 25°C	-	-	-	992	-	ps
1 dBc Low Passband	Temp = 25°C	-	-	-	-	5.09	GHz
3 dBc Low Passband	Temp = 25°C	-	-	-	-	6.77	GHz
30 dBc Low Pass Rejection Point	Temp = 25°C	-	-	-	-	7.94	GHz
Low Passband Return Loss	Temp = 25°C	-	-	-	21	-	dB
Low Pass Isolation	Temp = 25°C	-	-	-	40	-	dB
Low Pass Group Delay	Temp = 25°C	-	-	-	227	-	ps
Crossover Isolation	Temp = 25°C	-	-	-	16	-	dB
Crossover Frequency	Temp = 25°C	-	-	-	8.59	-	GHz
Common Port Return Loss	Temp = 25°C	-	-	-	9	-	dB
Impedance	Temp = 25°C	-	-	-	50	-	Ω
Band 1	-	-	-	0	-	6	GHz
Band 2	-	-	-	8	-	10	GHz
Band 3	-	-	-	12	-	14	GHz
Band 4	-	-	-	16	-	18	GHz
Center Frequency	Band 1	0	6	-	3	-	GHz
Center Frequency	Band 2	8	10	-	9.1	-	GHz
Center Frequency	Band 3	12	14	-	13	-	GHz
Center Frequency	Band 4	16	18	-	17	-	GHz
Cross Over Frequency	Band 1 to Band 2	-	-	-	7.3	-	GHz

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Cross Over Frequency	Band 2 to Band 3	-	-	-	11.2	-	GHz
Cross Over Frequency	Band 3 to Band 4	-	-	-	15	-	GHz
Group Delay	Band 1	0	6	-	227	-	ps
Group Delay	Band 2	8	10	-	344	-	ps
Group Delay	Band 3	12	14	-	243	-	ps
Group Delay	Band 4	16	18	-	181	-	ps
Insertion Loss @ fc	Band 1	0	6	-	0.8	-	dB
Insertion Loss @ fc	Band 2	8	10	-	2.3	-	dB
Insertion Loss @ fc	Band 3	12	14	-	2.2	-	dB
Insertion Loss @ fc	Band 4	16	18	-	2.1	-	dB
Return Loss	Band 1	0	6	-	21	-	dB
Return Loss	Band 2	8	10	-	20	-	dB
Return Loss	Band 3	12	14	-	16	-	dB
Return Loss	Band 4	16	18	-	17	-	dB
