Device Overview
General Description
Available in either a connectorized or miniature surface mount package (0.240 inch x 0.150 inch), the DPX-1 is a low cost, high performance diplexer. The unique design offers high pass/low pass signal routing/multiplexing with excellent isolation. Passband insertion loss is less than 1 dB with rejection typically exceeding 25 dB. Besides being ideal for transmitter/receiver applications, the DPX-1 can also be used as an excellent non-reflective low pass (or high pass) filter for systems requiring broadband 50Ω impedance match (such as mixers).
Features
- Low Insertion Loss
- Superior Repeatability
- Low Profile Miniaturized, Reflow Solderable Package Option
- User defined cross over frequencies available
Applications
- Reflectionless Filter Applications
- RF Transceivers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| DPX-1-2 | Diplexer | DPX | RoHS REACH | Released | EAR99 |
| DPX-1-1 | Diplexer | DPX | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| DPX-1-2 | Diplexer | DPX | RoHS REACH | Released | EAR99 |
| DPX-1-1 | Diplexer | DPX | RoHS REACH | Released | EAR99 |
DPX-1-1
Diplexer
Table Of Contents
DPX-1-1
Diplexer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | DPX package ground is provided through the substrate and ground bond pads. |  |
| Pin 1 | RF High Band | Pin 1 is DC open to Pin 2 and Pin 3. |  |
| Pin 2 | Common/Input | Pin 2 is DC open to Pin 1 and short to Pin 3. |  |
| Pin 3 | RF Low Band | Pin 3 is DC open to Pin 1 and short to Pin 2. | |
DPX-1-1
Diplexer
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3.81 x 6.10 mm |
| Moisture Sensitivity Level | - | MSL 3 |
DPX-1-1
Diplexer
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc High Passband | - | - | - | 1.4 | - | 5 | GHz |
| 1 dBc High Passband | - | - | - | 1.4 | - | 5 | GHz |
| 1 dBc Low Passband | - | - | - | 0 | - | 0.85 | GHz |
| 1 dBc Low Passband | - | - | - | 0 | - | 0.85 | GHz |
| 30 dBc Low Pass Rejection Point | - | - | 0.6 | 24 | 30 | - | dB |
| 30 dBc Low Pass Rejection Point | - | - | 0.85 | - | 18 | - | dB |
| Common Port Return Loss | - | - | 0.85 | - | 20 | - | dB |
| Common Port Return Loss | - | 1.4 | 5 | - | 15 | - | dB |
| Cross Over Frequency | - | 1.1 | 1.1 | - | 5 | - | % |
| High Pass Filter, Pass Band Insertion Loss | - | 1.4 | 5 | - | 0.6 | 1.2 | dB |
| High Pass Filter, Pass Band Return Loss | - | 1.4 | 5 | - | 15 | - | dB |
| Isolation | - | - | 0.75 | 14 | 24 | - | dB |
| Isolation | - | 1.5 | 5 | 14 | 24 | - | dB |
| Low Pass Filter, Pass Band Insertion Loss | - | 0 | 0.85 | - | 0.5 | 1 | dB |
| Low Pass Filter, Pass Band Return Loss | - | - | 0.85 | - | 20 | - | dB |
| Low Pass Filter, Stop Band Rejection | - | 3.3 | 5 | 18 | 22 | - | dB |
| Low Pass Filter, Stop Band Rejection | - | 1.4 | 3.3 | - | 18 | - | dB |
| RF Power | - | - | - | - | - | 1 | W |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc High Passband | - | - | - | 1.4 | - | 5 | GHz |
| 1 dBc High Passband | - | - | - | 1.4 | - | 5 | GHz |
| 1 dBc Low Passband | - | - | - | 0 | - | 0.85 | GHz |
| 1 dBc Low Passband | - | - | - | 0 | - | 0.85 | GHz |
| 30 dBc Low Pass Rejection Point | - | - | 0.6 | 24 | 30 | - | dB |
| 30 dBc Low Pass Rejection Point | - | - | 0.85 | - | 18 | - | dB |
| Common Port Return Loss | - | - | 0.85 | - | 20 | - | dB |
| Common Port Return Loss | - | 1.4 | 5 | - | 15 | - | dB |
| Cross Over Frequency | - | 1.1 | 1.1 | - | 5 | - | % |
| High Pass Filter, Pass Band Insertion Loss | - | 1.4 | 5 | - | 0.6 | 1.2 | dB |
| High Pass Filter, Pass Band Return Loss | - | 1.4 | 5 | - | 15 | - | dB |
| Isolation | - | - | 0.75 | 14 | 24 | - | dB |
| Isolation | - | 1.5 | 5 | 14 | 24 | - | dB |
| Low Pass Filter, Pass Band Insertion Loss | - | 0 | 0.85 | - | 0.5 | 1 | dB |
| Low Pass Filter, Pass Band Return Loss | - | - | 0.85 | - | 20 | - | dB |
| Low Pass Filter, Stop Band Rejection | - | 3.3 | 5 | 18 | 22 | - | dB |
| Low Pass Filter, Stop Band Rejection | - | 1.4 | 3.3 | - | 18 | - | dB |
| RF Power | - | - | - | - | - | 1 | W |
DPX-1-1
Diplexer
Typical Performance
DPX-1-1
Diplexer
Mechanical Data
DPX-1-1
Diplexer

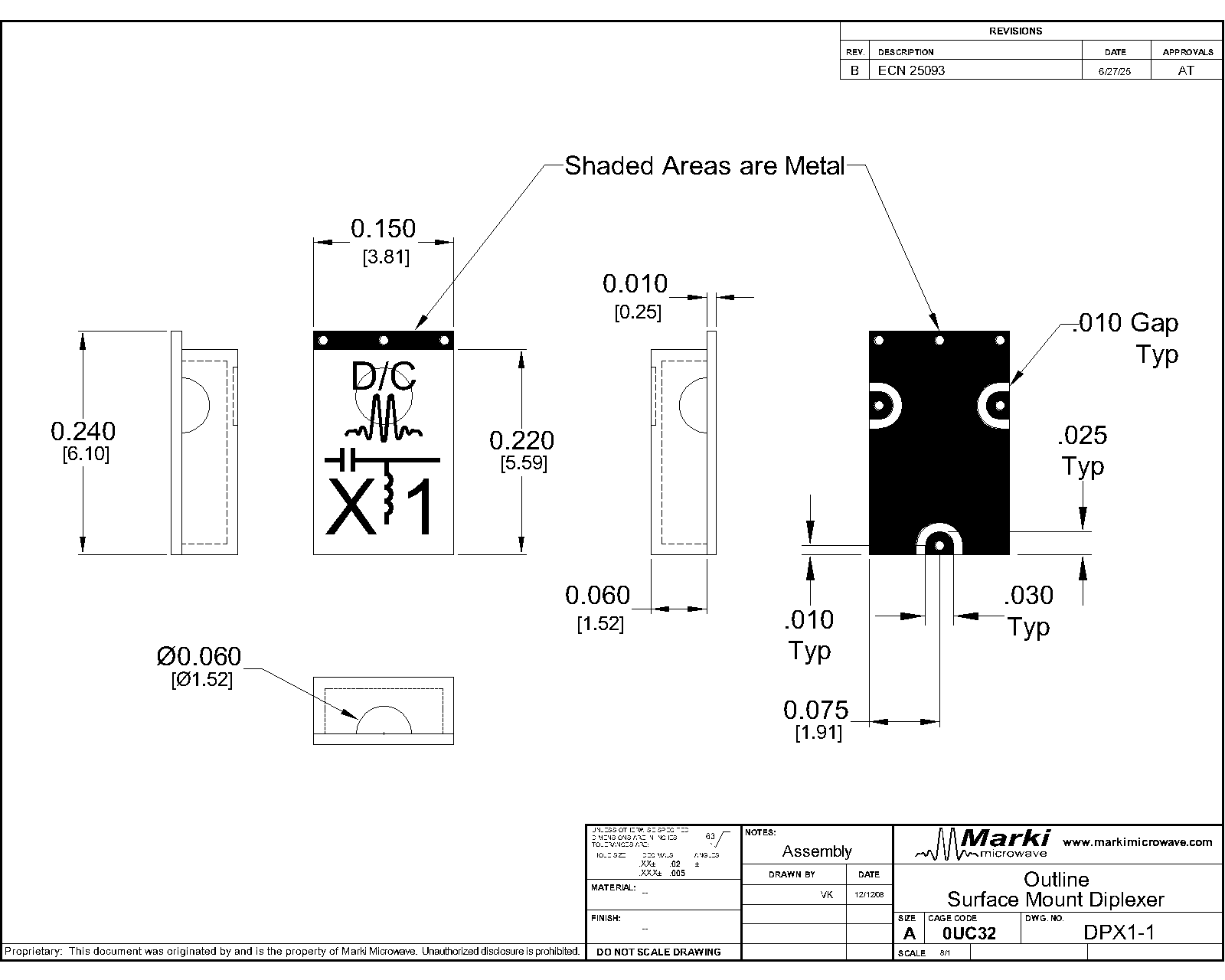

Footprint Image
Download : Footprint Drawing
