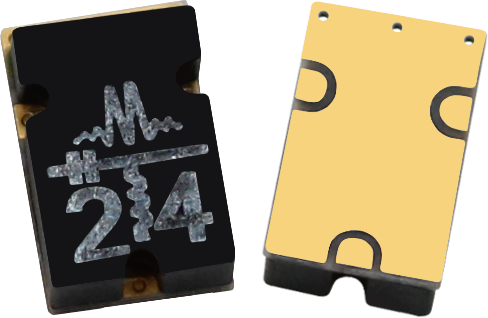

BT-0024SMG-1
Miniature Surface-Mount 0.0005 - 24 GHz Bias-Tee
The BT-0024SMG is a packaged bias tee featuring excellent insertion loss and superior isolations over a broad 500 kHz to 24 GHz bandwidth. Tight fabrication tolerances allow for low unit to unit variation enabling accurate simulations using the provided s3p file taken from measured production units. The bias tee is available in a compact package and is suitable for applications such as amplifier biasing, diode biasing and DC level shifting.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.0005 to 24 | GHz |
| DC Current | 0.5 | A |
| DC Voltage | 30 | V |
| Insertion Loss | 1 | dB |
| DC Port Isolation | 40 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BT-0024SMG-1 | Miniature Surface-Mount 0.0005 - 24 GHz Bias-Tee | SMG | RoHS REACH | Obsolete | EAR99 |
| BT-0024SMG-2 | Miniature Surface-Mount 0.0005 - 24 GHz Bias-Tee | SMG | RoHS REACH | Obsolete | EAR99 |
Specifications guaranteed at +25C, measured in a 50-Ohm system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.0005 | 24 | - | - | - | GHz |
| DC Port Isolation | - | 0.0005 | 24 | - | 40 | - | dB |
| DC Resistance | - | 0.0005 | 24 | - | 1.5 | - | Ω |
| Insertion Loss | - | 0.005 | 24 | - | 1 | 2 | dB |
| Insertion Loss | - | 0.0005 | 0.005 | - | 1 | 6 | dB |
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 0.5 | A |
| DC Voltage | 30 | V |
| Maximum Storage Temperature | 125 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3.81 x 6.10 mm |
| Moisture Sensitivity Level | - | MSL 3 |
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Common | RF+DC | This port is DC blocked to the RF port and DC connected to the DC port through an internal RF choke. |  |
| DC | DC | This port is internally connected to an RF choke which is Dc connected to the RF+DC port and DC blocked to the RF port. | |
| RF | RF | This port is internally DC blocked to the RF+DC and DC ports. | |

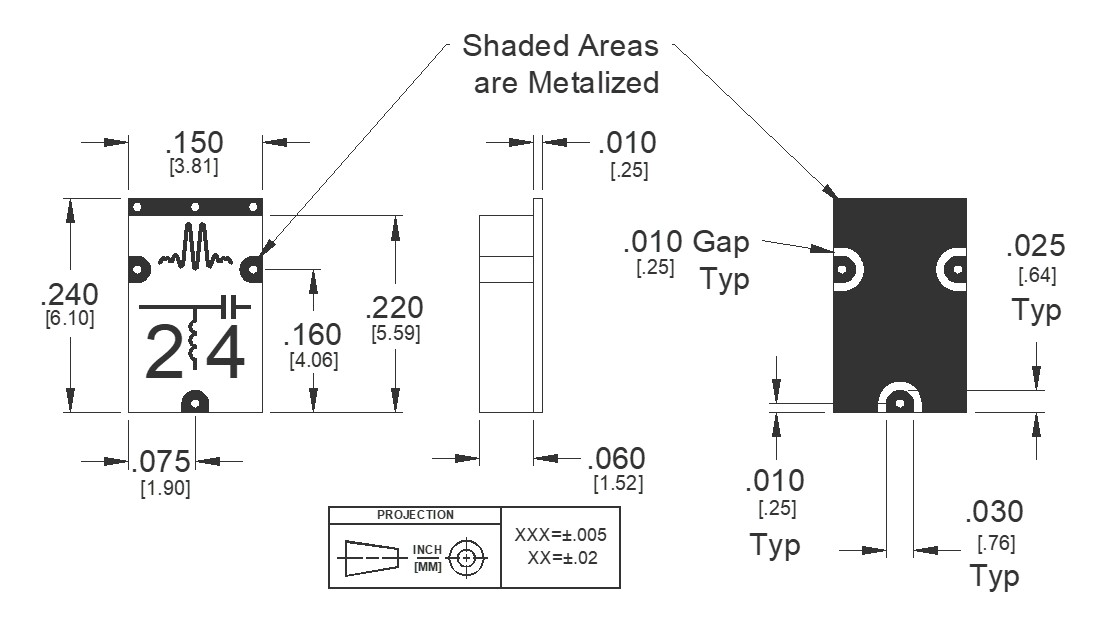

Download : Outline 3D Drawing Outline 3D STP

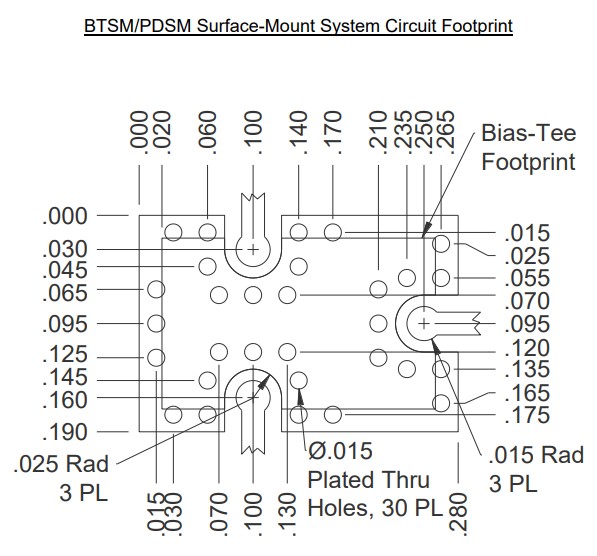

Download : Footprint Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| D | 2020-10-01 | Bias Current plots added |
| E | 2021-10-01 | EOL |
