General Description

The MBAL-0624PSM is a GaAs passive MMIC balun in a DFN surface mount package. This high isolation balun features excellent amplitude and phase balance across its 4 to 22 GHz frequency range and offers a 2:1 impedance ratio. The compact DFN package allows for extreme miniaturization of SMT footprints. The MBAL-0624PSM is an excellent choice for balanced amplifiers, clock distribution, and higher order Nyquist sampling in analog to digital converters.

Features

  • 2:1 Impedance Ratio
  • 6 to 24 GHz (Balanced to Unbalanced Transformer)
  • Insertion Loss as a Mode Converter, 1.7 dB Typical
  • Common Mode Rejection, 28 dB Typical

Functional Block Diagram

Block Diagram
Photo of MBAL-0624PSM

Electrical Performance Summary

ParameterTypUnit
Frequency Range6 to 24GHz
Insertion Loss as a Mode Converter 1.7dB
Phase Balance 3.5°
Amplitude Balance 0.2dB
Impedance Ratio 2:1-
Common Mode Rejection 28dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MBAL-0624PSM6 - 24GHz MMIC Isolation BalunDFN

REACH

RoHS

ReleasedEAR99
EVB-MBAL-0624PEvaluation Board, 6-24 GHz Passive MMIC DFN Package BalunEVB

REACH

RoHS

ReleasedEAR99

Table Of Contents

Mixed Mode Scattering Parameters

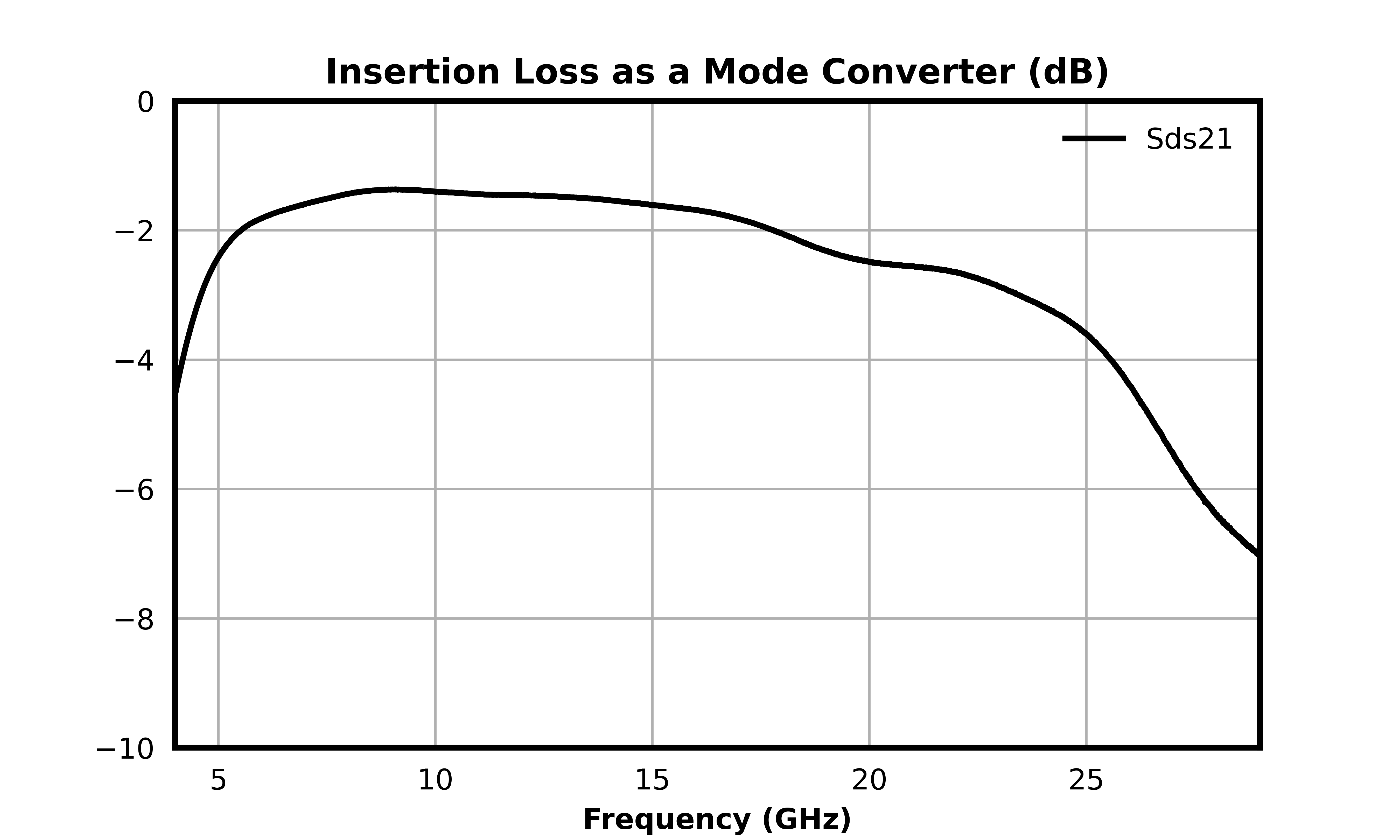

Insertion Loss as a Mode Converter (dB) graph for MBAL-0624PSM

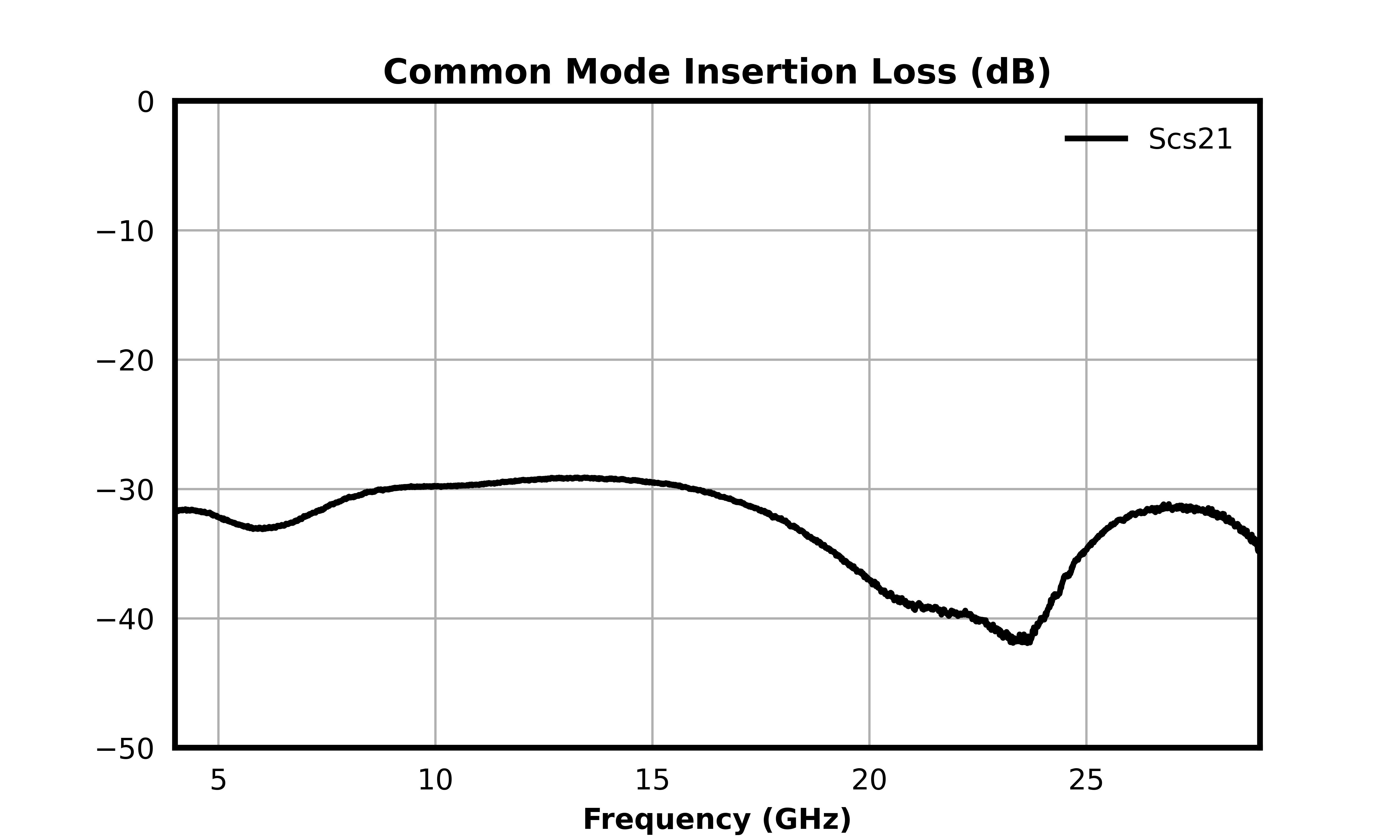

Common Mode Insertion Loss (dB) graph for MBAL-0624PSM

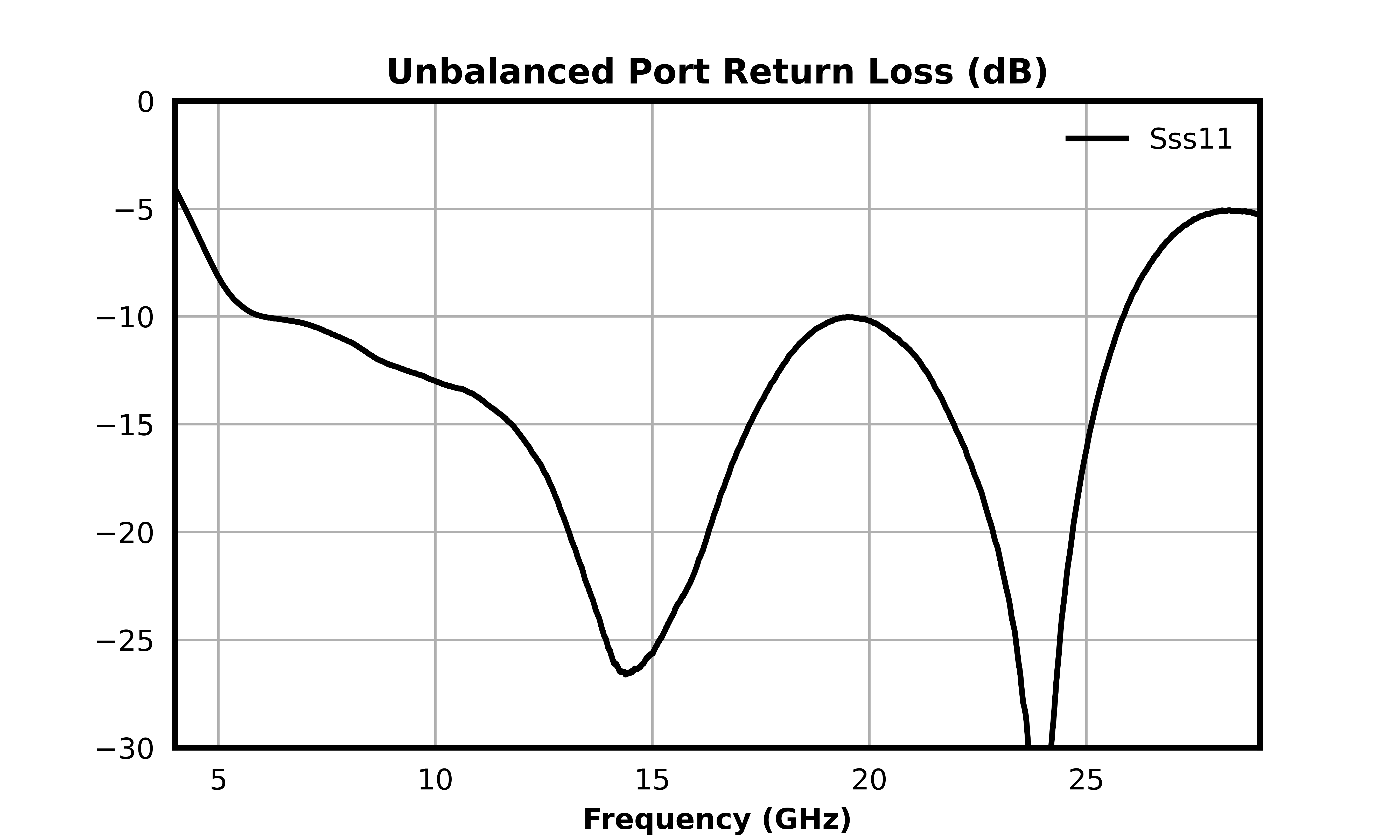

Unbalanced Port Return Loss (dB) graph for MBAL-0624PSM

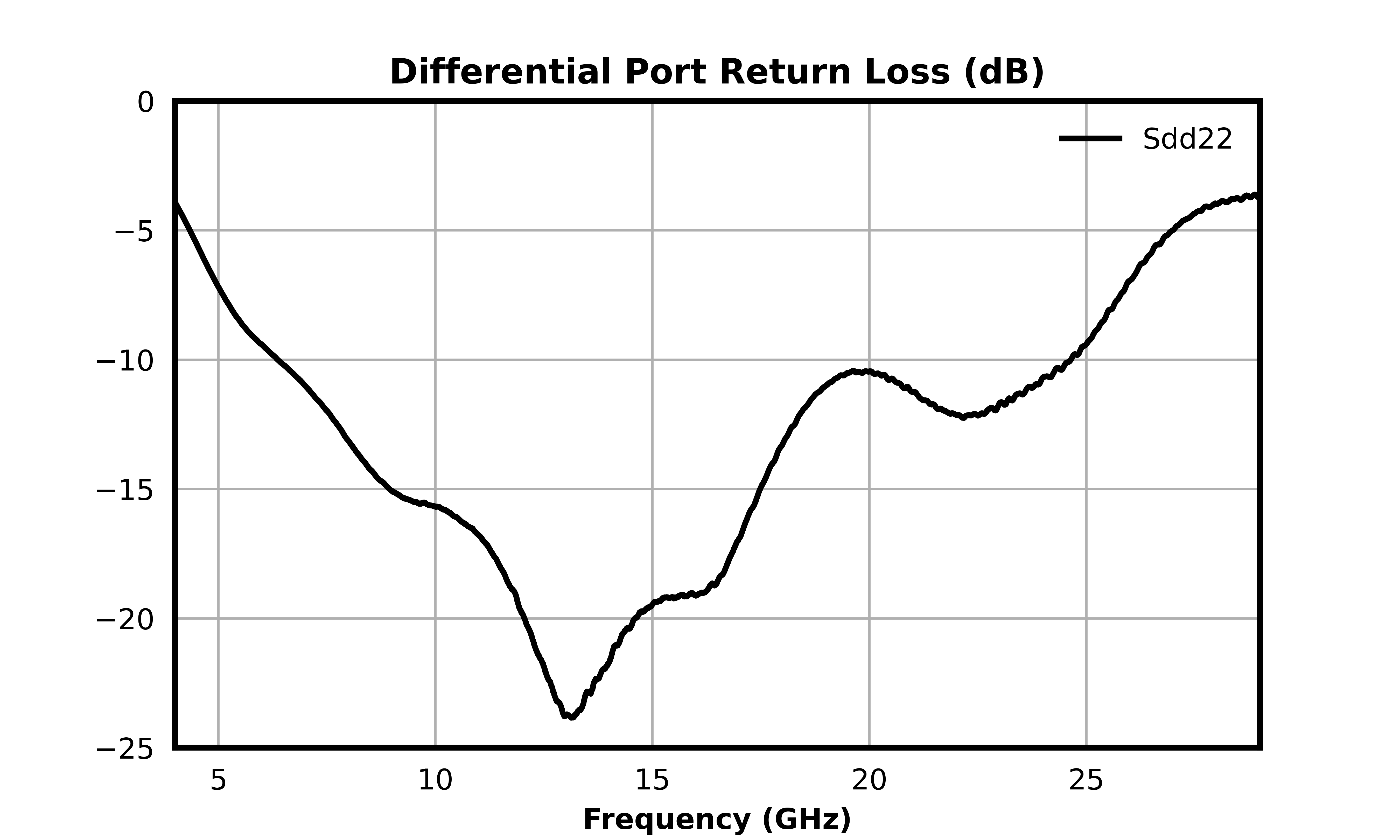

Differential Port Return Loss (dB) graph for MBAL-0624PSM

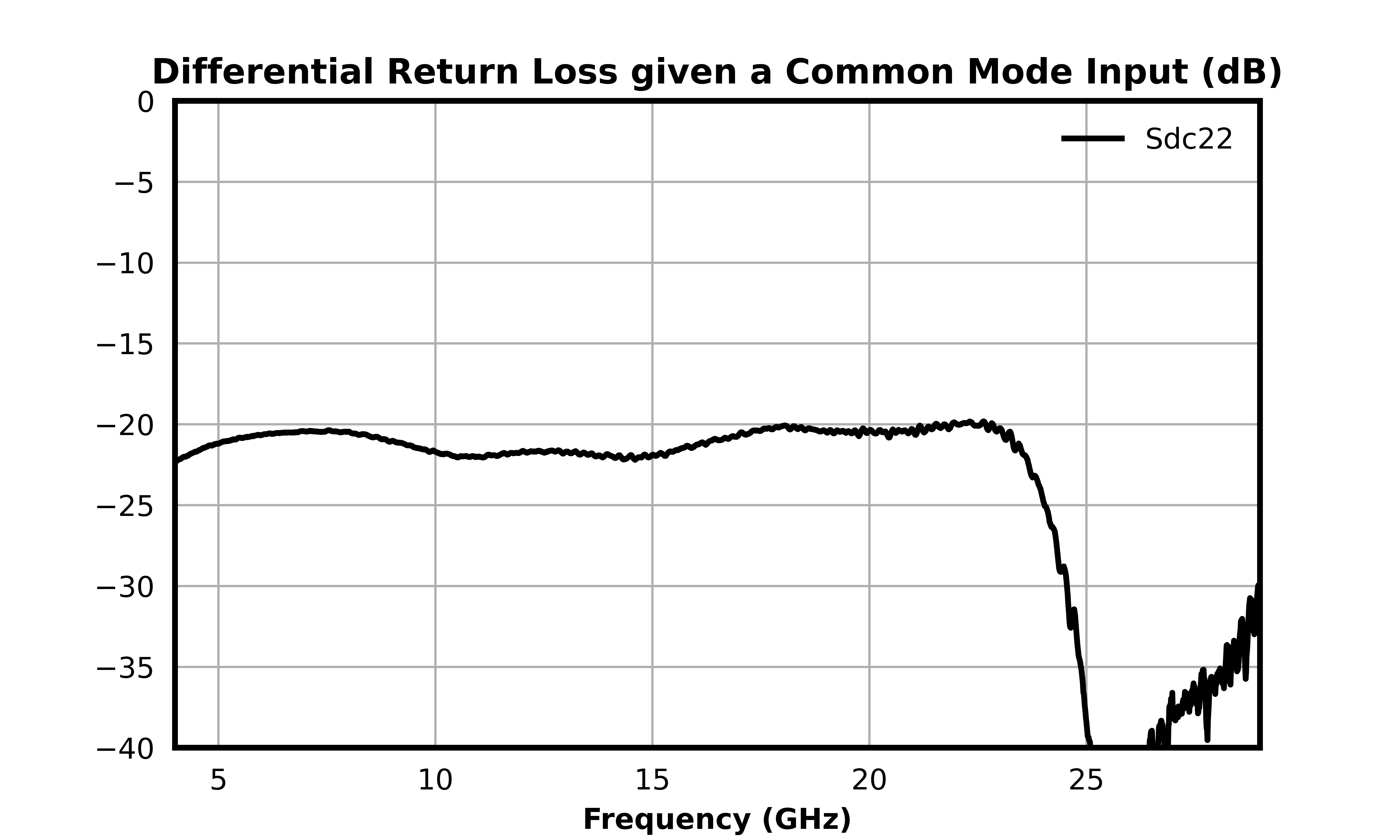

Differential Return Loss given a Common Mode Input (dB) graph for MBAL-0624PSM

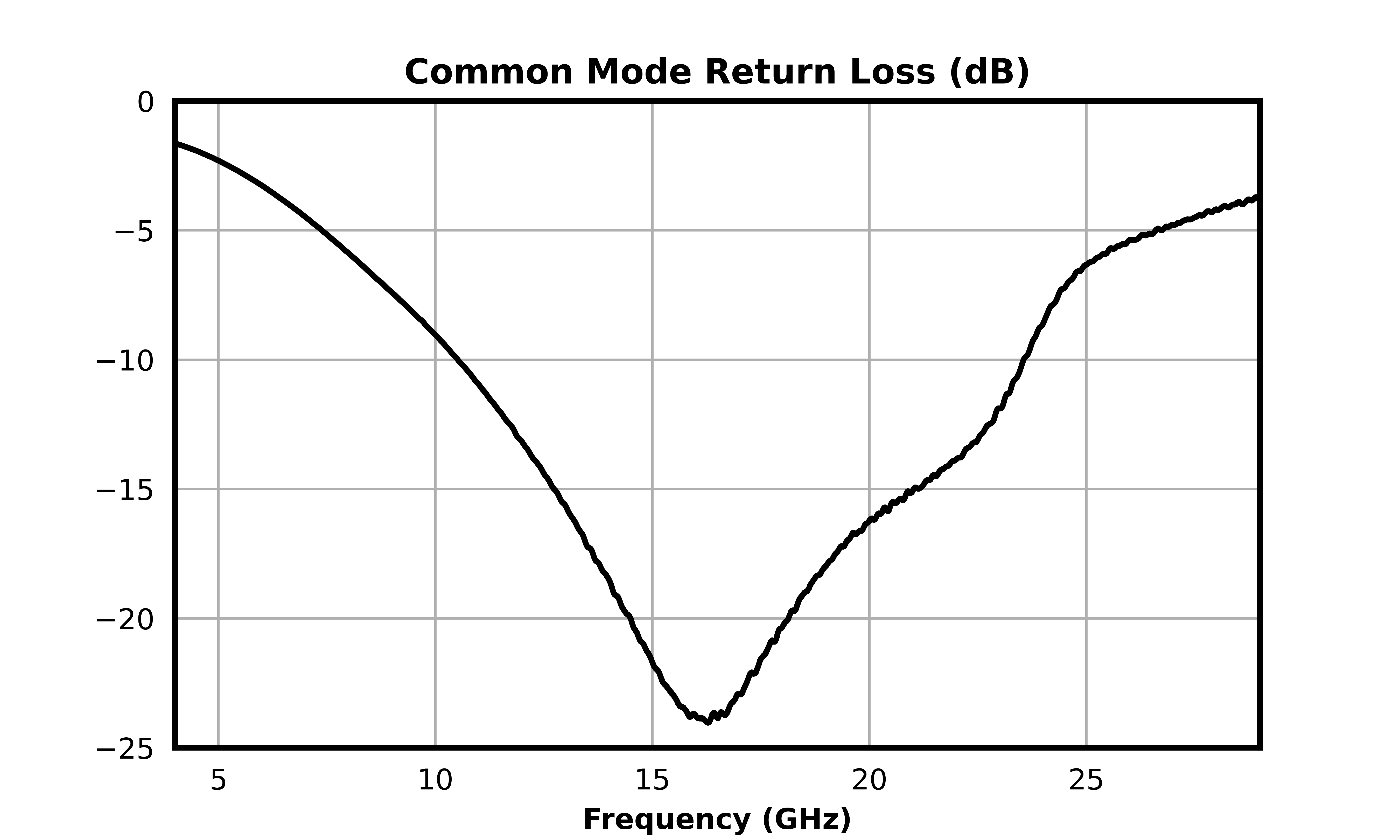

Common Mode Return Loss (dB) graph for MBAL-0624PSM

Measured data is de-embedded from fixture using AFR.

Typical Performance Scattering Parameters

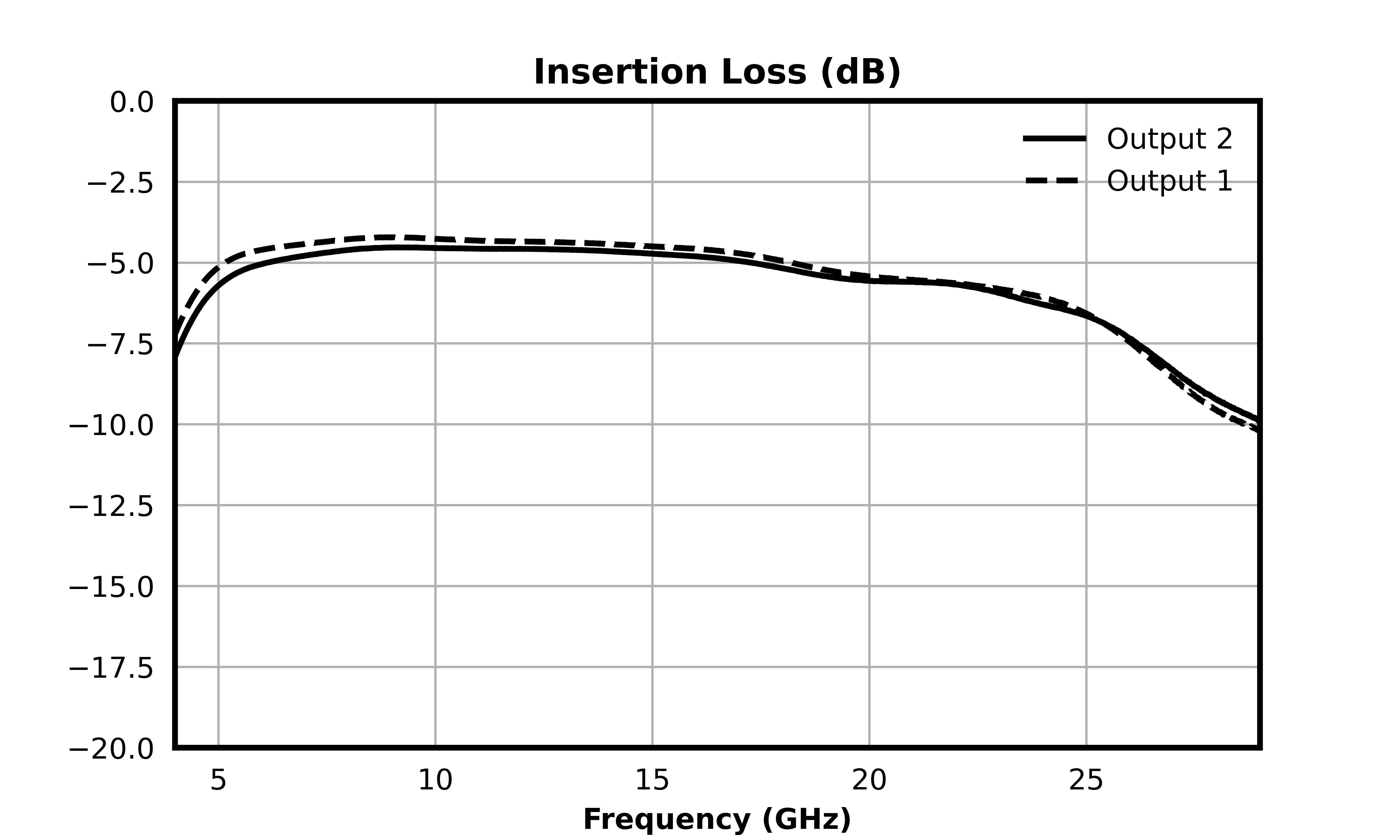

Insertion Loss (dB) graph for MBAL-0624PSM

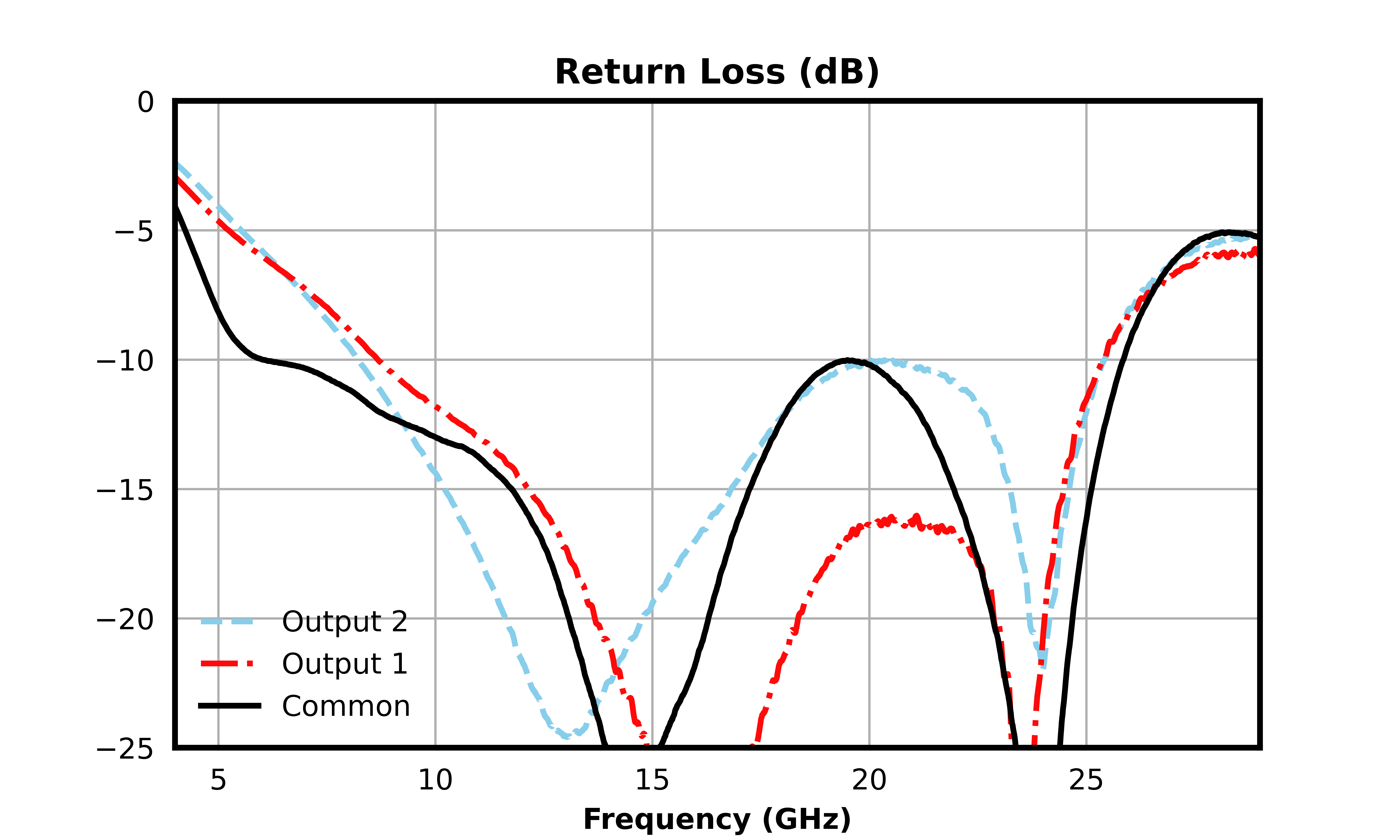

Return Loss (dB) graph for MBAL-0624PSM

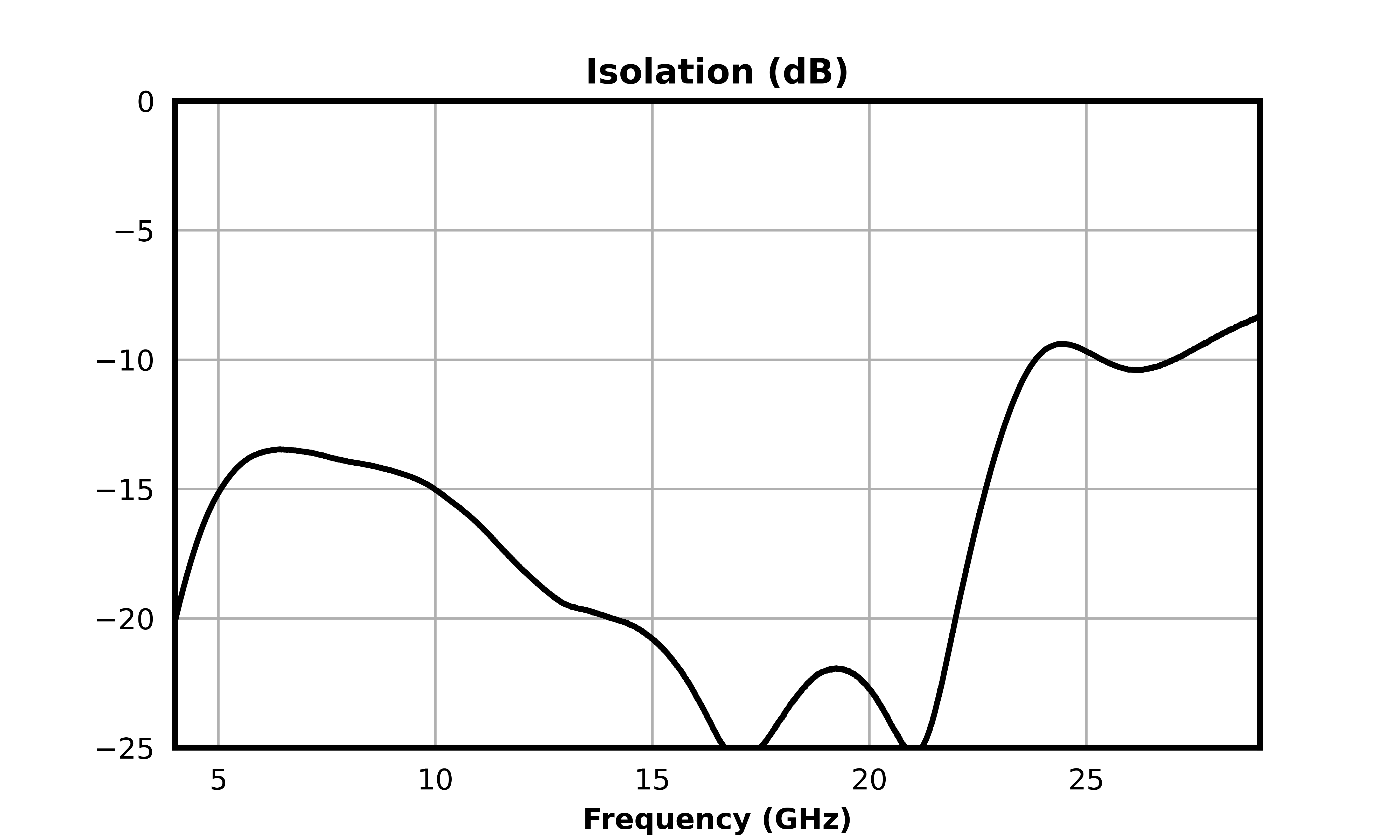

Isolation (dB) graph for MBAL-0624PSM

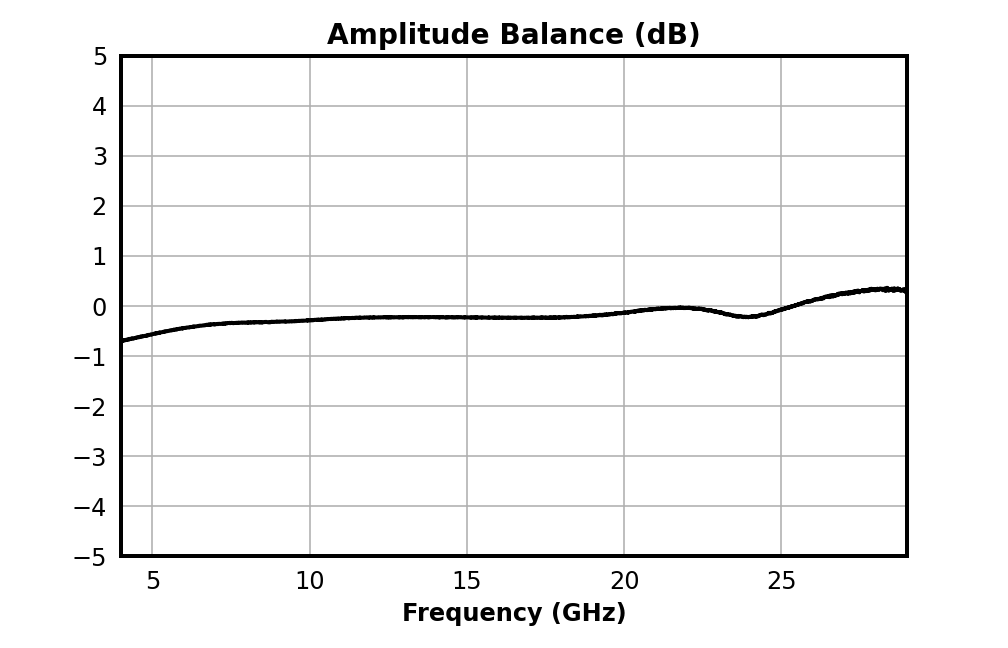

Amplitude Balance (dB) graph for MBAL-0624PSM

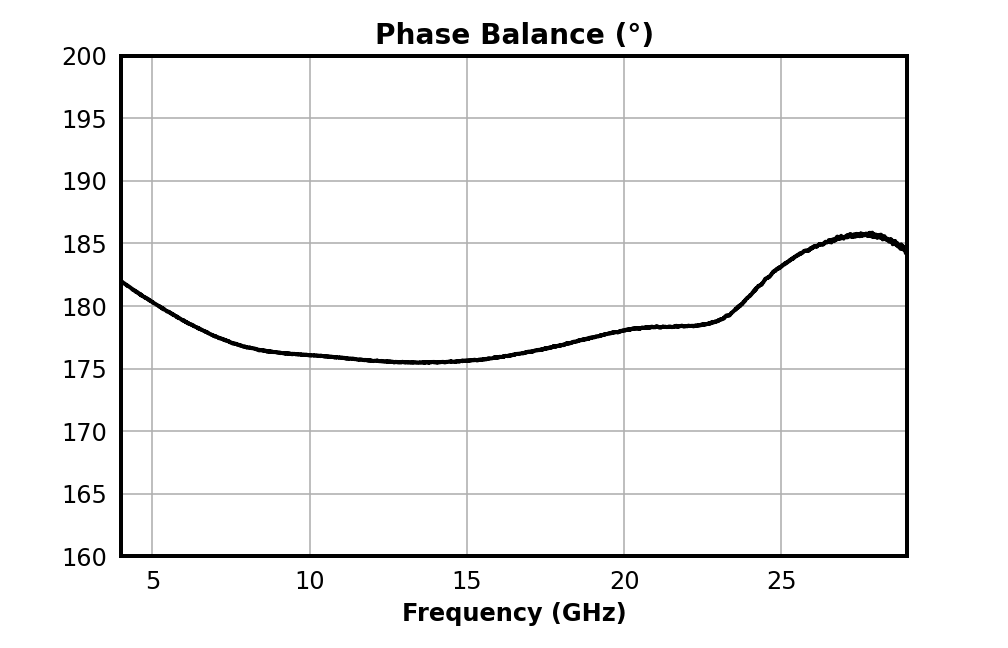

Phase Balance (°) graph for MBAL-0624PSM

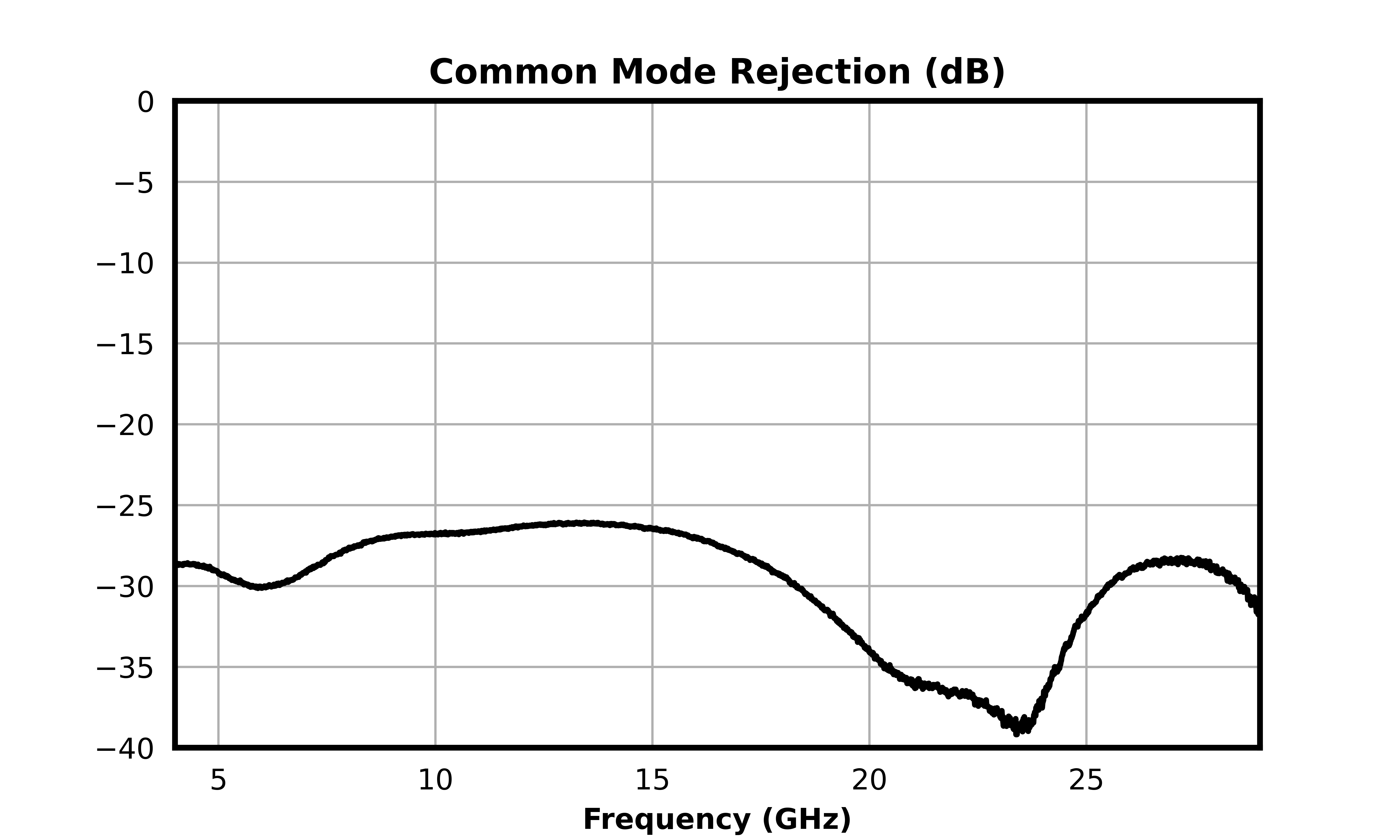

Common Mode Rejection (dB) graph for MBAL-0624PSM

Measured data is de-embedded from fixture using AFR.

Specifications

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Frequency Range-6 24---GHz
Insertion Loss as a Mode Converter Temp = 25°C
6 24-1.7-dB
Nominal Phase Shift Temp = 25°C
- --180-°
Common Port Return Loss Temp = 25°C
6 24-14-dB
Common Mode Return Loss Temp = 25°C
6 24-14-dB
Output Return Loss Temp = 25°C
6 24-13-dB
Isolation Temp = 25°C
6 24-19-dB
Amplitude Balance Temp = 25°C
6 24-0.2-dB
Phase Balance Temp = 25°C
6 24-3.5-°
Common Mode Rejection Temp = 25°C
6 24-28-dB
Impedance Temp = 25°C
- --50-Ω
Impedance Ratio -6 24-2:1--

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-1.3 x 2.0 mm
Moisture Sensitivity Level-MSL 1

Port Configuration and Functions

Port Diagram

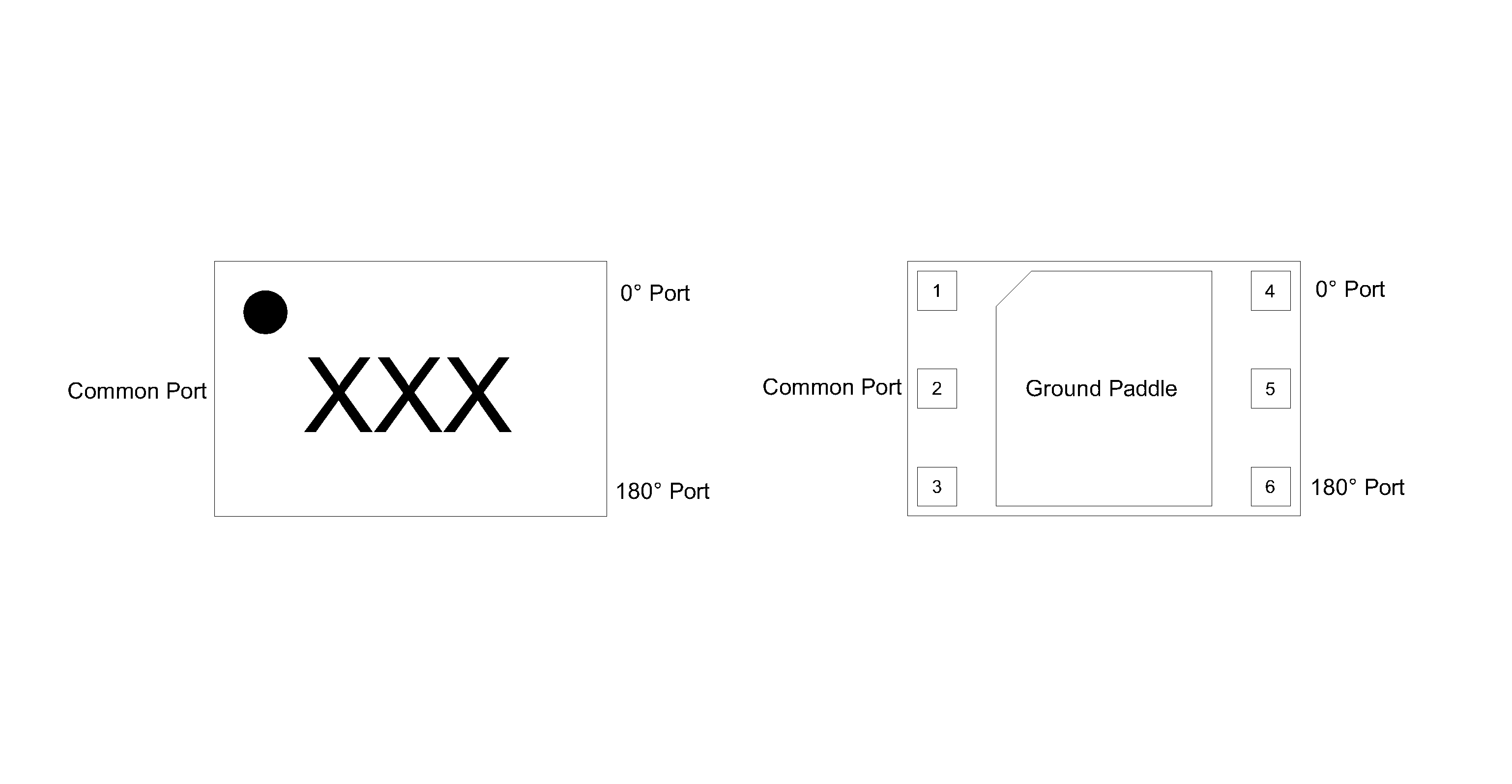

Diagram of the port configuration for MBAL-0624PSM

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Ground PaddleGnd Ground paddle should be connected to RF groundEquivalent circuit for the Gnd
Pin 1Non-connect (NC) Pin 1 is not connected internally and should be tied to RF ground.Equivalent circuit for the Non-connect (NC)
Pin 2Common Pin 2 is the common input port. It is DC open to ground.Equivalent circuit for the Common
Pin 3Non-connect (NC) Pin 3 is not connected internally and should be tied to RF ground.Equivalent circuit for the Non-connect (NC)
Pin 4Out 1 / 0° Port (Balanced) Pin 4 is an output port. It is DC short to ground.Equivalent circuit for the Out 1 / 0° Port (Balanced)
Pin 5Non-connect (NC) Pin 5 is not connected internally and should be tied to RF ground.Equivalent circuit for the Non-connect (NC)
Pin 6Out 2 / 180° Port (Balanced) Pin 6 is an output port. It is DC short to ground.Equivalent circuit for the Out 2 / 180° Port (Balanced)

Mechanical Data

Outline Drawing

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

Outline Drawing

Evaluation Board

Evaluation Board - Outline Drawing

Outline Drawing

Revision History

Revision CodeRevision DateComment
-2026-02-24Initial Release
